AMGO 409-DPX | Max-Capacity 4-Post Parking Lift for SUVs & Trucks

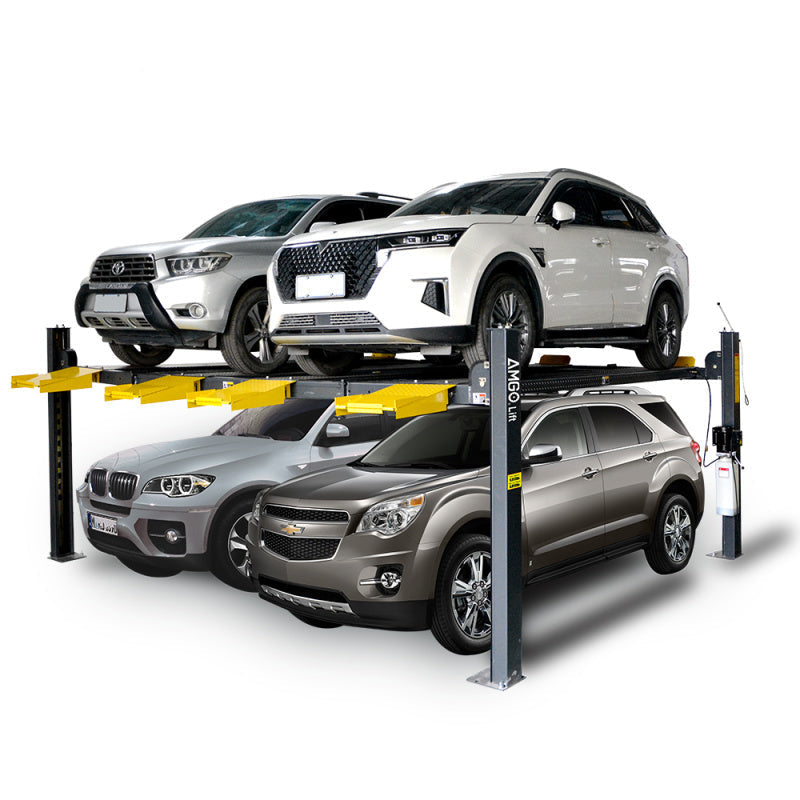

AMGO 409-DPX Double Vehicle Storage Lift – Designed for Larger Vehicles

Tired of struggling with oversized trucks and lifted SUVs that barely fit on standard double parking lifts? The AMGO 409-DPX Double Vehicle Storage Lift is here to change the game. With a design that extends 27 inches longer and 14 inches higher than the standard 409-DP, this lift gives your bulkiest vehicles the space they need to park comfortably and safely.

Perfect for garages, barns, or any space where storage is at a premium, the 409-DPX features a heavy-duty 9,000 lb lifting capacity—enough to handle even the most demanding vehicles. It lifts to a convenient working height of over 87 inches, allowing for easy access to the vehicle below. Despite its robust design, it’s space-efficient, thanks to a low-profile design and foldable ramps that save room when not in use.

Say goodbye to cramped storage and frustrating parking situations. The AMGO 409-DPX offers the ideal solution for optimizing your shop's space, accommodating a wide variety of vehicles, and keeping customers satisfied with a more organized and professional environment.

Specifications:

• Lifting Capacity: 9,000 lbs (max single car weight: 6,000 lbs on 1 side)

• Max Lifting Height: 87 11/16"

• Low Profile Design: Minimum platform height of only 6 3/32"

• Safety Features: Primary & slack-cable safety devices, hidden safety locks with manual 1-point release

• Ramp Design: Exclusive foldable drive-on ramps (4 units)

• Strength: Double S-shaped columns for increased strength

• Platform Surface: Diamond platforms for anti-slip protection

• Safety Ladders: Adjustable multiple safety ladders

• Pull Rope: Comes standard

• Outdoor Use: Optional motor cover for outdoor installation

• Power Unit: 110V standard (lifting time: 120s); specify when ordering

• Shipping Weight: 3,142 lbs

• Pallet Dimensions: 201"L x 21"W x 29"H

Optional Accessories (sold separately):

• J6H – Pump Rolling Jack

• J6A – Pneumatic Rolling Jack

• 40806 – Plastic Oil Tray

• 40812 – Storage Wave Panels

• 40810 – Motor Protect Cover (for outdoor use)

Shipping Info:

• Flat-Rate Shipping Fee: $999

• Warehouse Pickup Locations:

  • Kalamazoo, MI 49048

  • Dallas, TX 75211

  • Manning, SC 29102

  • Temecula, CA 92590

409-DPX Manual
