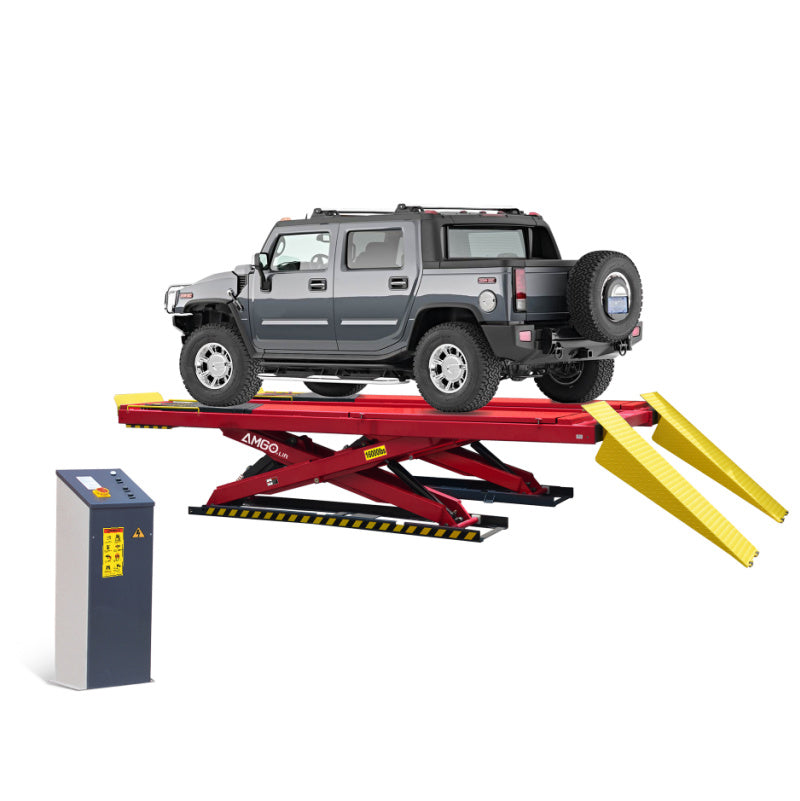

AX-16A Alignment Scissor Lift by Amgo
Is your current alignment lift, well, a bit underwhelming? Does it struggle with even mid-size trucks, leaving you stranded on inefficiency island? Look no further, weary mechanic, for the AMGO AX-16A has arrived. This burly 16,000-pound lifting beast boasts a 2.0HP motor and a sturdy, X-frame design, making those larger vehicles a breeze. Plus, say goodbye to uneven platforms thanks to the twin synchronous cylinders. Safety first, right? That's why the AX-16A features an electro-air controlled self-locking mechanism and a diamond-plate surface for maximum grip.
The AX-16A will show you a world where you can tackle any alignment job with confidence. A world where increased efficiency translates to more profit. The AMGO AX-16A can make that world a reality. Don't get stuck in the slow lane of outdated lifts. Invest in the AMGO AX-16A and watch your productivity soar!
Scissor Lift AX-16A Specifications:
-
Lifting Capacity: 16,000 lbs
-
Lifting Time: 110 seconds
-
Max. Lifting Height: 73 5/8" (1870 mm)
-
Min. Height: 13" (330 mm)
-
Runway Length: 213 3/4" (5428 mm)
-
Overall Width: 94 1/8" (2390 mm)
-
Width Between Runways: 44 7/8" (1140 mm)
-
Overall Length (Incl. Ramps): 274 1/8" (6964 mm)
-
Min. Four Wheel Align: 98" (2490 mm)
-
Max. Four Wheel Align: 184 1/2" (4680 mm)
-
Max. Two Wheel Align: 190 1/2" (4840 mm)
-
Gross Weight: 6,345 lbs (2878 kg)
-
Motor: 2.0 HP, 220V/60Hz, single phase
AX-16A Manual
Amgo AX-16A Installation Instruction
AX-16A Alignment Scissor Lift Optional Items (sold separately):
-
RJ-8A - 8,000lb Rolling Jack - Pneumatic
- Turn Plate Kit: No. 40101 (Alignment Lift requires 2 units)
- Led lights: No. PX010
- Extension kit: No. PX003
- Air line kit: No. PX004
