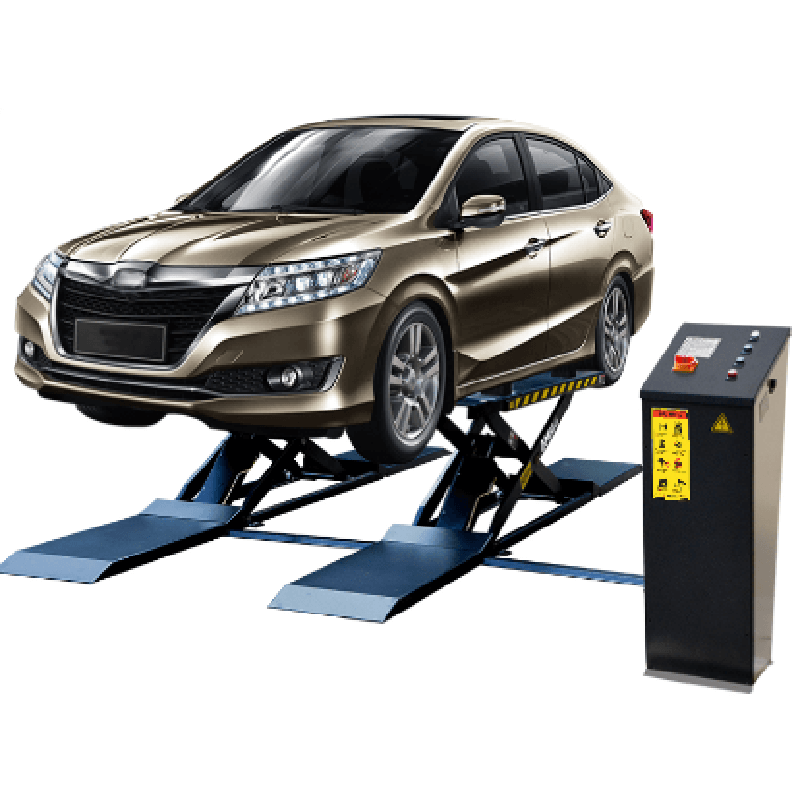

Amgo MRL09 – 9,000 lb Mid-Rise Scissor Lift
Low Clearance? No Problem.
Struggling to lift lowered vehicles or sports cars with minimal ground clearance? The Amgo MRL09 Mid-Rise Scissor Lift is specifically engineered to handle those challenges with ease. With a powerful 9,000 lb lifting capacity, this lift is ideal for servicing everything from compact cars to heavier stanced vehicles.
The MRL09 features ultra-low profile ramps, including a first-stage ramp height of just 2.5 inches, making it perfect for vehicles with low front lips or ground effects. A dual hydraulic synchronization system ensures level lifting, while thickened steel scissors and a hydraulic locking mechanism provide unmatched stability and safety.
Built with flexibility in mind, the adjustable platform length accommodates a variety of wheelbases, and you can choose between flush mount or surface mount installation—whatever works best for your shop layout.
Specifications – Amgo MRL09 Mid-Rise Lift:
-
Lifting Capacity: 9,000 lbs
-
Lifting Time: 29 seconds
-
Max Lifting Height: 47-1/4" (1200 mm)
-
Minimum Height: 5-3/8" (135 mm)
-
First Stage Ramp Height: 2-1/2" (65 mm)
-

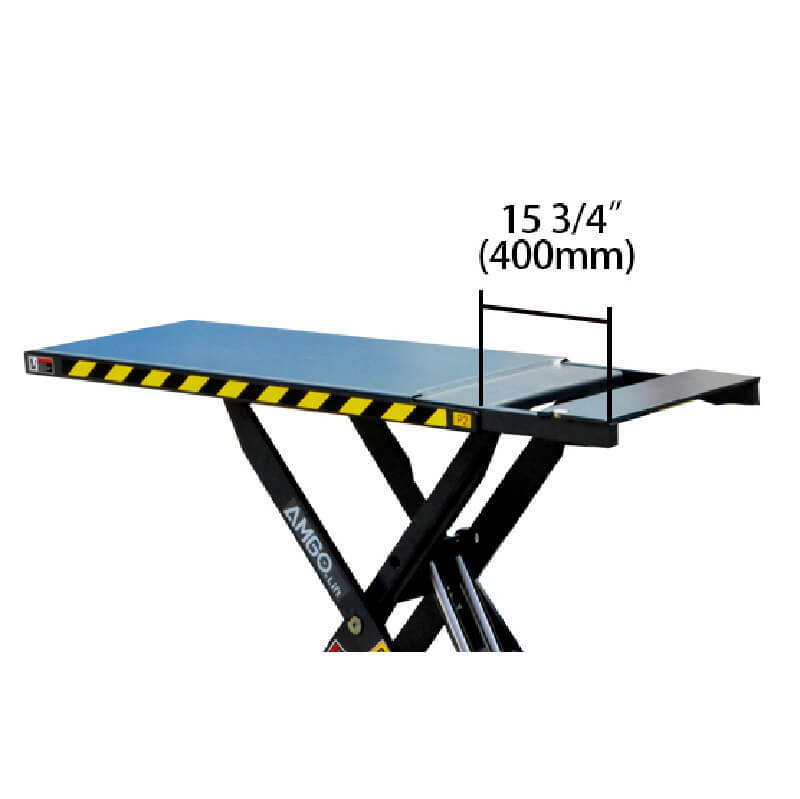

Runway Length: Adjustable from 61-3/8" to 77-1/8" (1560 – 1960 mm)
-
Overall Length (with ramps): 156-3/4" (3980 mm)
-
Overall Width: 76-3/4" (1950 mm)
-
Width Between Runways: 29-1/2" (750 mm)
-
Motor: 2.0 HP, 220V/60Hz, single phase
-
Gross Weight: 1,788 lbs (811 kg)
-
Pallet Dimensions:
-
67" x 24" x 26"
-
19" x 17" x 48"
-
Key Features:
-
Low-profile two-stage ramps – ideal for ultra-low vehicles
-
Dual hydraulic cylinders with synchronization for even lifting
-
Thickened steel lifting scissors for strength and stability
-
Adjustable platform fits vehicles with different wheelbases
-
Safety-focused design: hydraulic locking system, 24V control voltage, and ETL-certified power unit
-
Flexible installation: flush or surface mount
-
Amgo 5-3-2 Global Warranty:
-
5 years on steel components
-
3 years on hydraulic parts
-
2 years on electrical components
-
