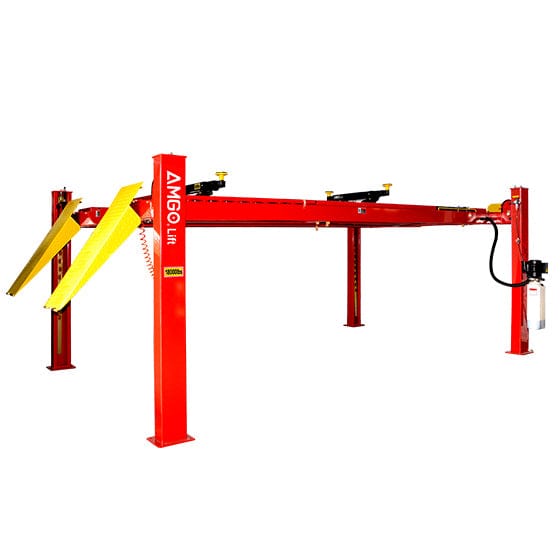

Amgo PRO-18A – 18,000 lb 4-Post Alignment Lift
When it comes to alignment lifts, many fall short—whether it’s a lack of lifting power, oversized footprints, or features that slow down your workflow. The Amgo PRO-18A changes that.
With a robust 18,000 lb lifting capacity, the PRO-18A is built to handle even the heaviest vehicles effortlessly. Its compact design is ideal for smaller service bays, and anti-slip diamond plate runways enhance safety during use. Amgo’s commitment to strict quality control ensures smooth, reliable operation every time.
This lift is a comprehensive solution—no need for extra equipment, helping you save both time and money. Backed by Amgo’s 5-3-2 warranty (5 years on the steel structure, 3 years on hydraulic components, and 2 years on electrical parts), it delivers both performance and peace of mind.
Specifications – PRO-18A Alignment Lift:
-
Lift Capacity: 18,000 lb
-
Style: Alignment
-
Overall Length (with ramps): 292-3/4"
-
Overall Length (without ramps): 252-1/4"
-
Max Lifting Height: 75-3/8"
-
Minimum Height: 9-7/8"
-
Width Between Posts: 122-3/8"
-
Width Between Runways: 51-1/4"
-
Outside Edge of Runways: 95-1/2"
-
Motor: 2.0HP, 220V/60Hz, single phase
-
Runway Surface: Anti-slip diamond plate
-
Weight: 3,935 lbs
-
Cable Wire Thickness: 1/2" (aircraft-grade)
-
Pallet Dimensions: 255" x 24" x 35"
-
Safety Features: Mechanical self-lock with air-released safety lock system
-
Smooth Performance: Cylinders include flow restrictors for controlled lift speed
Downloadable Resources:
Optional Accessories (Sold Separately):
-
RJ-10A Rolling Jack
-
LED Light Kit (No. 40103)
-
Turnplate Set (No. 40101) – 2 units required for alignment
-
Airline Kit (No. 40102)
-
Runway Extension Kit (No. 41801) – Adds 29" to runway length
