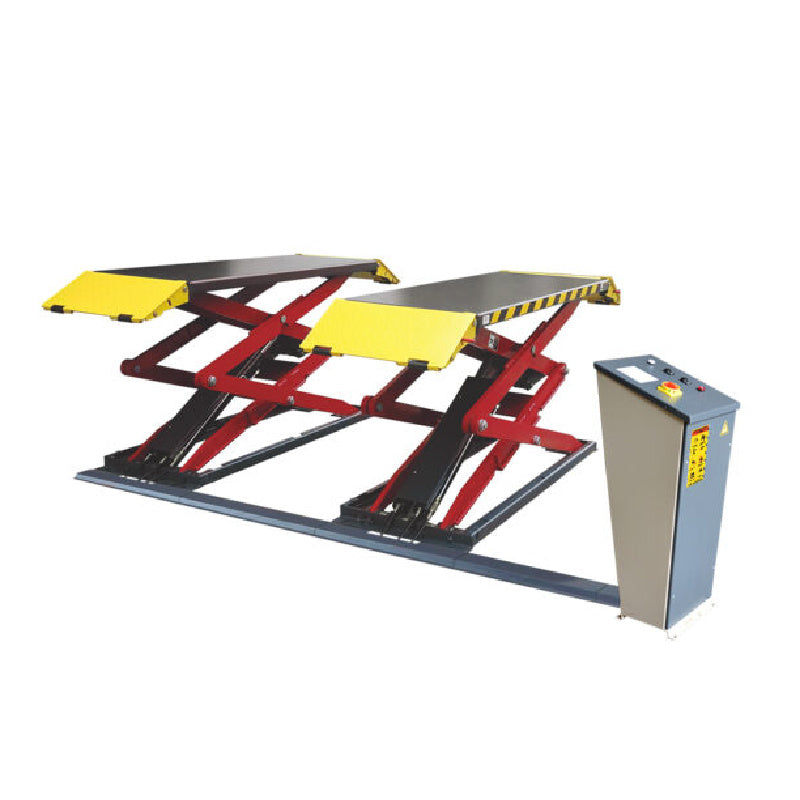

Amgo XL-7 – 7,000 lb Full-Rise Scissor Car Lift
Tight on space but need serious lifting power? The Amgo XL-7 is the perfect solution for compact work bays, offering a low-profile design with a minimum height of just 4.5 inches. Despite its small footprint, the XL-7 delivers big performance with a 7,000 lb lifting capacity, raising vehicles to a full 78-3/4 inches for easy access underneath.
Designed with safety and efficiency in mind, the XL-7 features a 24V low-voltage control system, dual synchronized cylinders, and a dual locking system—mechanical and hydraulic—for dependable, level lifting every time. Additional safety features like hose burst valves, a tone alarm, and a dual-button lowering system make this one of the safest compact scissor lifts available.
Whether you're servicing sedans or SUVs, the Amgo XL-7 combines versatility, safety, and compact convenience to maximize your workspace without compromising power.
Specifications – Amgo XL-7 Scissor Lift:
-
Lift Capacity: 7,000 lbs (3,000 kg)
-
Max Lifting Height: 78-3/4" (2000 mm)
-
Minimum Height: 4-1/2" (115 mm)
-
Lifting Time: 42 seconds
-
Overall Length: 80" (2032 mm)
-
Runway Length: 57-5/8" (1464 mm)
-
Overall Width: 76-3/4" (1950 mm)
-
Width Between Runways: 29-1/2" (750 mm)
-
Motor: 2.0 HP, 220V/60Hz, single phase
-
Gross Weight: 1,949 lbs (884 kg)
-
Pallet Dimensions:
-
67" x 28" x 21"
-
19" x 17" x 48"
-
Key Features:
-
24V control system for safe, low-voltage operation
-
Dual synchronized cylinders for even lifting
-
Hydraulic cylinders with built-in hose burst valves
-
Dual safety locks (mechanical and hydraulic)
-
Safety stop at 11-7/8" height with dual-button operation to lower
-
Audible tone alarm adds an extra layer of protection
-
Amgo 5-3-2 Warranty:
-
5 years on steel components
-
3 years on hydraulic parts
-
2 years on electrical components
-
