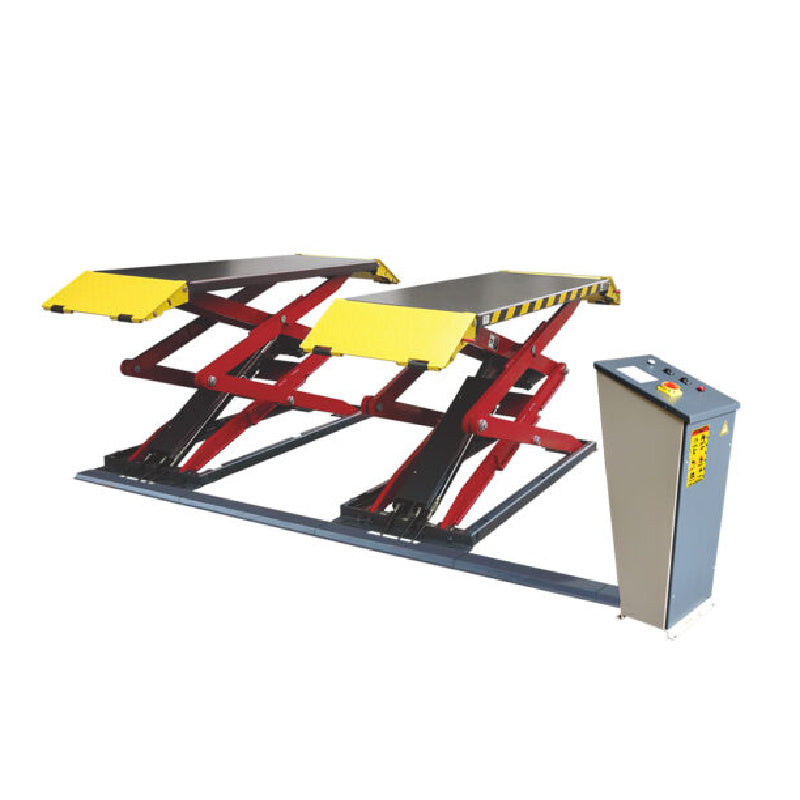

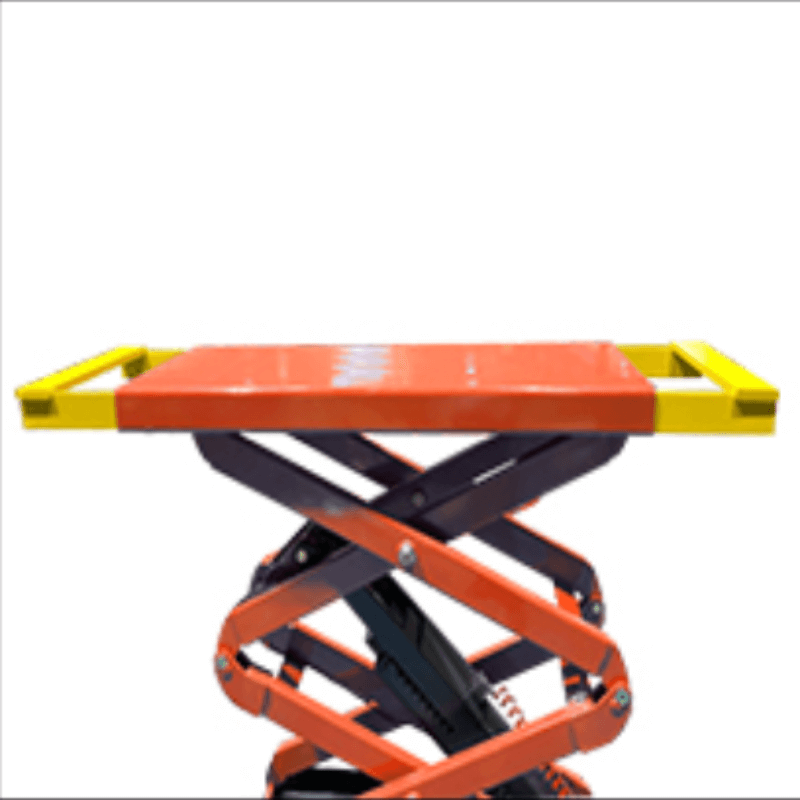

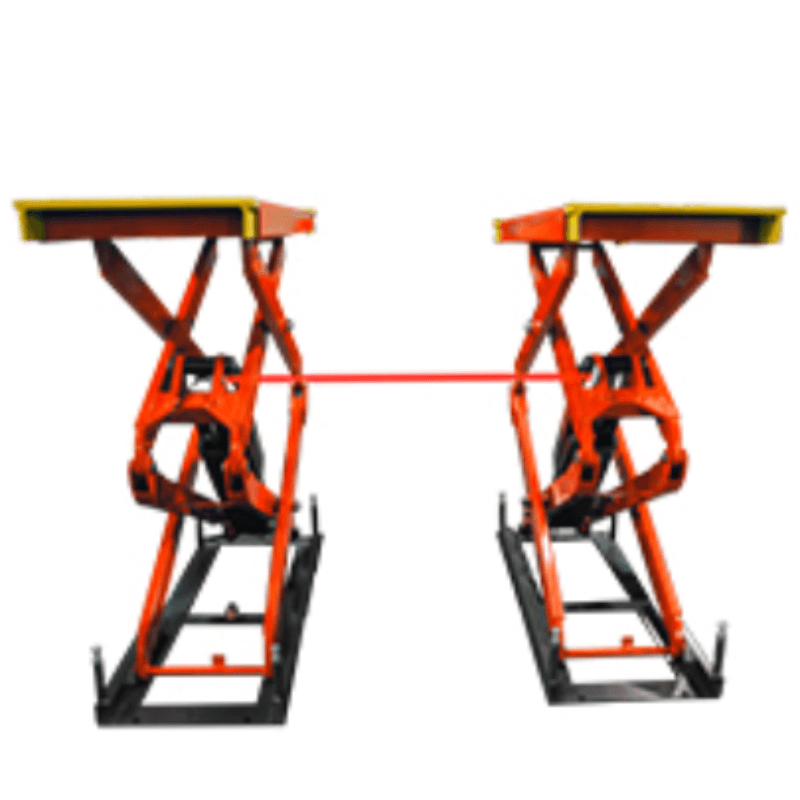

Amgo XL-9F – 9,000 lb Full-Rise Flush-Mount Scissor Lift
Tight spaces and lifting limitations shouldn’t hold your shop back. Heavy vehicles crowding your floor space not only slow down productivity but also strain your workflow—and your back. The Amgo XL-9F is here to change that.
Engineered to handle up to 9,000 lbs, this full-rise scissor lift features a flush-mount design that keeps your shop floor open and accessible. Its extendable platforms provide versatility for various vehicle sizes, while built-in safety features offer confidence with every lift. Whether you're handling compact cars or larger vehicles, the XL-9F maximizes efficiency without sacrificing space.
Key Features – XL-9F Scissor Lift:
-
Lift Capacity: 9,000 lbs
-

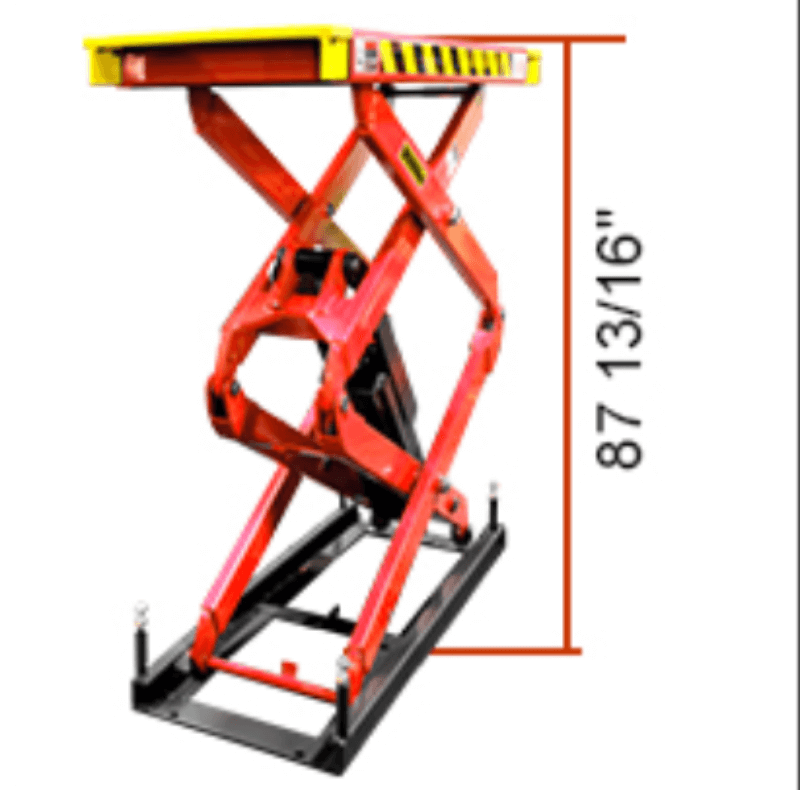

Max Lifting Height: 87-3/4" (2230 mm)
-

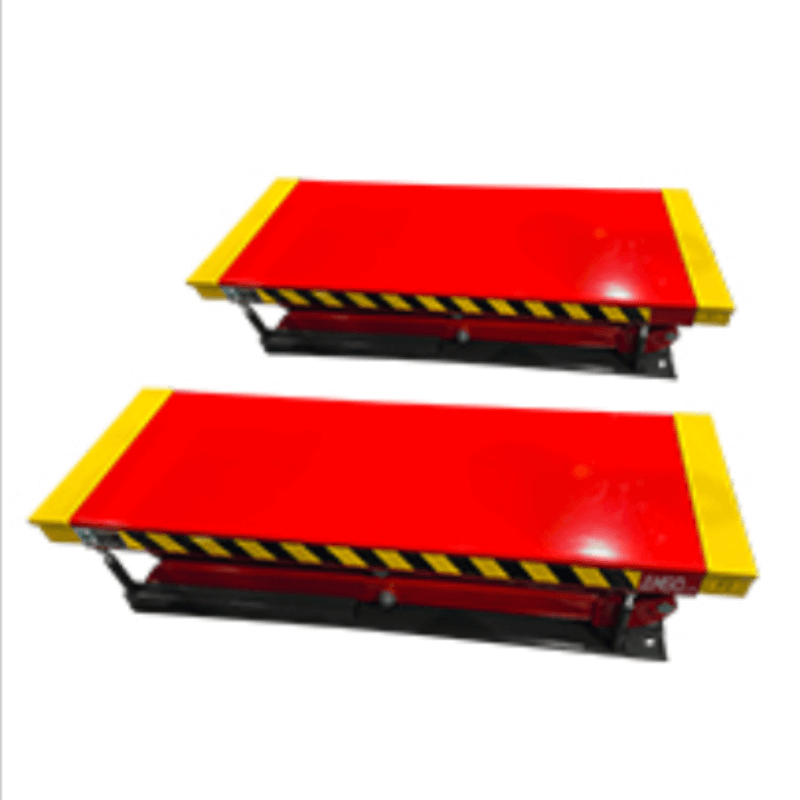

Minimum Height: 13-3/4" (350 mm)
-
Lifting Time: 49 seconds
-
Runway Length: Adjustable from 65-1/8" to 80-7/8" (1654 - 2054 mm)
-
Overall Width: 74-3/4" (1900 mm)
-
Width Between Runways: 31-1/2" (800 mm)
-
Motor: 2.0 HP, 220V/60Hz, single phase
-
Gross Weight: 2,028 lbs (920 kg)
Special Highlights:
-

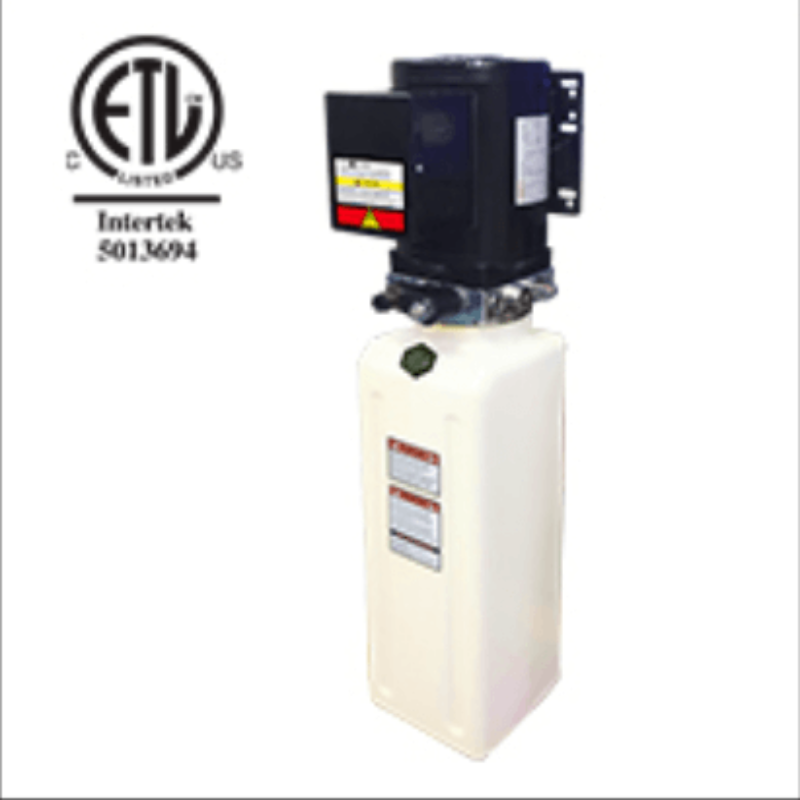

Electric/hydraulic power system
-
Dual synchronous cylinders ensure level lifting on both platforms
-
Extendable platforms accommodate various vehicle sizes
-

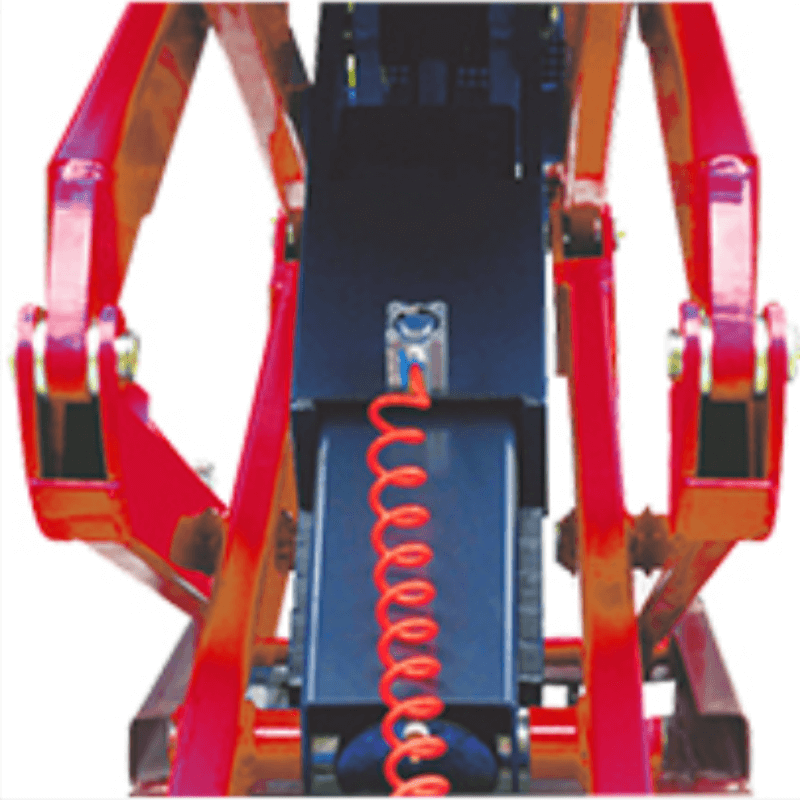

Mechanical locking system with air-operated safety release
-
Amgo 5-3-2 Warranty:
-
5 years on steel components
-
3 years on hydraulic parts
-
2 years on electrical components

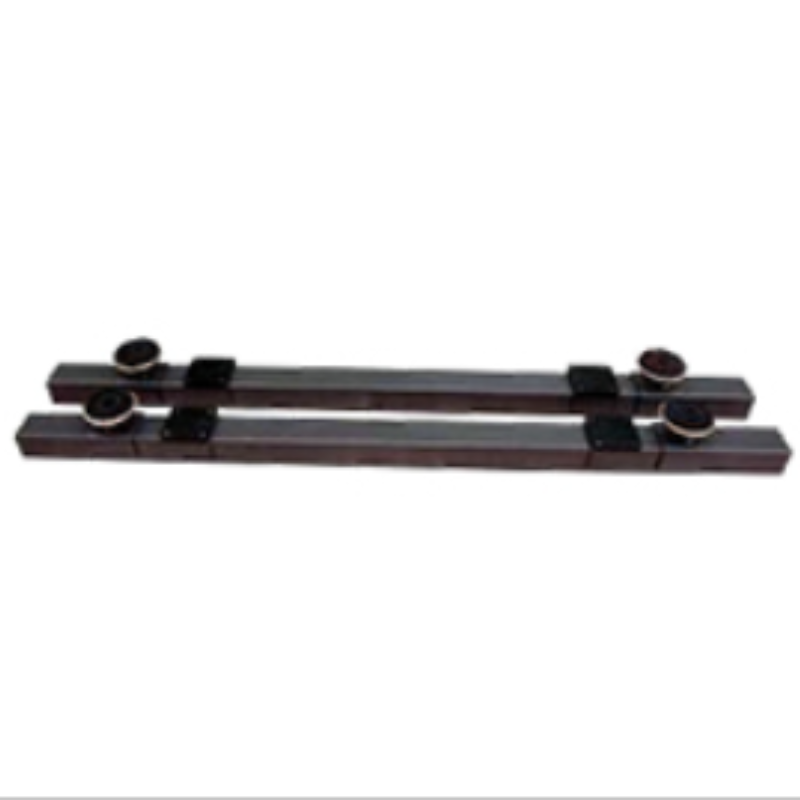

Optional Accessory (Sold Separately):
