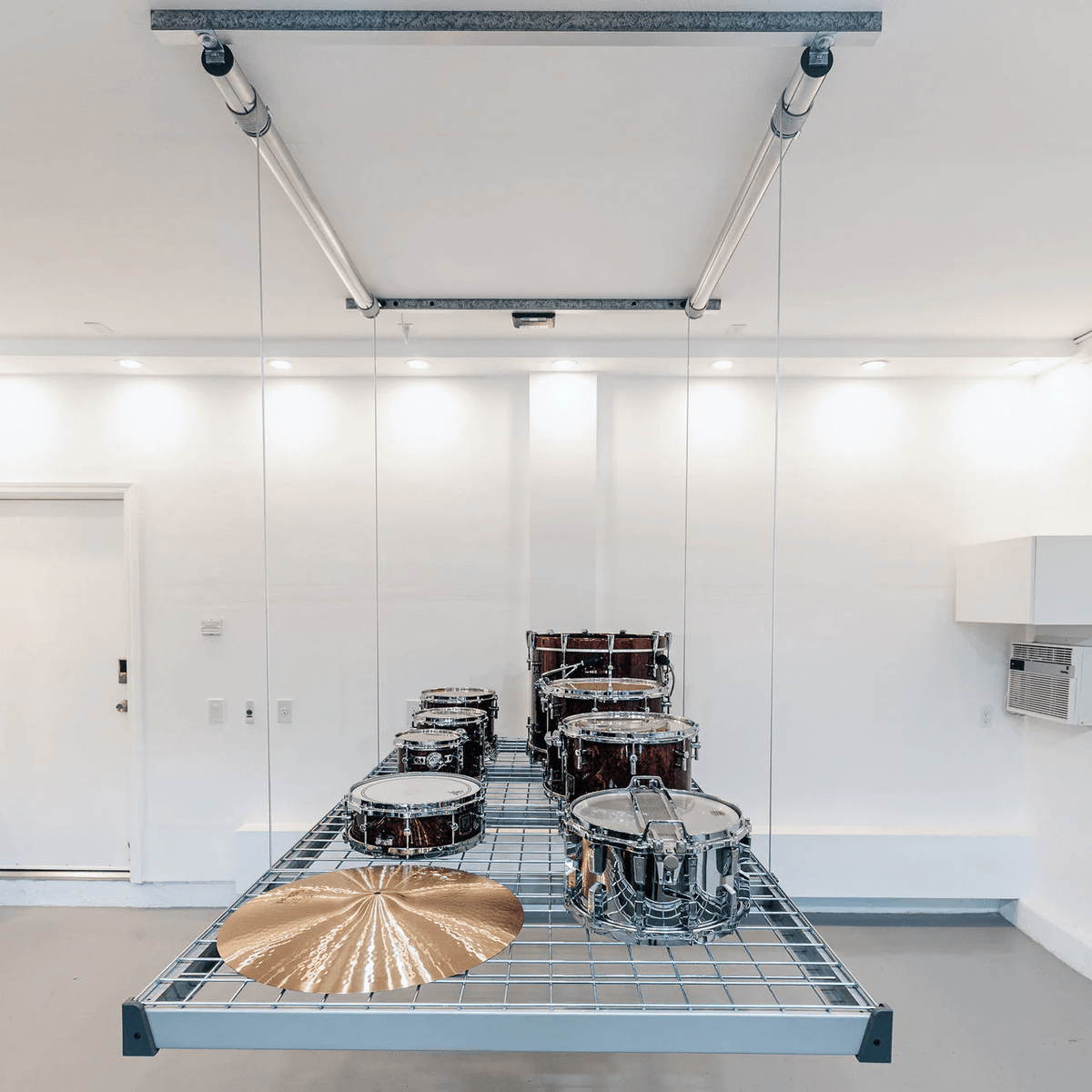

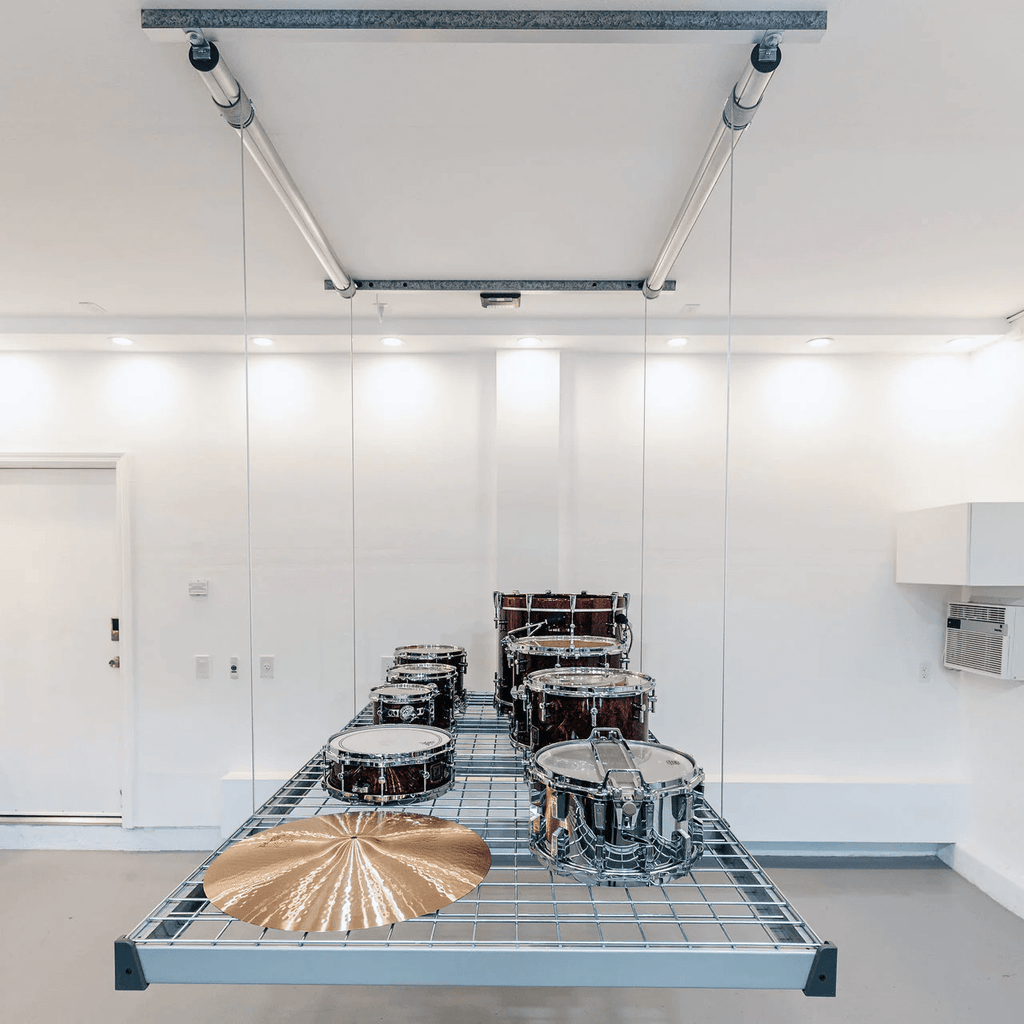

The Auxx Lift Ceiling Storage Lift
Easy Storage at the Push of a Button

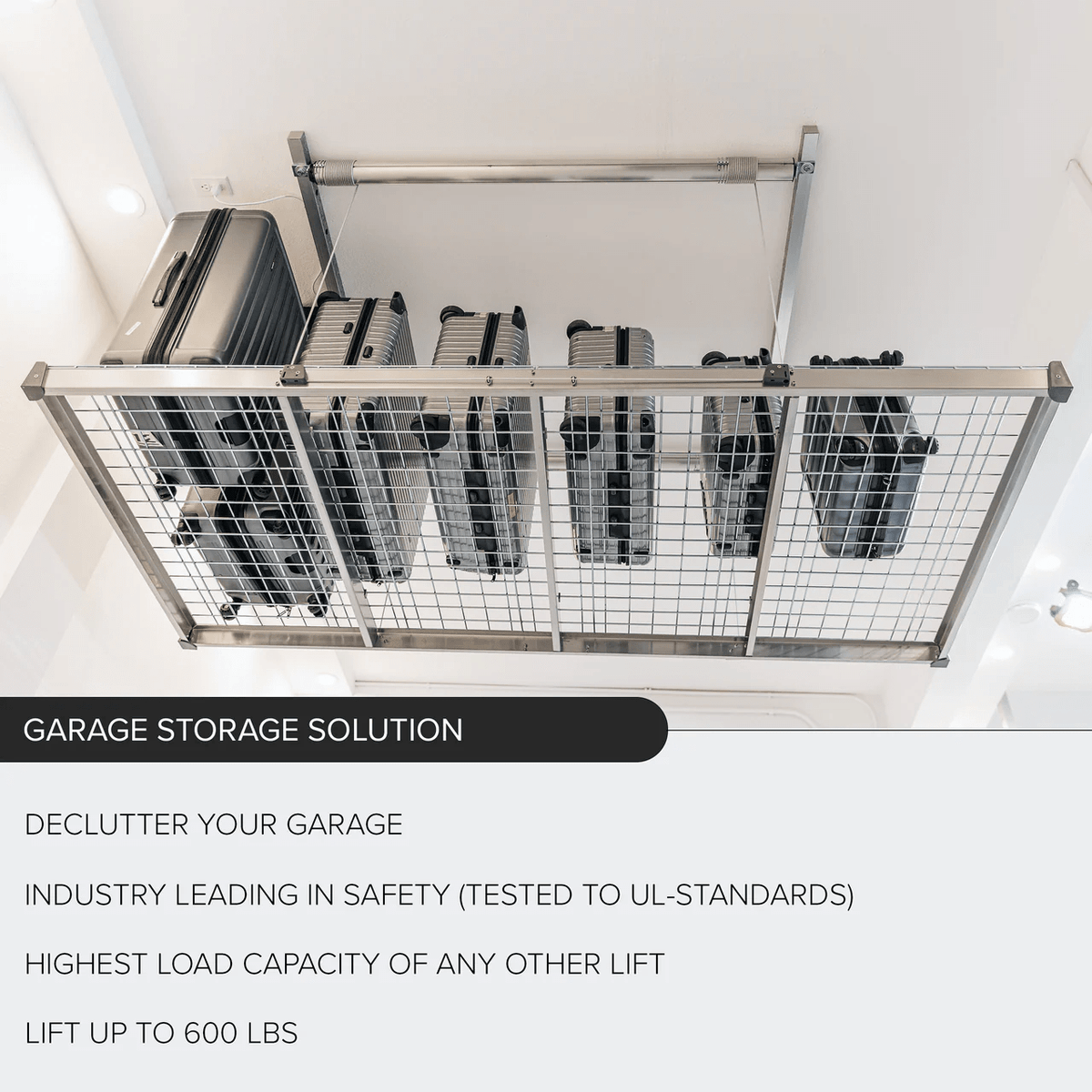

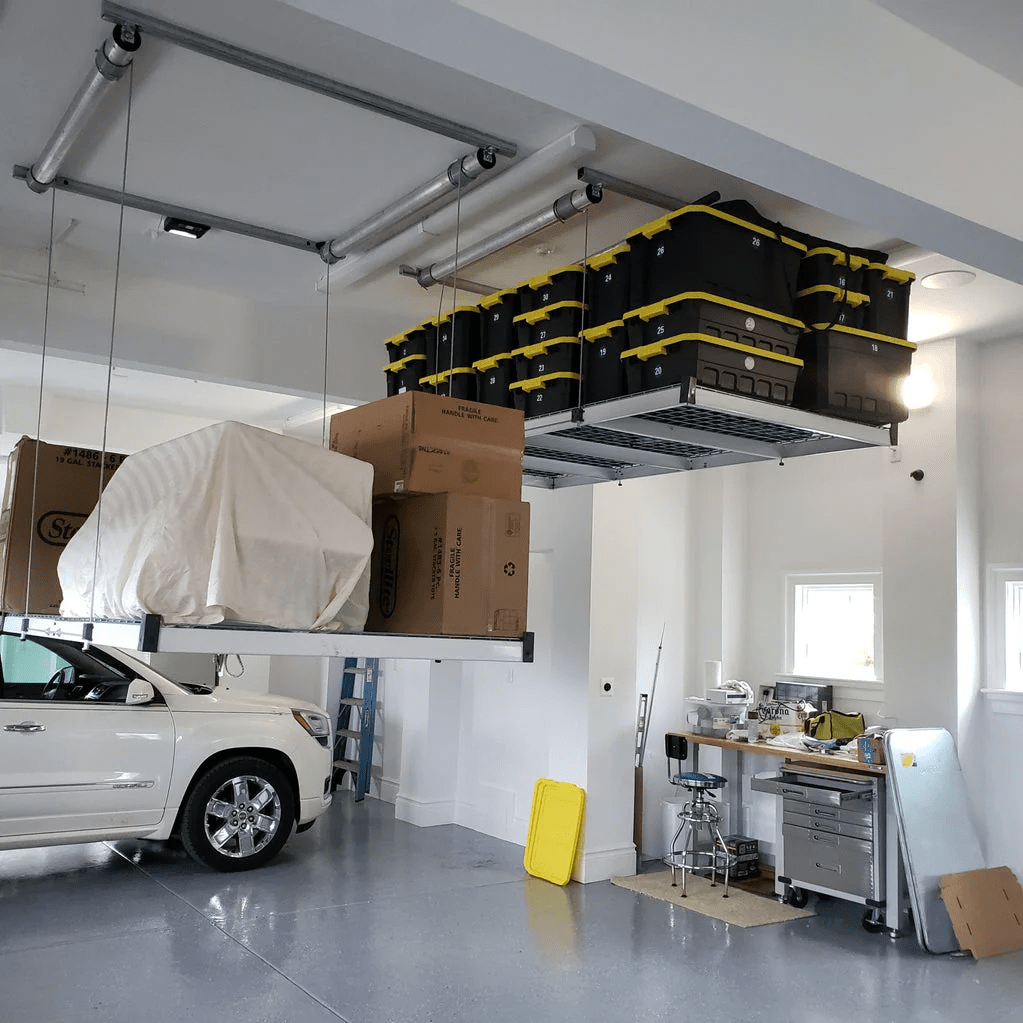

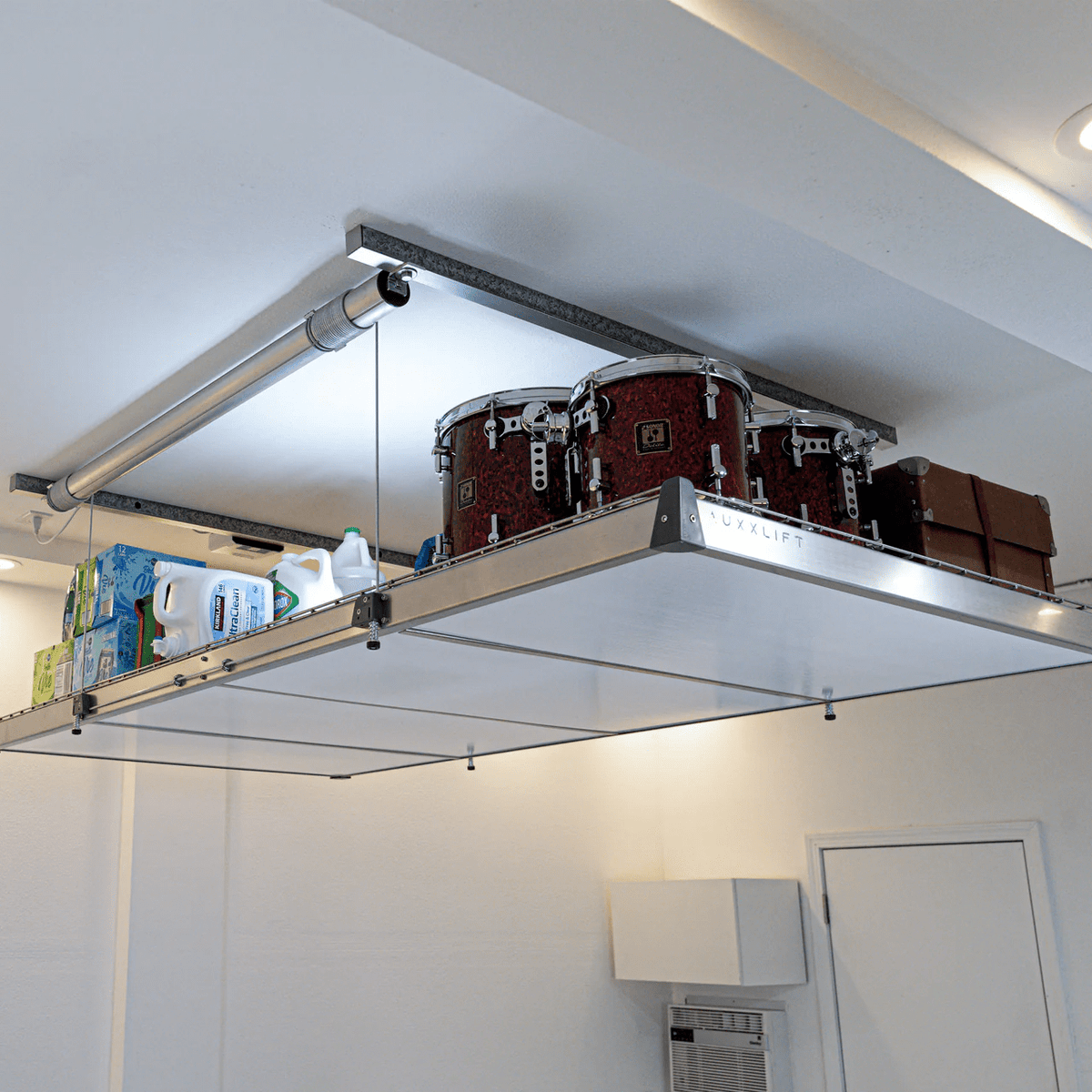

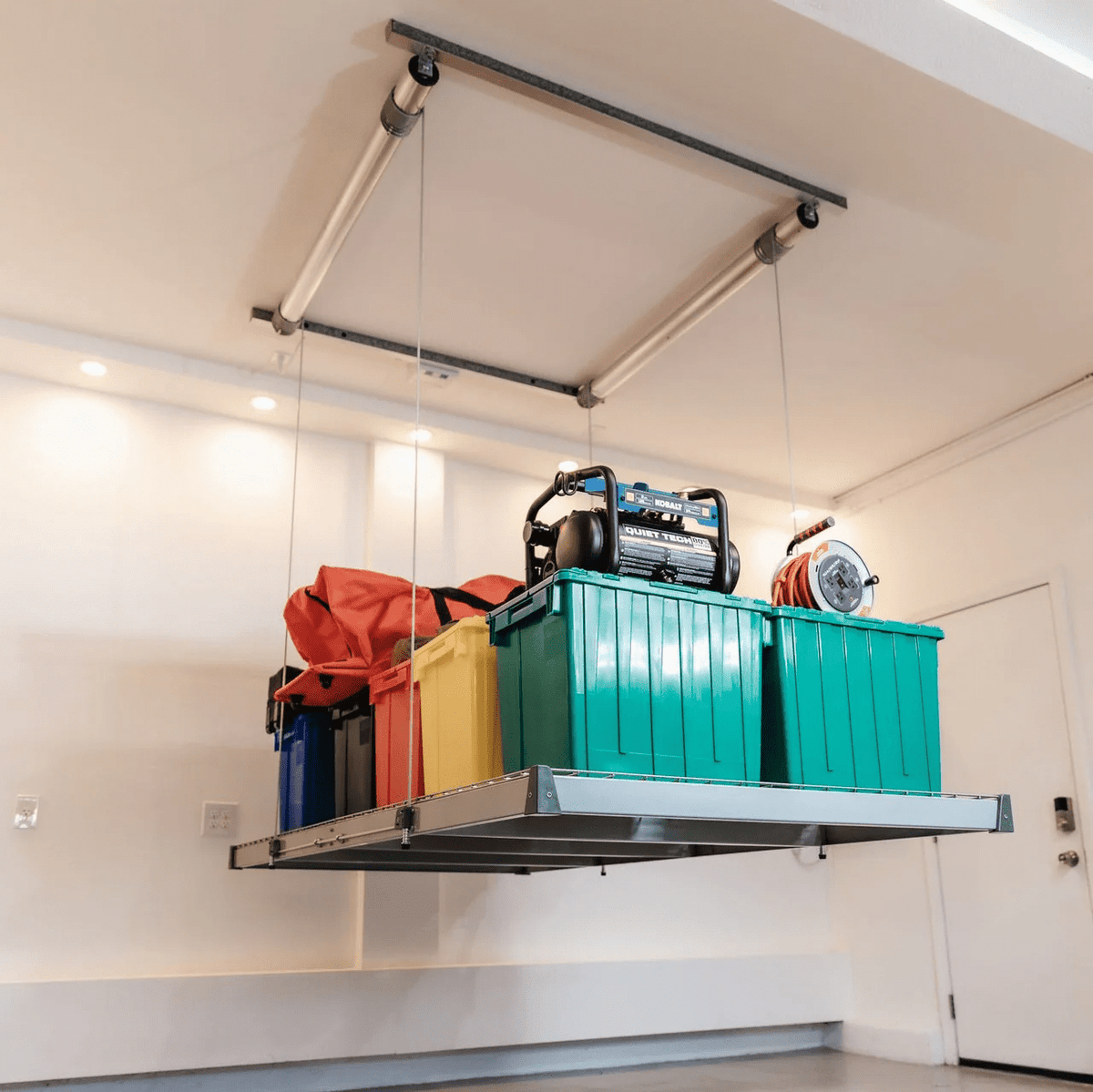

Upgrade your garage with the Auxx-Lift, a motorized ceiling storage platform that makes organizing your space simple and safe. Perfect for storing tools, holiday decorations, or heavy gear, it’s built to handle your toughest storage challenges.

Key Features

• Heavy-Duty Lifting: Hold up to 600 lbs with strong steel aircraft cables for reliable and secure storage.

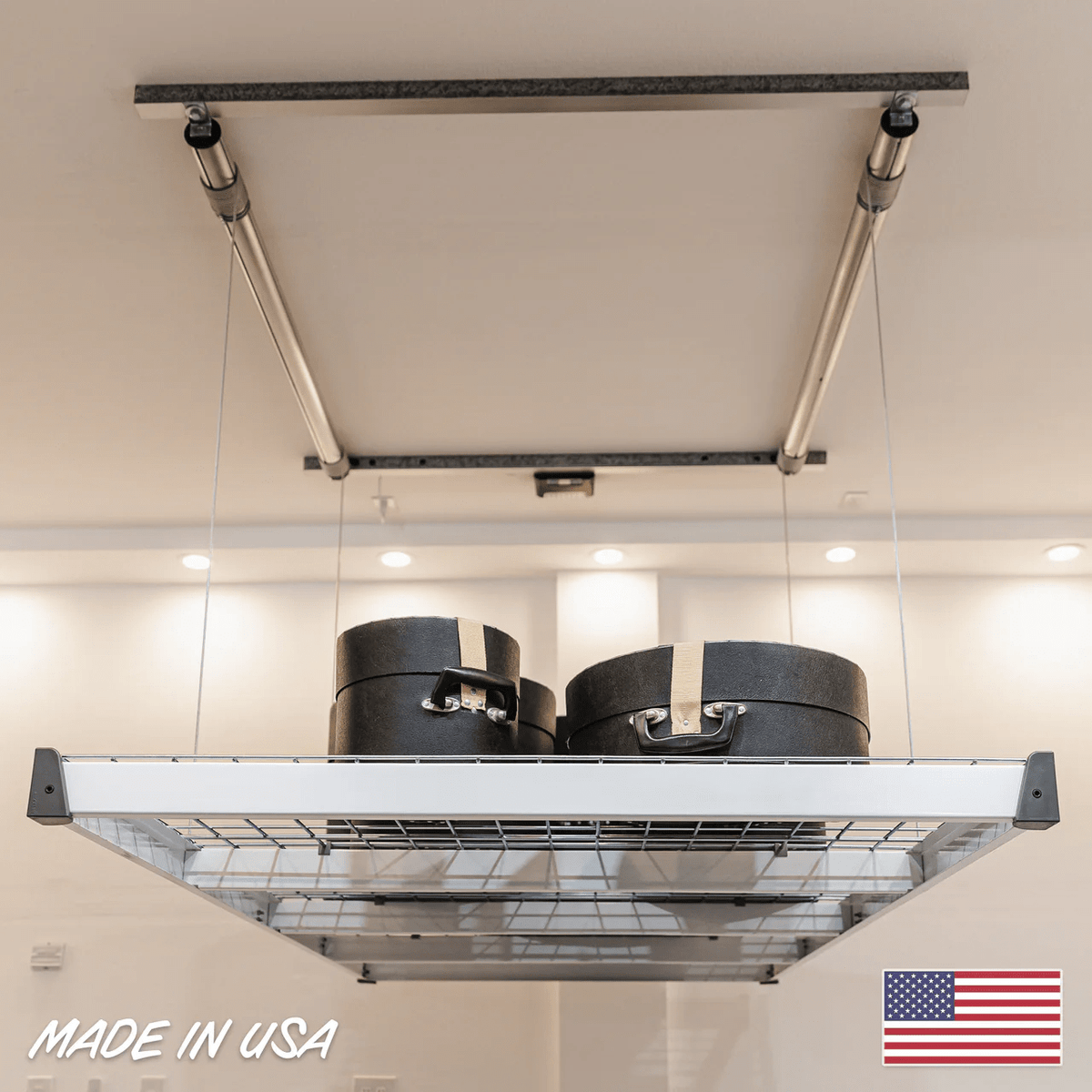

• Made in the USA: Built with high-quality materials, including SPAX® fasteners, for long-lasting durability.

Wireless Remote Control

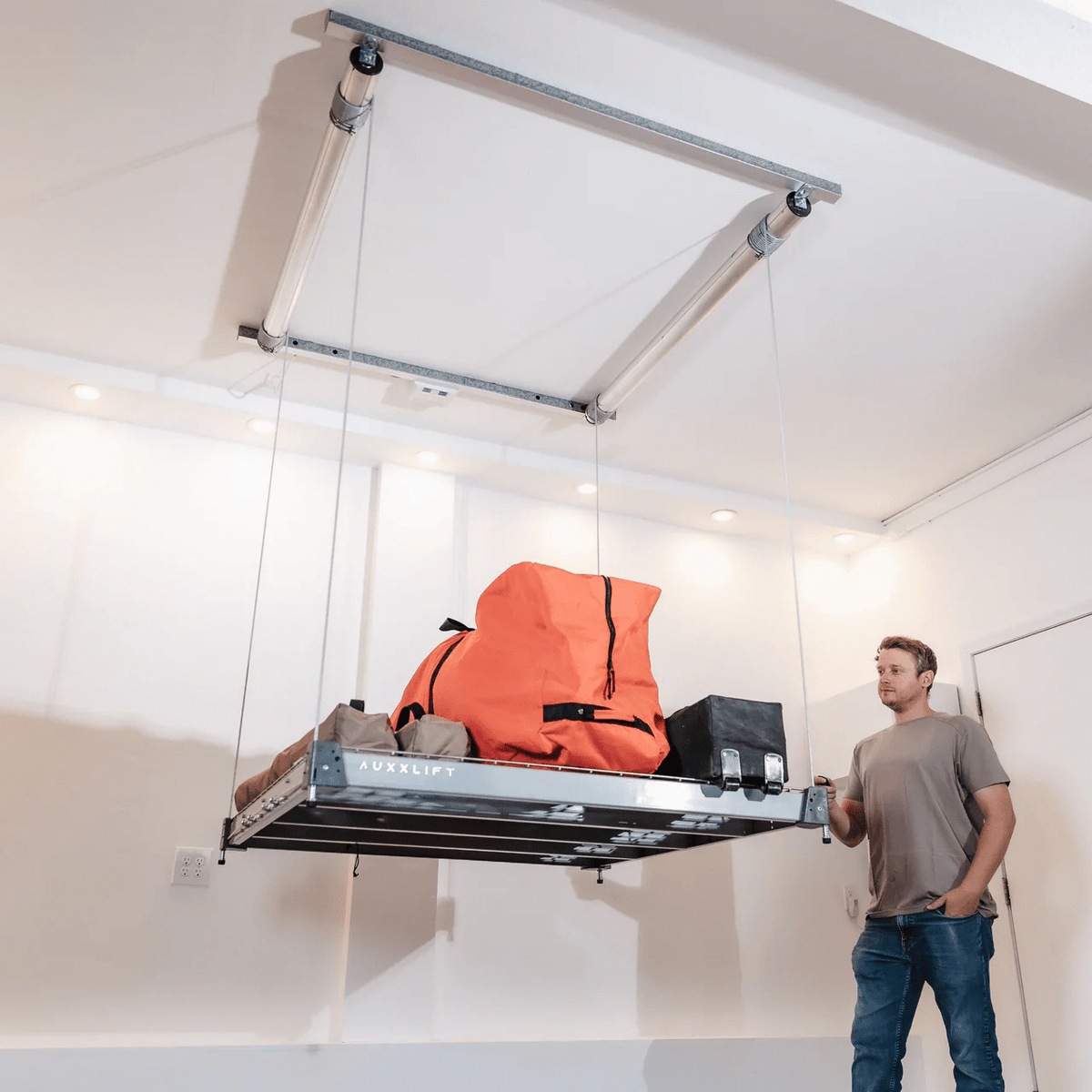

Operate the Auxx-Lift with ease using the wireless remote. Raise or lower the platform effortlessly, keeping your belongings safe and easy to access.

• Set High and Low Points: Program stopping points to prevent hitting the floor or ceiling.
• Auto-Stop for Safety: The lift stops automatically if the remote disconnects or the battery runs out.
• Active-Press Technology: Buttons need to be held down to move the lift, avoiding accidental operation.

Quick and Simple Installation

The Auxx-Lift is easy to set up with detailed instructions included. Need help? Professional installation options are available.

Certified Safety Standards

The Auxx-Lift meets UL safety standards, making it the safest choice for your ceiling storage.

---

Specifications

General Specs

• Models: Auxx-Lift 1400 / Auxx-Lift 1600
• Lifting Capacity: 400 lbs / 600 lbs
• Max Travel Distance: 13’6” (18’0” with Extension)
• Minimum Stored Height: 8 in
• Speed: Lifts 9 ft in about 30 seconds

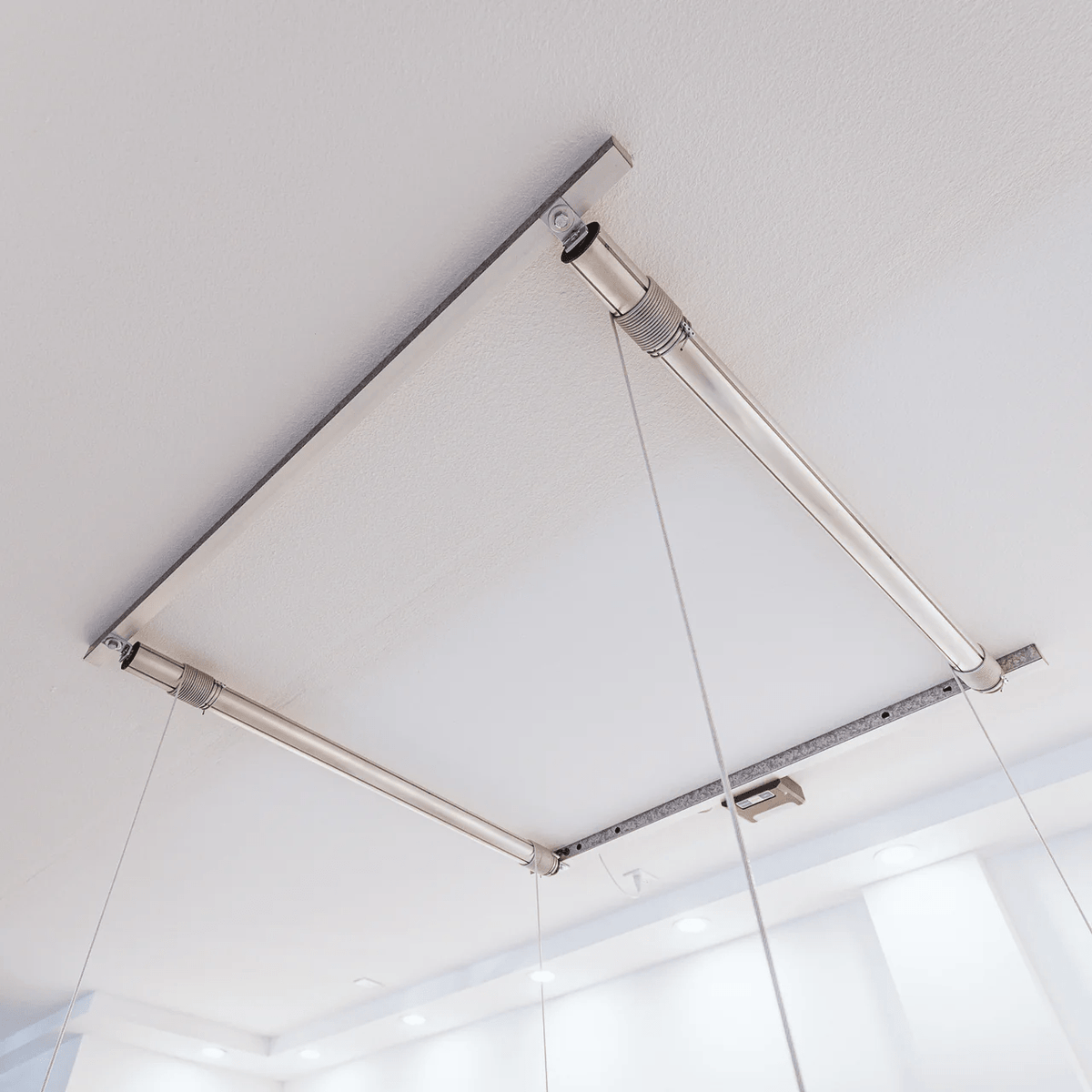

Ceiling Support

• Type: (2) 1 5/8” x 60” strut channels
• Fasteners: (8) 5/16” x 4” SPAX® lag bolts

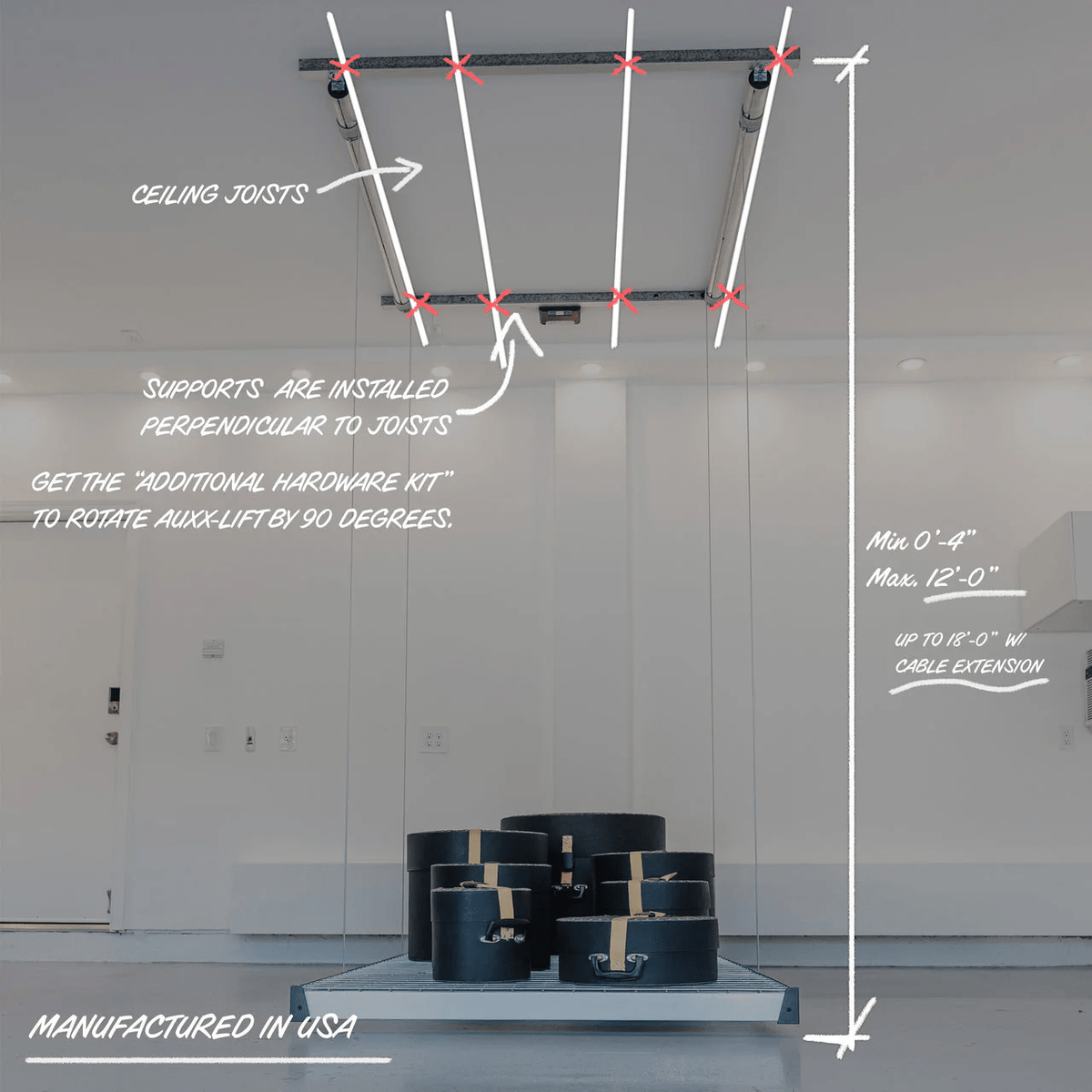

• Mounting Area: 5’ x 5’ over 3 joists/rafters

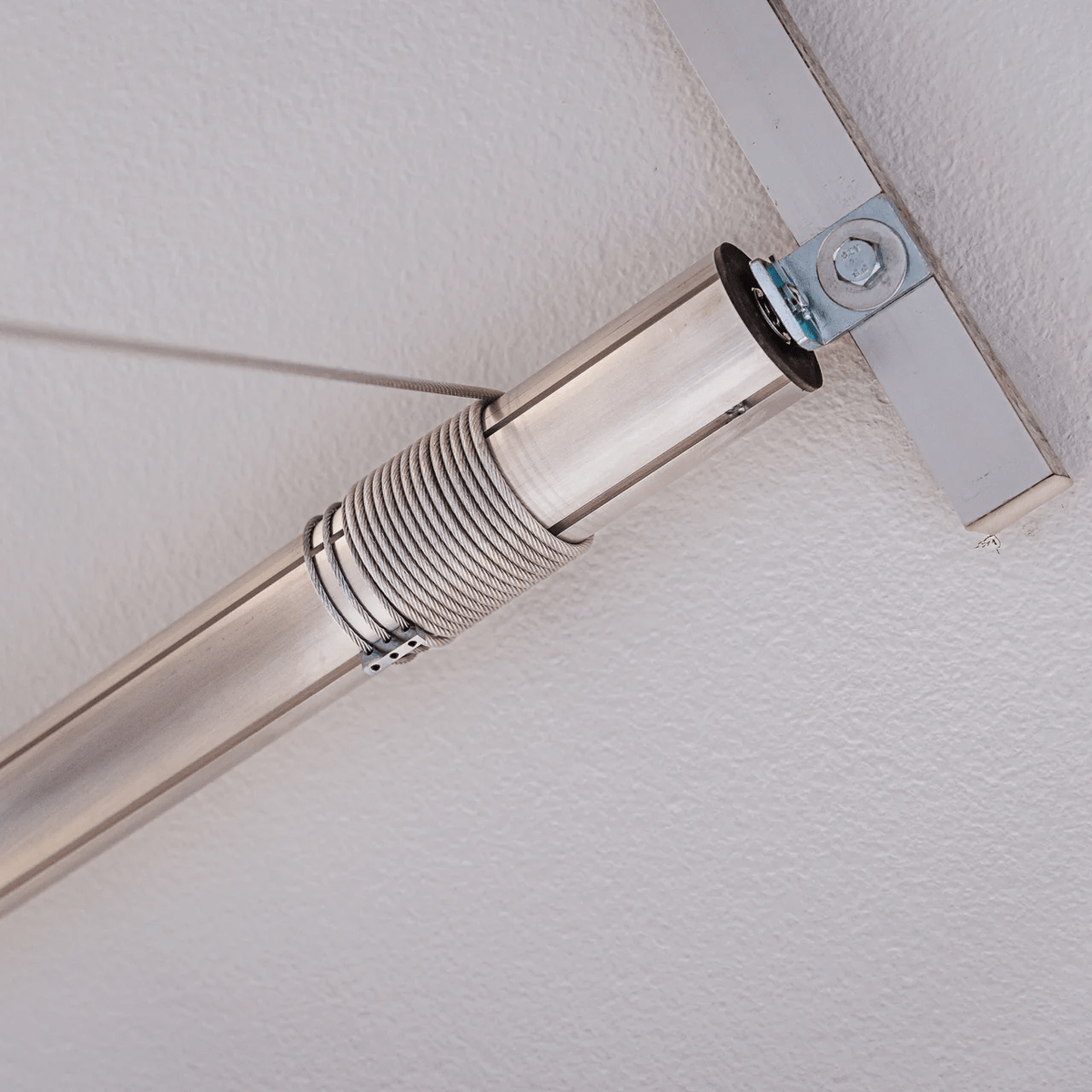

• Cables:
  • 1/8” vinyl-coated steel (400 lbs capacity)
  • 3/16” vinyl-coated steel (600 lbs capacity)
• Cable Strength: 2,000 lbs (400 lbs capacity) / 4,200 lbs (600 lbs capacity)

Operating Requirements

• Power Supply: 110V/120V
• Remote Transmitter Frequency: 433.92 MHz
• Power Cord Length: 10 ft

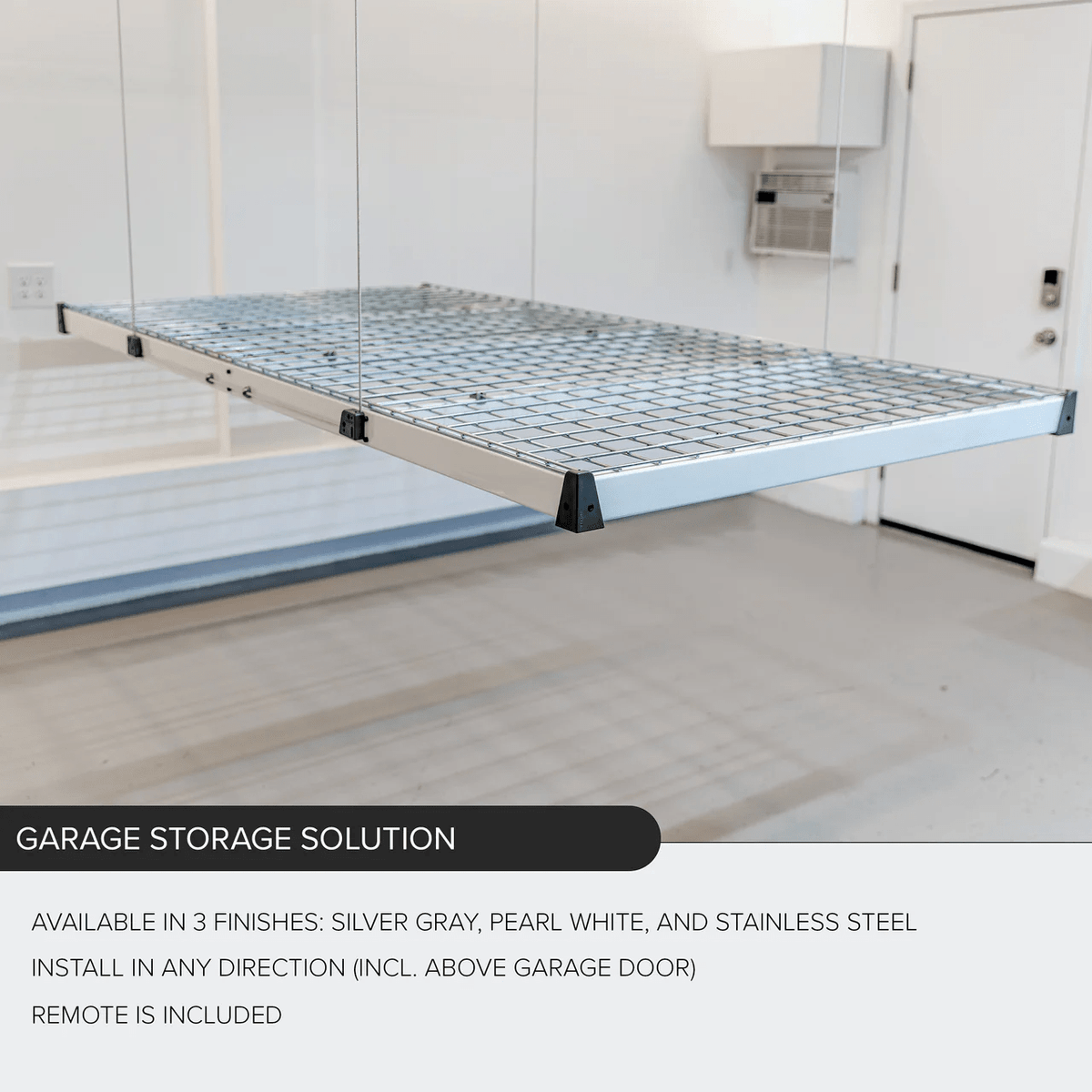

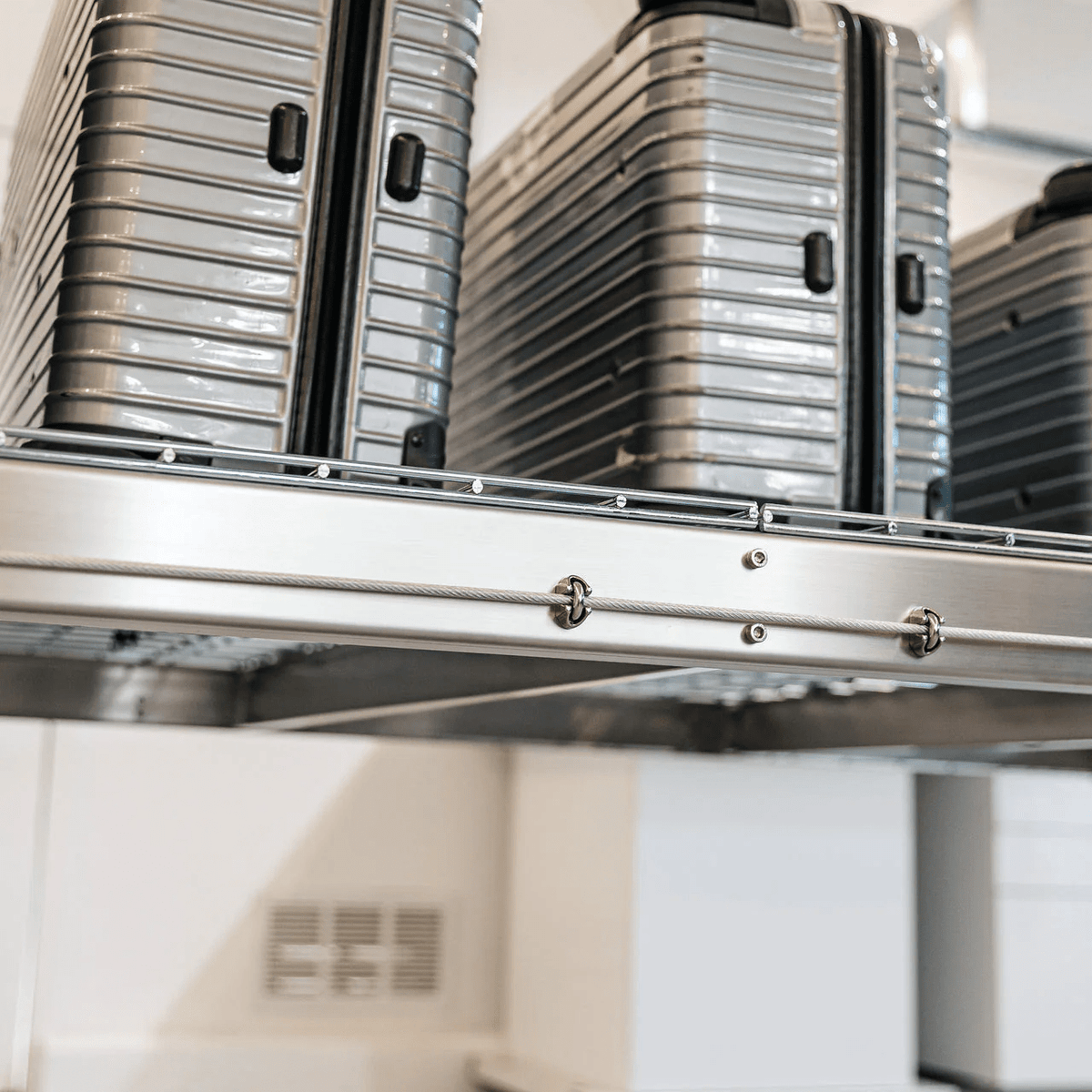

Platform Specs

• Thickness: 2.5 in
• Frame: Durable C-channels
• Material: 3x3 galvanized wire mesh

Motors

• Power: 235 W (400 lbs) / 680 W (600 lbs)
• Current: 2.2 A (400 lbs) / 6.0 A (600 lbs)
• Duty Cycle: 3 min on, 15 min off

Sizes and Weights

• Platform Sizes: 3 ft x 6 ft, 3 ft x 8 ft, 4 ft x 6 ft, 4 ft x 8 ft
• Weight: 128 lbs

---

What’s in the Box

• 2 Motors
• Controller
• Remote Control
• 2 C-Strut Channels
• Platform
• Mounting Hardware

---

For step-by-step guidance, watch the installation videos included. If you need additional help, you can hire a handyman to assist with setup.

With the Auxx-Lift, organizing your garage has never been easier!

Installation Video Guide

Documents

Auxx Lift Installation Guide

Auxx Lift Adjustment Guide

FAQs

Can I install the Auxx-Lift myself?
Yes, you can! Installing the Auxx-Lift is a lot like setting up a garage door opener. Here’s what you’ll need to do:

• Work on a ladder or scaffold to attach the lift to the ceiling.
• Find the ceiling joists for support.
• Install two mounting rails to the ceiling supports.

A professional installer can usually finish the job in about 2 hours.

How was the Auxx-Lift Series developed?
The Auxx-Lift was created over 8 years with lots of testing and improvements to meet strict UL safety standards.

It’s a one-of-a-kind home storage solution that fixes problems with other storage systems. Features like a remote control make it easy to use, and it’s built for safety, quality, and great design—all at a fair price!
