Leverless Hydraulic Tire Changing & Precision Wheel Balancing System (Up to 30″ Wheels)

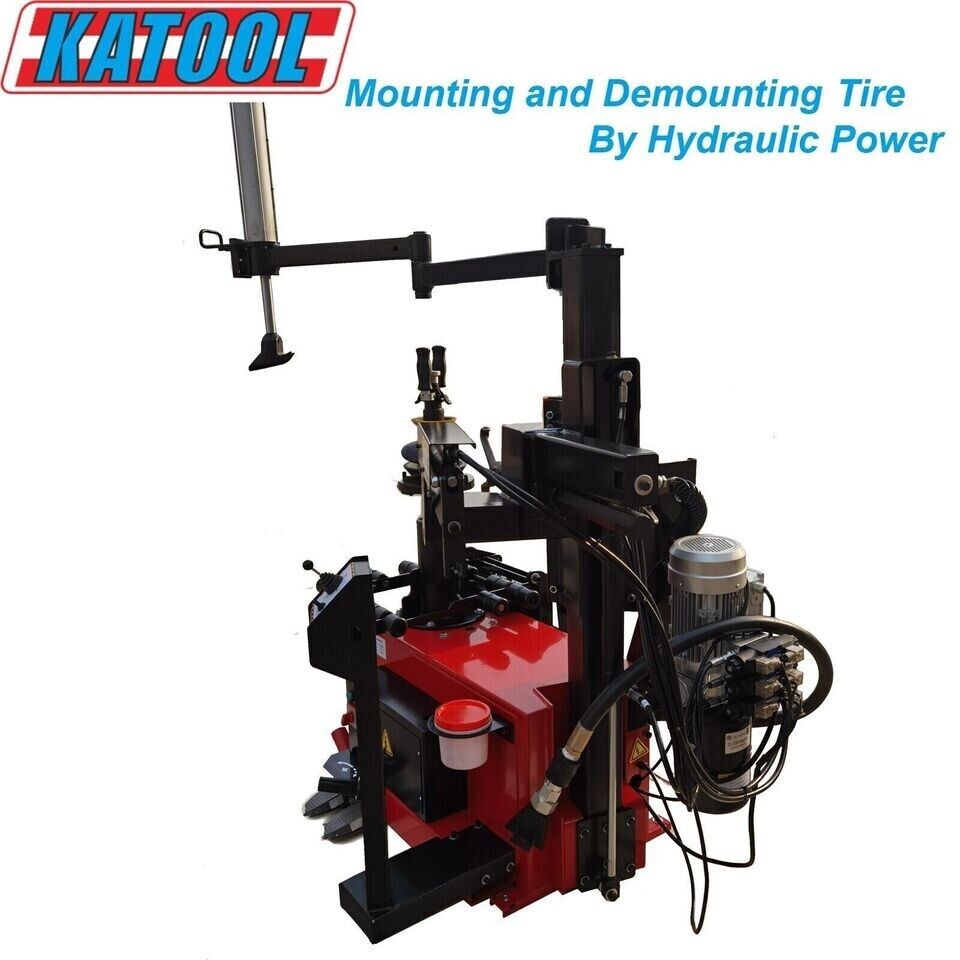

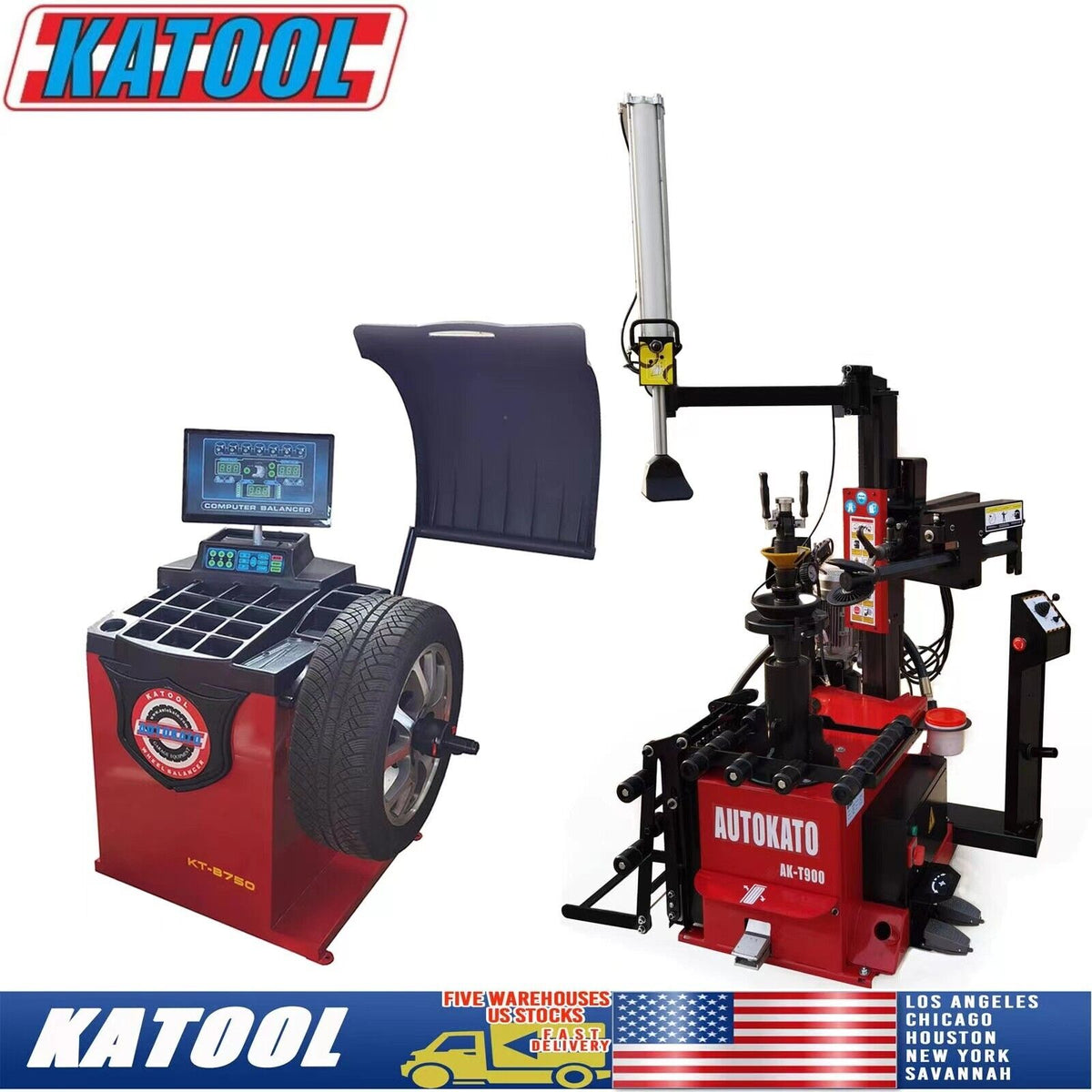

The KATOOL AK-T900 + KT-B750 combo is a professional-grade tire service solution designed for modern automotive shops. Featuring a fully hydraulic, leverless tire changer paired with a high-precision wheel balancer, this system is built to handle standard, low-profile, and run-flat tires with efficiency and rim-safe operation.
Key Features

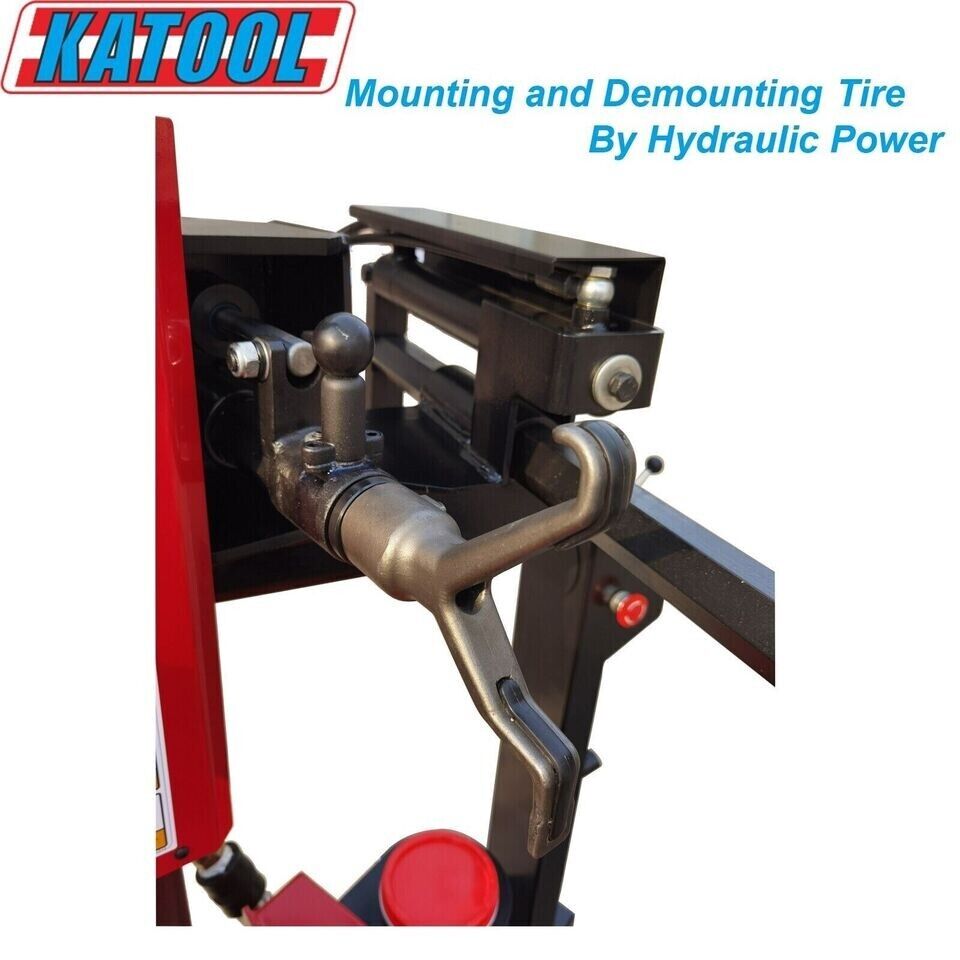

Leverless Hydraulic Tire Changer System — Eliminates traditional pry bar use for safer, easier tire mounting.
Handles Difficult Tires with Ease — Built-in assist arm supports run-flat and low-profile tires.
Heavy-Duty Hydraulic Power — Dual hydraulic and gear motor system provides strong, consistent operation.
Rim-Safe Design — Stainless steel mounting head with protective covers helps prevent wheel damage.

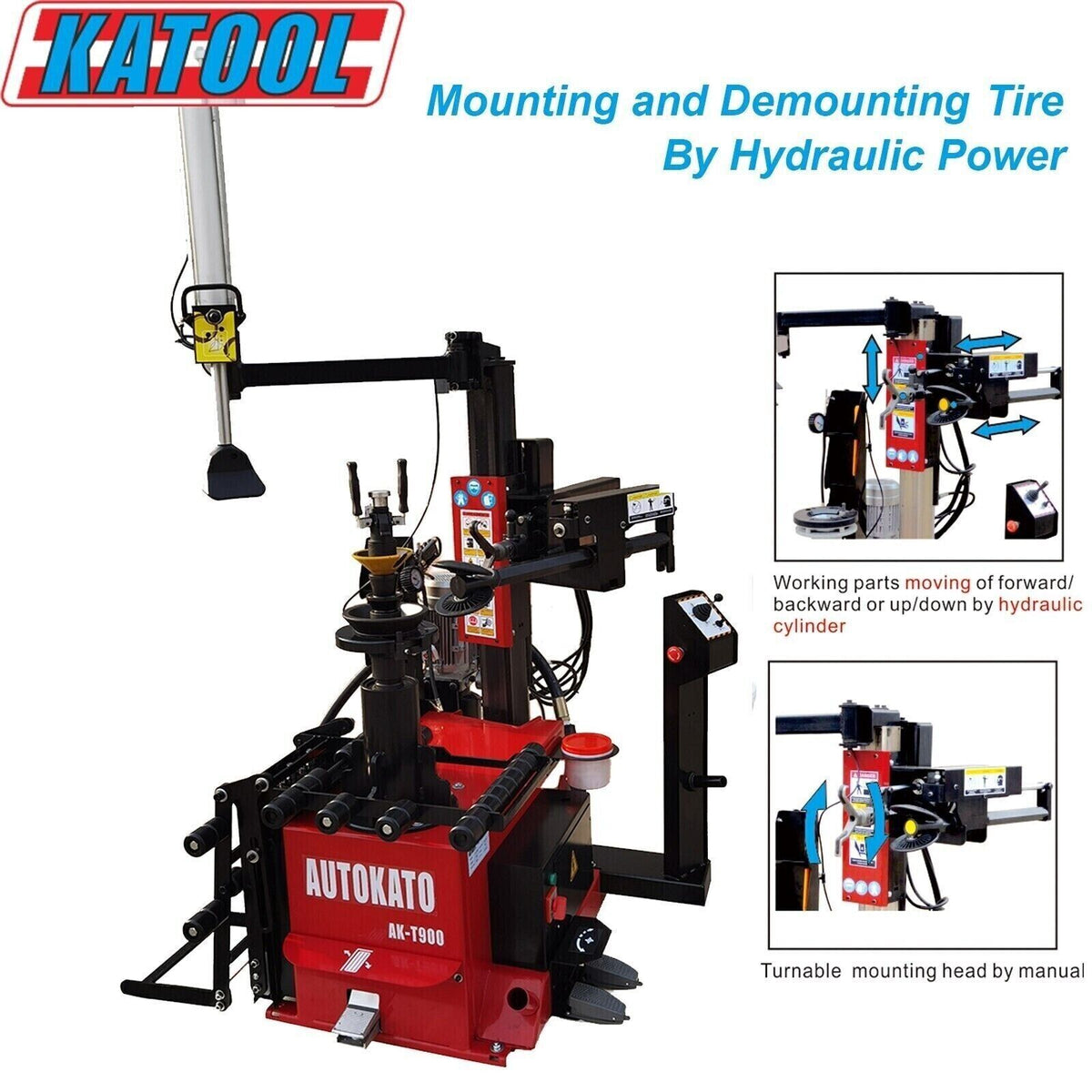

Assist Arm + Wheel Lift System — Reduces operator effort and improves workflow efficiency.
Precision Wheel Balancing — ±1 g accuracy ensures smooth, vibration-free driving performance.
Industrial-Grade Construction — Thick steel frame and reinforced components reduce vibration and improve durability.
Automatic Measurement System — Quick input of wheel dimensions for faster balancing cycles.
AK-T900 Tire Changer Specifications
| Feature |
Specification |
| Max Wheel Diameter |
47″ (1200 mm) |
| Max Wheel Width |
16″ (406 mm) |
| Wheel Clamp Range |
12″–26″ |
| Power Supply |
110V / 1 Phase / 60Hz |
| Gear Box Motor Power |
2.0 HP (1.5 kW) |
| Hydraulic Power |
1.5 HP (1.1 kW) |
| Rotation Speed |
6.8 rpm |
| Air Pressure |
116–145 psi (0.8–1.0 MPa) |
| Net Weight |
414 lbs (188 kg) |
KT-B750 Wheel Balancer Specifications
| Feature |
Specification |
| Rim Diameter |
< 30″ |
| Wheel Width |
3″–12″ |
| Max Wheel Diameter |
< 880 mm |
| Balancing Speed |
180 rpm |
| Motor Power |
0.25 kW |
| Power Supply |
120V / 1 Phase |
| Rim Center Hole Diameter |
< 135 mm |
| Max Wheel Weight |
< 65 kg |
| Balancing Accuracy |
±1 g |
| Measuring Time |
~7 seconds |
Why This Combo
-
Fully hydraulic leverless system improves safety and ease of use
-
Designed for modern low-profile and run-flat tire service
-
Reduces technician fatigue with assist arm and wheel lift support
-
High-precision balancing improves
