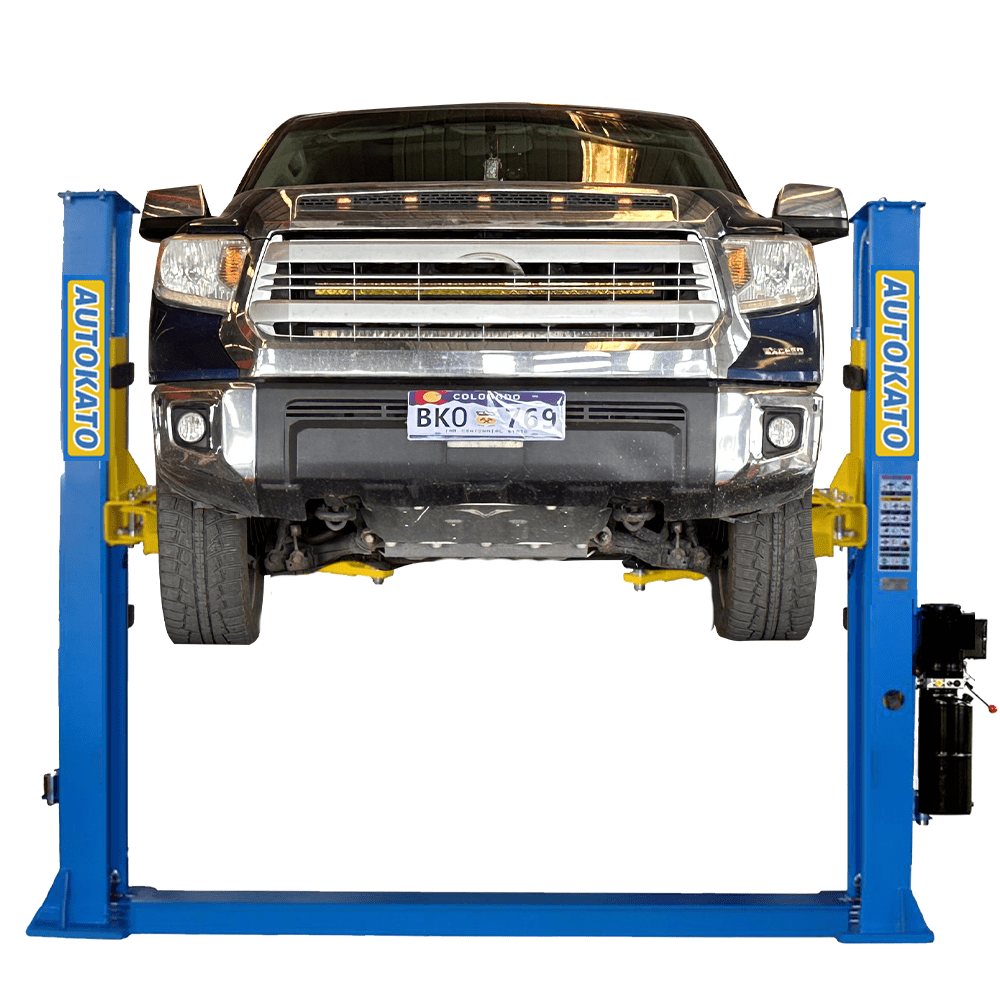

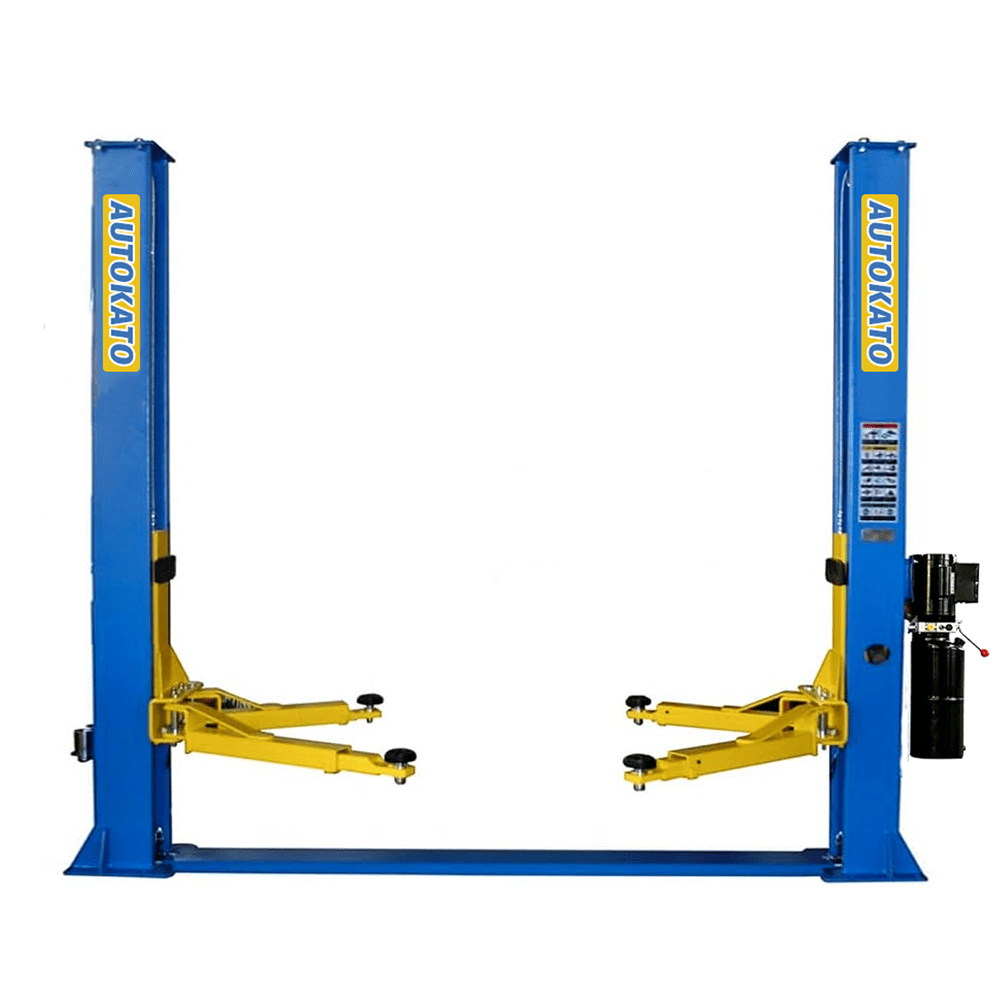

2 Post Lift AK-H115Z
|
Lifting Capacity
|
11000lbs.(5000KG)
|
|
Max. Lifting Height
|
70.8"/1800mm
|
|
Min. Height
|
3.9"/100mm
|
|
Height Overall
|
110.9"/2818mm
|
|
Width Overall
|
140.4"/3565mm
|
|
Outside Column
|
124.8"/3170mm
|
|
Inside Column
|
110.2"/2800mm
|
|
Dirve-Thru Clearance
|
98.4"/2500mm
|
|
Front Arm Reach(Min)
|
29.5"/750mm(2 stages)
|
|
Front Arm Reach (Max)
|
46"/1170mm(2 stages)
|
|
Rear Arm Reach(Min)
|
35.4"/900mm(2 stages)
|
|
Rear Arm Reach(Max)
|
58.2"/1480mm(2 stages)
|
|
Motor
|
220VAC/60HZ/1PH/2.2KW
|
|
Net Weight
|
570KG
|
-11000lbs lifting capacity
-CE Approved and Certified,it has adopted 115% dynamic loading capacity and 150% staic loading capacity tested.
-Manual safety release from two side.
-Base plate design
-Dual Hydraulic Chain-Drive Cylinders
-Robber pad door opening protection.
-Screw-on pad and extension support adaptor sets +100mm
-Top level hydraulic system with 220V/60HZ/1PH
