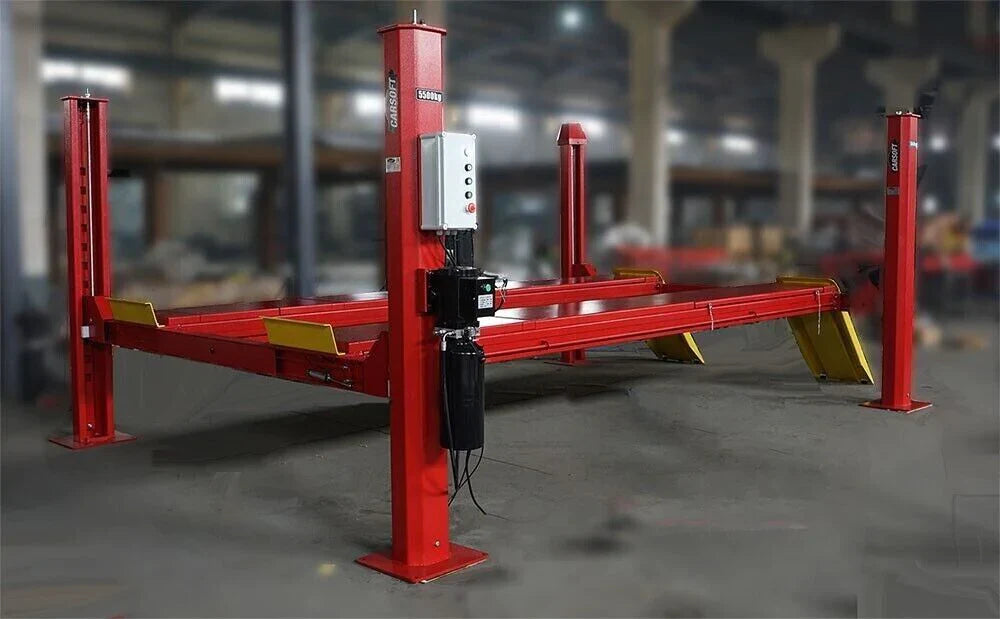

Katool | KT-4H150 Heavy Duty 4-Post Alignment Lift 15,000lbs (Rolling Jack Included)
Description
The Katool KT-4H150 Heavy Duty 4-Post Alignment Lift – a robust solution with a powerful 15,000 lbs lifting capacity. This lift is CE approved and certified, meeting the 115% dynamic loading capacity standard and passing a rigorous 150% static loading capacity test. Featuring a single-point manual safety lock release, it ensures secure and controlled lifting operations. Equipped with four mechanical locking devices, each with primary and secondary safety locks, this lift prioritizes safety. The powerside column's flexible installation options, at both sides, front, or rear, add convenience to your workspace. Non-skid diamond platforms and adjustable safety lock ladders provide stability and adaptability. Included are turn tables for wheel alignment, enhancing its versatility. The high-quality hydraulic system, powered by a 3KW motor, is available in 220V/60HZ/1PH or optional 110V/60HZ/1PH, ensuring reliable and efficient lifting. Additionally, one 6000 lbs rolling jack is included for added functionality.
*Concrete thickness must be at least 3.93” (100 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.
Features
- 15000lbs lifting capacity
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested

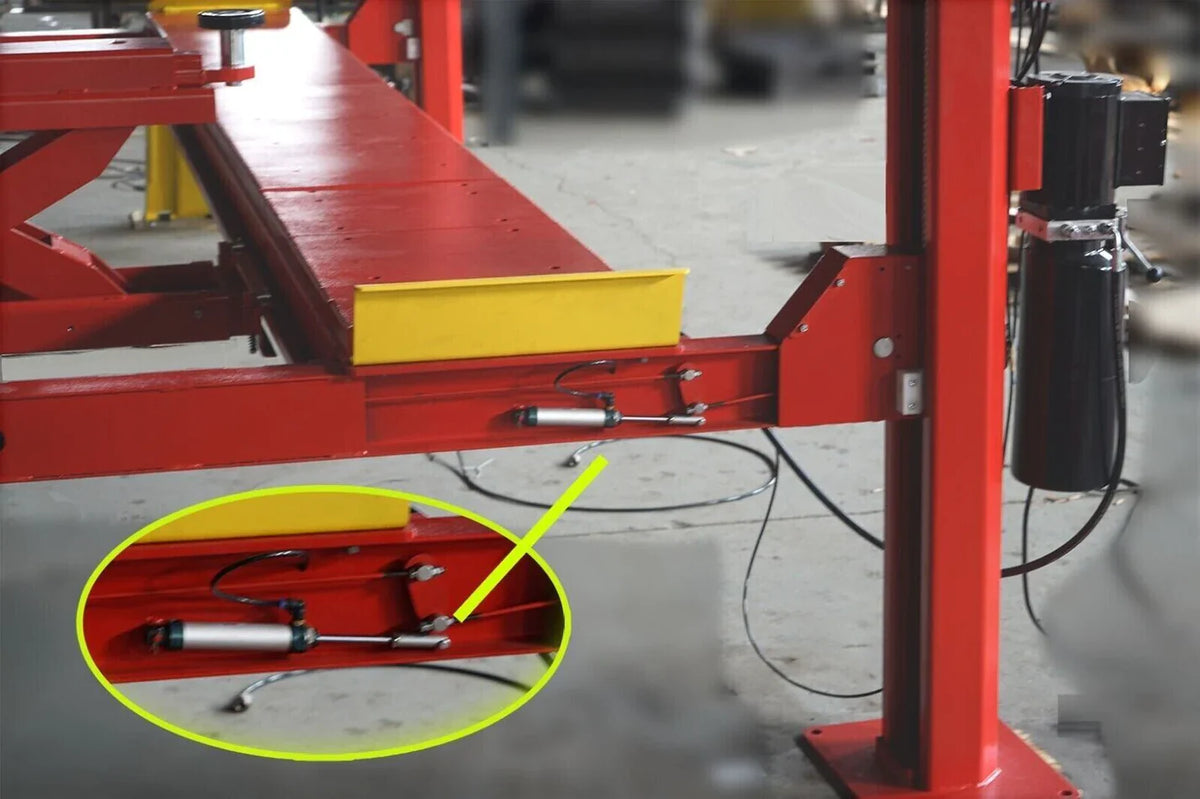

- Single Point Manual Safety Lock Release

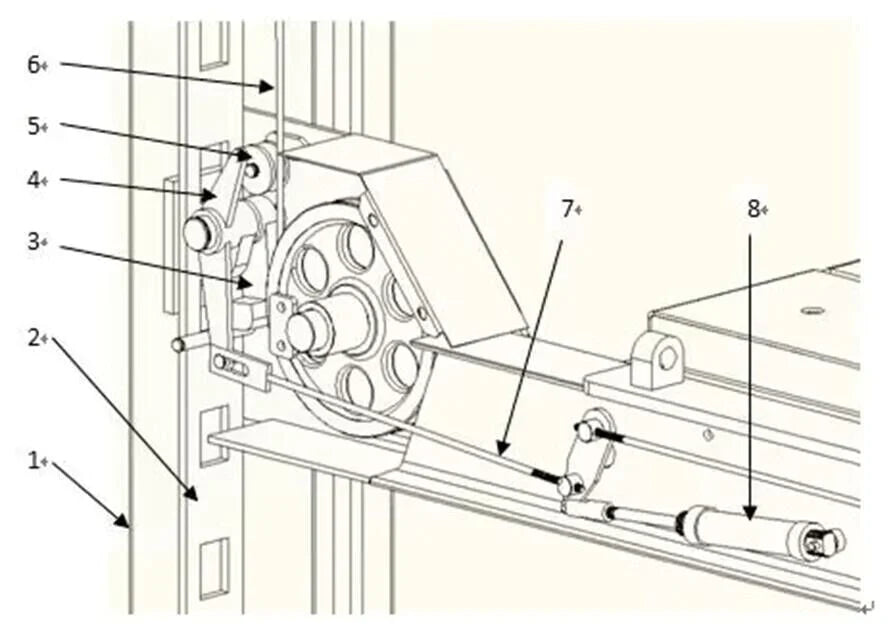

- Four mechanical locking devices, each equipped with both primary and secondary safety locks.
- Powerside column can be installed at both sides, front or rear.
- Non-skid diamond platforms and adjustable safety lock ladders.

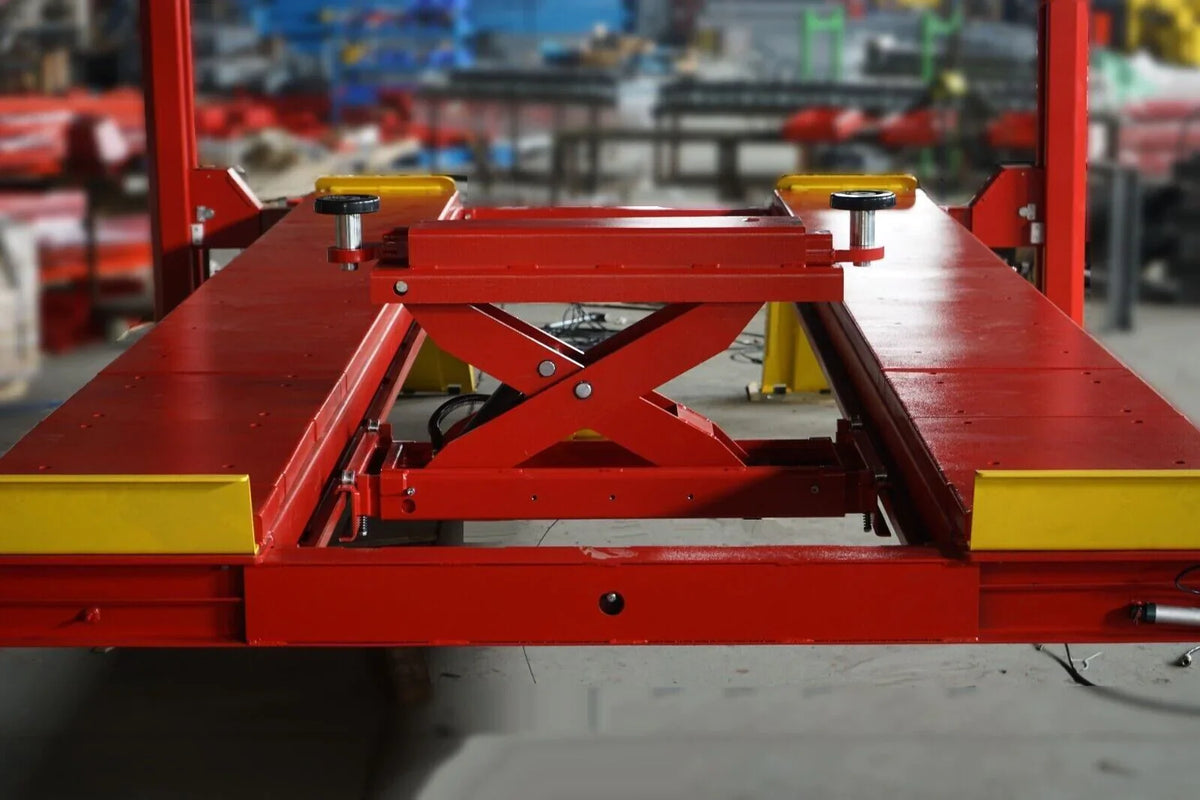

- One 6000lbs rolling jack is included
- Comes with turn tables for wheel alignment

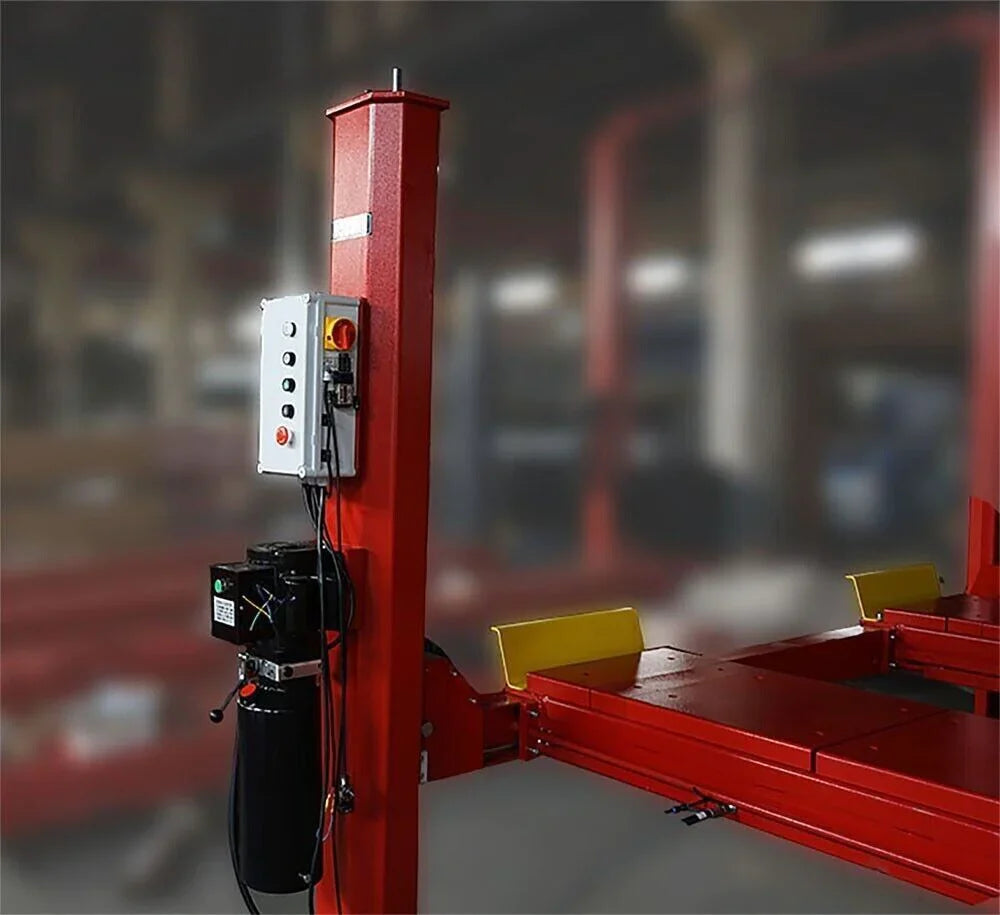

- High-quality hydraulic system, 3KW motor with 220V/60HZ/1PH or 110V/60HZ/1PH (Optional)

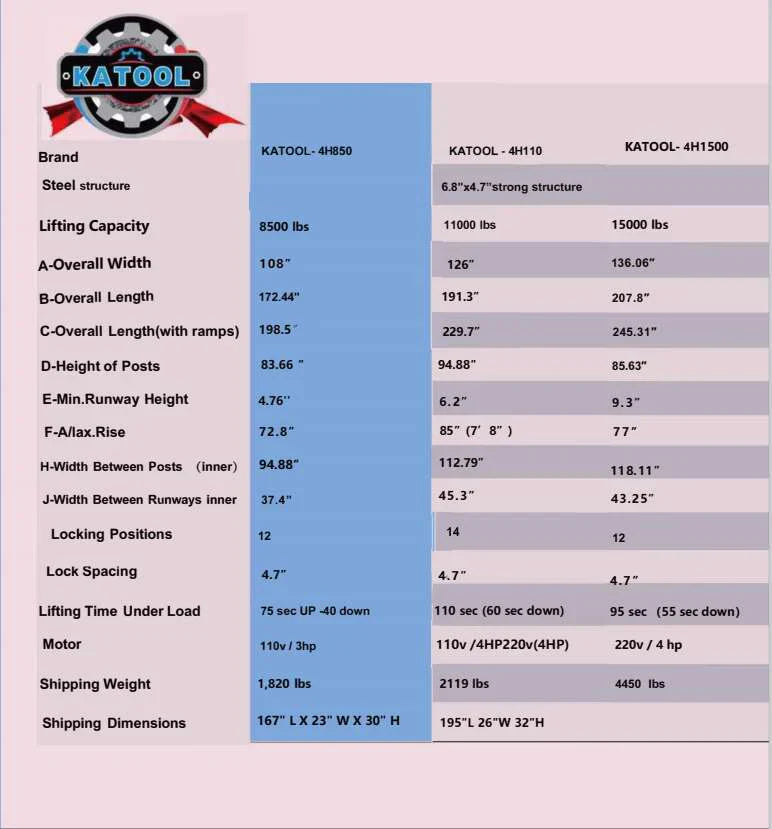

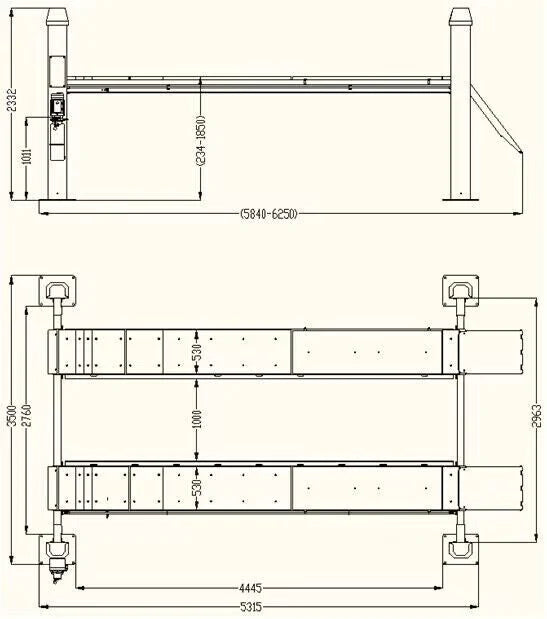

Specifications
| Lifting Capacity |
11000 lbs. (4990KG )
|
| Max. Lifting Height |
92.52" / 2350mm
|
| Lifting Time |
95s Up / 55s Down
|
| Height of Posts |
85.63" / 2175mm
|
| Width Overall |
136.06" / 3456mm
|
| Length Overall | |
|
245.31" / 6231mm (with Ramps)
|
|
| Inside Columns |
118.11" / 3000mm
|
|
Min. Runway Height
|
|
| 9.3" / 236mm | |
| Motor |
220VAC/60HZ/1PH
|
| Net Weight |
4850lbs / 2200KG
|
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
