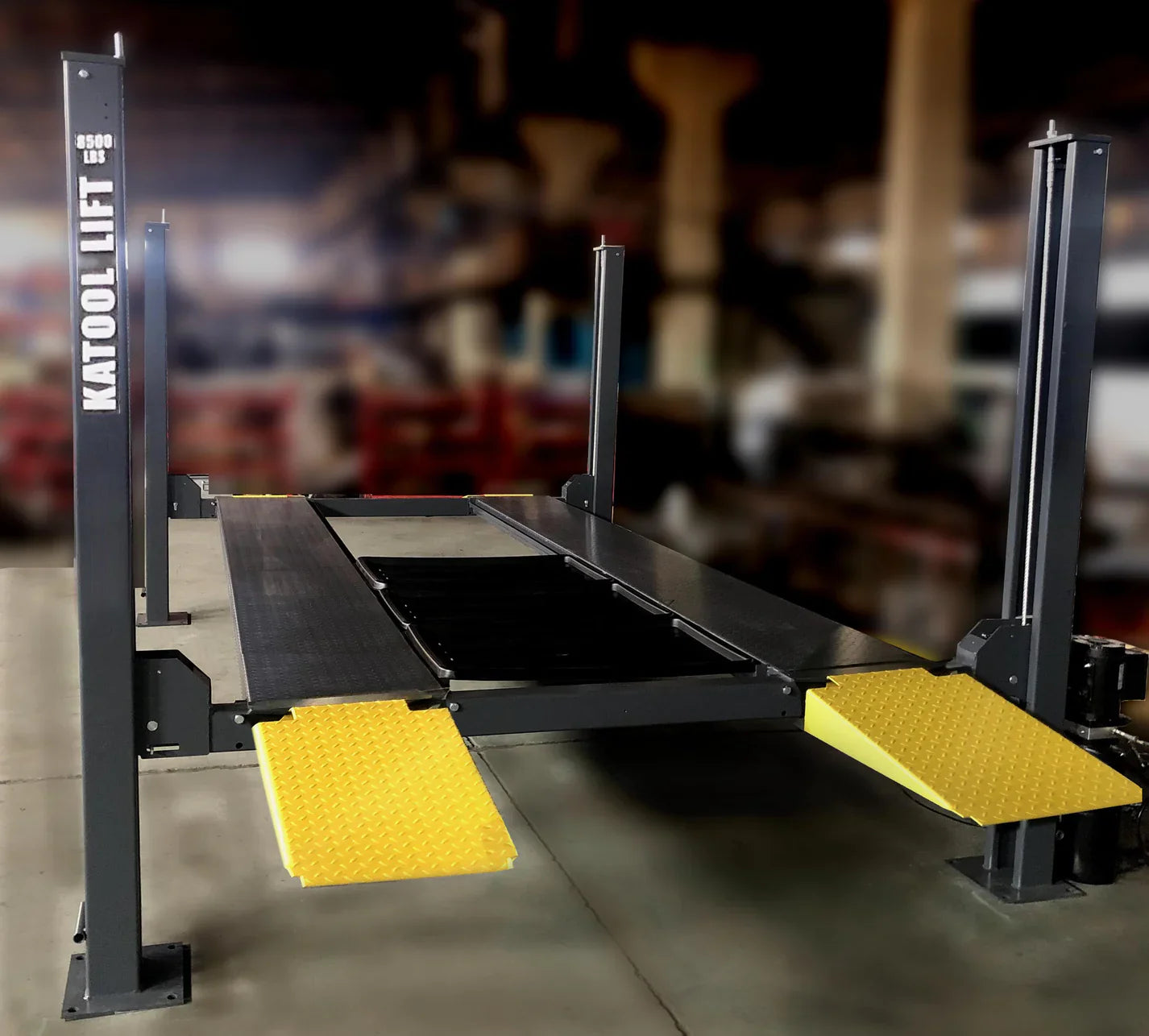

The Katool KT-4H850 8,500 lbs Heavy Duty 4-Post Car Lift – a reliable solution for robust lifting with an 8,500 lbs capacity. This lift is CE approved and certified, meeting the 115% dynamic loading capacity standard and passing a rigorous 150% static loading capacity test. Featuring a single-point manual safety lock release, it ensures secure and controlled lifting operations. Equipped with four mechanical locking devices, each with primary and secondary safety locks, this lift prioritizes safety. The powerside column's flexible installation options, at both sides, front, or rear, add convenience to your workspace. Non-skid diamond platforms and adjustable safety lock ladders provide stability and adaptability. Included is a caster kit for easy mobility, enhancing its versatility in your garage. Also provided are two drip trays and a jack tray for added convenience. The high-quality hydraulic system, available in 110V/60HZ/1PH or optional 220V/60HZ/1PH, ensures reliable and efficient lifting.
*Concrete thickness must be at least 3.93” (100 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.
Features
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested
- Single Point Manual Safety Lock Release
- Four mechanical locking devices, each equipped with both primary and secondary safety locks.
- Powerside column can be installed at both sides, front or rear.

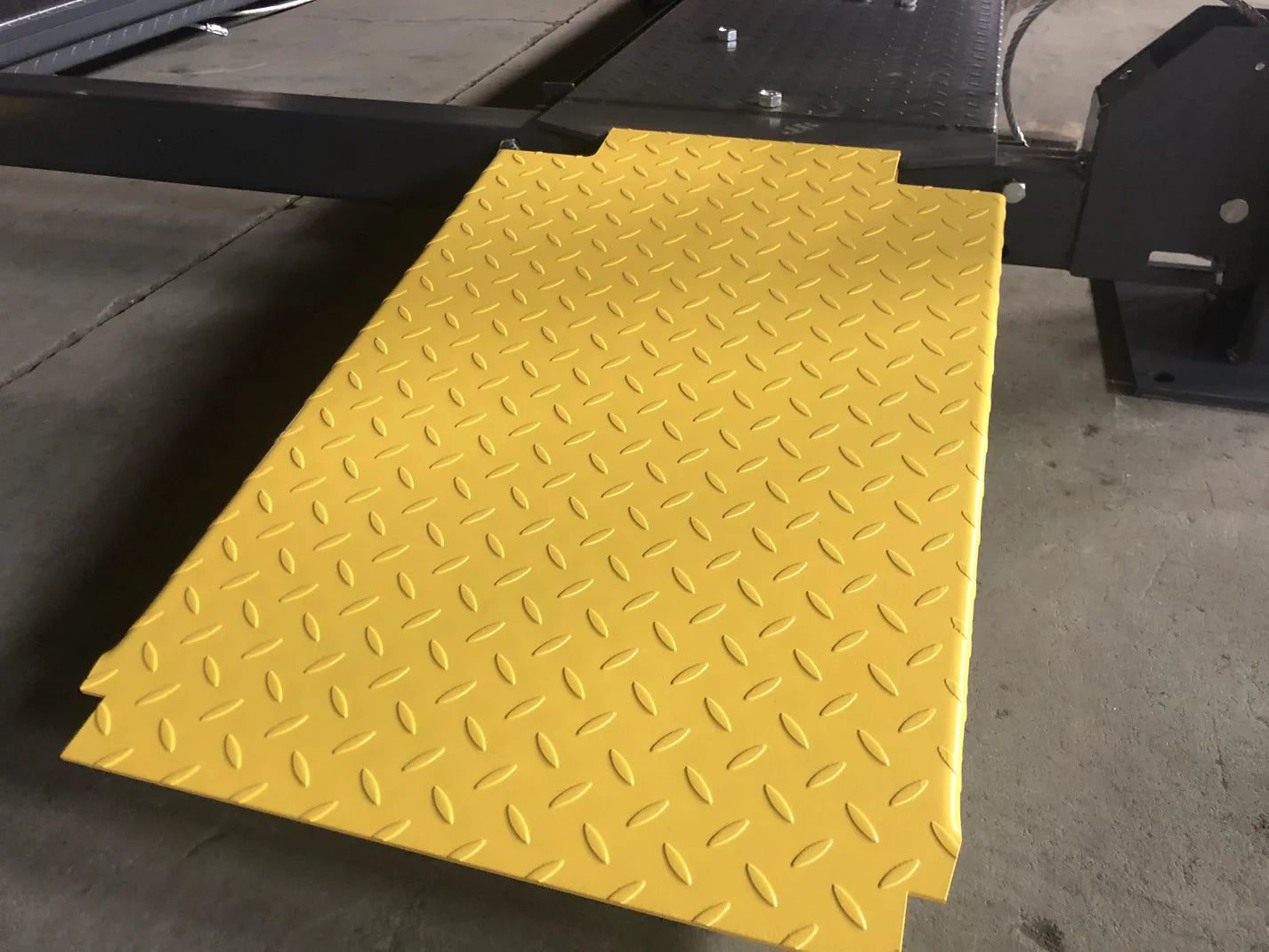

- Non-skid diamond platforms and adjustable safety lock ladders.

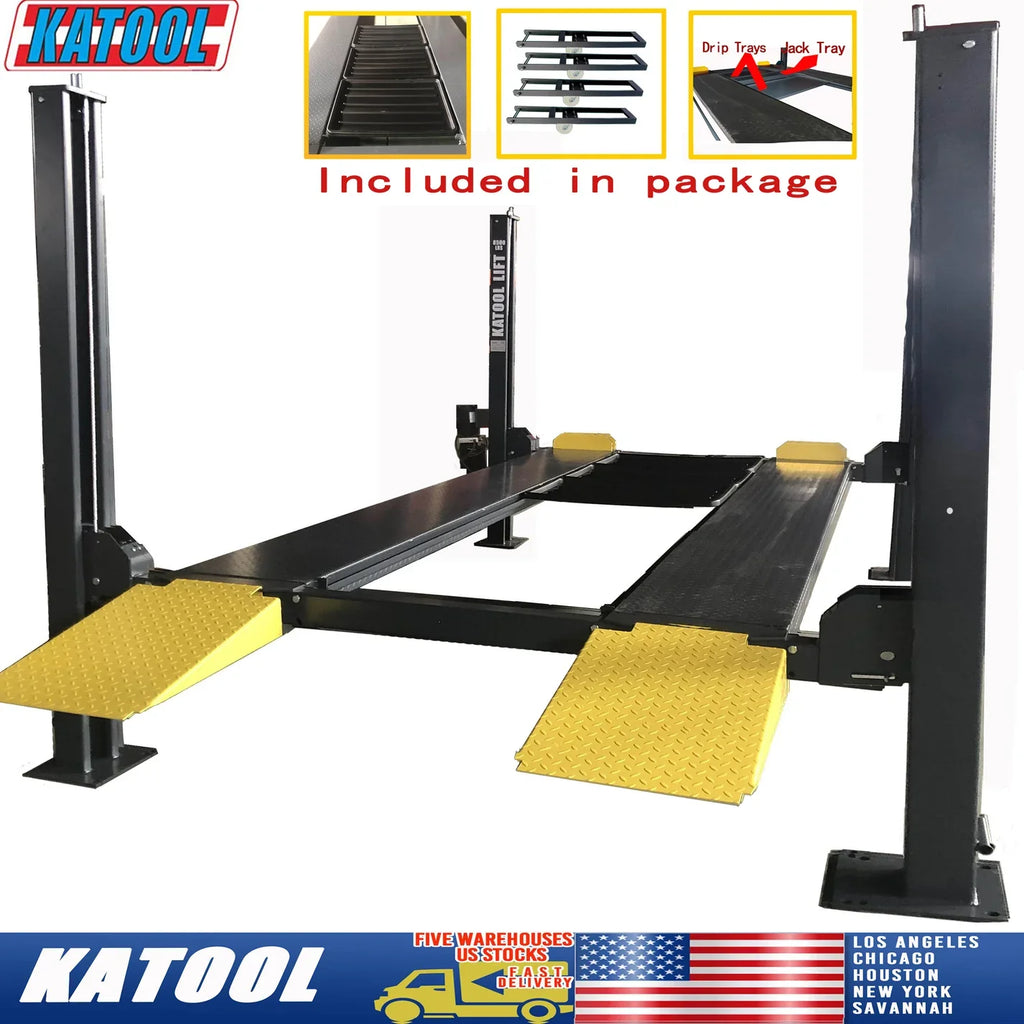

- Comes with a caster kit for moving the lift around
- Comes with two drip trays and a jack tray

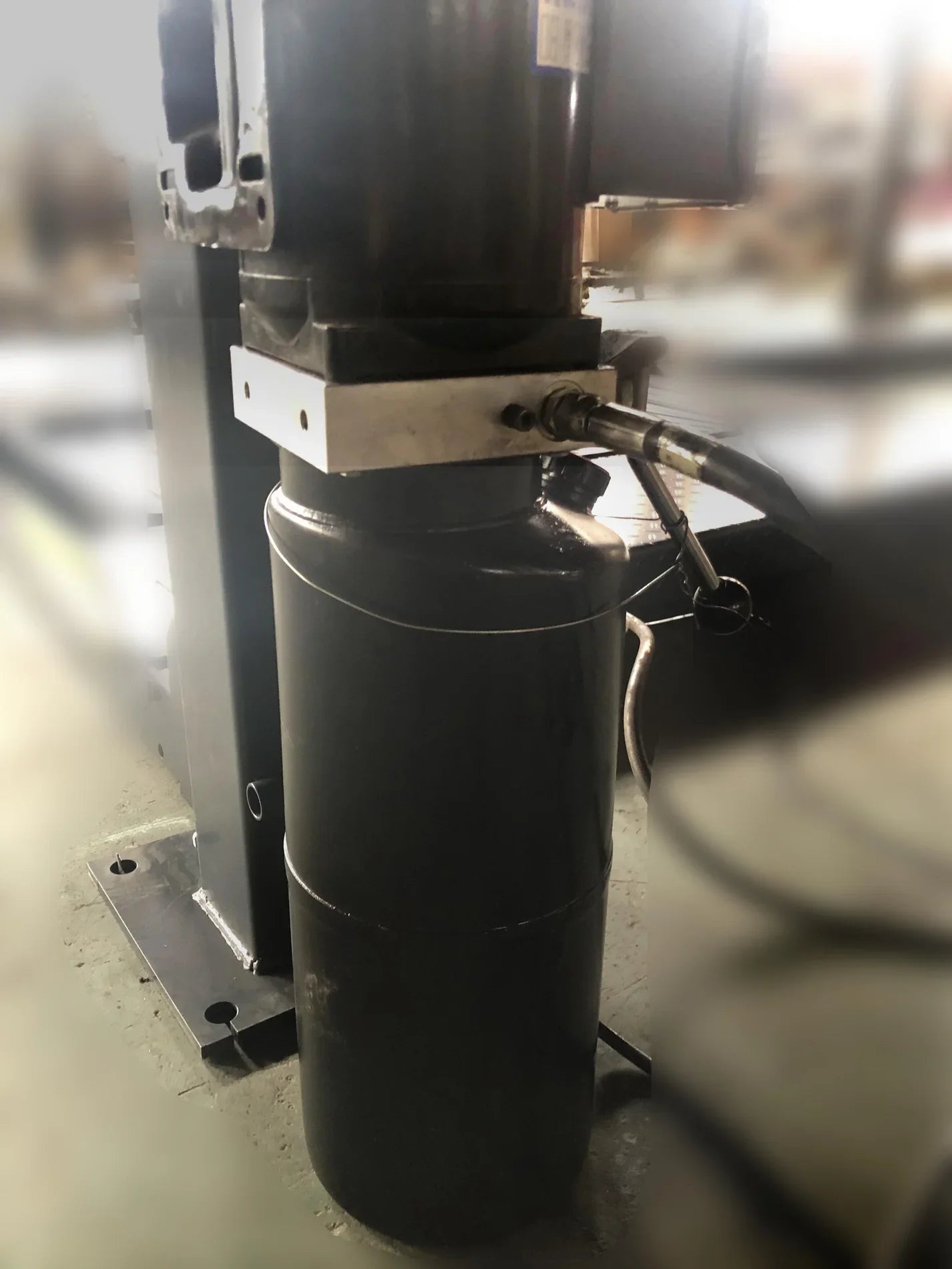

- High-quality hydraulic system with 110V/60HZ/1PH or 220V/60HZ/1PH (Optional)

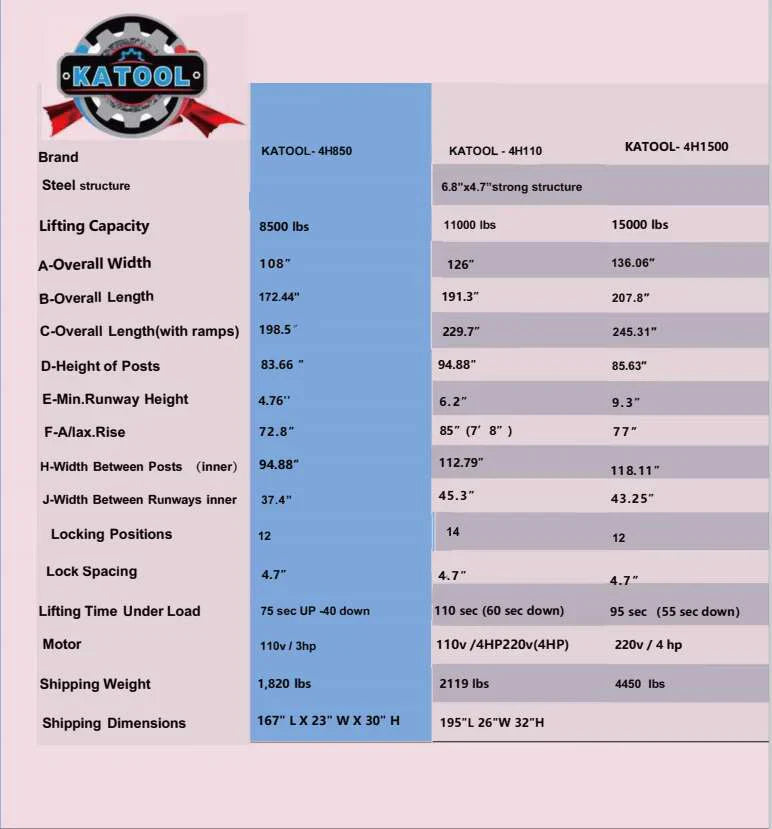

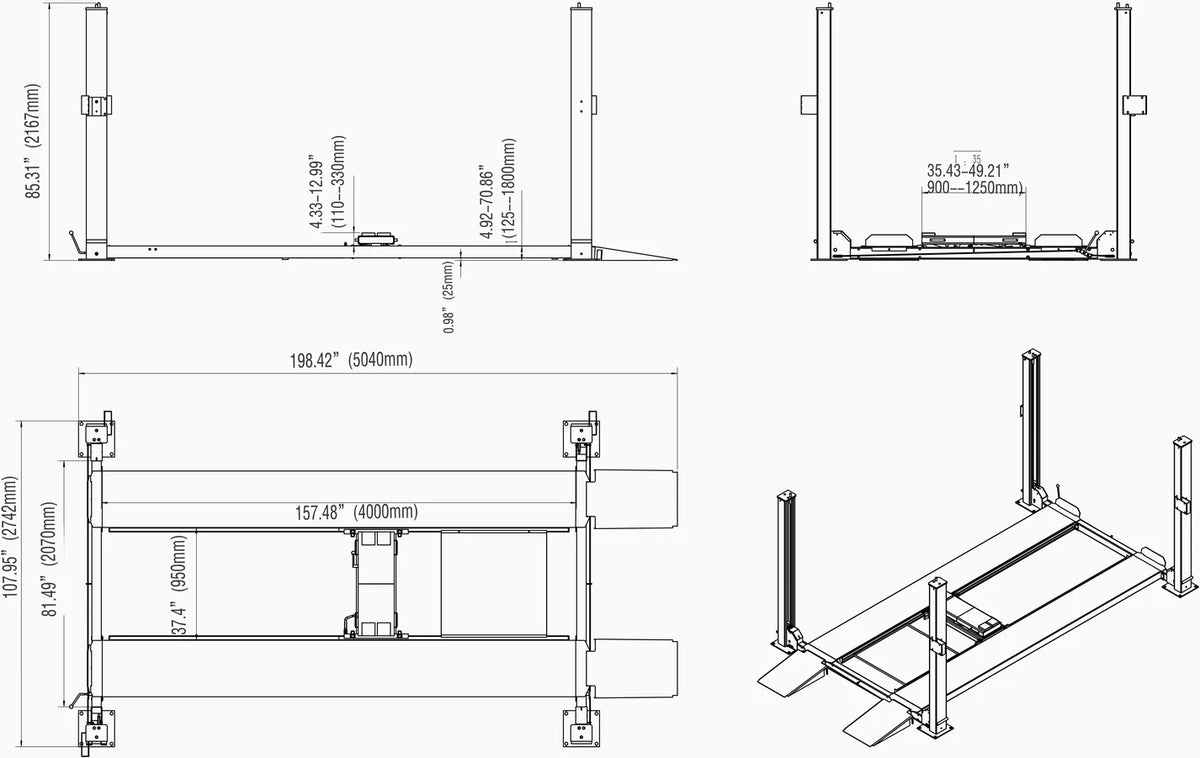

Specifications
| Lifting Capacity |
|
| Max. Lifting Height |
|
| Lifting Time |
|
| Height of Posts |
|
| Width Overall |
|
| Length Overall |
|
|
198.43" / 5040mm (with Ramps)
|
| Inside Columns |
|
|
|
|
|
4.76" / 121mm |
| Motor |
|
| Net Weight |
|
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
