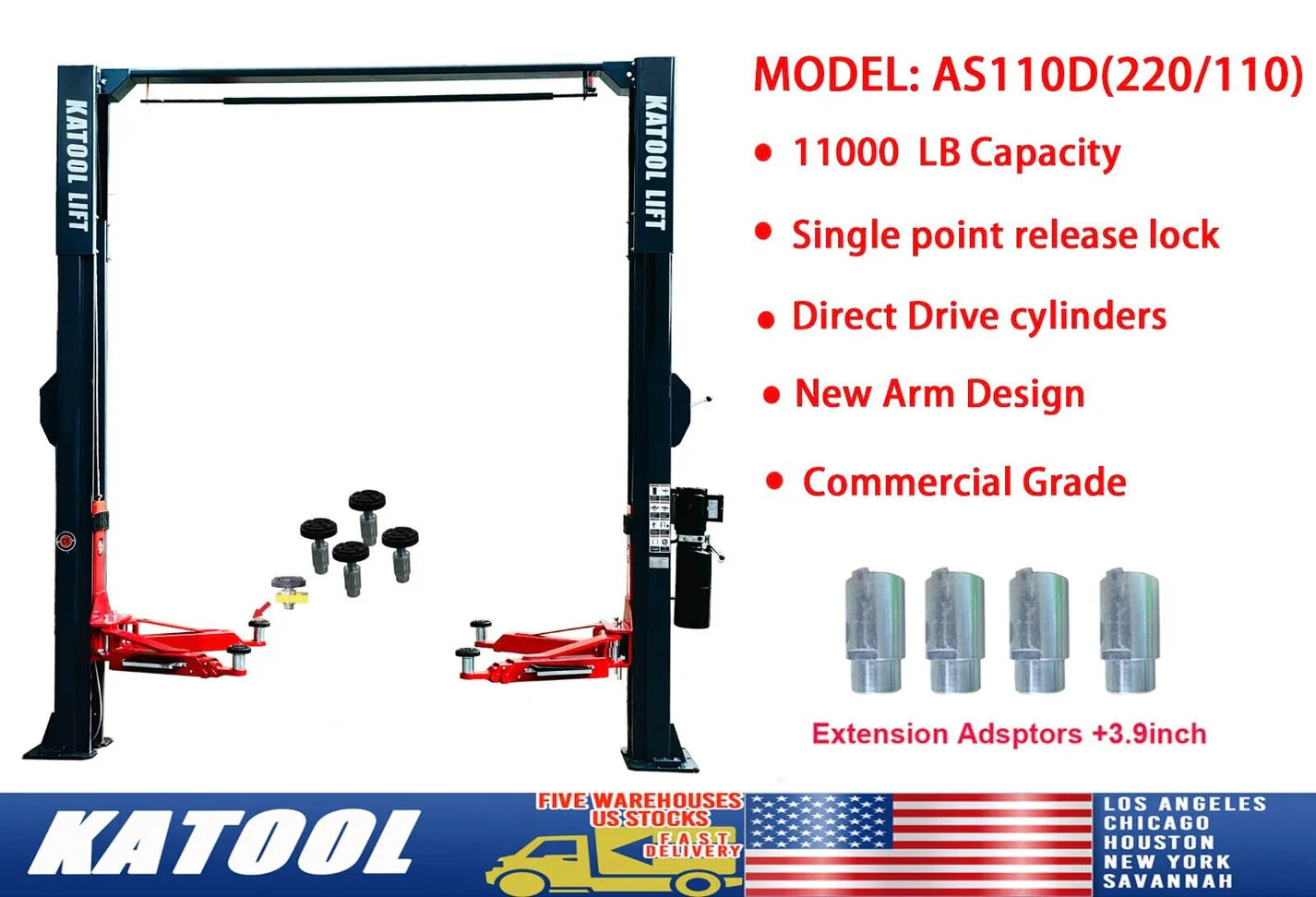

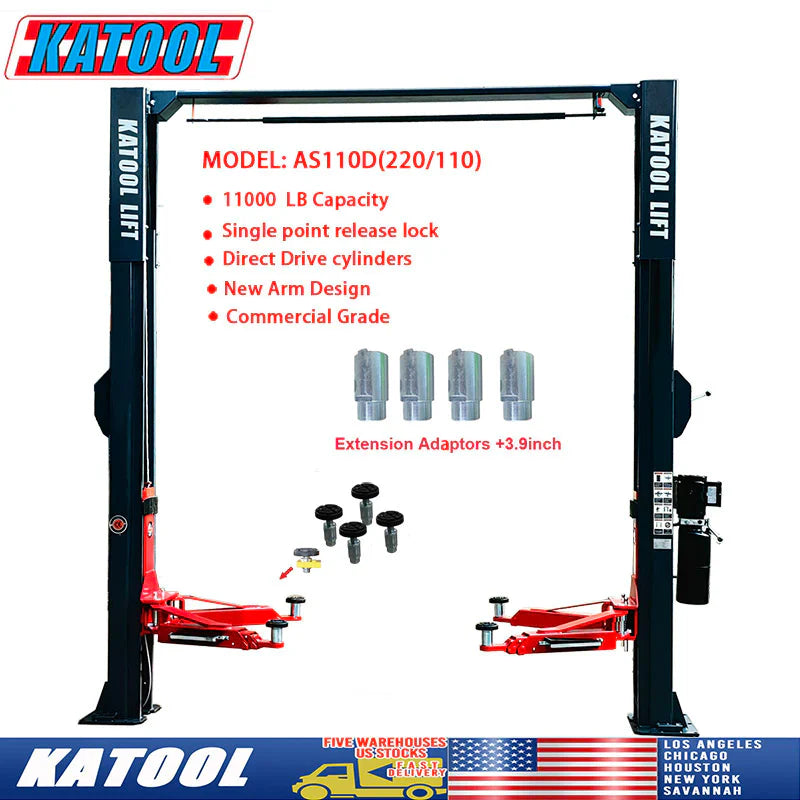

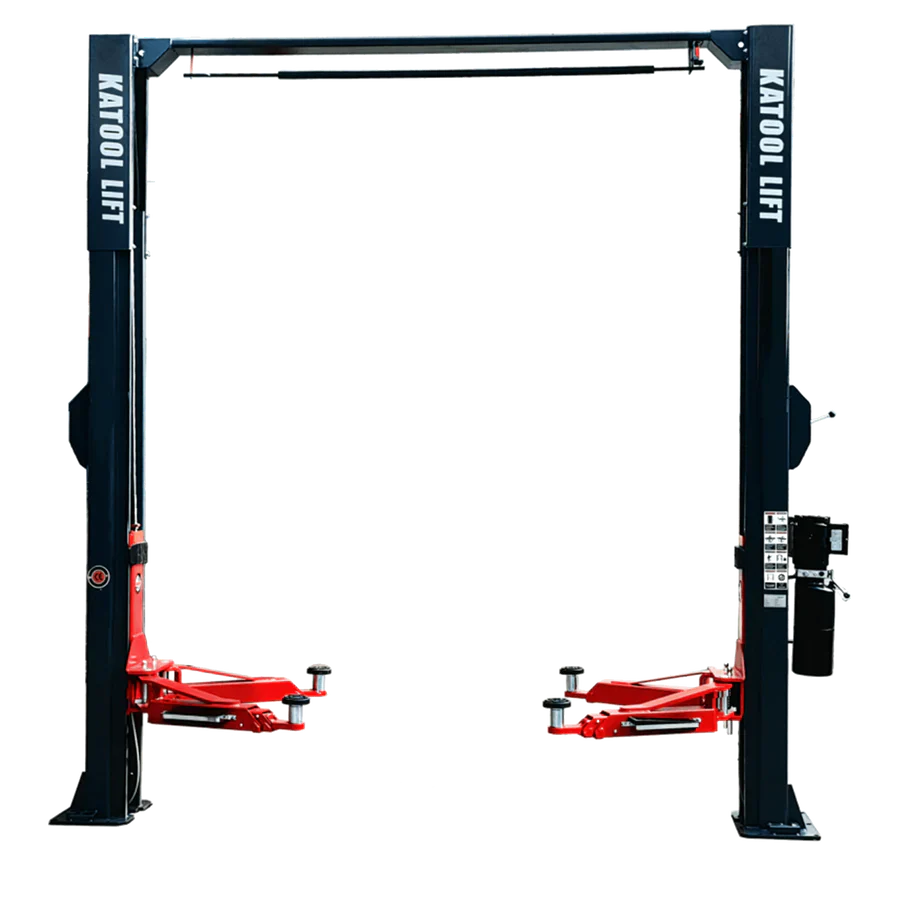

Katool | KT-AS110D Two Post Asymmetrical Vehicle Lift 11,000lbs Single Point Lock Release

The Katool KT-AS110D Two Post Asymmetrical Vehicle Lift is a powerful and efficient lifting solution with an 11,000 lbs capacity. This lift is CE approved and certified, meeting the 115% dynamic loading capacity standard and passing a rigorous 150% static loading capacity test. Featuring a Single Point Lock Release, it ensures secure and controlled lifting operations. The asymmetric arms and direct drive cylinders provide versatility and efficiency. Rubber pad door opening protection adds an extra layer of care to your vehicle. The lift comes with adjustable extended support adaptor sets ranging from 3.94 inches to 6 inches, catering to various vehicle types. The overhead safety shutoff bar and feet-protection safety guardrails with a toolbox prioritize safety and convenience in your workspace. The high-quality hydraulic system, available in 220V/60HZ/1PH or optional 110V/60HZ/1PH, ensures reliable and efficient lifting.

*Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.

Features

• 11000lbs (4990KG) lifting capacity

• CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested

• Single Point Lock Release

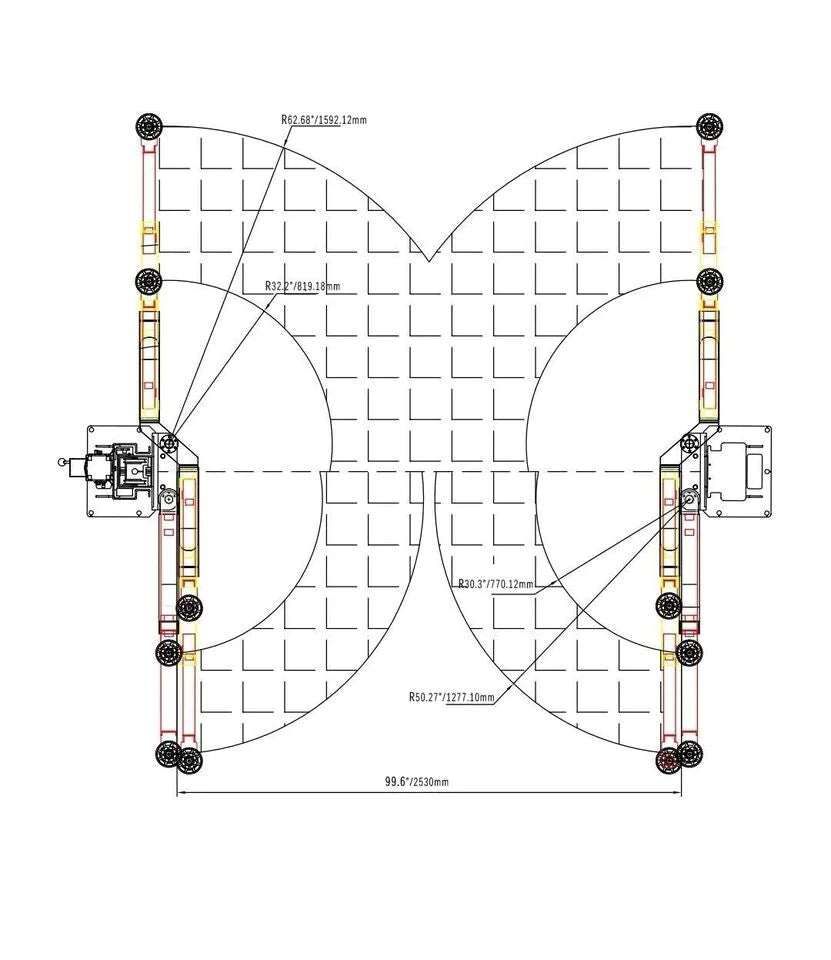

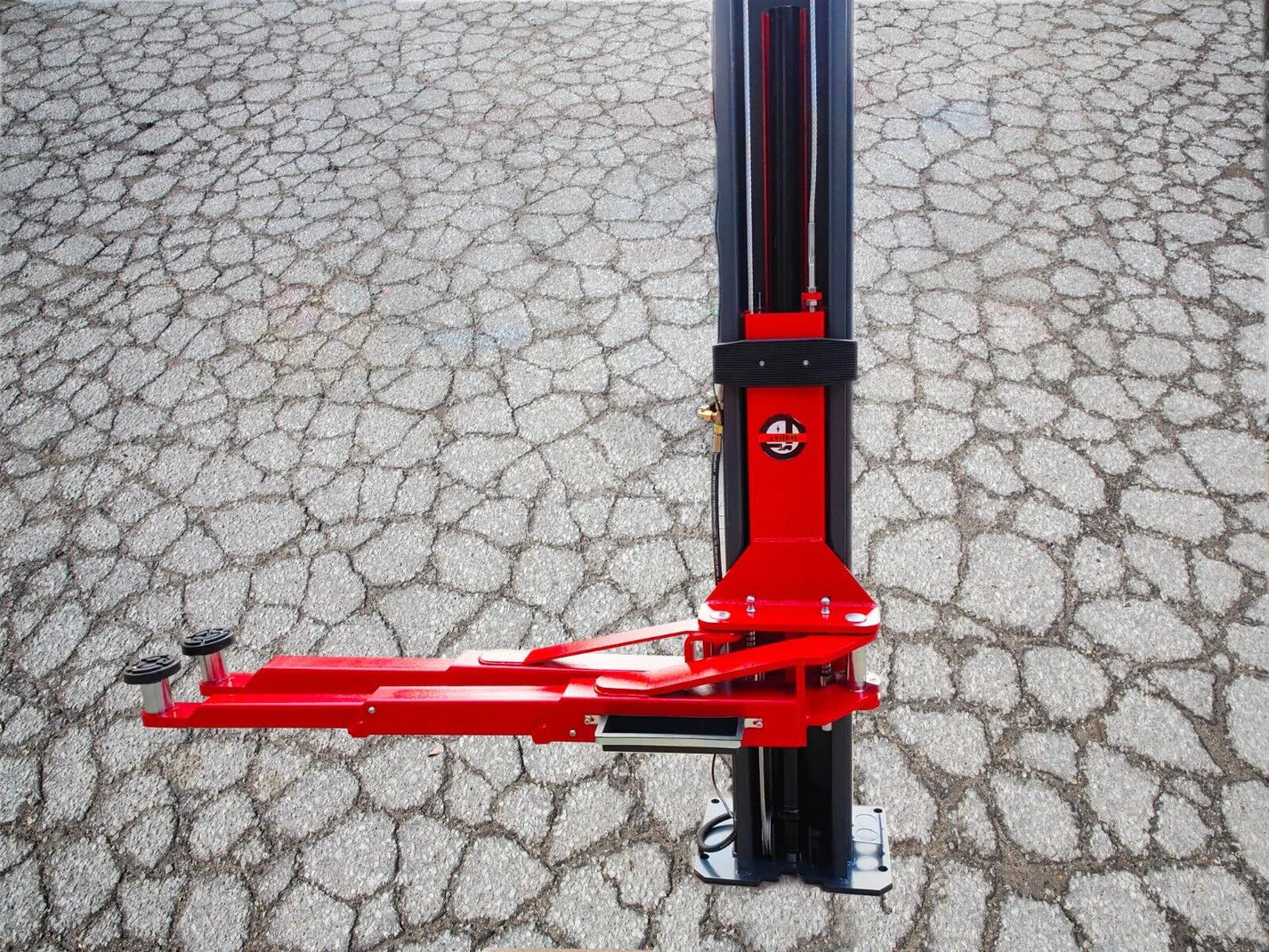

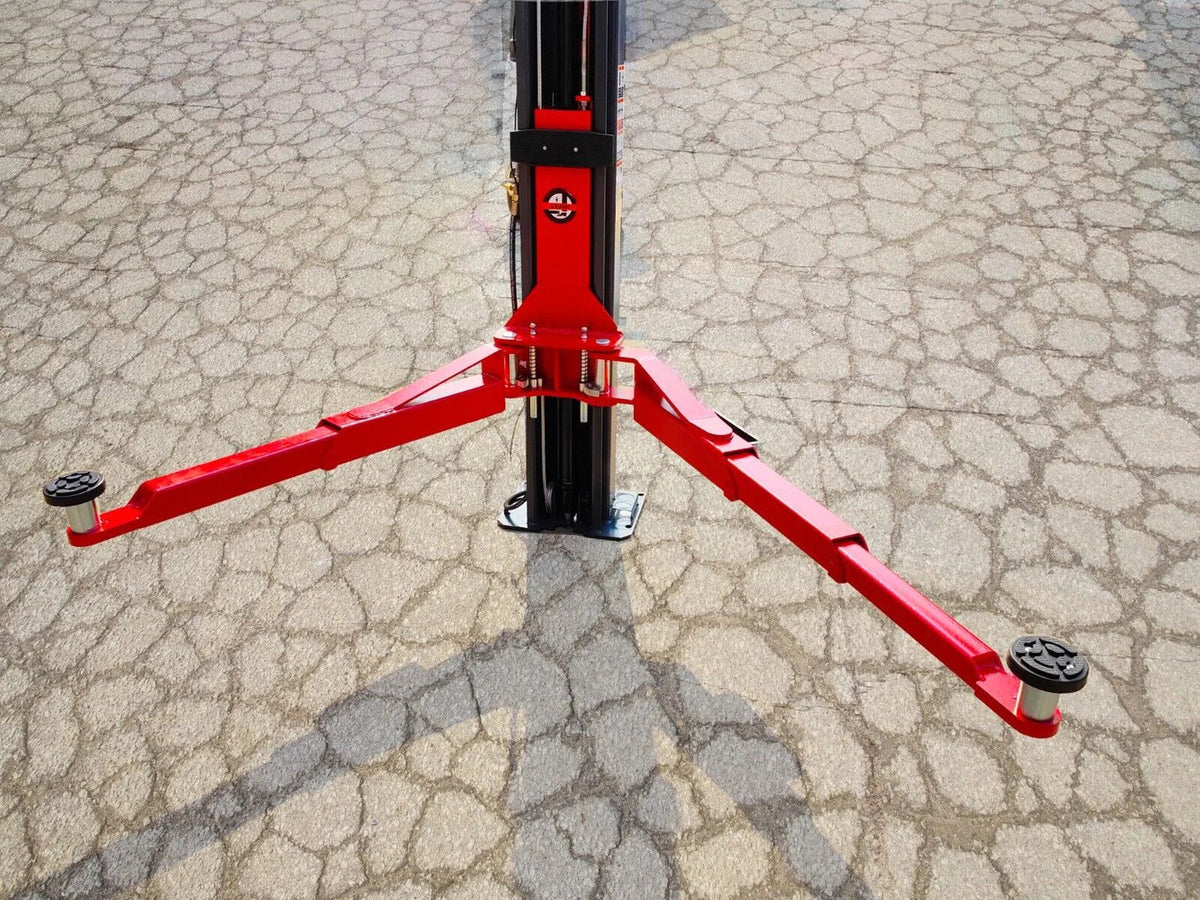

• Asymmetric arms

• Direct Drive Cylinders

• Rubber pad door opening protection

• Comes with adjustable extended support adaptor sets that range from 3.94 inches to 6 inches.

• Overhead safety shutoff bar

• Feet-protection safety guardrails with toolbox

• High-quality hydraulic system with 220V/60HZ/1PH or 110V/ 60HZ/ 1PH (Optional)

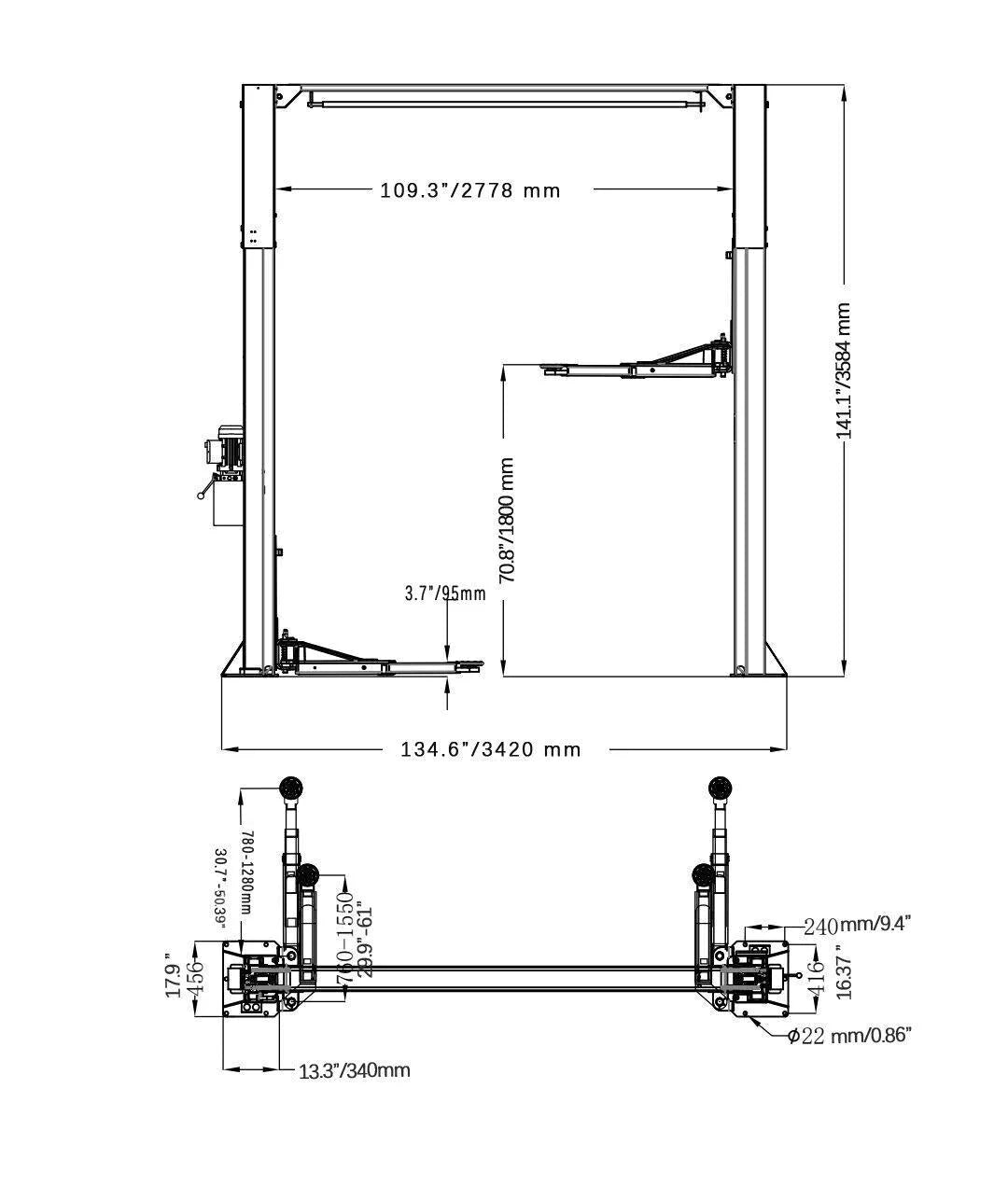

Specifications

Lifting Capacity	11000 lbs. (4990KG )
Max. Lifting Height	70.75" / 1800mm
Min. Height	3.74" / 95mm
Height Overall	141.25" / 3587mm
Width Overall	134.65" / 3420mm
Outside Columns	120.4" / 3058mm
Inside Columns	109.37" / 2778mm
Drive Thru Clearance	99.61" / 2530mm
Motor	220VAC/60HZ/1PH
Net Weight	1323lbs / 600KG

Warranty

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.

A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.

Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.

Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
