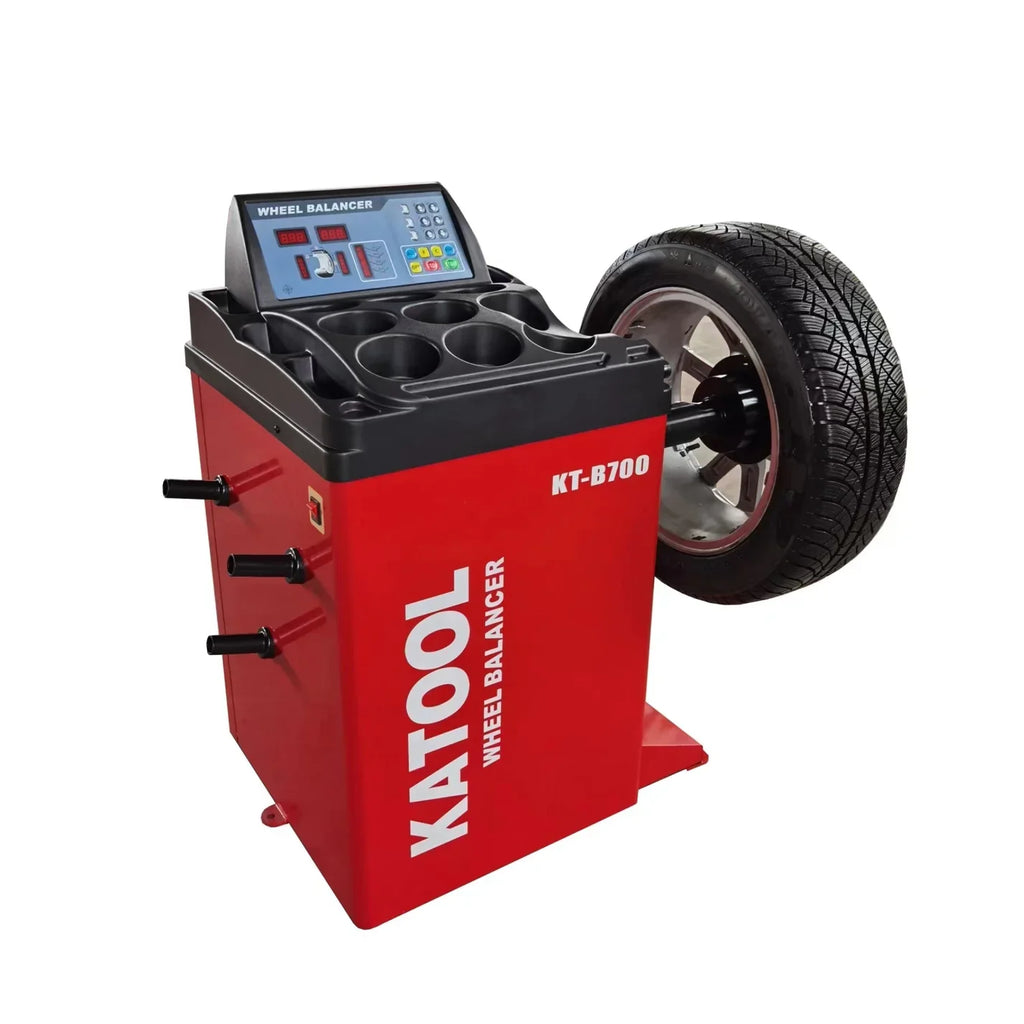

Katool | KT-B700 Wheel Balancer

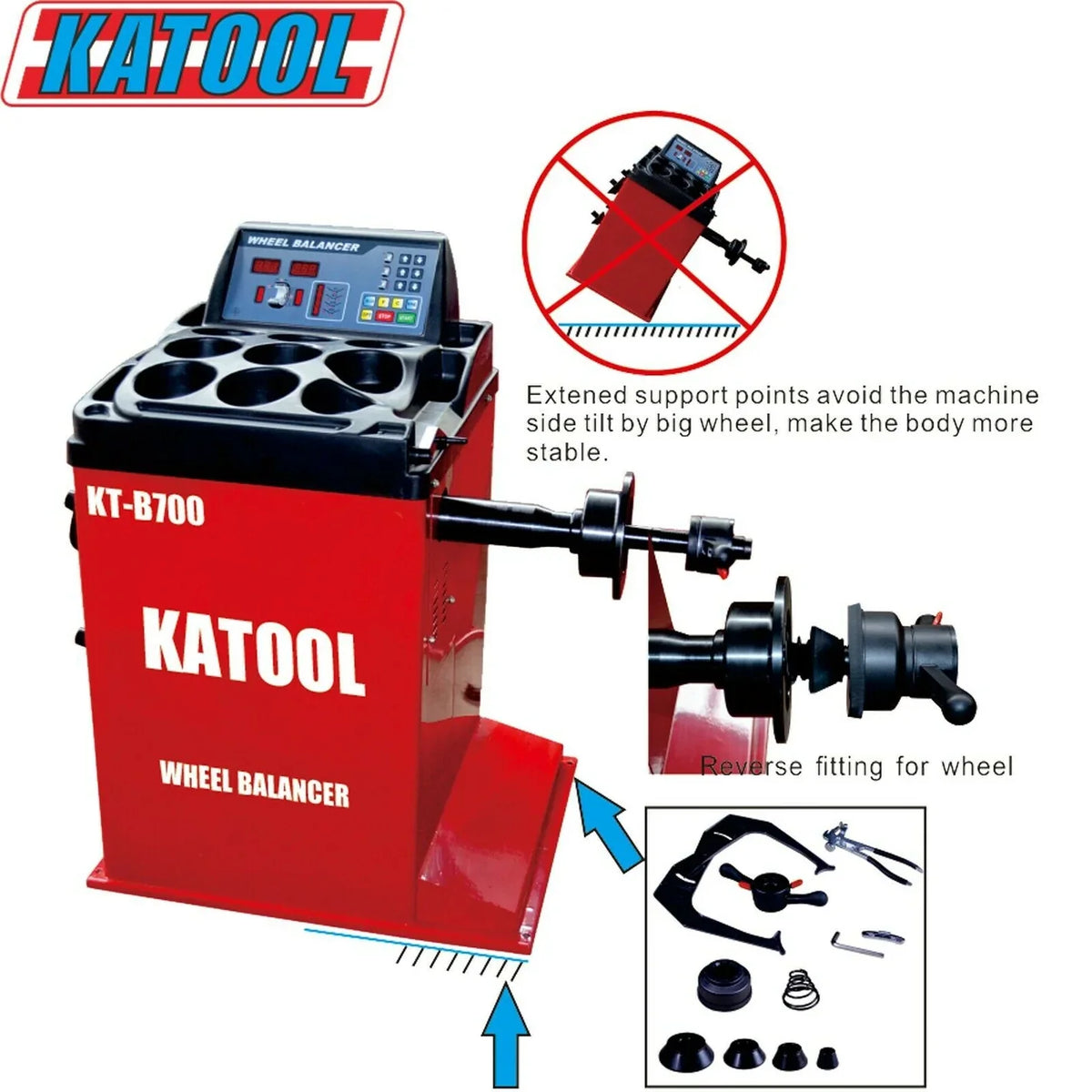

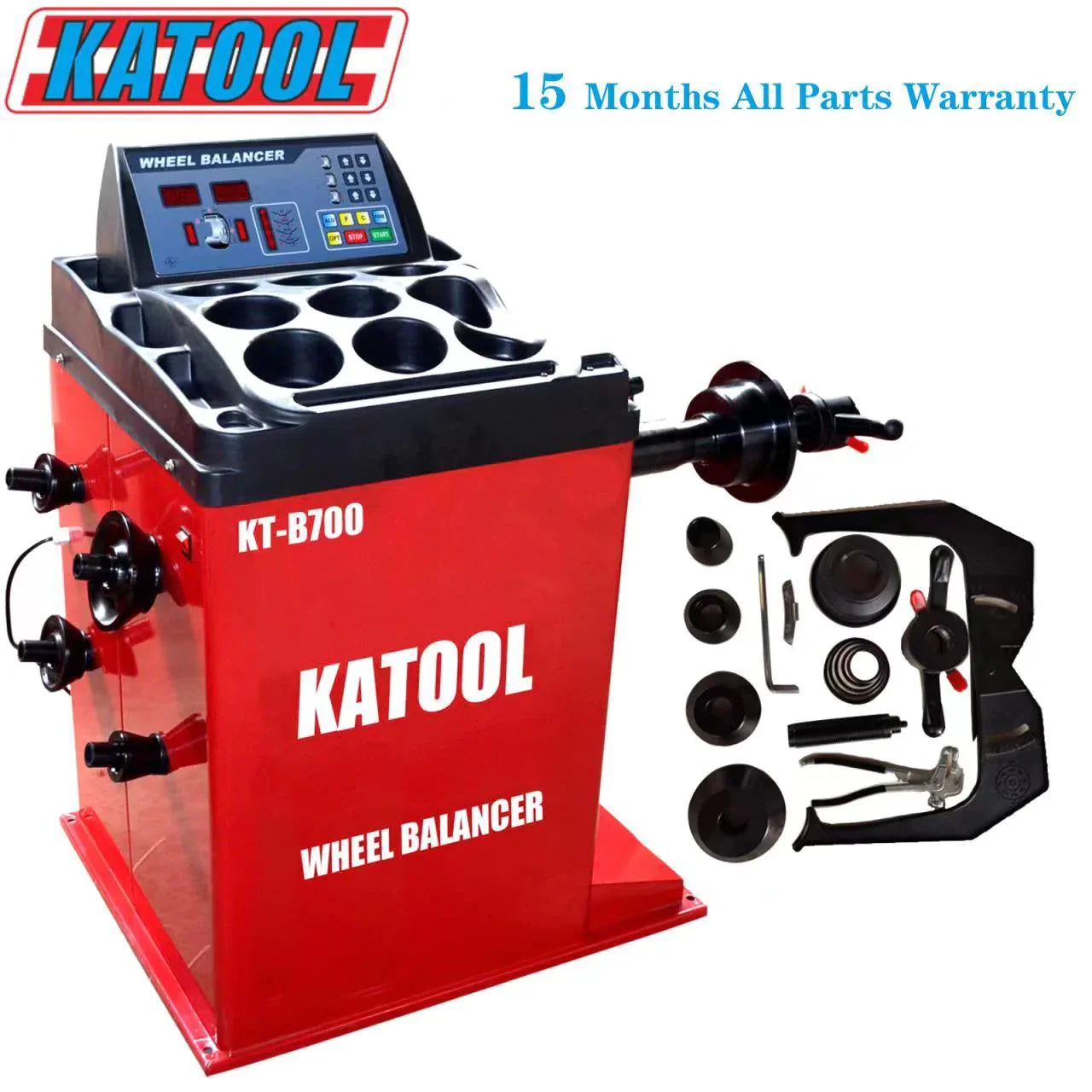

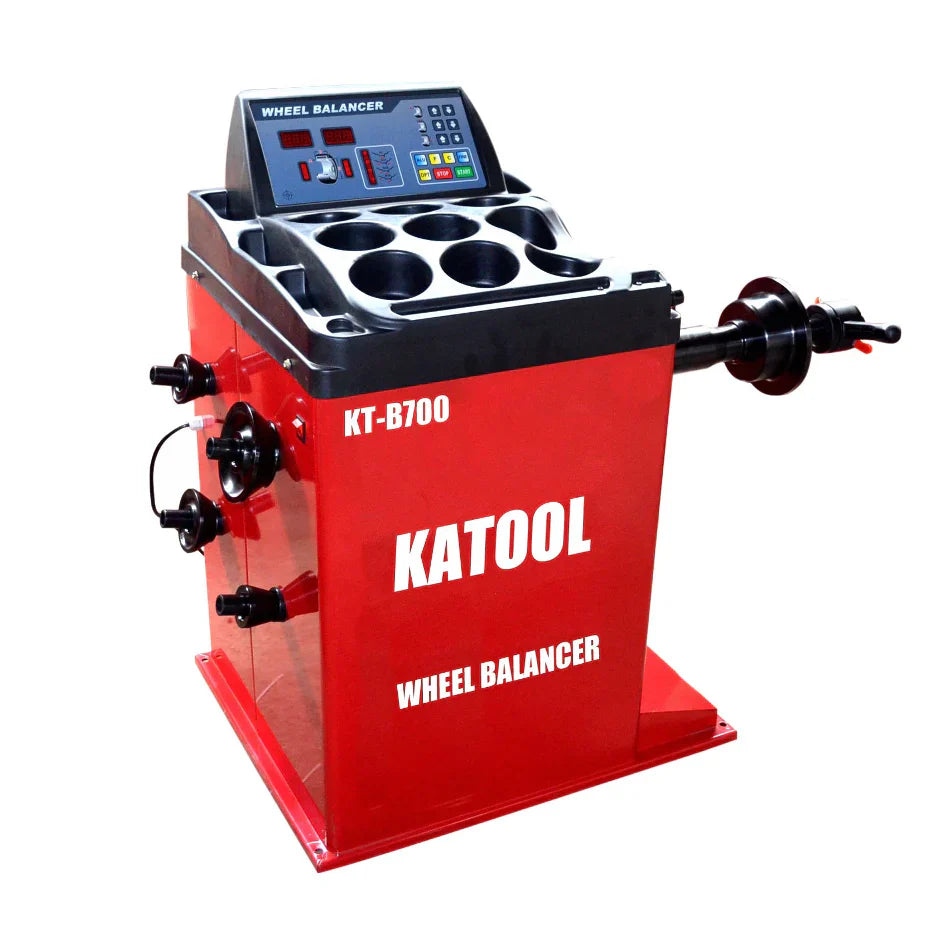

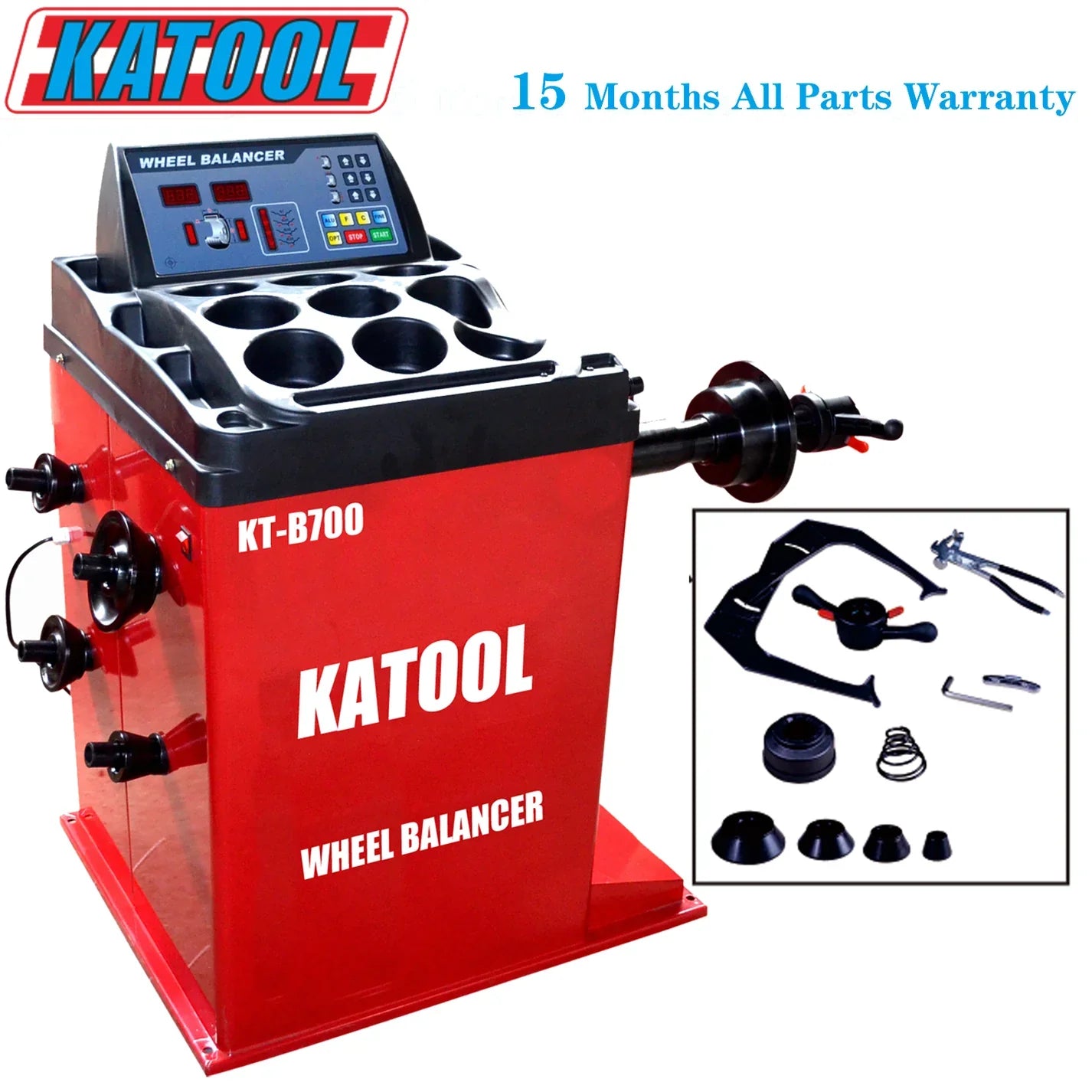

The Katool KT-B700 Wheel Balancer is a great solution for precise and efficient wheel balancing. The body is crafted from 3mm-thick high-strength steel, featuring solid welding to ensure minimal vibration. The all-in-one pressure sensor support design incorporates 8mm thick bottom and side boards, ensuring stable and precise sensor performance. Equipped with a top-level motor and pure copper winding, it delivers enhanced power, faster heat dissipation, a lower defect rate, and an extended usage life. The 36mm shaft thread undergoes quenching treatment for added strength. The computer board utilizes advanced welding technology, making it moisture-proof, dust-proof, and antistatic. Offering various balance modes for different rim types, it provides unparalleled precision. The built-in fault diagnosis and self-calibration program with double side calibration eliminates preset parameters, offering user-friendly operation. Unit selection options (Ounce/Gram, MM/Inch) provide flexibility. The high-quality integration power board ensures stable and reliable performance. Optionally available is a wheel guard for added safety, and the longer shaft is compatible with wider wheels.

Features

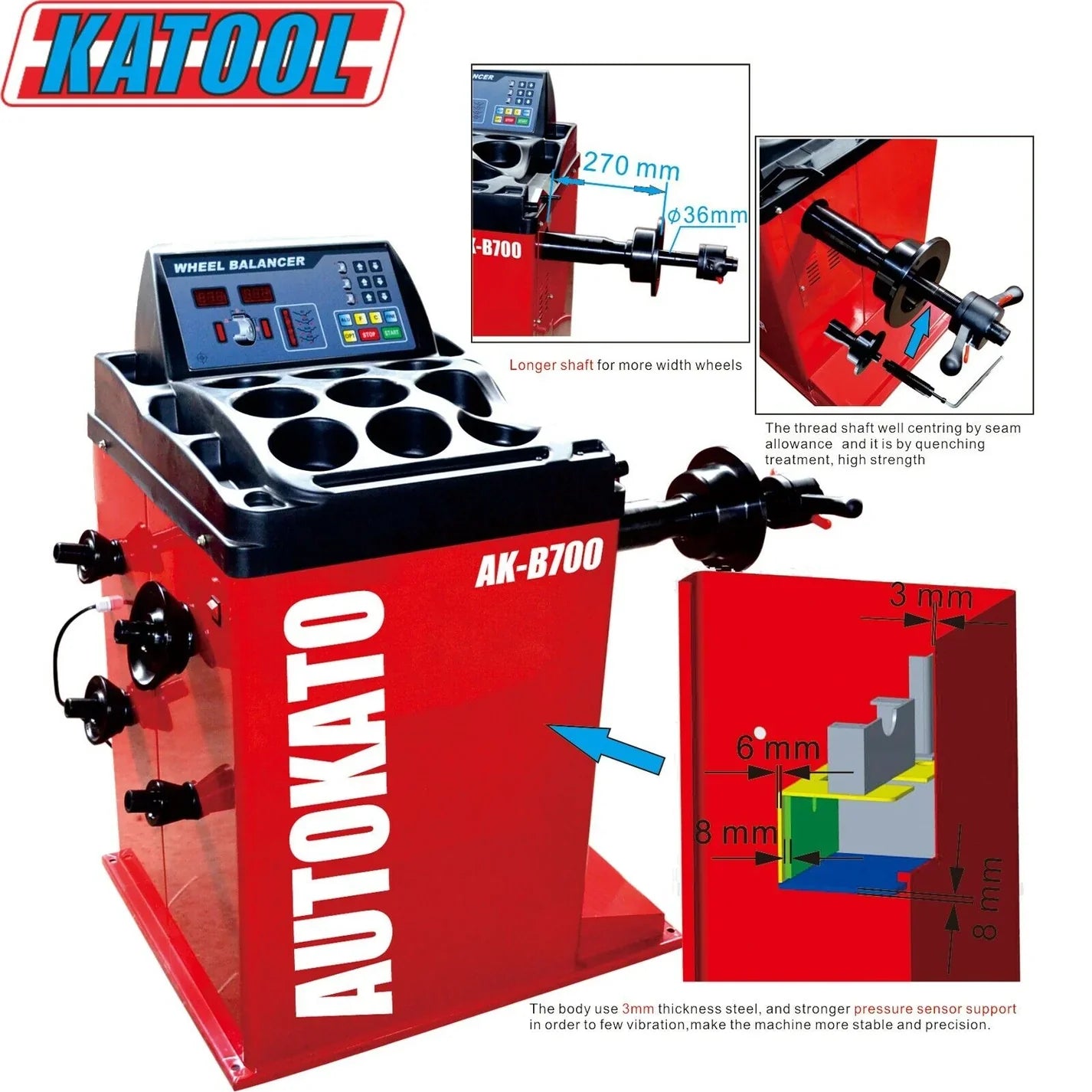

• The body uses 3mm-thick steel with high strength, solid welding and low vibration

• All-in-one pressure sensor support design, both bottom and side boards are 8mm thick, and it insures that the sensor work stably with high precision

• Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer using life

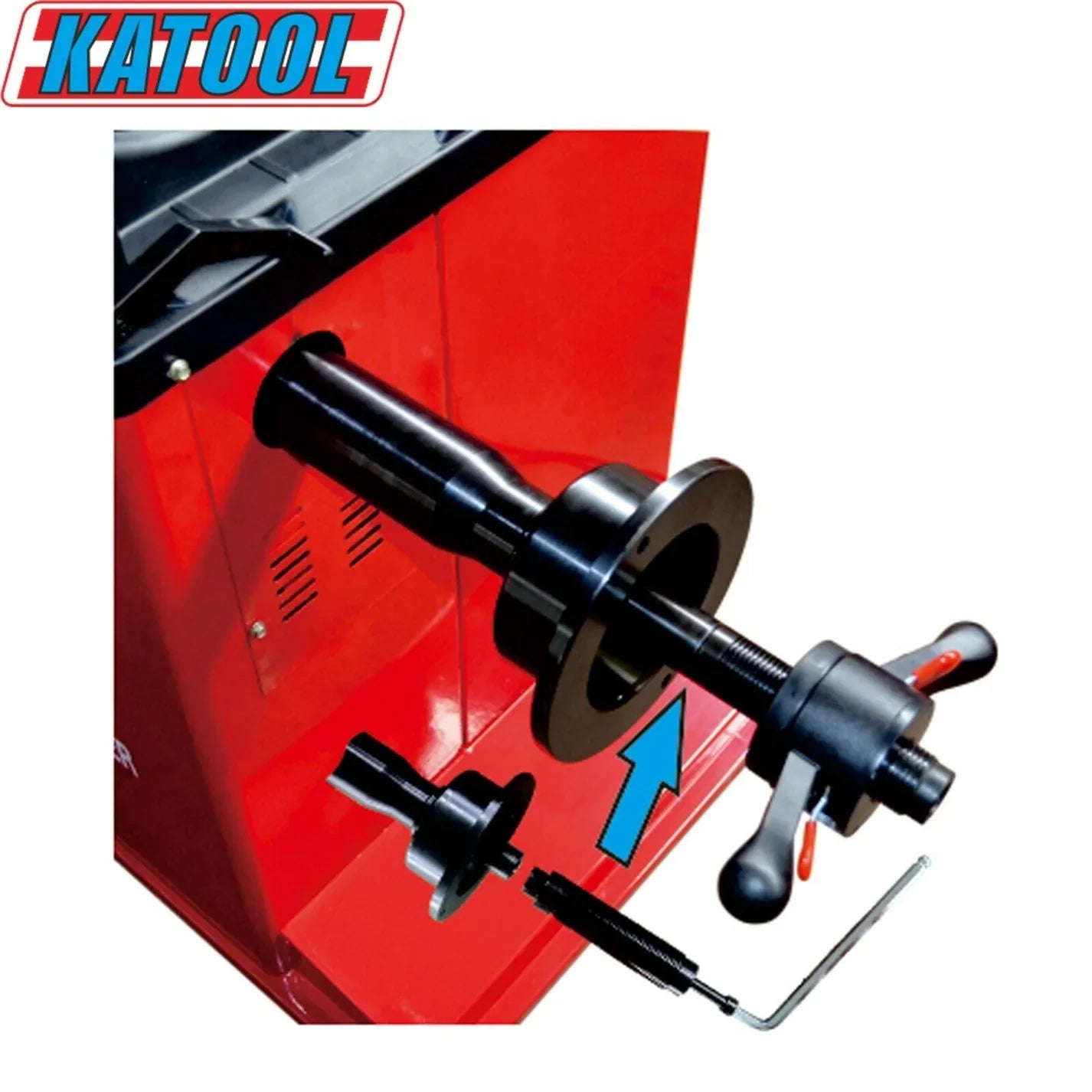

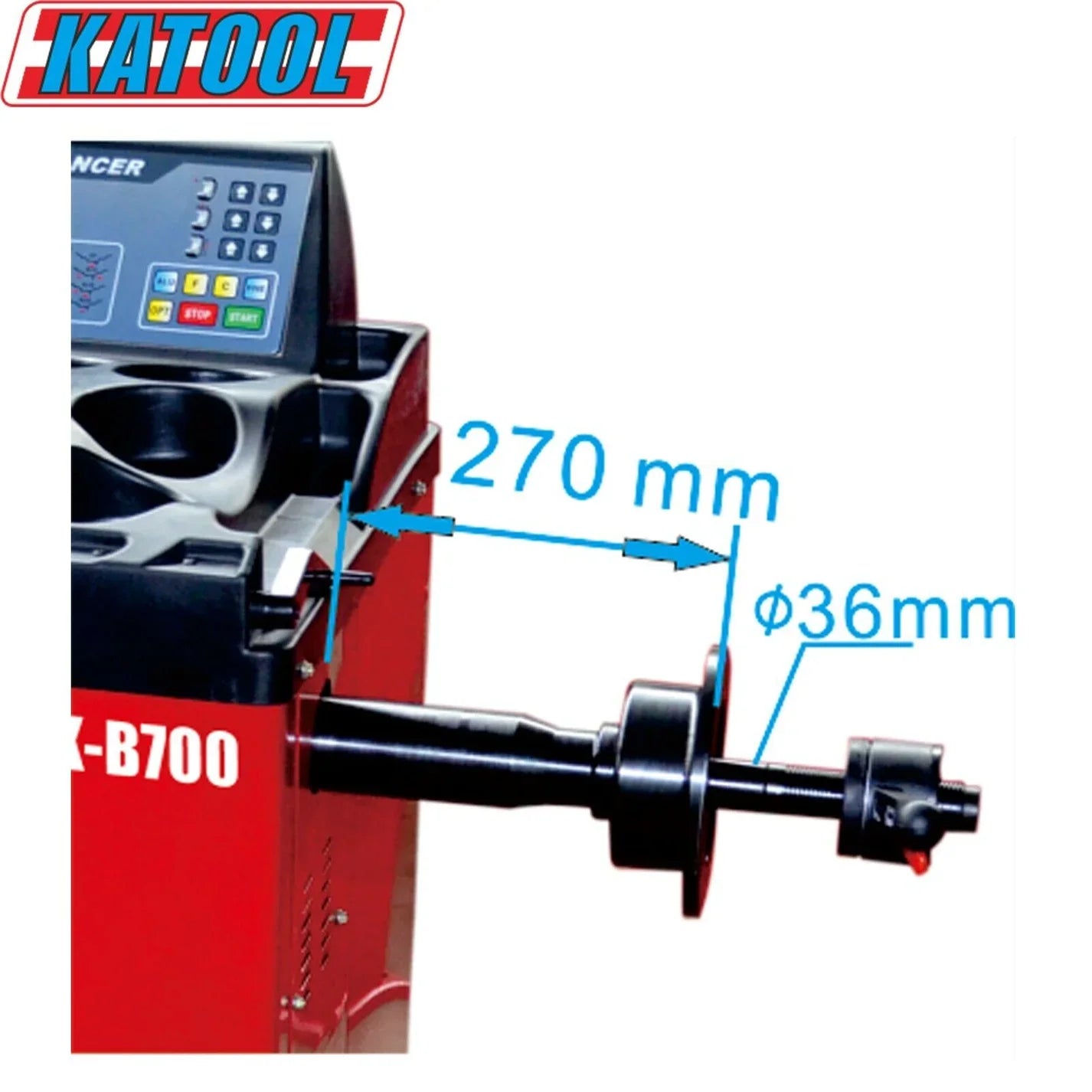

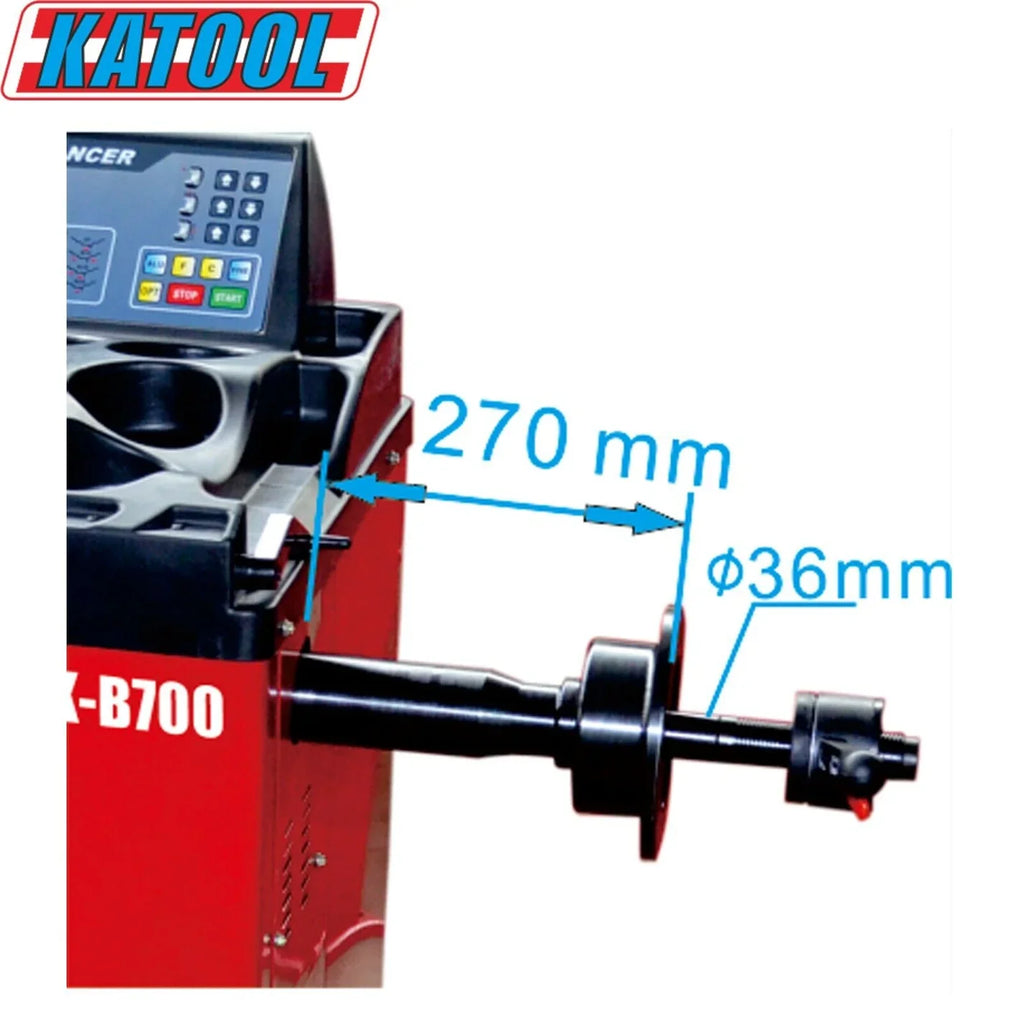

• The 36mm shaft thread is made by quenching treatment to offer high strength

• The computer board adopts advanced welding technology to make it moisture proof, dust proof and antistatic

• Various balance mode for different types of rims to provide more precision

• Built-in fault diagnosis and self-calibration program with double side calibration. No preset parameters so the users can operate with ease

• Unit selection (Ounce/Gram, MM/Inch)

• High quality integration power board, working stable and reliable

• Optional wheel guard

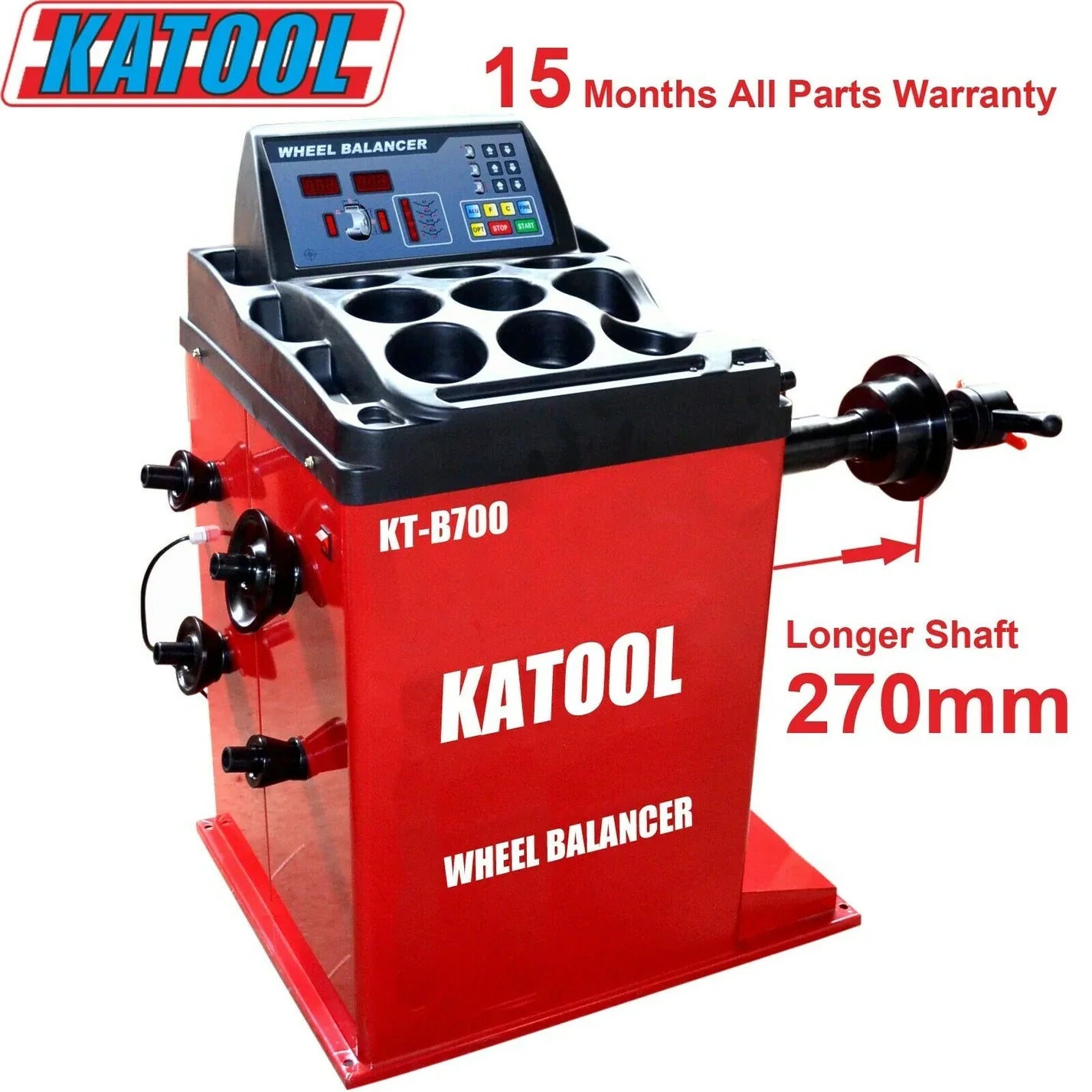

• Longer shaft also compatible with wider wheels

Specifications

Rim Diameter:	<30"
Wheel Width:	3"-12"
Wheel Diameter:	<880mm/34.64"
Balancing Speed:	180rpm
Power Supply:	120V 1PH
Motor Power:	0.25KW
Rim Center Hole Dia.:	<135mm/5.31"
Wheel Weight:	<65KG/143lbs
Balancing Accuracy:	±1g
Measuring Time:	7S

Warranty

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.

A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.

Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.

Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
