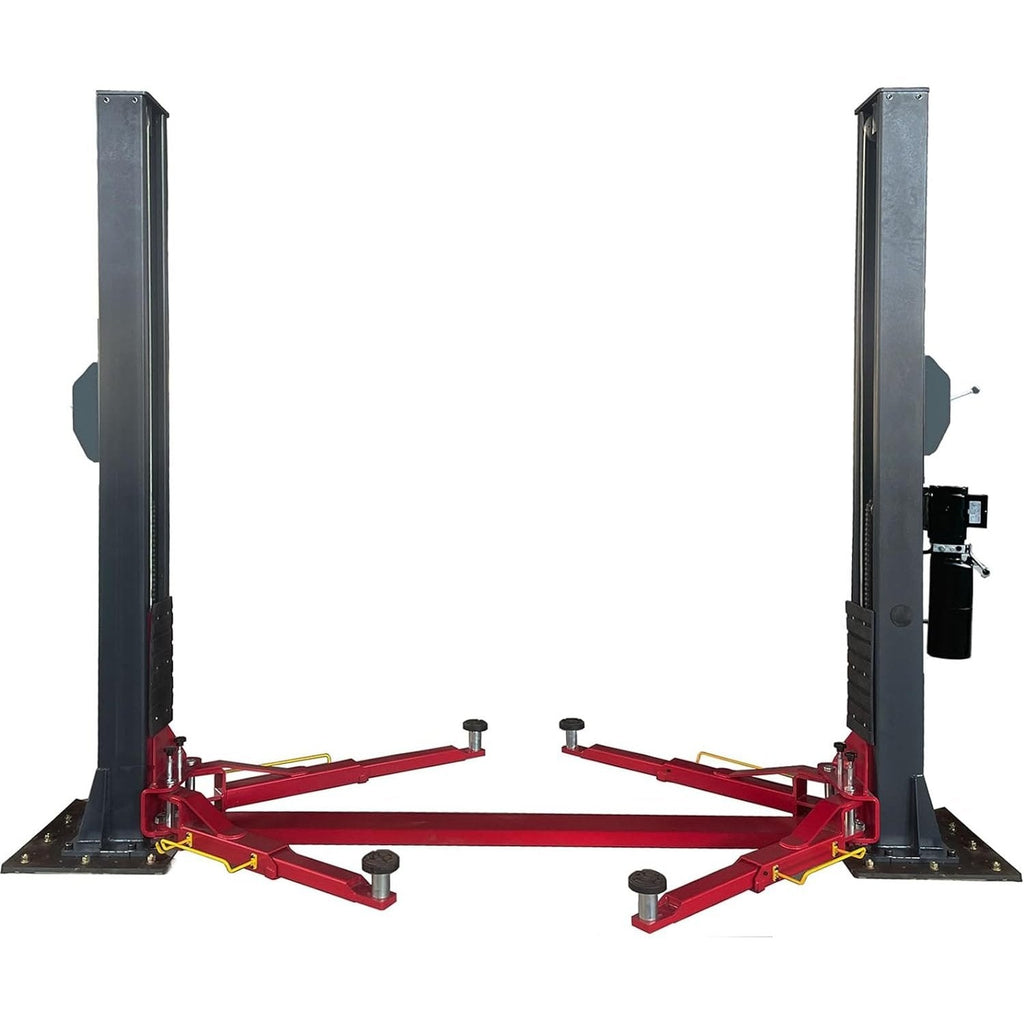

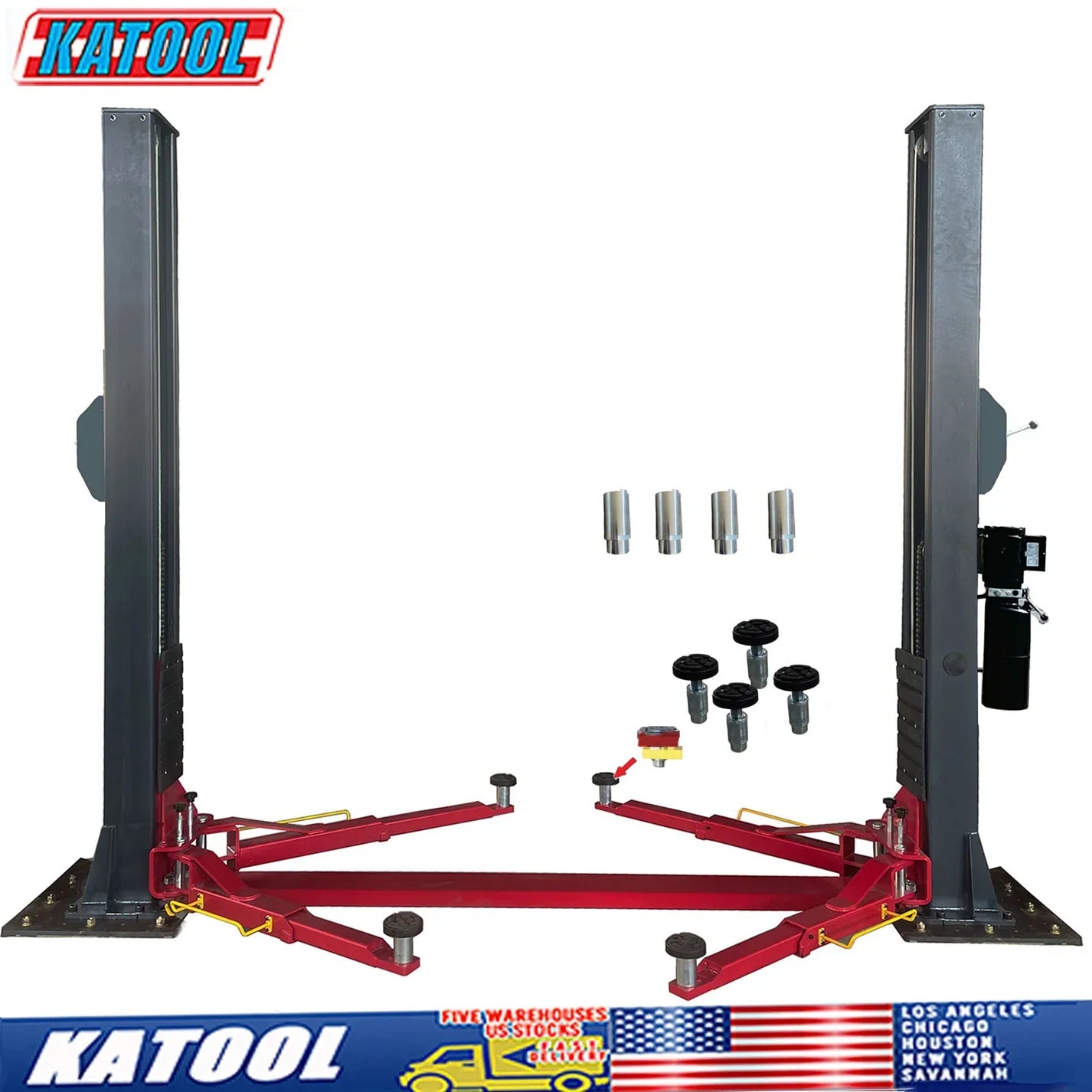

The Katool KT-H120D 12,000lbs Two Post Lift is a robust auto lift designed for powerful performance. With a lifting capacity of 12,000lbs, this 2 post lift ensures efficient and secure lifting. The manual safety release from a single side adds convenience and safety. Featuring a symmetric arm design, base plate configuration, and dual hydraulic chain-drive cylinders, it guarantees stability during operation. The lift is equipped with rubber pad door opening protection, screw-on pads, and extension support adaptor sets of +100mm for added versatility. Powered by a top-level hydraulic system, it operates seamlessly with a 220V/60HZ/1PH configuration.
*Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.
Features
- 12000lbs lifting capacity 2 post lift
- Manual safety release from single side
- Symmetric arm, base plate design, dual Hydraulic chain-Drive Cylinders
- Robber pad door opening protection, screw-on pad and extension support adaptor sets +100mm
- Top level hydraulic system with 220V/60HZ/1PH

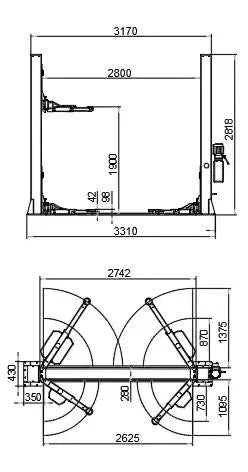

Specifications
Item Weight: 120 pounds
Product Dimensions: 112 x 18 x 36 inches
| Lifting Capacity |
12000lbs.(5500KG) |
| Height Overall |
110.94"/2818mm |
| Width Overall |
140"/3555mm |
| Dirve-Thru Clearance |
98.43"/2500mm |
| Max. Lifting Height |
74.8"/1900mm |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
