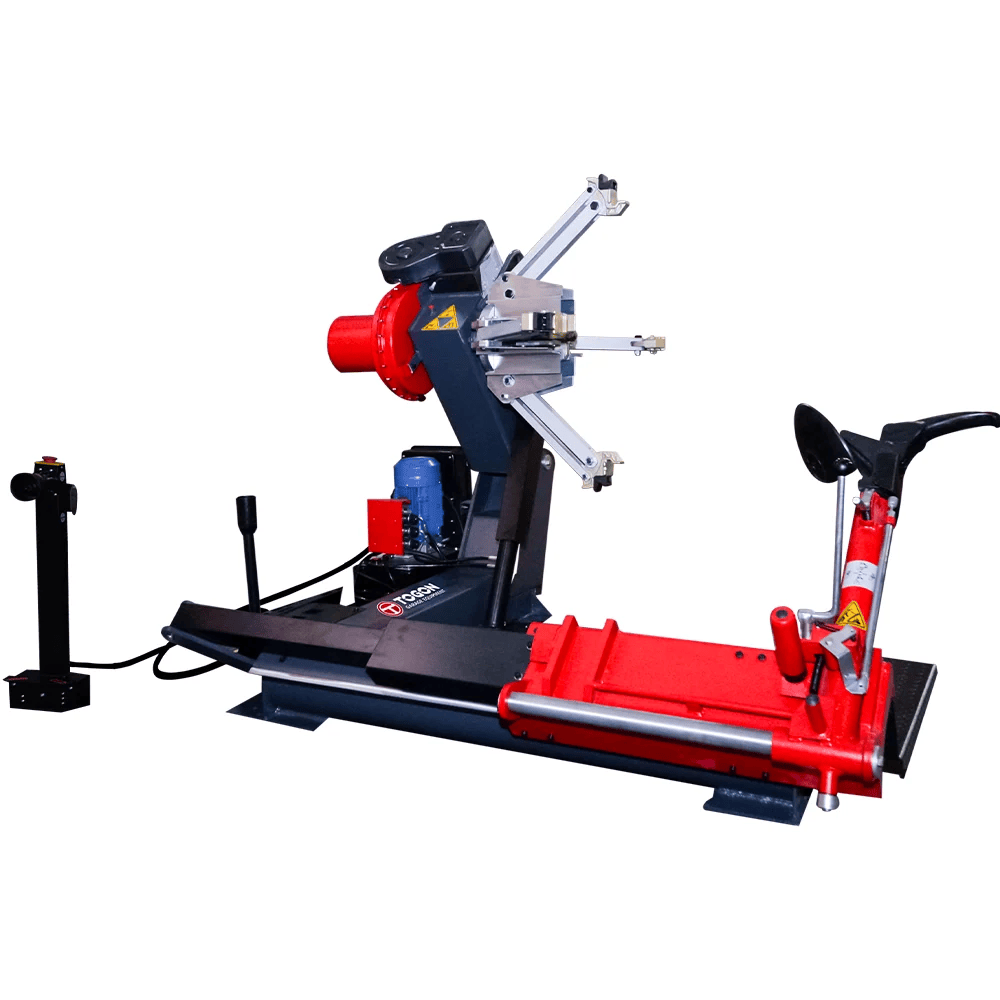

Katool Automotive Equipment KT-T260 Heavy Duty Truck Tire Changer
The Katool Automotive Equipment KT-T260 Heavy Duty Truck Tire Changer is a professional-grade, electro-hydraulic tire service machine built to handle the toughest commercial applications. Designed for truck shops, fleet service centers, and agricultural operations, the KT-T260 delivers the power, stability, and control needed to service large and heavy wheel assemblies with confidence.
Engineered for high-volume environments, the KT-T260 combines hydraulic power with electric motor assistance to provide smooth, controlled tire handling while minimizing operator effort. Its wide rim capacity and high weight tolerance make it ideal for servicing trucks, buses, tractors, and off-road equipment, helping shops increase productivity and keep more heavy-duty tire work in-house.
Built with a reinforced steel frame and designed for durability, the KT-T260 is a reliable solution for demanding shop conditions where performance and uptime matter most.
Key Features
- Designed for heavy-duty truck, bus, and agricultural tires
-
Electro-hydraulic operation for powerful and precise control
- Wide rim capacity for maximum versatility
- Handles large and heavy wheel assemblies with ease
- Heavy-duty steel construction for long-term durability
- High torque output for efficient mounting and demounting
- Ideal for fleet service centers, truck shops, and commercial garages
| Specification |
Details |
| Model |
KT-T260 |
| Brand |
Katool Automotive Equipment |
| Product Type |
Heavy Duty Truck Tire Changer |
| Operation Type |
Electro-hydraulic |
| Rim Diameter Range |
14" – 42" |
| Max Wheel Diameter |
Up to 91" |
| Max Wheel Width |
Up to 41" (1040 mm) |
| Max Wheel Weight |
3,527 lbs |
| Max Torque |
5,265 Nm |
| Bead Breaking Force |
7,275 lbs |
| Power Supply |
220V / 400V, 50/60Hz (1PH / 3PH options) |
| Motor |
2.2 kW gearbox motor + hydraulic pump system |
| Construction |
Heavy-duty reinforced steel |
| Machine Weight |
Approx. 1,671 lbs |
