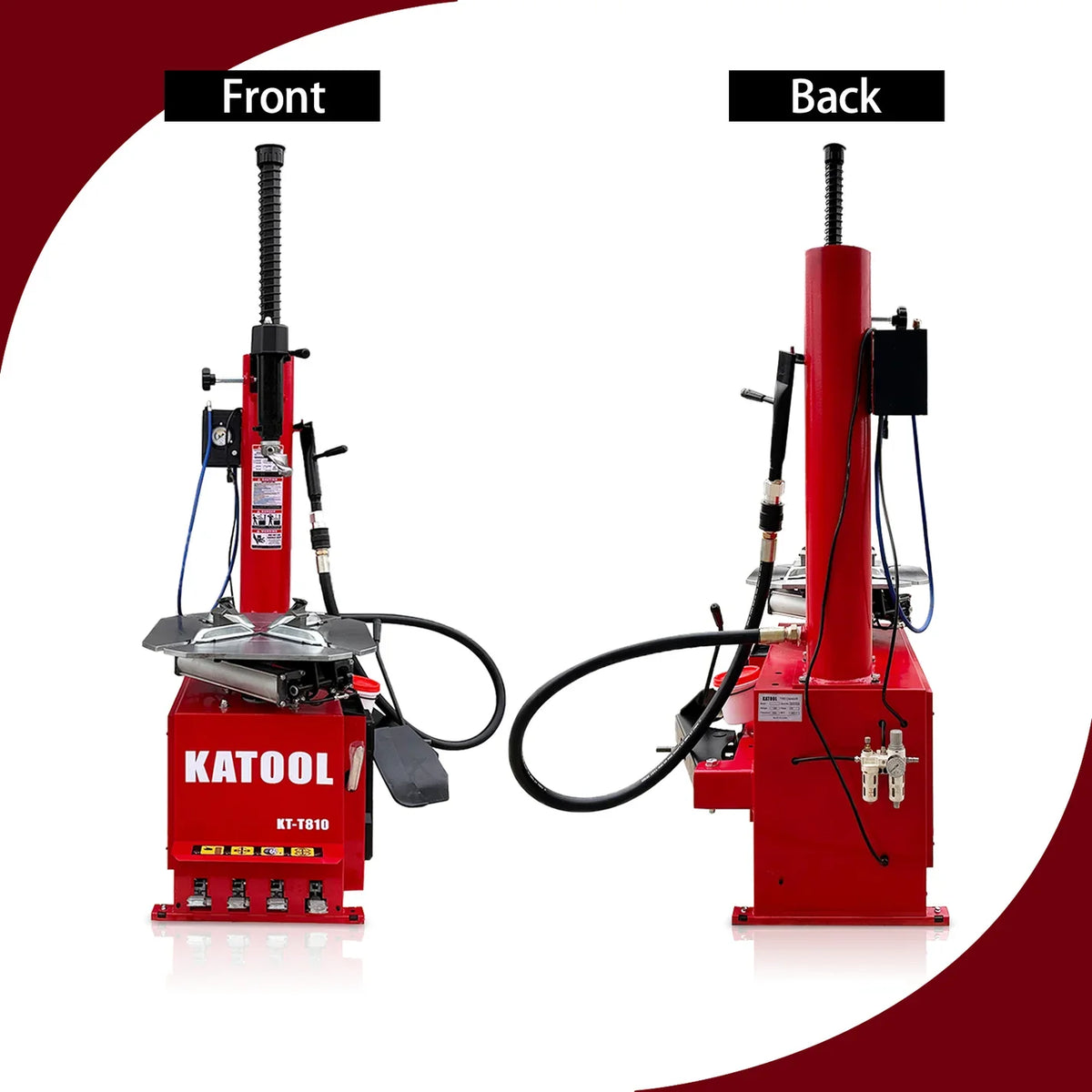

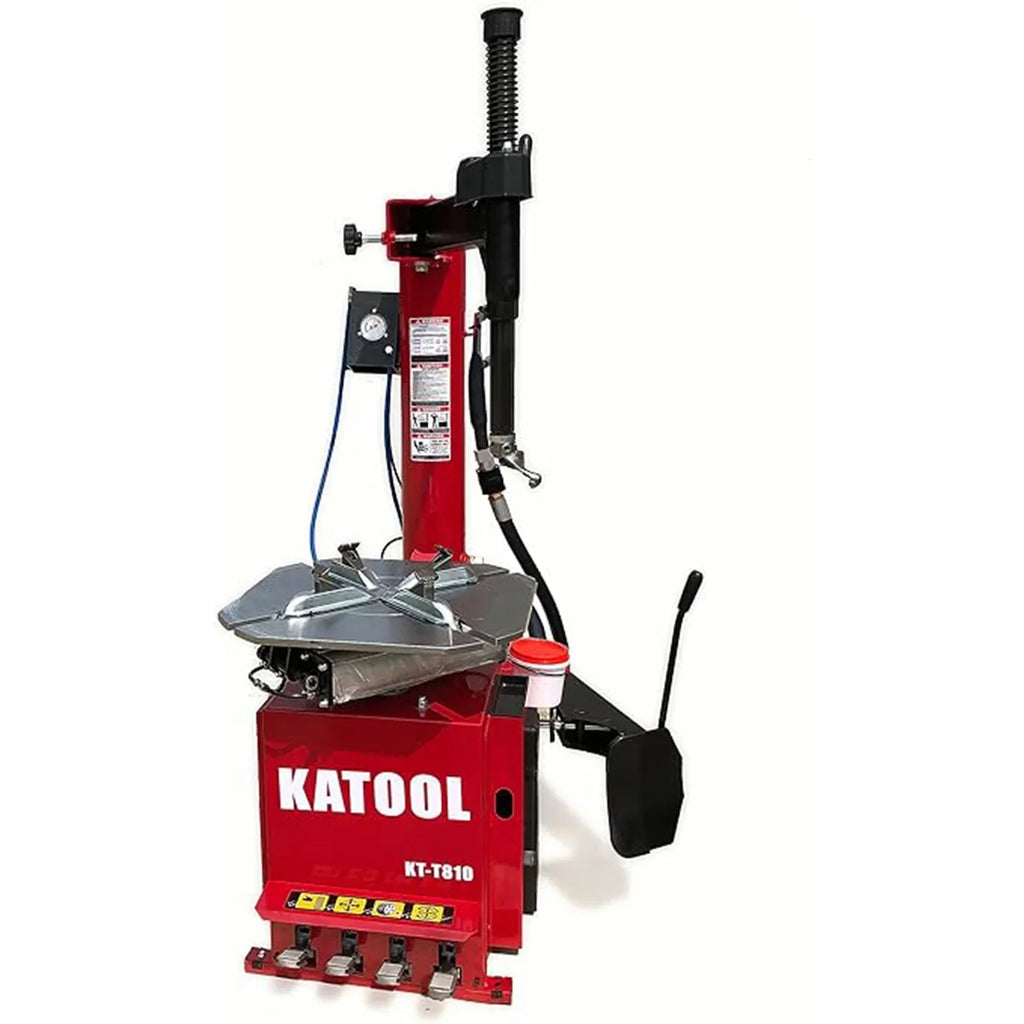

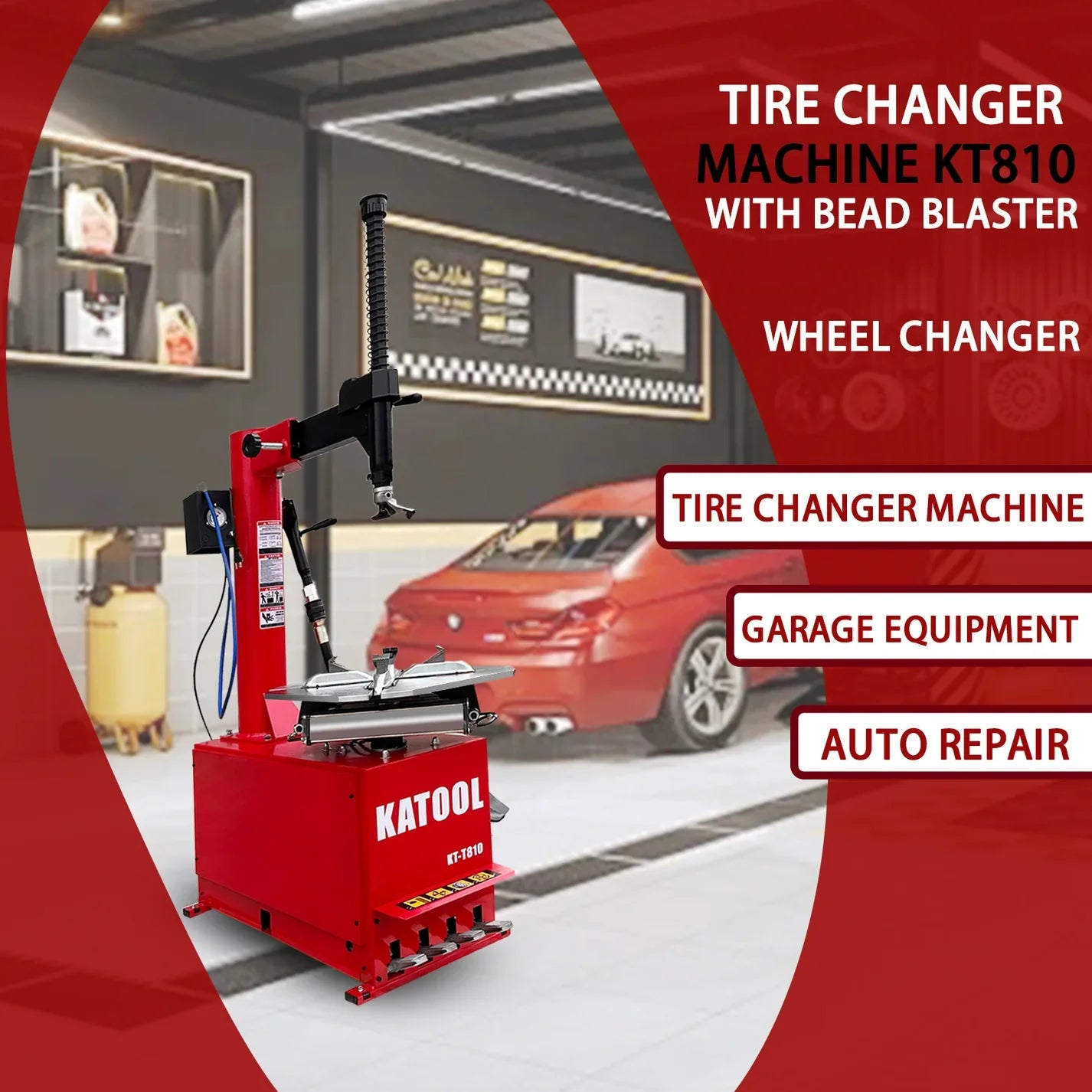

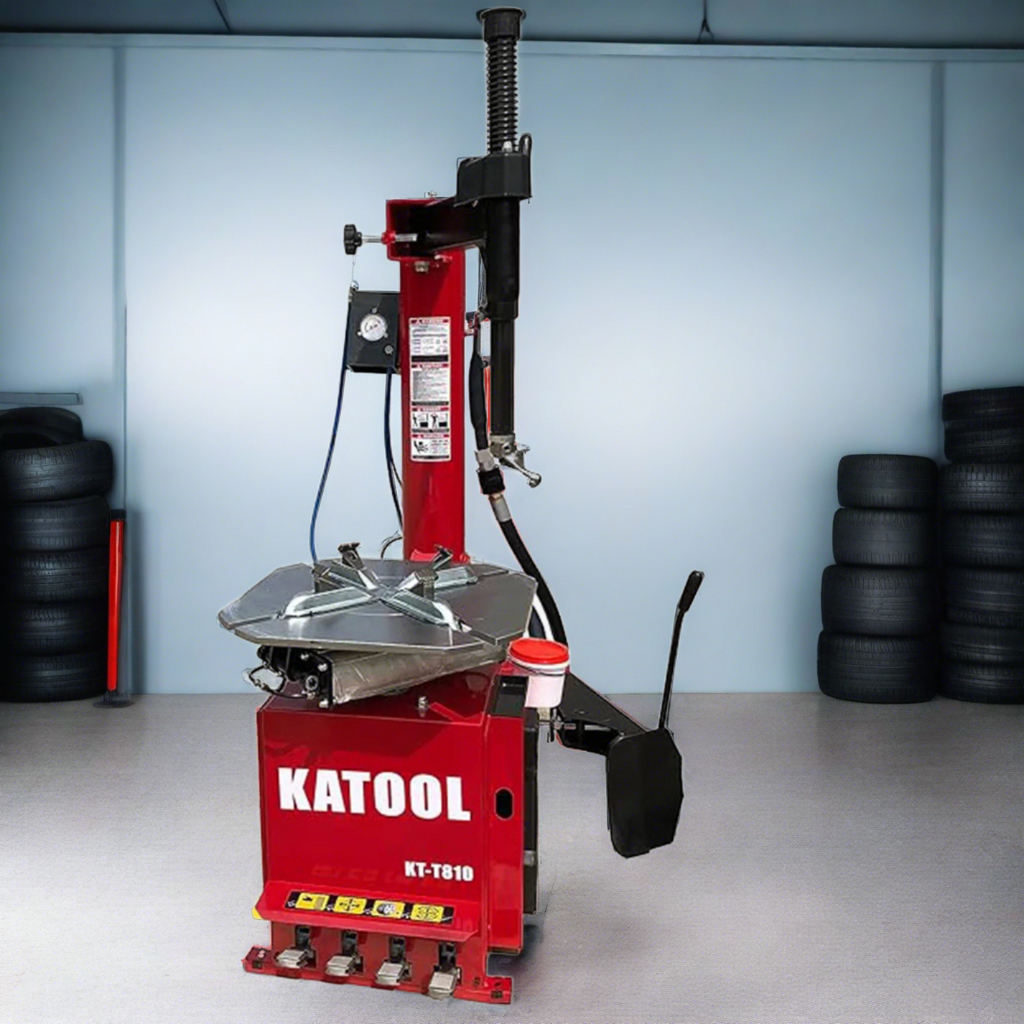

Katool | KT-T810 Wheel Clamp Tire Changer Machine

The Katool KT-T810 Wheel Clamp Tire Changer Machine is designed for durability and efficiency. The alloy steel jaw undergoes precise carburization treatment, ensuring both interior tenacity and exterior hardness. With a stainless steel mounting head, inflation gauge with pedal control, and high-quality spade cover, this machine prioritizes user convenience and rim protection. The pull-type pedal control system streamlines tire changing, complemented by a top-level motor for efficient performance. Tailored for North America, it operates with a robust 120V/1ph/2.0HP motor, providing enhanced power and efficiency. The closed body design ensures optimal protection for internal components, making the Katool KT-T810 an ideal choice for tire-changing needs.

Features

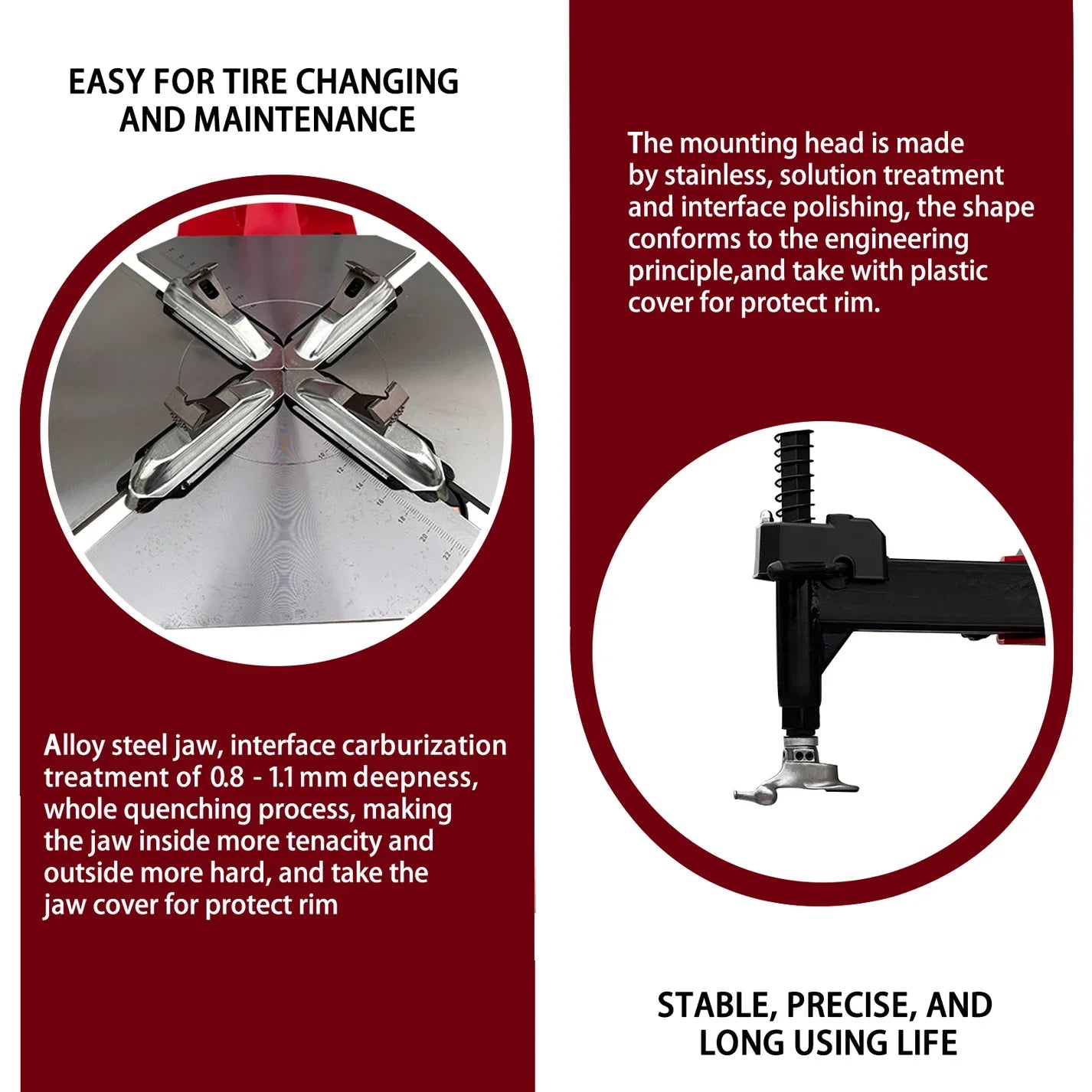

• Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the jaw inside more tenacity and outside more hard, and take the jaw cover for protect rim

• The mounting head is made by stainless, solution treatment and interface polishing, the shape conforms to the engineering principle, and take with plastic cover for protect rim

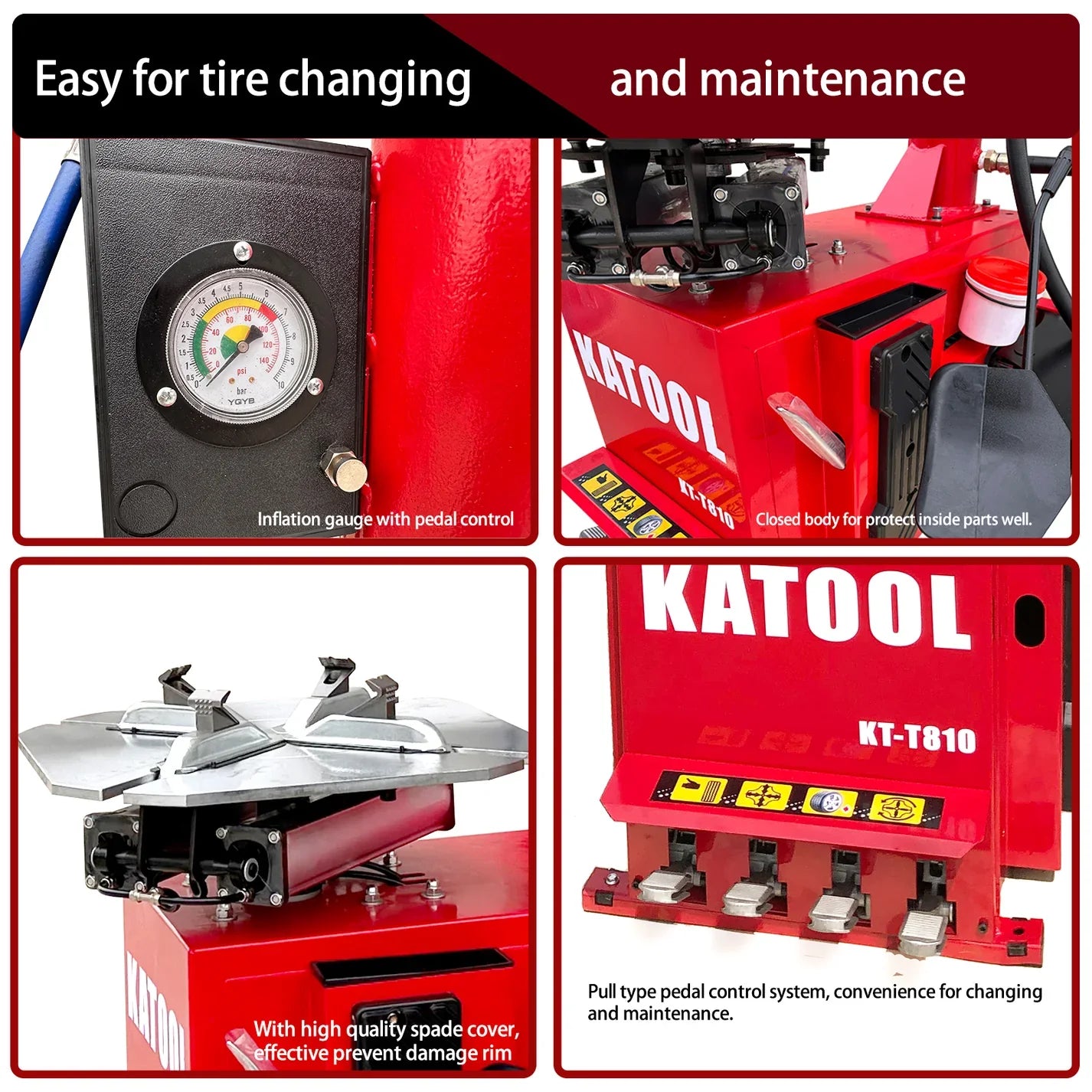

• Inflation gauge with pedal control

• With high quality spade cover, effective prevent damage rim

• Pull type pedal control system, convenience for changing and maintenance

• Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life
• Bead blast seater head with post tank

• With high quality filter, reliable drop oil, effective filter pressure air, and make more longer using life for pneumatic system

• For North America region used 120V/1ph/2.0HP motor, stronger power and high efficiency working
• Closed body for protect inside parts well.

Specifications

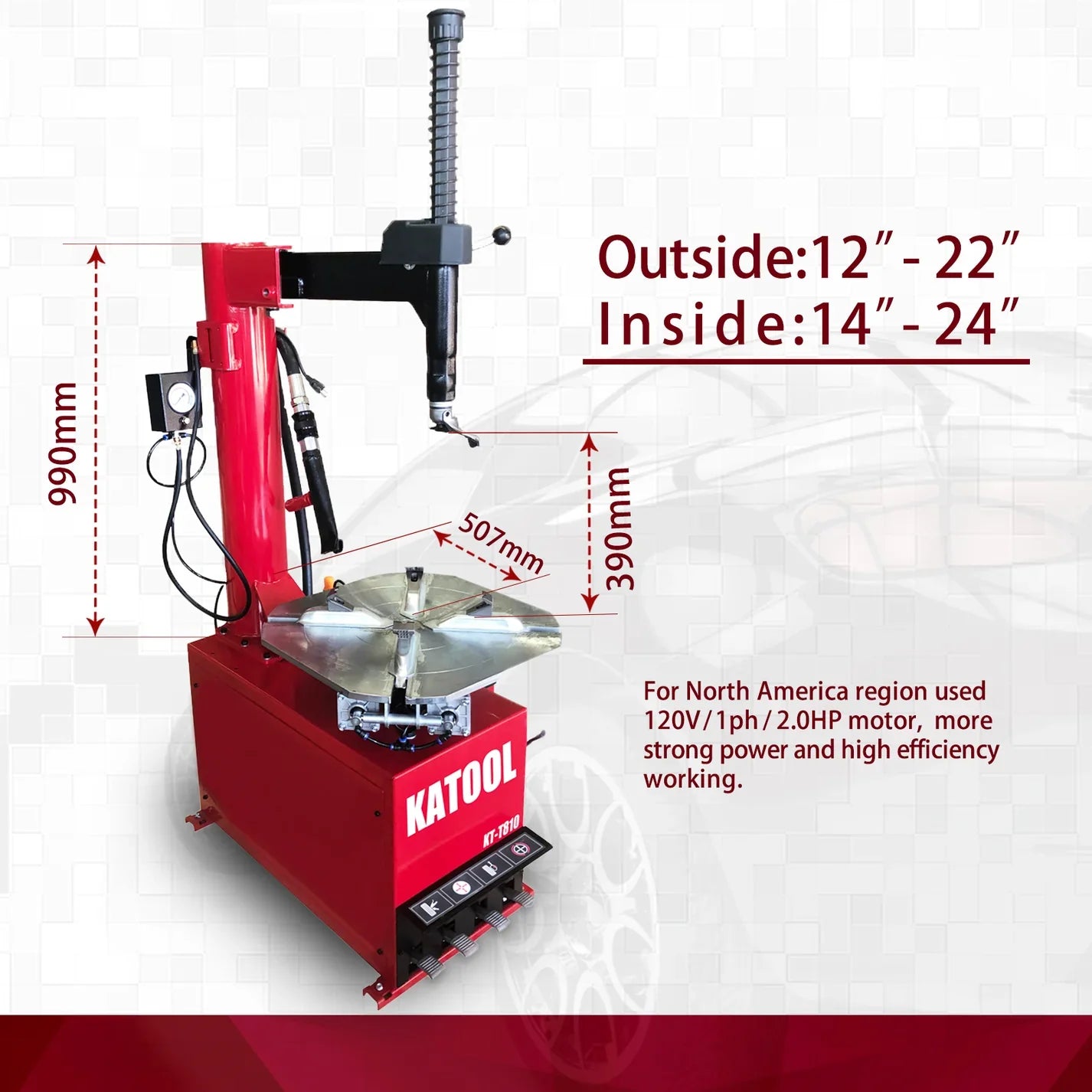

Max Wheel Diameter :	41"/1040mm
Max Wheel Width :	15"/380mm
Outside Clamp:	12"-22"
Inside Clamp :	14"-24"
Power Supply:	120V 1PH
Motor Power:	2.0HP/1.5KW
Rotation Speed :	6.8r/min
Air Pressure :	0.8-1.0Mpa(116-145psi)
Net weight :	186KG



Warranty

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.

A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.

Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.

Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
