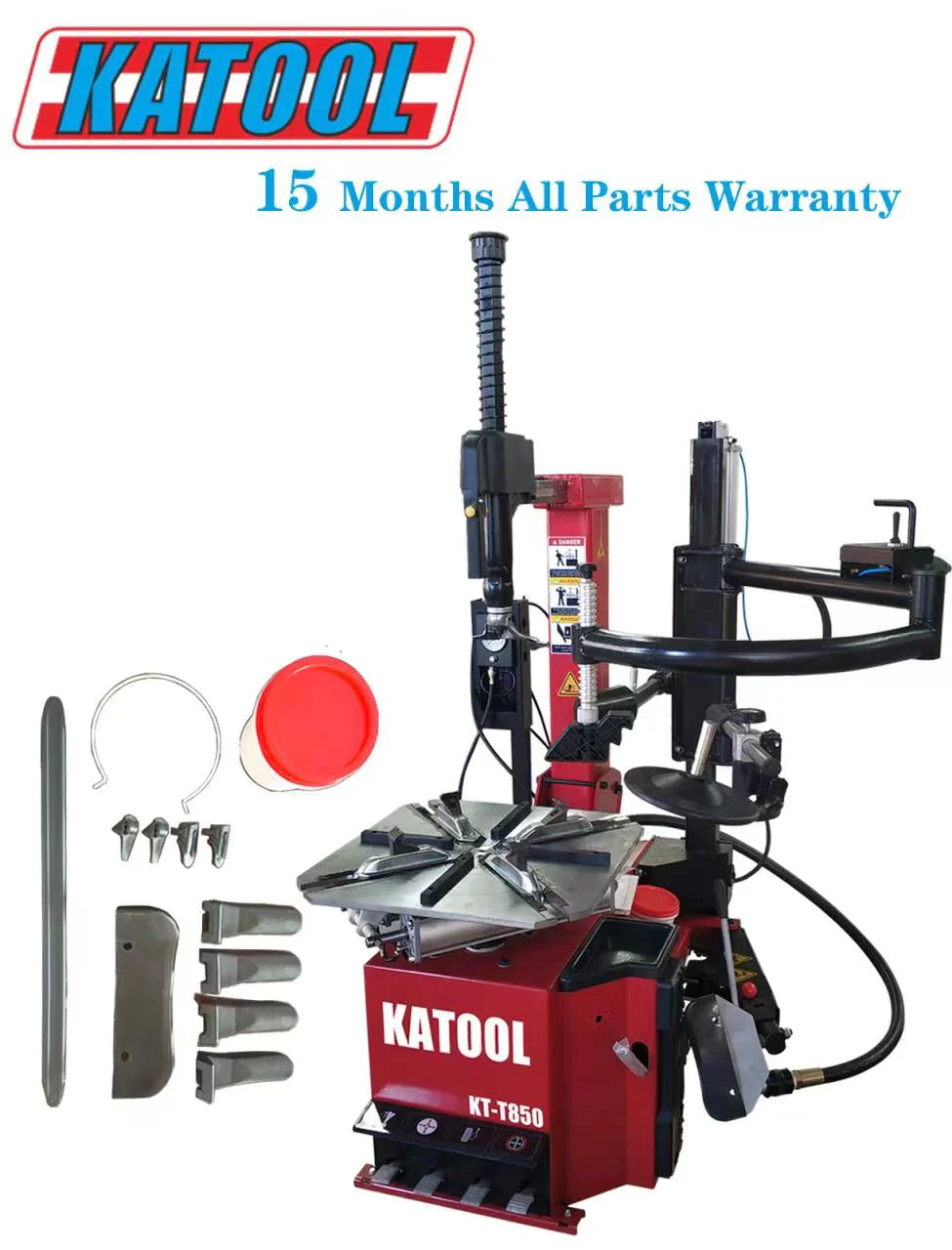

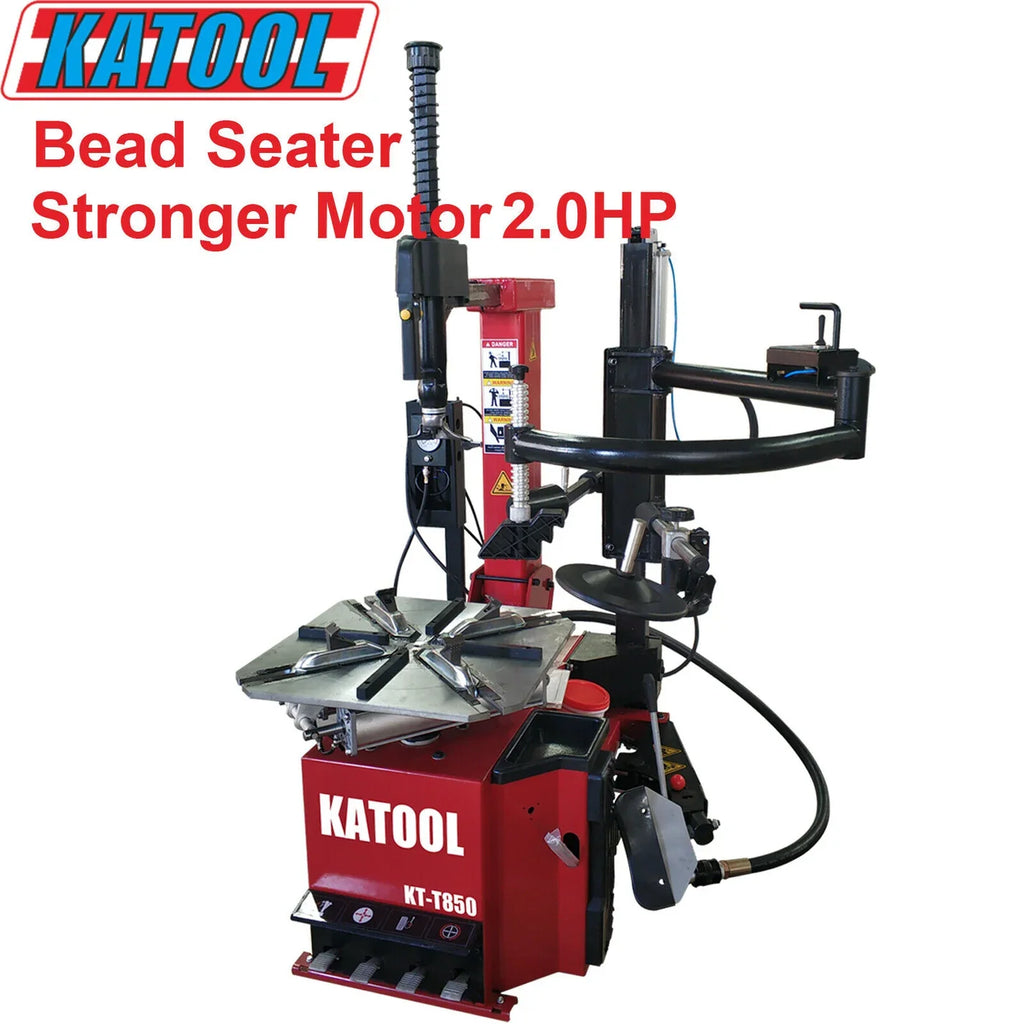

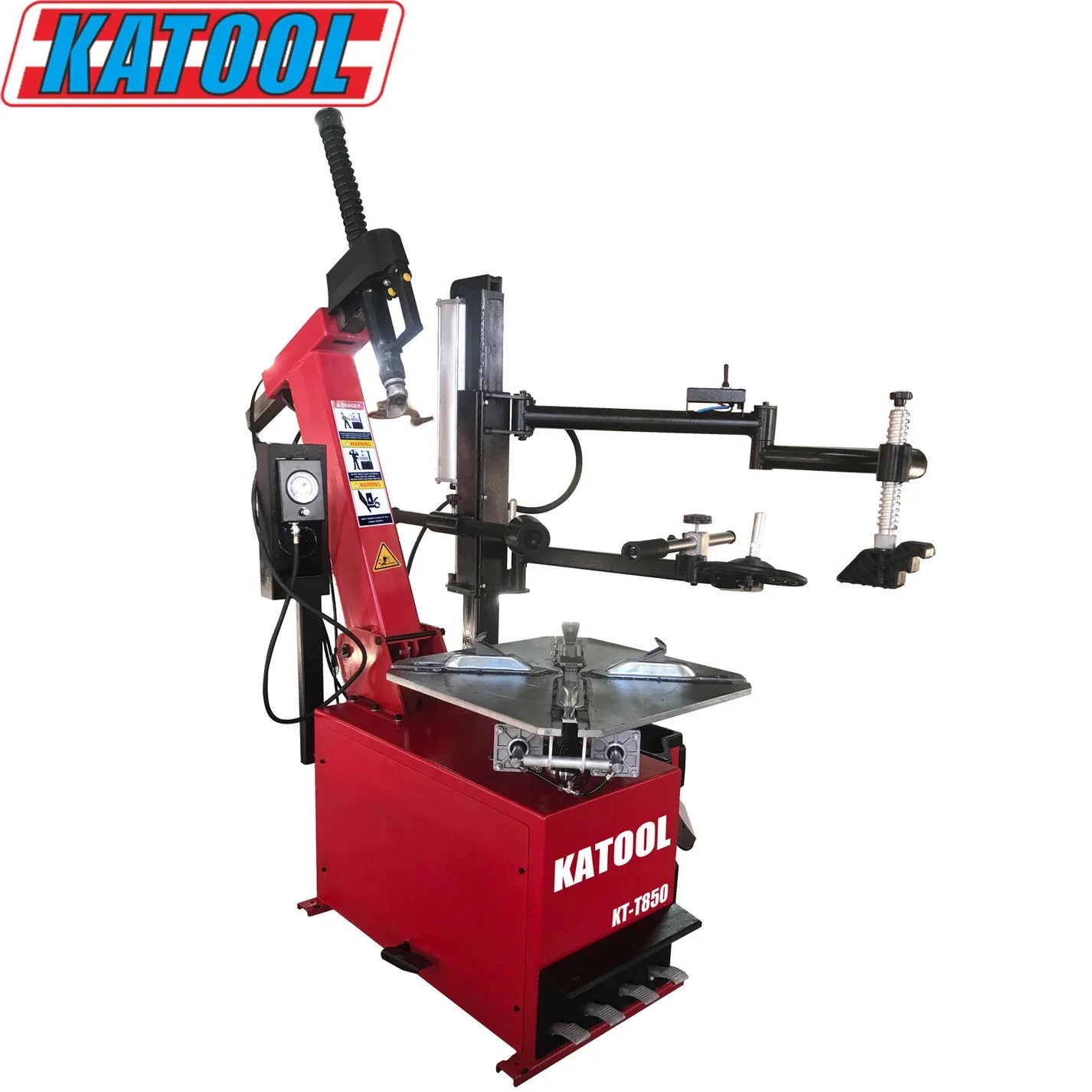

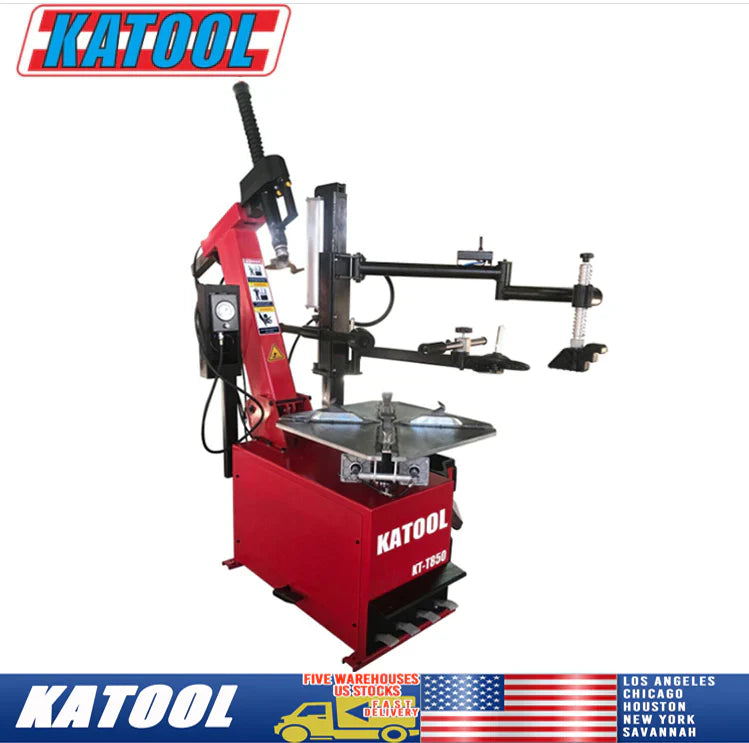

Katool | KT-T850 Tilt-Arm Wheel Clamp Tire Changer Machine

The Katool KT-T835 Wheel Clamp Tire Changer is the tire-changing maestro! Crafted with a sturdy alloy steel jaw and a stainless mounting head for maximum toughness. Its pedal-controlled air gauge, spade cover, and user-friendly pedal system ensure a smooth tire-changing experience. Equipped with a top-level motor and quality filter for durability and efficiency. Tailored for North America, it boasts a robust 110V motor, double side assist arm, and a stainless bead breaker cylinder. All housed in a closed body for ultimate part protection.

                                  Specifications

Max Wheel Diameter:	47"/1200mm
Max Wheel Width:	15"/380mm
Outside Clamp:	14"-26"
Inside Clamp:	16"-28"
Power Supply:	110V 1PH
Motor Power:	2.0HP/1.5KW
Rotation Speed:	6.8r/min
Air Pressure:	0.8-1.0Mpa(116-145psi)
Net weight:	340KG / 750lbs

Features

• Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the inside of the jaw to have more tenacity and the outside harder, and use the jaw cover for protecting the rim

• The mounting head is made by stainless steel with solution treatment and interface polishing, the shape conforms to the engineering mechanics and accompanied by plastic cover for protecting the rim

• The high-quality spade cover effectively prevents the rim from being damaged

• Pull type pedal control system, easy for tire changing and maintenance

• Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer service life

• The high-quality lubricator provides reliable oil-drop and effectively filters compressed air so that the service life of the pneumatic system is extended

• For North America region it supports 110V/1ph/2.0HP motor for strongest power and better efficiency

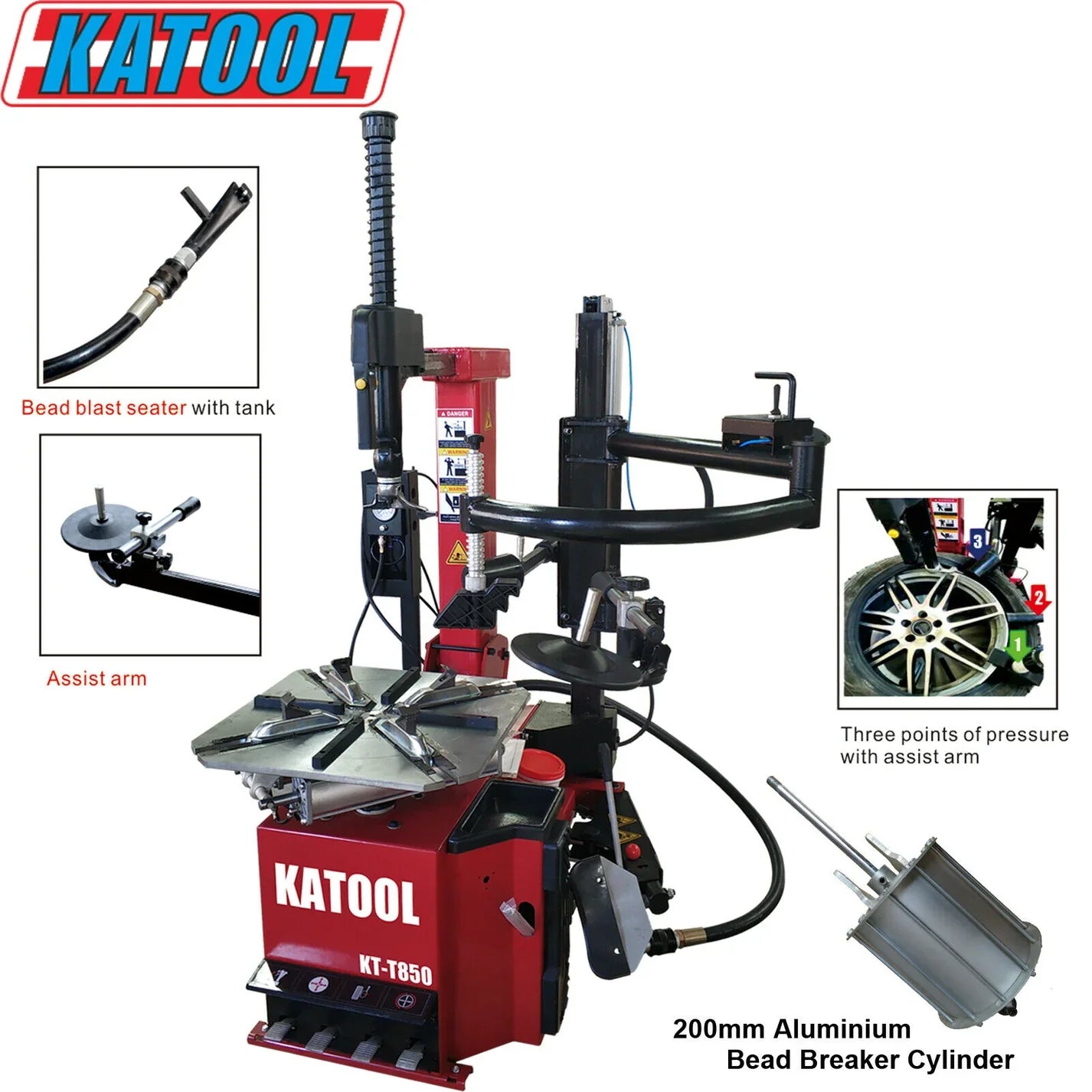

• Equipped with assist arms

• Bead blast seater

• 200mm aluminum bead breaker cylinderWarranty

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.

A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.

Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.

Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
