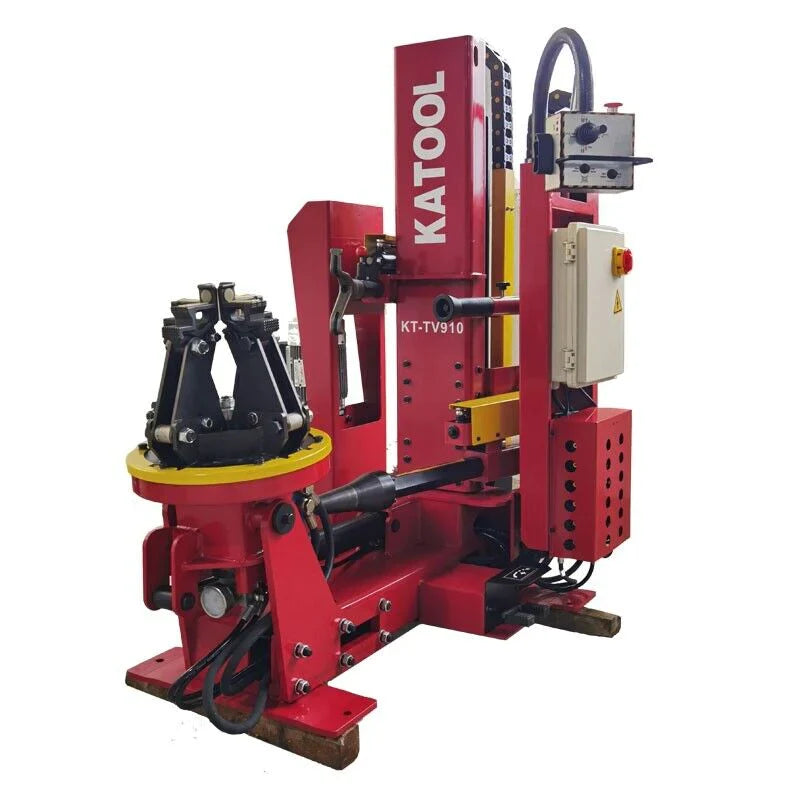

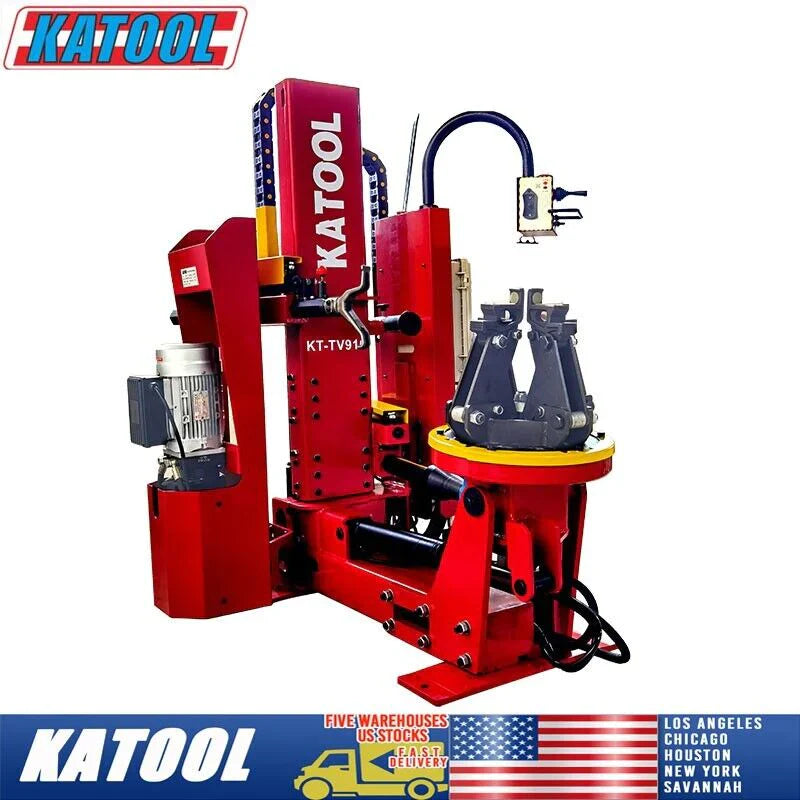

Katool | KT-TV910 Hydraulic Truck Tire Changer

The Katool KT-TV910 Hydraulic Truck Tire Changer is a heavy-duty electro-hydraulic solution crafted for trucks, buses, tractors, and earth-moving vehicles. With an expansive clamping capacity accommodating wheels from 14 to 42 inches in diameter, it offers unparalleled service flexibility. The multifunctional control system guarantees safe operation from any position, while the powerful and precise beak and disk ensure robust bead handling, even on delicate rims. Ergonomically designed foot pedals and conveniently placed helper controls enhance user experience, all backed by low-voltage electric components for complete safety assurance.

Features

• Heavy-duty electro-hydraulic tire changer for Trucks, Busses, tractors, and earth-moving vehicle tires

• Large clamping capacity to externally clamp wheels up to 42 inches or as small as 14 inches in diameter to maximize service flexibility

• Multifunctional control, allows the user to operate in any position safely

• Powerful, precise, and quick: a beak and disk- it ensures the bead on wheels is particularly strong, even on the most delicate rims

• Ergonomically positioned foot pedals and helper controls located at the point of use minimize training and opportunities for error

• Low voltage electric components ensure user complete safety

Specifications

Outer Rim	14'' - 42''
Max Wheel Diameter	63'' / 1600mm
Max Wheel Width	31'' / 780mm
Working Pressure	≤130 bar
Power Supply	220V 1PH/60HZ
Hydraulic Motor	3.0 KW (***4.0 HP Motor***)
Max Flow of Oil for Hydraulic Motor	315
Max Tire Weight	3306lbs / 1500KG
Net Weight	1256lbs / 570KG
Shipping Weight	1388lbs / 630KG
Shipping Dimension	51'' x 43'' x 72'' / 1300mm x 1100mm x 1830mm)
Noise Level	< 70 DB(A)

Warranty

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.

A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.

Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.

Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
