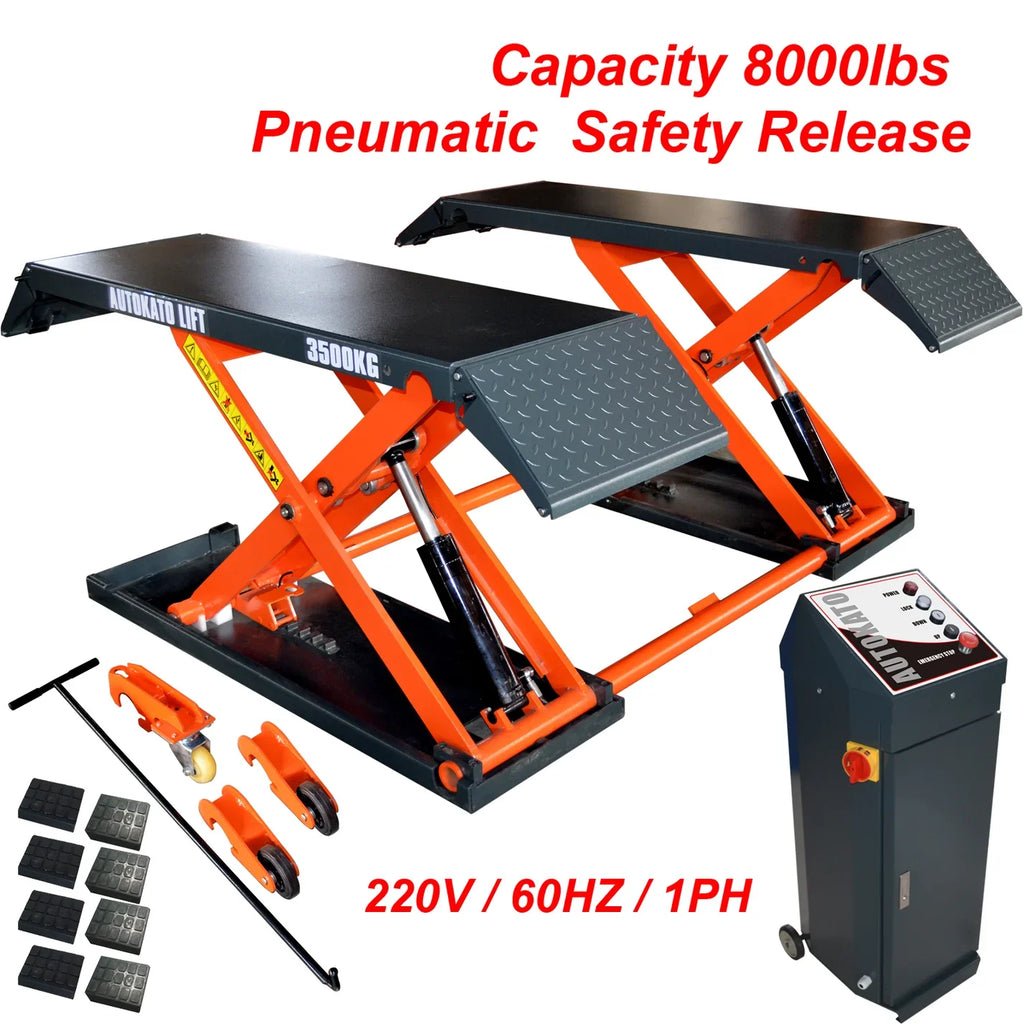

Katool | KT-X80-PNEUMATIC Mid Rise Scissor Lift

The Katool KT-X80-PNEUMATIC Mid Rise Scissor Lift is a powerhouse with an 8000lbs lifting capacity. CE Approved and Certified, it surpasses dynamic and static loading standards, ensuring robustness and safety. Whether mobile or fixed mount, its innovative starting-up system and pneumatic safety release offer seamless operation. The 24V safe control system, height limit switch, and composite rubber lifting blocks prioritize user safety. With drive-up ramps lock design for extended platform length and a portable kit for effortless mobility, this lift is tailored for garage flexibility. Experience top-level hydraulic performance with an aluminum motor featuring a cooling fan for prolonged usage. Note: Connect to a compressed air source for optimal performance.

Features

• 8000lbs(3500KG) lifting capacity

• CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested

• Mobile or fixed mount design

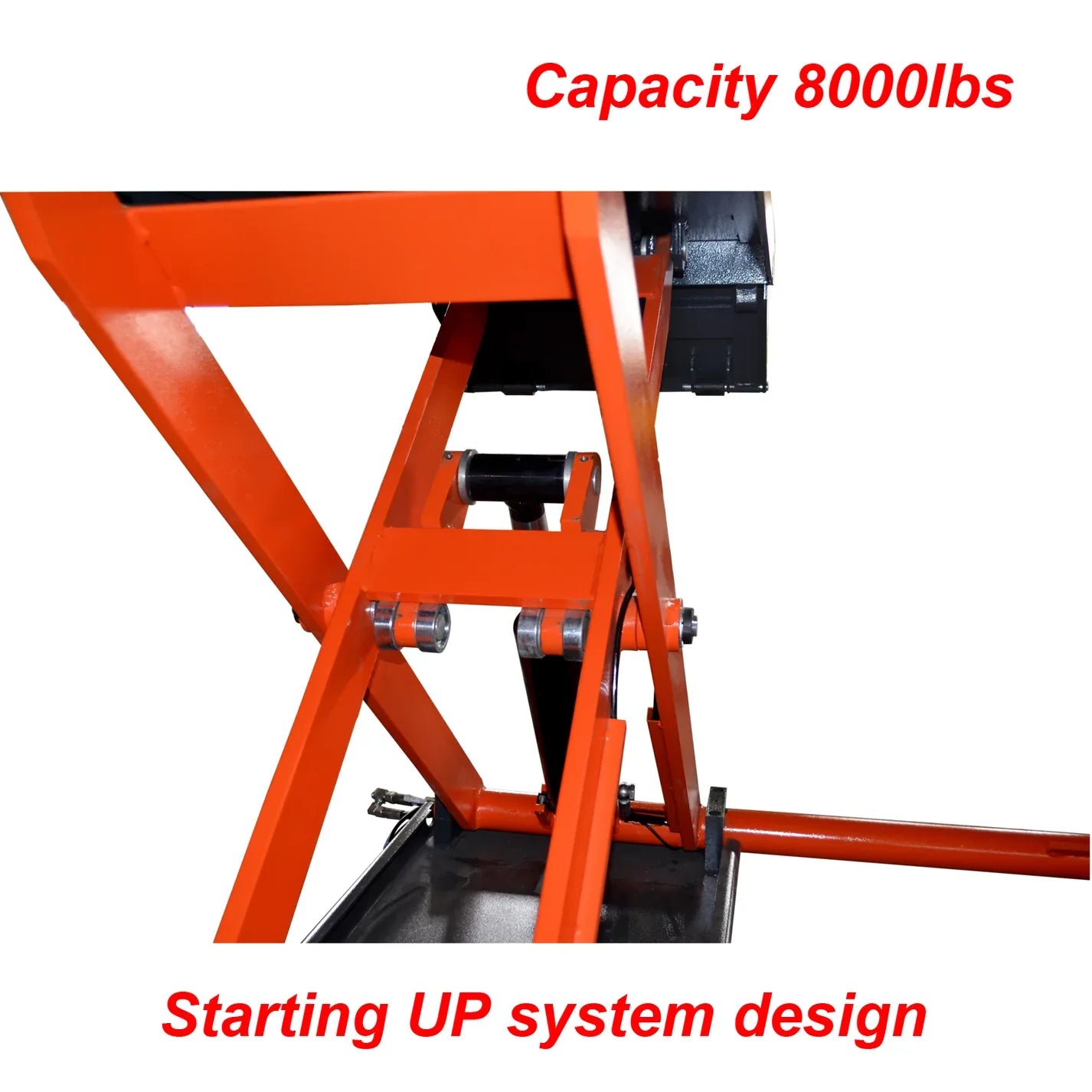

• Starting-up system design

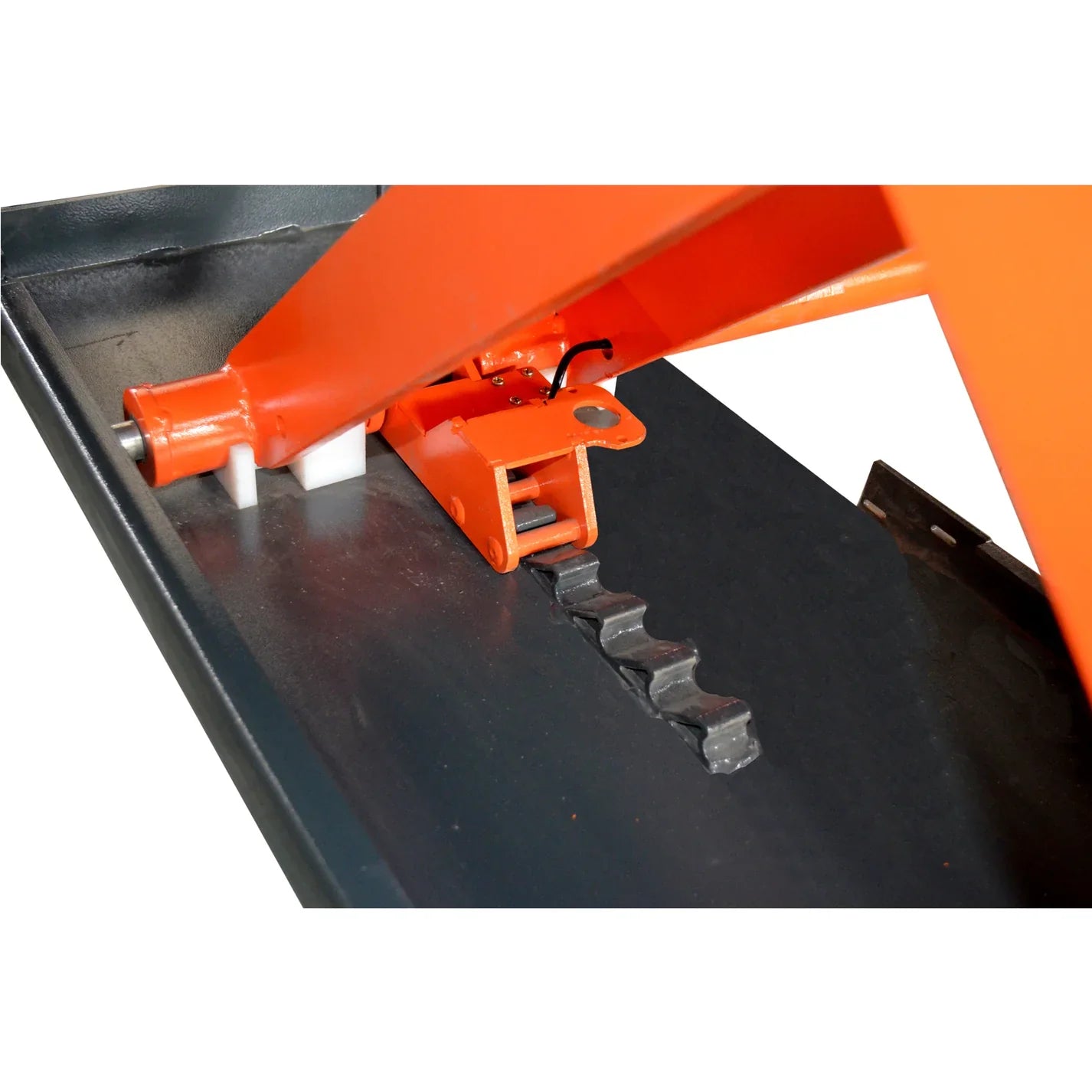

• Pneumatic safety release

• 24V safe control system

• Height limit switch

• Composite rubber lifting blocks included

• Comes with self-lubricated bushing and bearing

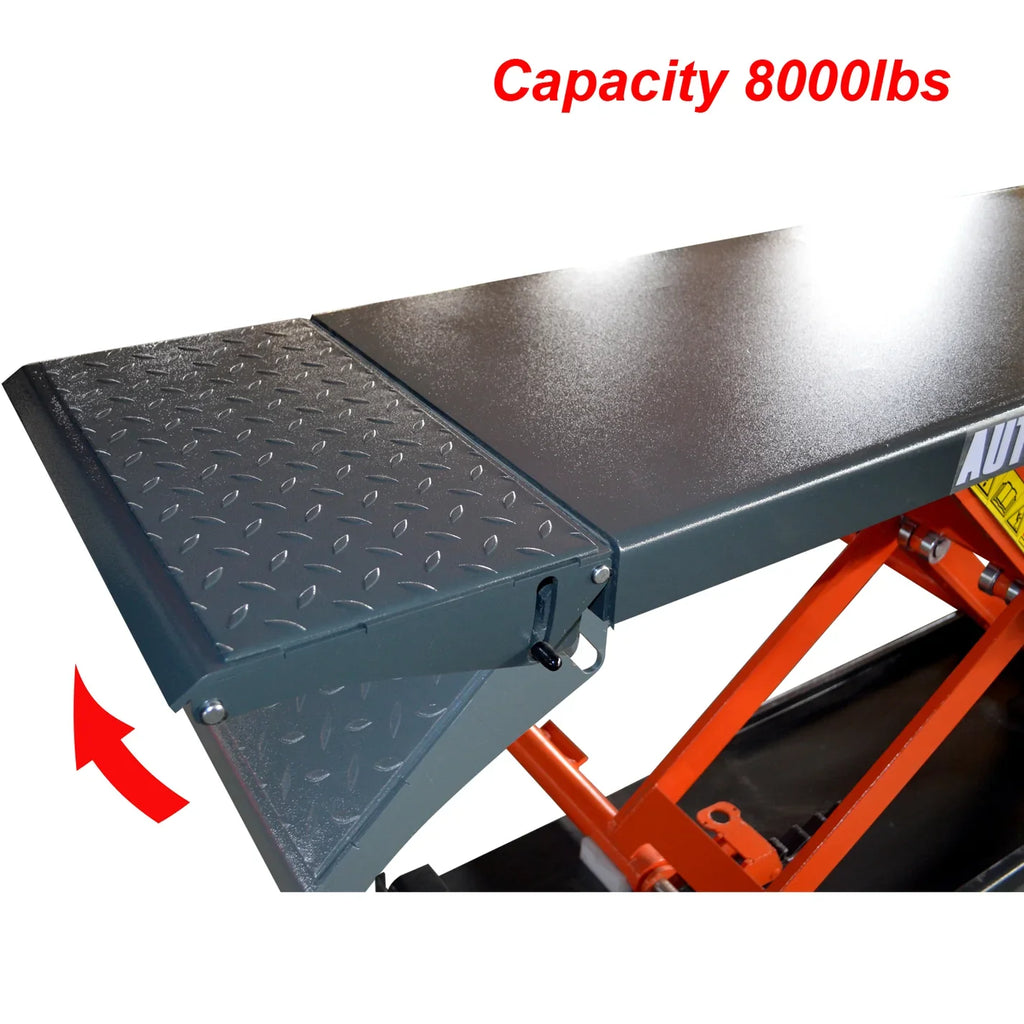

• Drive-up ramps lock design as platform extension for long vehicles

• Portable, mobile kit included making the lift move in your garage easily

• Top-level hydraulic system and aluminum motor with the fan on top to avoid overheating caused by long time working with 110(220)V/ 60HZ/ 1PH

• The unit need to be connected to a compressed air source. For customers without an air compressor, we recommend our electric model.

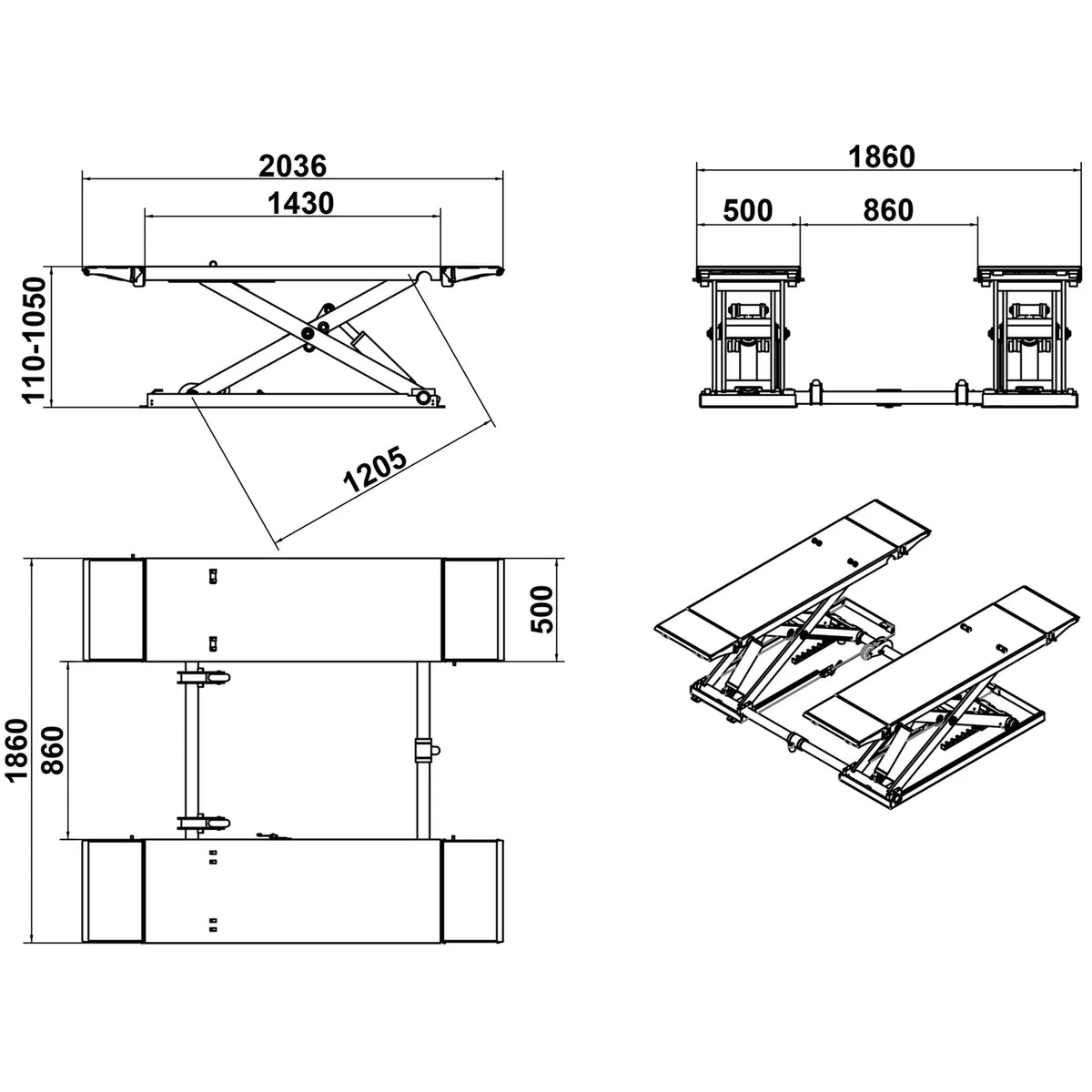

Specifications



Lifting Capacity	8000lbs.(3500KG)
Max. Lifting Height	41.25"/1050mm
Min. Height	4.25"/110mm
Platform Length	56.25"/1430mm
Length Overall	80"/2036mm
Platform Width	19.5"/500mm
Width Overall	73.25"/1860mm
Motor	110/220VAC/60HZ/1PH
Net Weight	1213lbs/550KG

Warranty

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.

A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.

Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.

Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
