Description

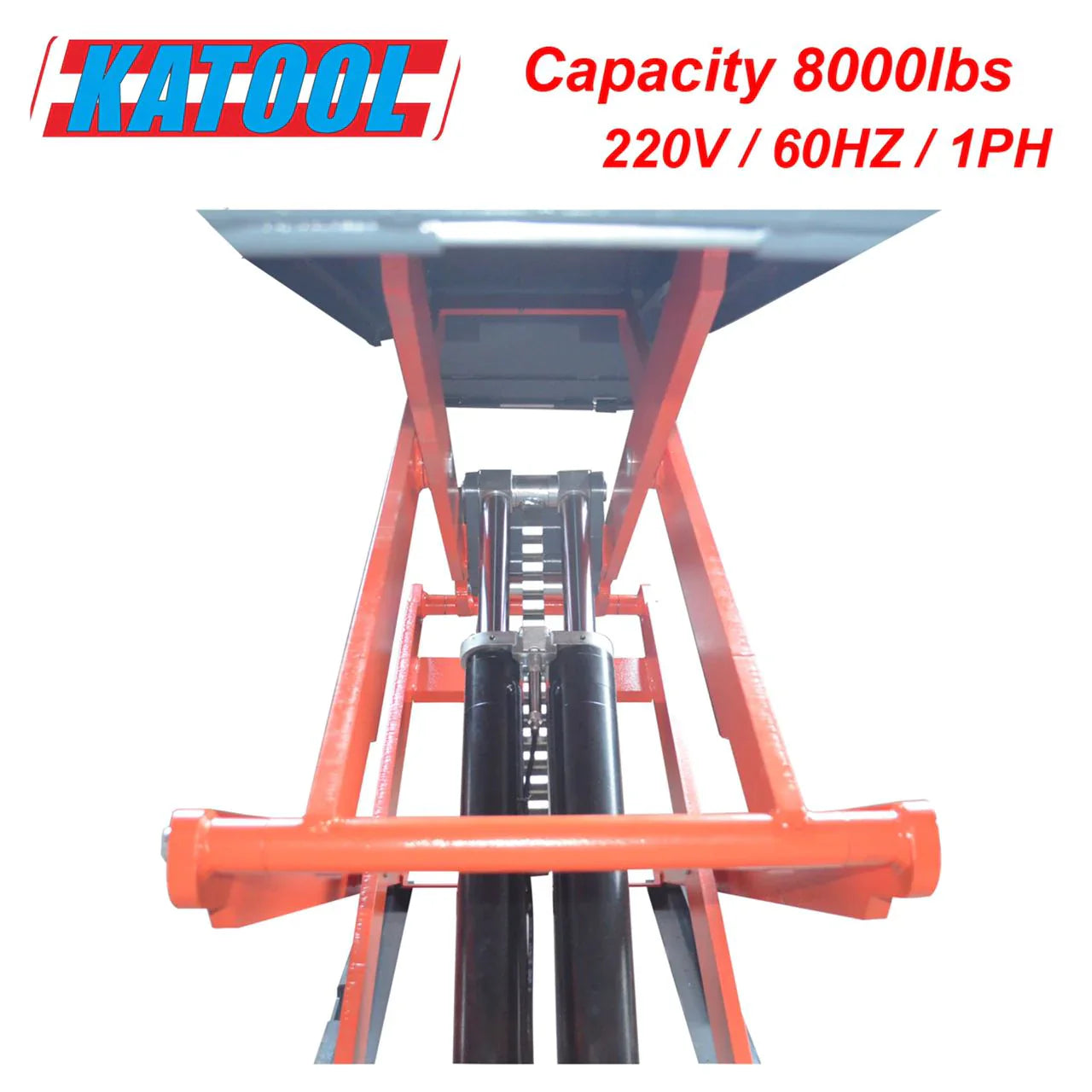

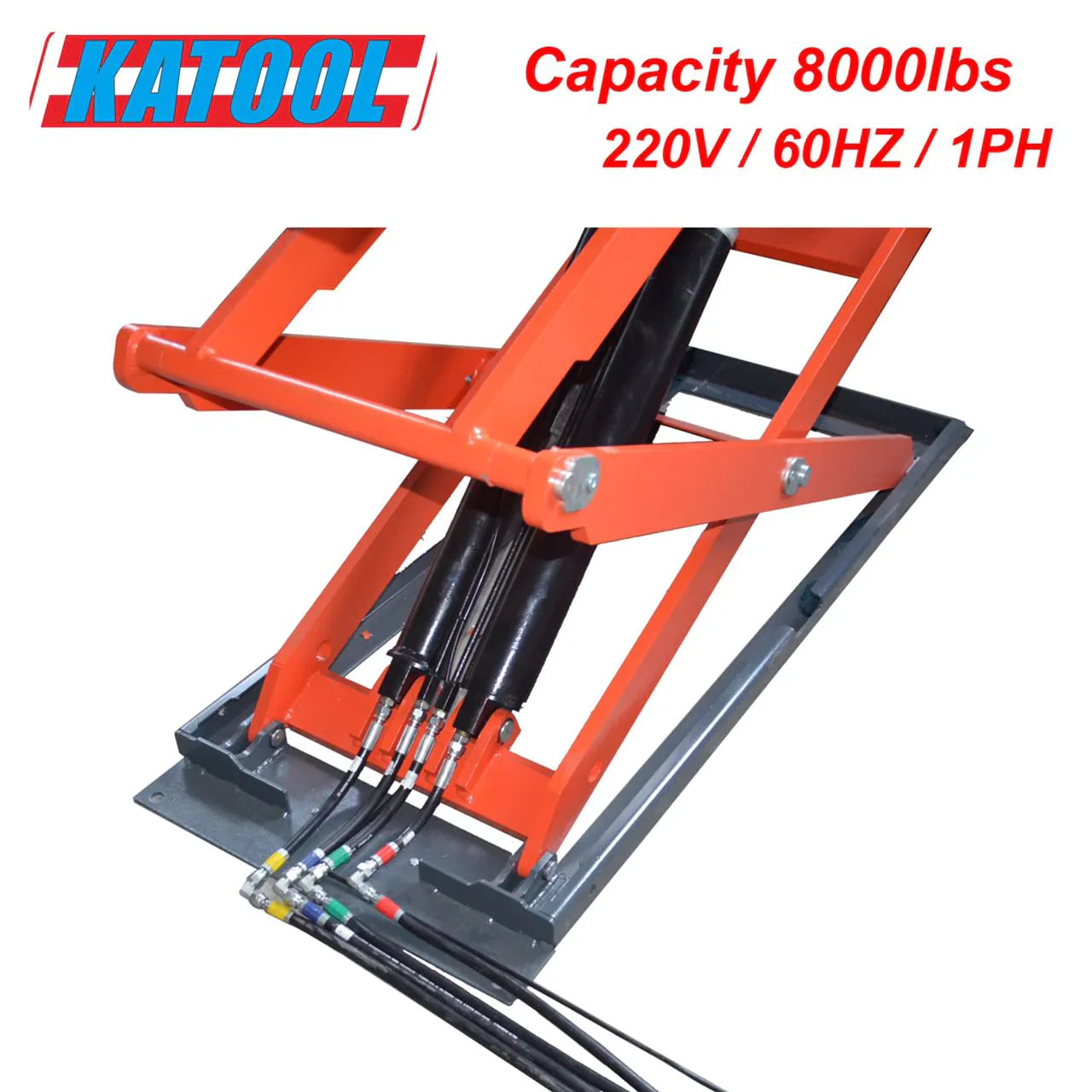

The Katool KT-X95 Full Rise Scissor Lift is a powerhouse with an 8000lbs lifting capacity. Backed by CE Approval and Certification, it surpasses industry standards with a dynamic loading capacity of 115% and a rigorous 150% static loading capacity test. The flush mount design and innovative starting-up system enhance its sleek functionality, while the pneumatic safety release ensures secure operations. With a 24V safe control system, height limit switch, and composite rubber lifting blocks, safety is paramount. The drive-up ramps lock design accommodates long vehicles, and the top-level hydraulic system, coupled with an aluminum motor featuring a cooling fan, ensures optimal performance during extended use. Note: This unit requires a connection to a compressed air source for operation.
*This model should be securely anchored to concrete before operation. Concrete thickness must be at least 5.9” (150 MM) with a 3000 PSI rating. Failure to install this lift on the proper concrete, could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.
Features
- 8000lbs(3500KG) lifting capacity
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested
- Flush mount design
- Starting-up system design
-
Penumatic safety release
- 24V safe control system
- Height limit switch
- Composite rubber lifting blocks included
- Comes with self-lubricated bushing and bearing
- Drive-up ramps lock design as platform extension for long vehicles
- Top-level hydraulic system and aluminum motor with the fan on top to avoid overheating caused by long time working
- The unit needs to be connected to a compressed air source.

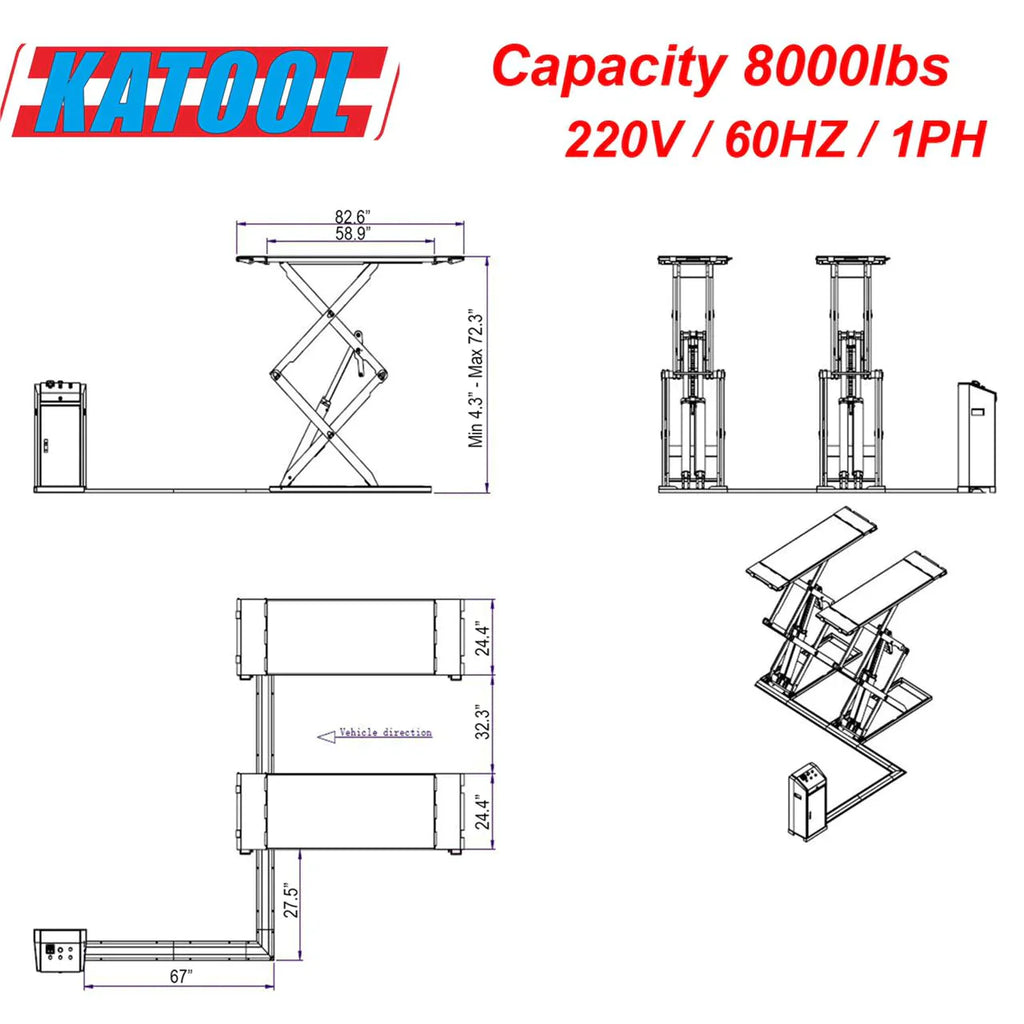

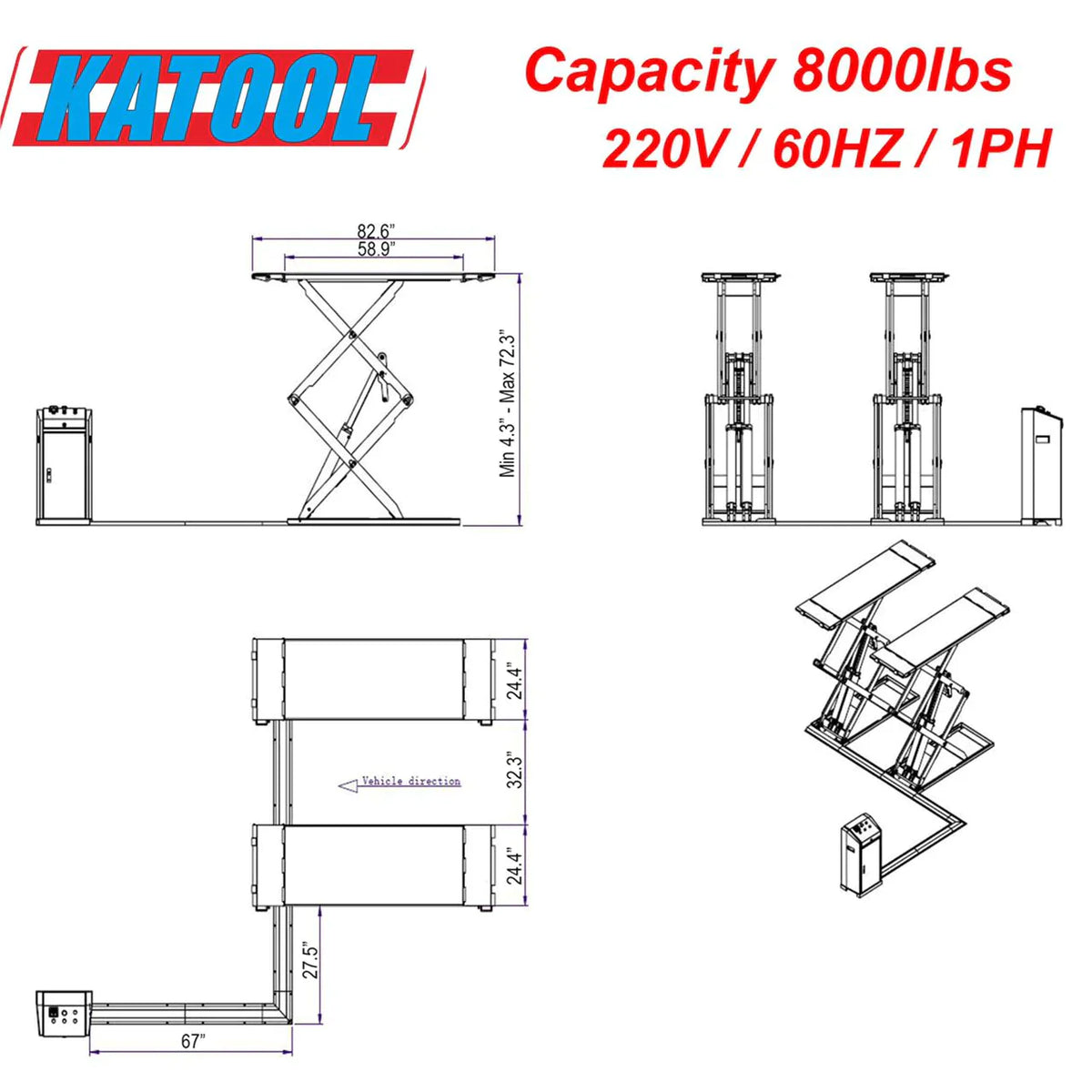

Specifications
| Max.lifting capacity | 8000 lbs |
| Lifting height | 72.3 inch |
| Lifting time | ≤50S |
| Platform length | 58.9 inch |
| Platform width | 24.4 inch |
| Motor power | 2.2kw |
| Rated oil pressure | 20MPa |
| Air pressure | 6-8kgf/c ㎡ |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
