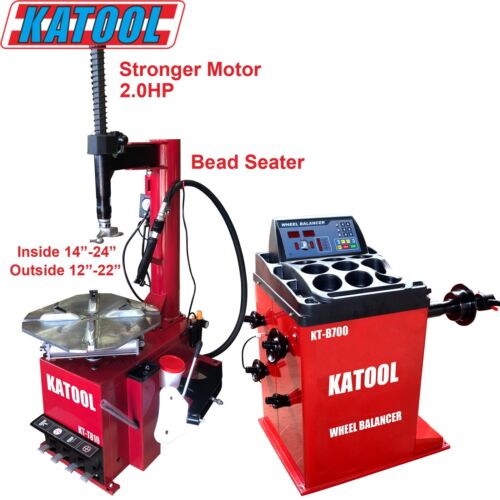

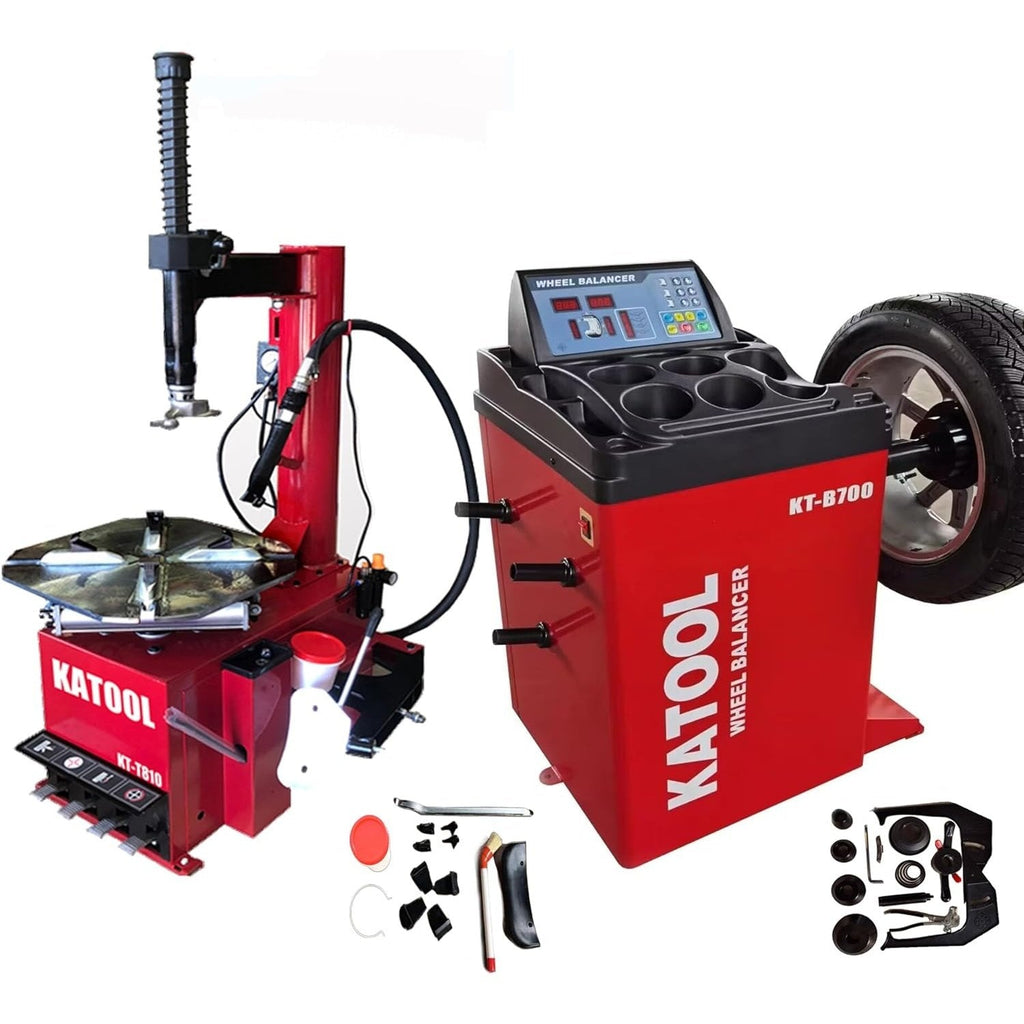

Katool | Tire Changer KT-T810 & Wheel Balancer KT-B700 Combo

The Katool Tire Changer KT-T810 & Wheel Balancer KT-B700 Combo is a powerhouse duo engineered for precision and efficiency in tire service. The KT-T810 Wheel Clamp Tire Changer boasts an alloy steel jaw with advanced carburization, ensuring durability and rim protection. With features like an inflation gauge, pull-type pedal control system, and a top-level motor with pure copper winding, it delivers fast, reliable, and long-lasting performance. The closed body design protects internal components. Complementing this, the KT-B700 Wheel Balancer features a robust 3mm-thick steel body and an 8mm-thick sensor support for stability. Its top-level motor and advanced sensor technology offer superior precision in various balance modes. The combo, with optional wheel guard and longer shaft, ensures a comprehensive solution for tire maintenance needs.

Features

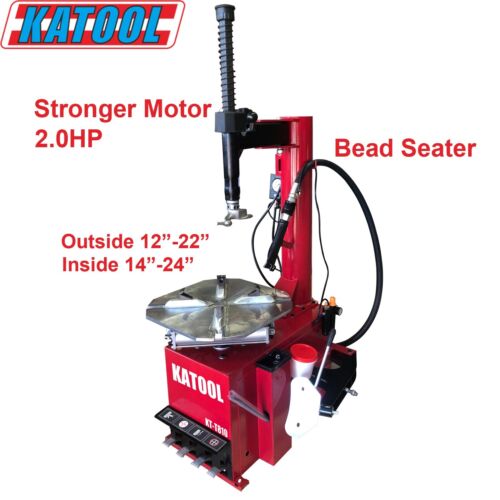

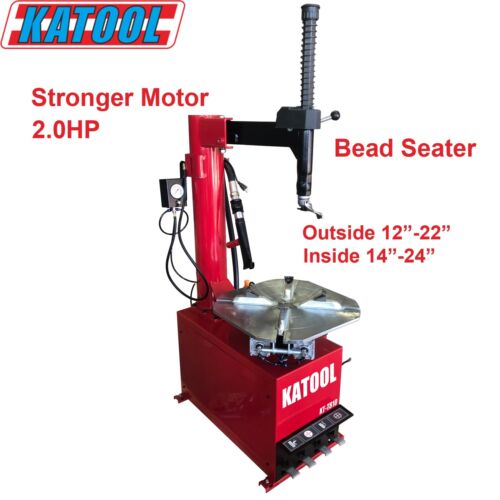

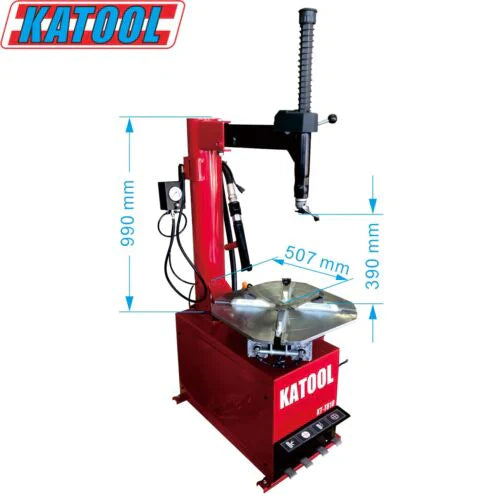

KT-T810 Wheel Clamp Tire Changer Machine

• Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the jaw inside more tenacity and outside more hard, and take the jaw cover for protect rim

• The mounting head is made by stainless, solution treatment and interface polishing, the shape conforms to the engineering principle, and take with plastic cover for protect rim

• Inflation gauge with pedal control

• With high quality spade cover, effective prevent damage rim

• Pull type pedal control system, convenience for changing and maintenance

• Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life
• With high quality filter, reliable drop oil, effective filter pressure air, and make more longer using life for pneumatic system

• For North America region used 120V/1ph/2.0HP motor, more strong power and high efficiency working

• Closed body for protect inside parts well

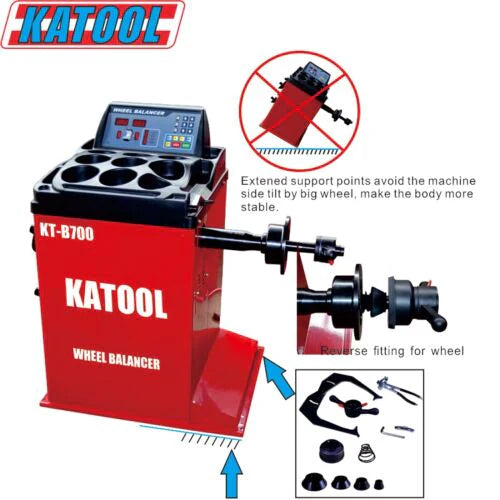

KT-B700 Wheel Balancer

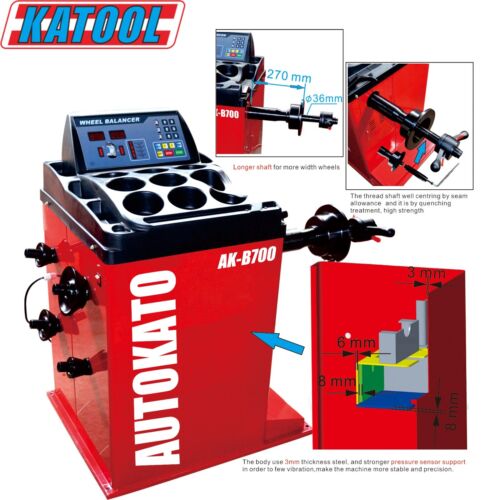

• The body use 3mm thickness steel, high strength, solid welding, few vibration

• All-in-one pressure sensor support design, bottom board thickness 8mm, side board thickness 8mm, that insure the sensor working stable and high precision

• Top level motor and pure copper winding, more power, fast heat dissipation, low defect rate and longer using life

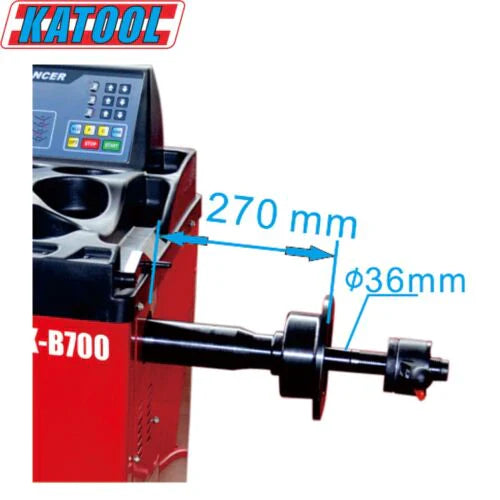

• The φ36mm shaft thread is by quenching treatment, high strength

• Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life
• The computer board adopt advanced welding technology, moisture proof, dustproof and anti-static electricity, more longer life

• Various balance mode, according different rim for different balance mode, make the balance effect more precision

• Built-in fault diagnosis and self calibration program that double side calibration, no memory parameters, operation more easy

• Unit selection(Ounce/Gram, MM/Inch)

• High quality integration power board, working stable and reliable

• Wheel guard for optional

• Longer shaft for more width wheels

Specifications

KT-T810 Wheel Clamp Tire Changer Machine

Max Wheel Diameter :	41"/1040mm
Max Wheel Width :	15"/380mm
Outside Clamp:	12"-22"
Inside Clamp :	14"-24"
Power Supply:	120V 1PH
Motor Power:	2.0HP/1.5KW
Rotation Speed :	6.8r/min
Air Pressure :	0.8-1.0Mpa(116-145psi)
Net weight :	186KG

KT-B700 Wheel Balancer

Rim Diameter:	<30"
Wheel Width:	3"-12"
Wheel Diameter:	<880mm
Balancing Speed:	180rpm
Power Supply:	120V 1PH
Motor Power:	0.25KW
Rim Center Hole Dia.:	<135mm
Wheel Weight:	<65KG
Balancing Accuracy:	±1g
Measuring Time:	7S



Warranty

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.

A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.

Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.

Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
