Description

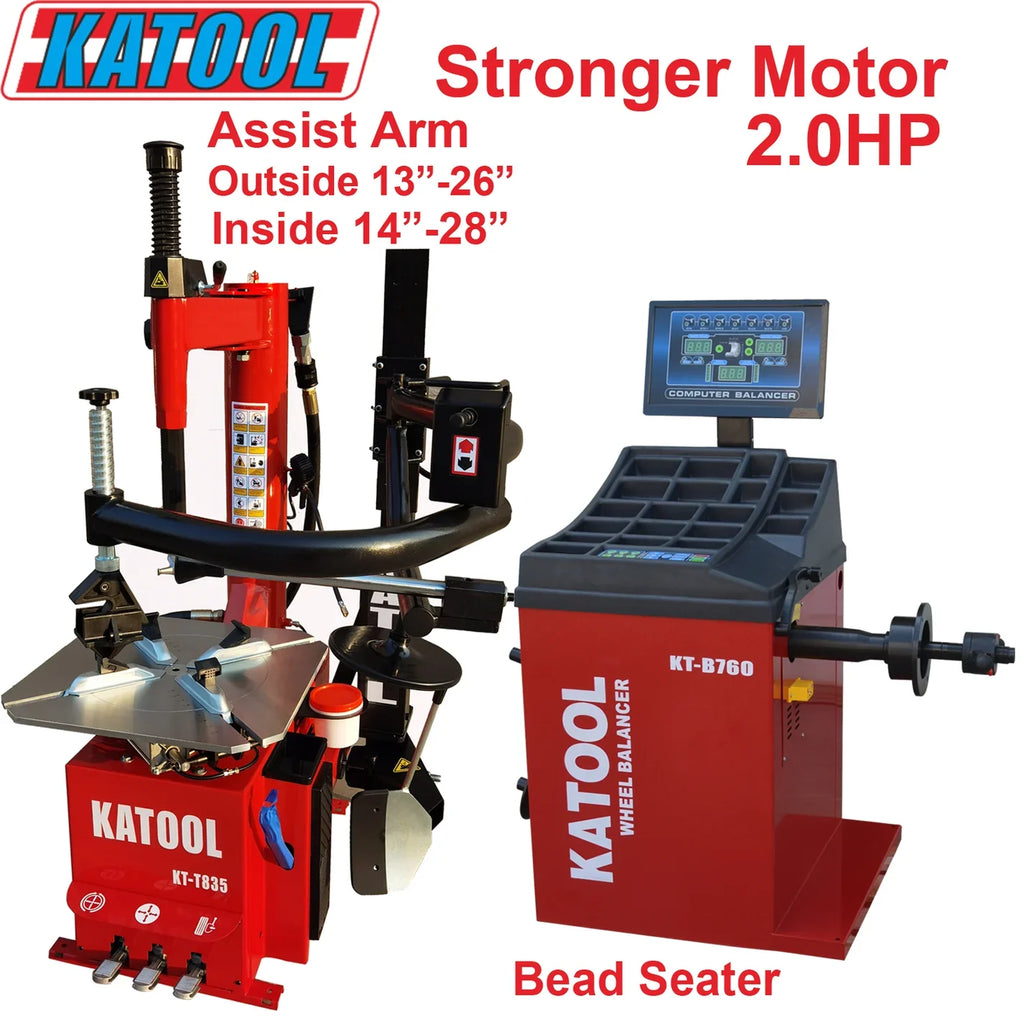

Elevate your tire service with the Katool Tire Changer KT-T835 & Wheel Balancer KT-B760 Combo. The KT-T835 Wheel Clamp Tire Changer boasts a robust alloy steel jaw with carburization treatment, ensuring strength and durability. The stainless mounting head, featuring solution treatment and interface polishing, is designed to protect rims, and the inflation gauge with pedal control enhances convenience. The top-level motor with pure copper winding ensures fast heat dissipation and a longer lifespan, complemented by a high-quality filter for extended pneumatic system life. The KT-B760 Wheel Balancer is equipped with an automatic measurement ruler, 3mm-thick steel body for strength, and an all-in-one pressure sensor support design for stable precision. The unit offers various balance modes, built-in fault diagnosis, and a self-calibration program for ease of operation. With optional features like a wheel guard and longer shaft for wider wheels, this combo delivers reliable and efficient tire maintenance.
Features

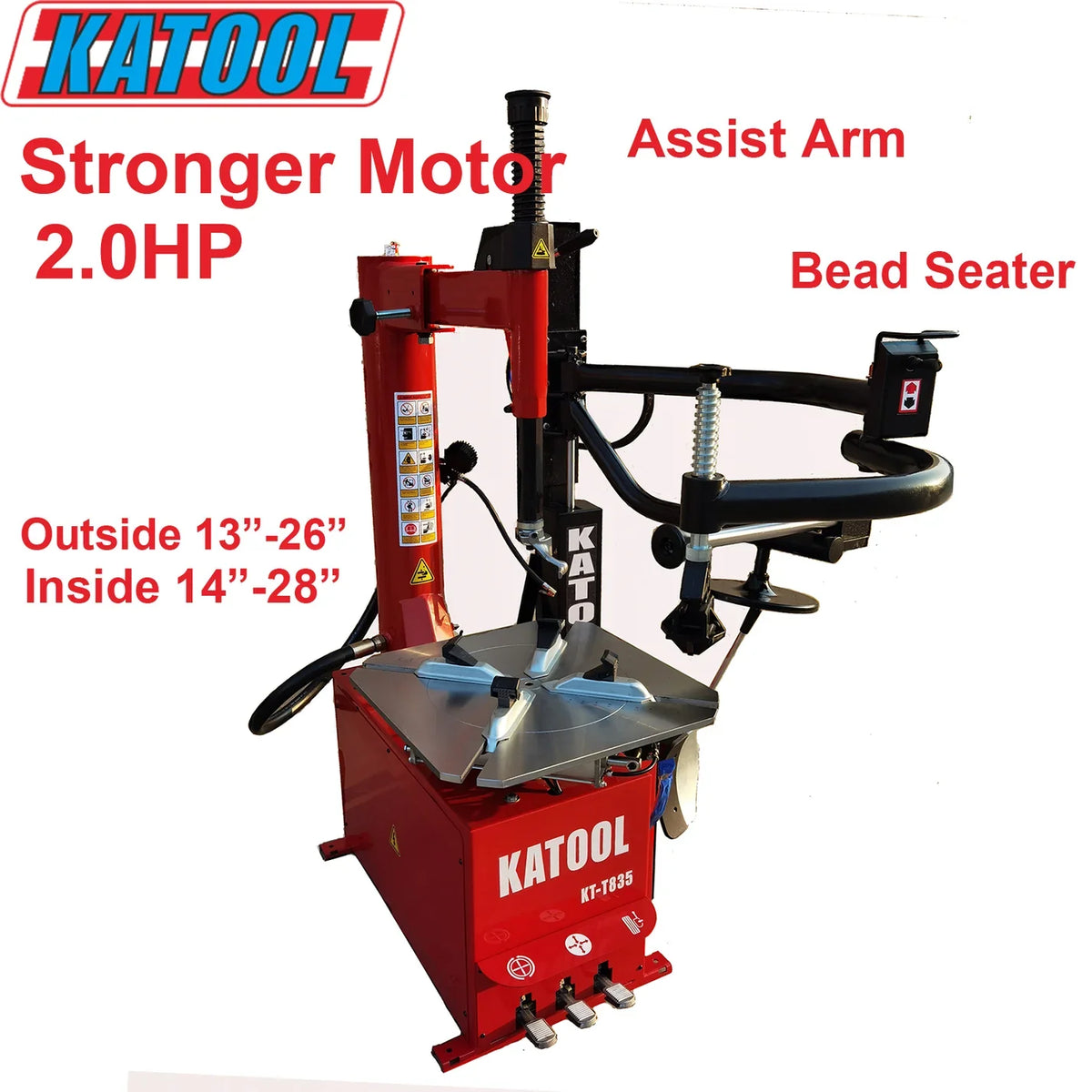

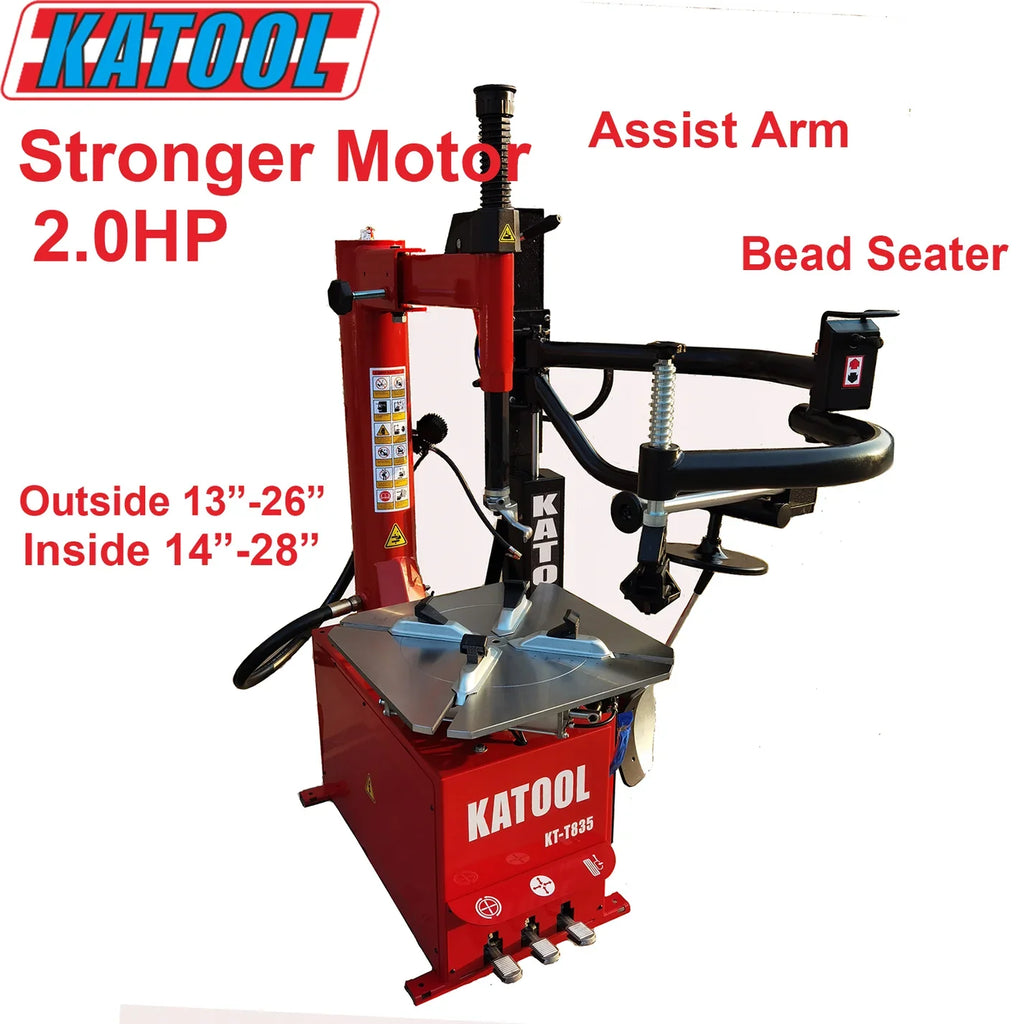

KT-T835 Wheel Clamp Tire Changer Machine
- Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the jaw inside more tenacity and outside more hard, and take the jaw cover for protect rim
- The mounting head is made by stainless, solution treatment and interface polishing, the shape conforms to the engineering principle, with plastic cover for protect rim
- Inflation gauge with pedal control
- With high quality spade cover, effective prevent damage rim
- Pull type pedal control system, convenience for changing and maintenance
- Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life
- With high quality filter, reliable drop oil, effective filter pressure air, and make more longer using life for pneumatic system
- For North America region used 110V/1ph/2.0HP motor ,more strong power and high efficiency working

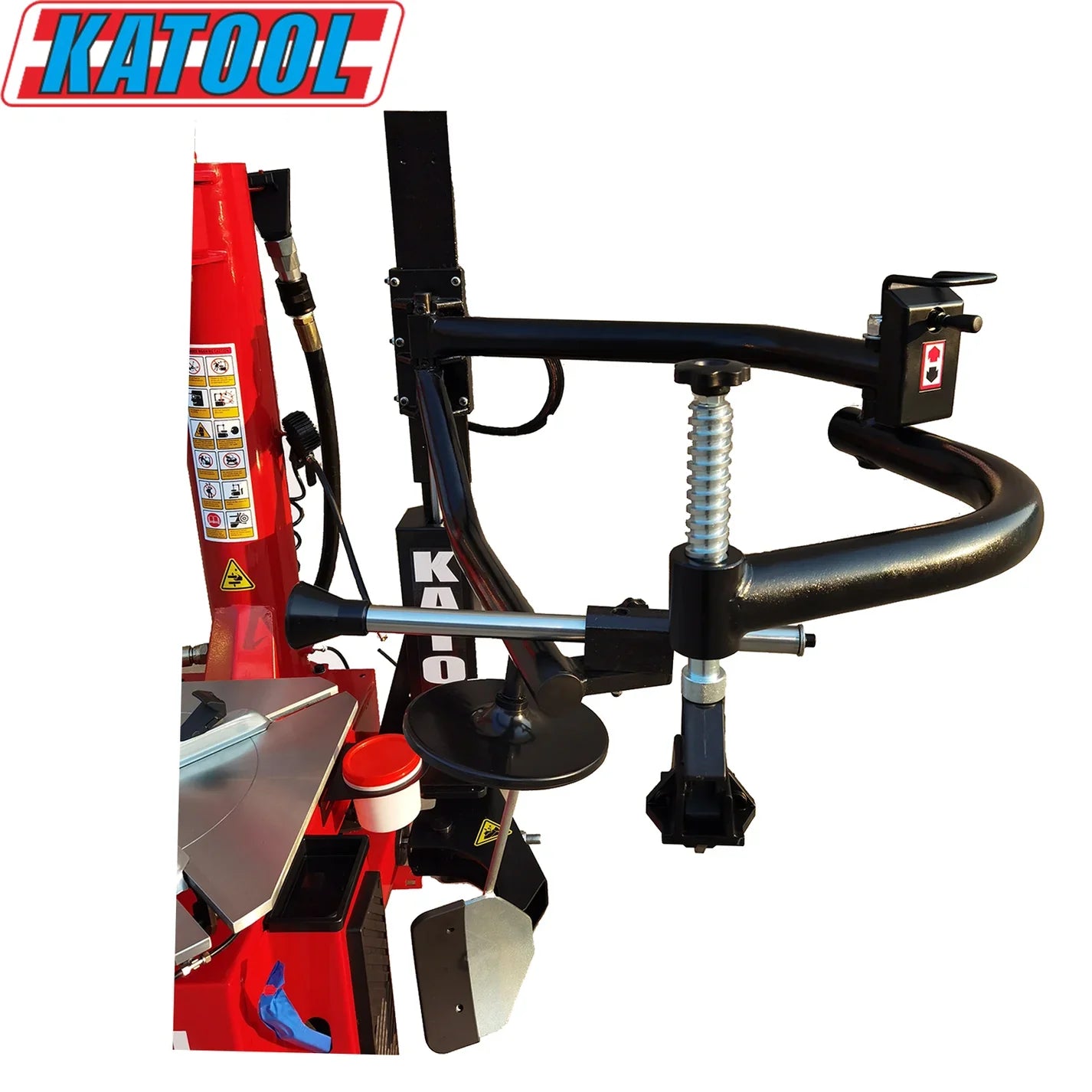

- Double side assist arm
- Bead blast seater head with post tank
- φ186mm stainless bead breaker cylinder
- Closed body for protect inside parts

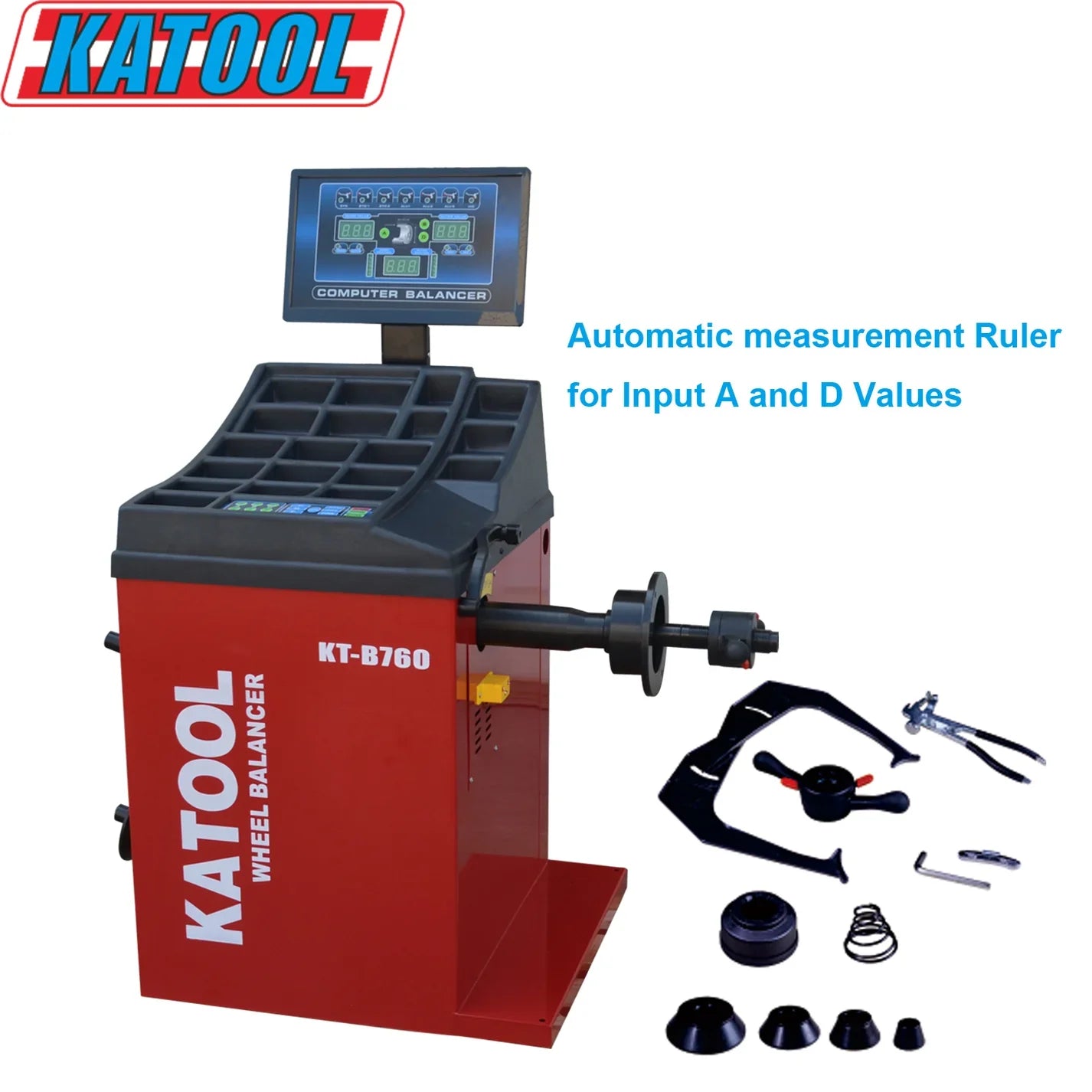

KT-B760 Wheel Balancer
- Automatic measurement ruler for auto input A and D values
- The body uses 3mm-thick steel with high strength, solid welding and low vibration
- All-in-one pressure sensor support design, both bottom and side boards are 8mm thick, and it insures that the sensor work stably with high precision
- Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer using life
- The 36mm shaft thread is made by quenching treatment to offer high strength
- The computer board adopts advanced welding technology to make it moisture proof, dust proof and antistatic
- Various balance mode for different types of rims to provide more precision
- Built-in fault diagnosis and self-calibration program with double side calibration. No pre-set parameters so the users can operate with ease
- Unit selection (Ounce/Gram, MM/Inch)
- High quality integration power board, working stable and reliable
- Optional wheel guard
- Longer shaft, also compatible with wider wheels
Specifications
KT-T835 Wheel Clamp Tire Changer Machine
|
Max Wheel Diameter :
|
41"/1040mm
|
|
Max Wheel Width :
|
15"/350mm
|
|

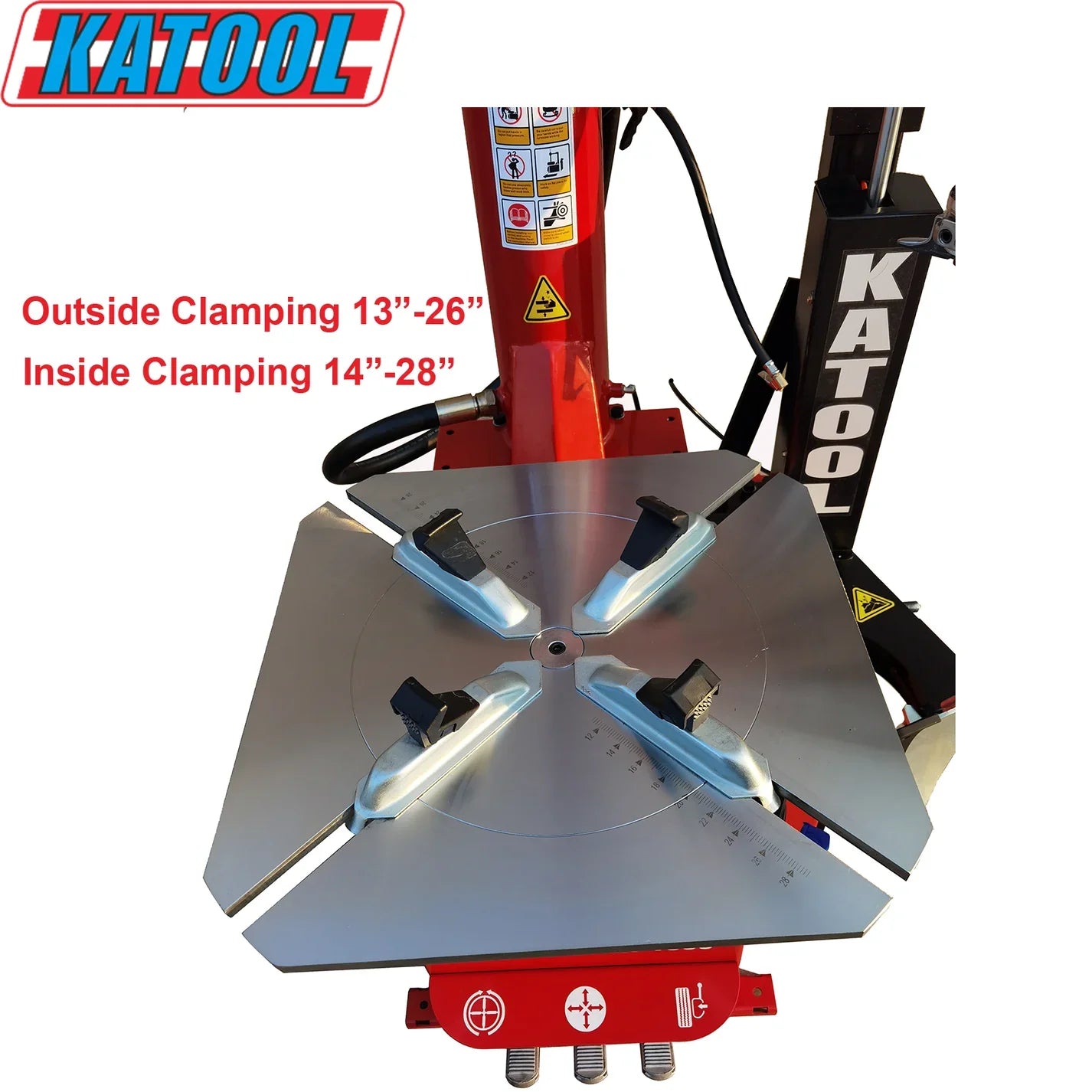

Outside Clamp:
|
13"-26"
|
|
Inside Clamp :
|
14"-28"
|
|
Power Supply:
|
110V 1PH/60HZ
|
|
Motor Power:
|
2.0HP/1.5KW
|
|
Rotation Speed :
|
6.1/min
|
|
Air Pressure :
|
0.8-1.0Mpa(116-145psi)
|
|
Net weight :
|
582lbs
|
KT-B760 Wheel Balancer
| Rim Diameter: | <30" |
| Wheel Width: | 3"-12" |
| Wheel Diameter: | <880mm/34.64" |
| Balancing Speed: | 180rpm |
| Power Supply: | 110V 1PH |
| Motor Power: | 0.25KW |
| Rim Center Hole Dia.: | <135mm/5.31" |
| Wheel Weight: | <65KG/143lbs |
| Balancing Accuracy: | ±1g |
| Measuring Time: | 7S |
Warranty
Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.
A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.
Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.
Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.
Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
