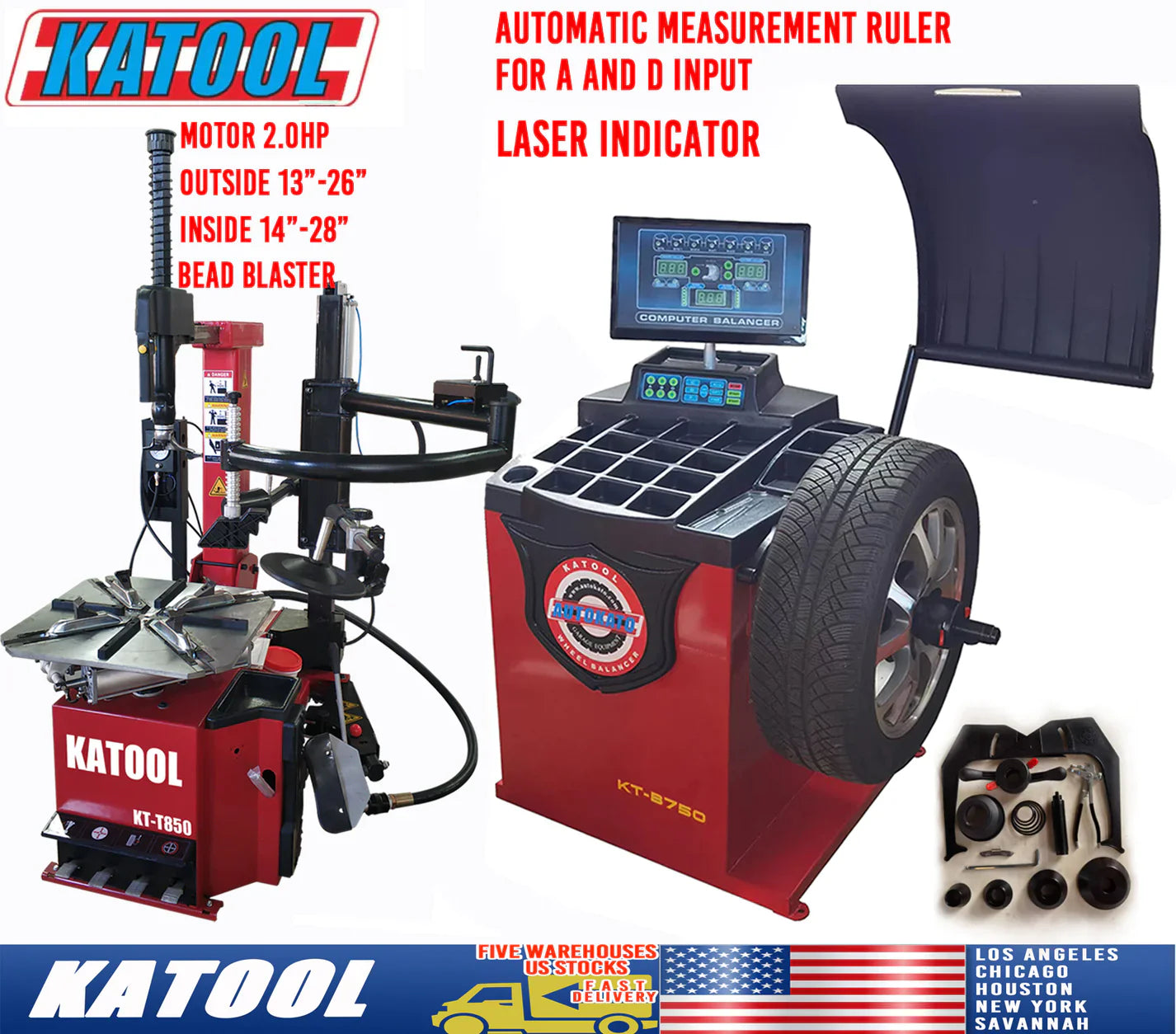

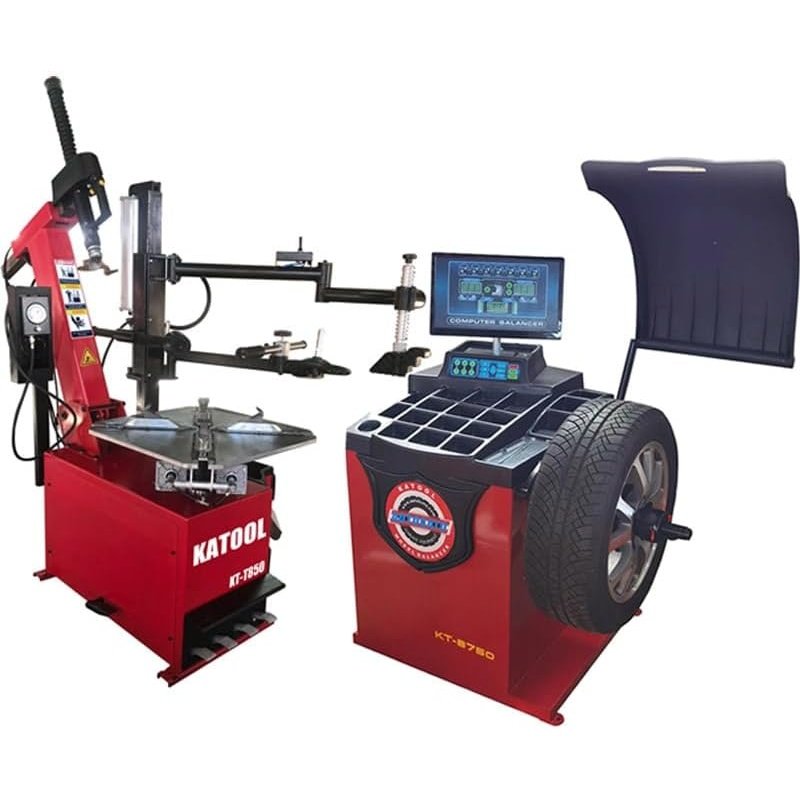

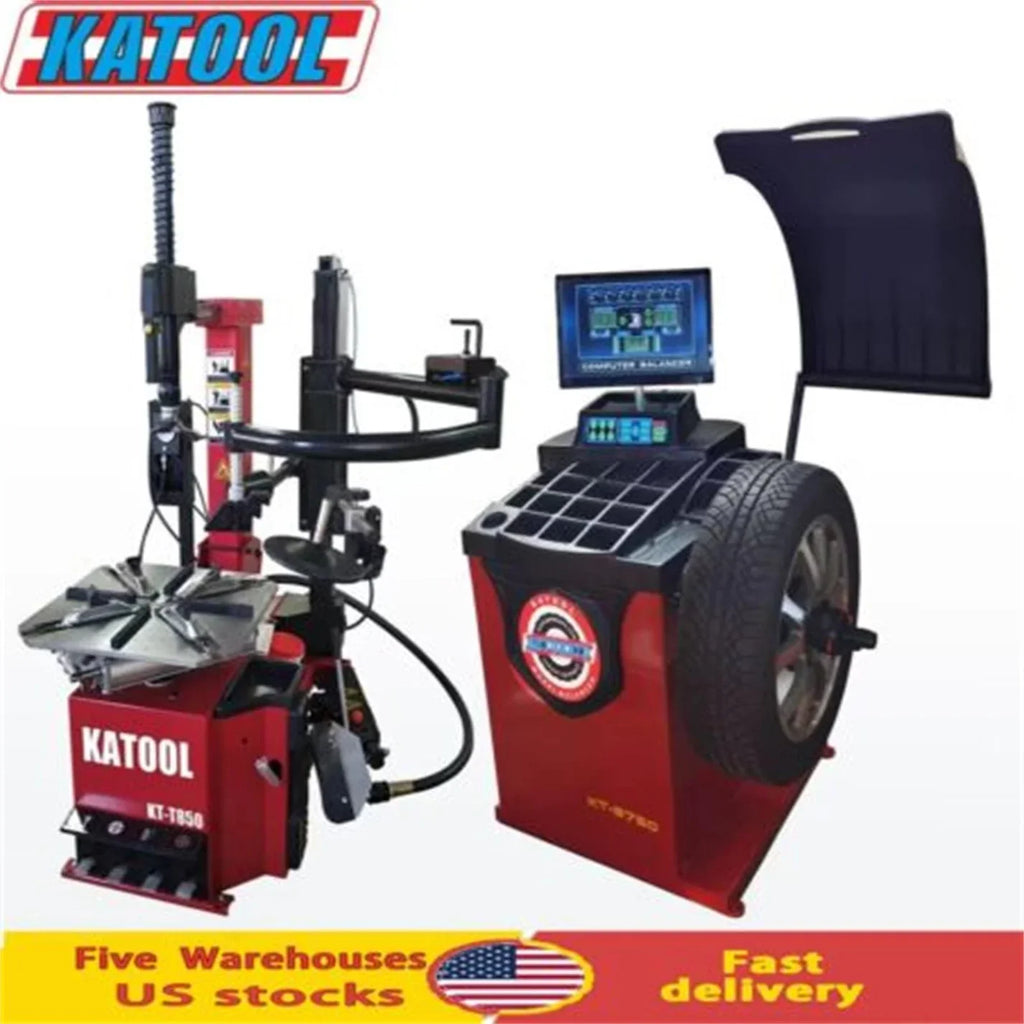

Katool | Tire Changer KT-T850 & Wheel Balancer KT-B750 Combo

Experience professional tire service with the Katool Tire Changer KT-T850 & Wheel Balancer KT-B750 Combo. The KT-T850 Tilt-Arm Wheel Clamp Tire Changer boasts a strong alloy steel jaw, a stainless steel mounting head, and a pull-type pedal control system. The top-level motor ensures efficiency, supporting a 110V/1ph/2.0HP motor for North America. Equipped with assist arms and a 200mm aluminum bead breaker cylinder, it offers versatility. The KT-B750 Wheel Balancer features an automatic measurement ruler, 3mm-thick steel body, and a top-level motor with various balance modes. With built-in fault diagnosis, self-calibration, and optional features like a wheel guard, it delivers efficient and reliable tire maintenance.

Features

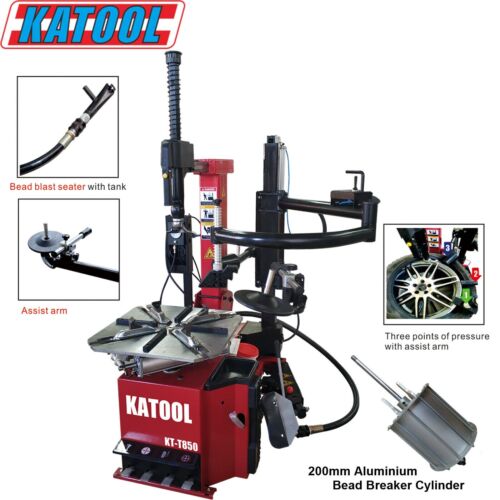

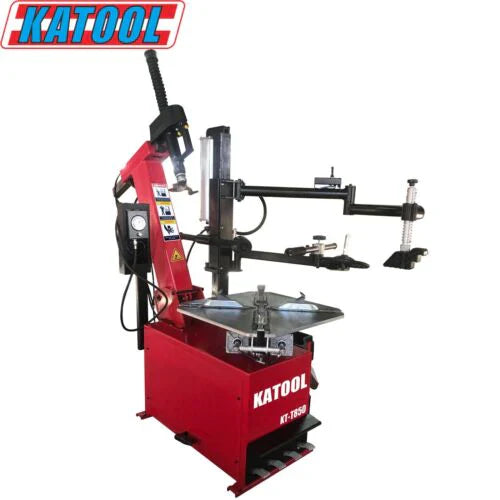

KT-T850 Tilt-Arm Wheel Clamp Tire Changer Machine

• Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the inside of the jaw to have more tenacity and the outside harder, and use the jaw cover for protecting the rim

• The mounting head is made by stainless steel with solution treatment and interface polishing, the shape conforms to the engineering mechanics and accompanied by plastic cover for protecting the rim

• The high-quality spade cover effectively prevents the rim from being damaged

• Pull type pedal control system, easy for tire changing and maintenance

• Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer service life

• The high-quality lubricator provides reliable oil-drop and effectively filters compressed air so that the service life of the pneumatic system is extended

• For North America region it supports 110V/1ph/2.0HP motor for strongest power and better efficiency

• Equipped with assist arms

• Bead blast seater

• 200mm aluminum bead breaker cylinder

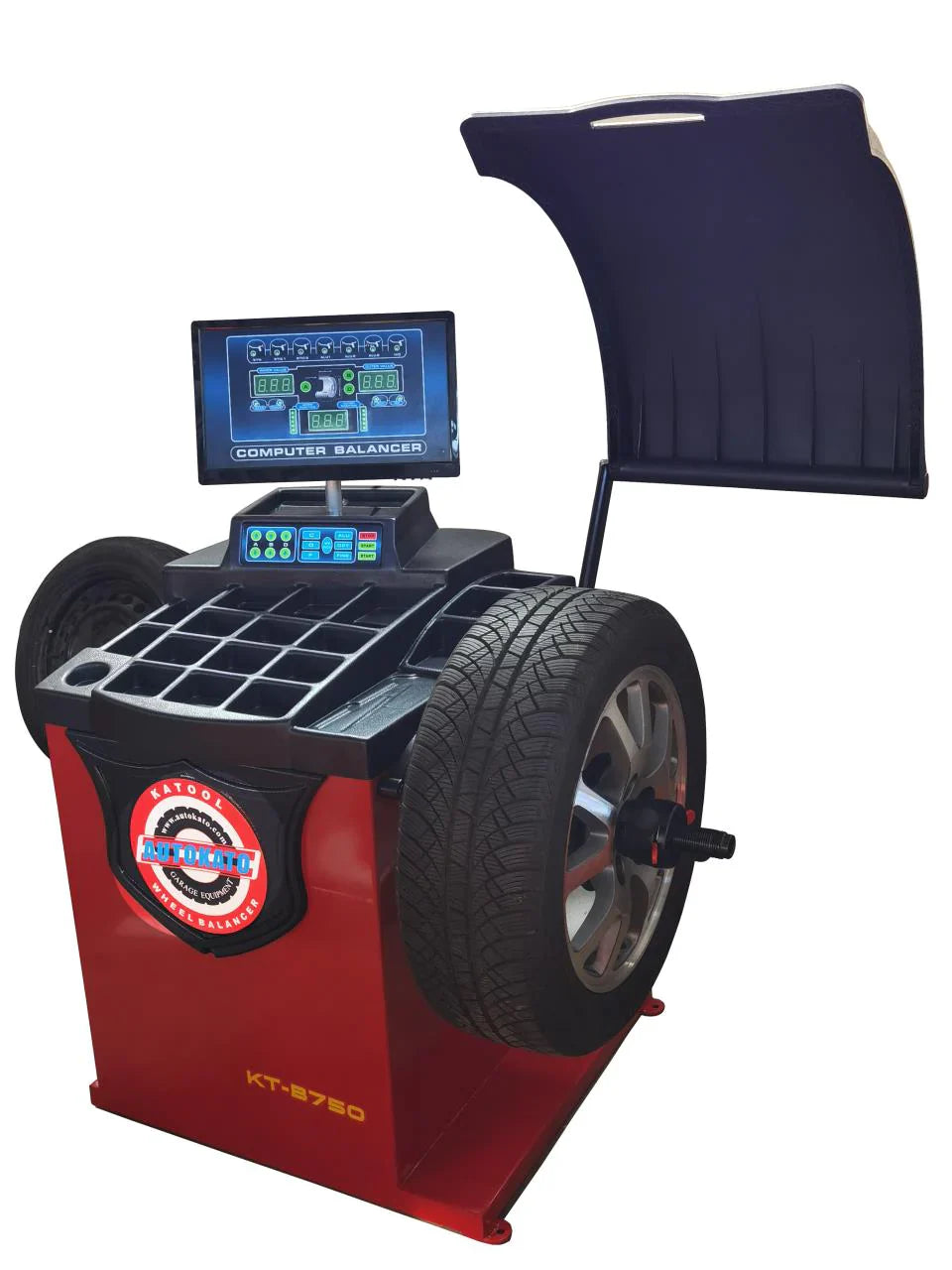

KT-B750 Wheel Balancer

• Automatic measurement ruler for auto input A and D values

• The body use 3mm thickness steel, high strength, solid welding, few vibration

• All-in-one pressure sensor support design, bottom board thickness 8mm, side board thickness 8mm, that insure the sensor working stable and high precision

• Top level motor and pure copper winding, more power, fast heat dissipation, low defect rate and longer using life

• The φ36mm shaft thread is by quenching treatment, high strength

• Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life
• The computer board adopt advanced welding technology, moisture proof, dustproof and anti-static electricity, more longer life

• Various balance mode, according different rim for different balance mode, make the balance effect more precision

• Built-in fault diagnosis and self calibration program that double side calibration, no memory parameters, operation more easy

• Unit selection(Ounce/Gram, MM/Inch)

• High quality integration power board, working stable and reliable

• Wheel guard for optional

• Longer shaft for more width wheels

Specifications

KT-T850 Tilt-Arm Wheel Clamp Tire Changer Machine

Max Wheel Diameter :	47"/1200mm
Max Wheel Width :	15"/380mm
Outside Clamp:	14"-26"
Inside Clamp :	16"-28"
Power Supply:	110V 1PH
Motor Power:	2.0HP/1.5KW
Rotation Speed :	6.8r/min
Air Pressure :	0.8-1.0Mpa(116-145psi)
Net weight :	340KG / 750 lbs

KT-B750 Wheel Balancer

Rim Diameter:	<30"
Wheel Width:	3"-12"
Wheel Diameter:	<880mm
Balancing Speed:	180rpm
Power Supply:	120V 1PH
Motor Power:	0.25KW
Rim Center Hole Dia.:	<135mm
Wheel Weight:	<65KG
Balancing Accuracy:	±1g
Measuring Time:	7S



Warranty

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.

A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.

Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.

Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
