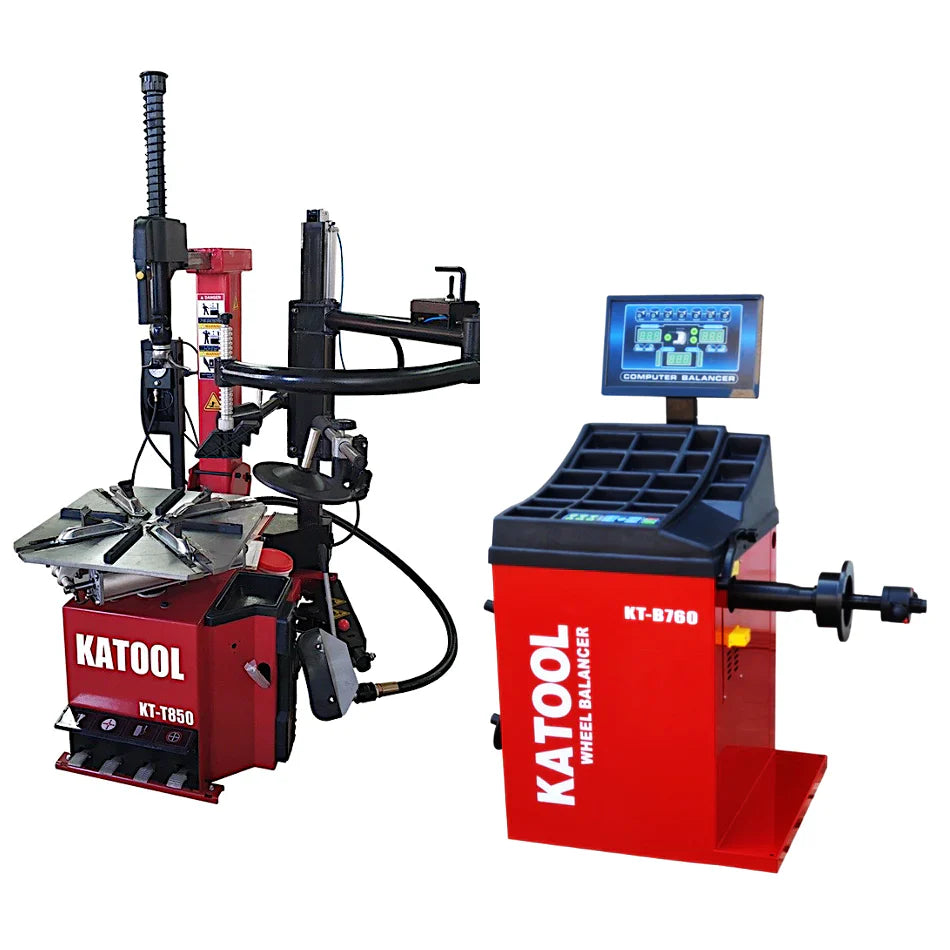

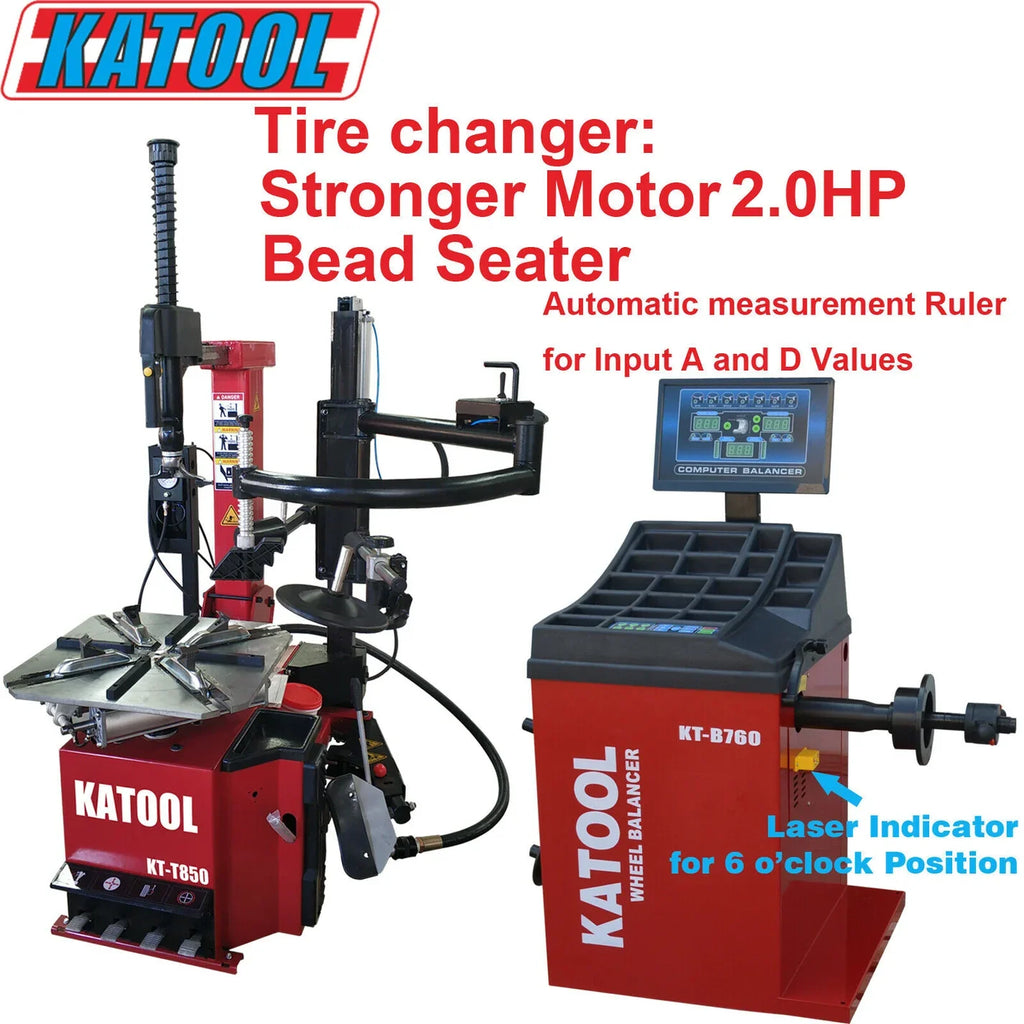

Katool | Tire Changer KT-T850 & Wheel Balancer KT-B760 Combo

Experience efficient tire service with the Katool Tire Changer KT-T850 & Wheel Balancer KT-B760 Combo. The KT-T850 Tilt-Arm Wheel Clamp Tire Changer features an alloy steel jaw with carburization treatment, a stainless steel mounting head, and a pull-type pedal control system. The top-level motor supports a 110V/1ph/2.0HP motor for North America, ensuring power and efficiency. Equipped with assist arms, bead blast seater, and a 200mm aluminum bead breaker cylinder, it offers versatility. The KT-B760 Wheel Balancer boasts an automatic measurement ruler, 3mm-thick steel body, and a top-level motor with various balance modes. With built-in fault diagnosis, self-calibration, and optional features like a wheel guard, it delivers precise and reliable tire maintenance.

Features

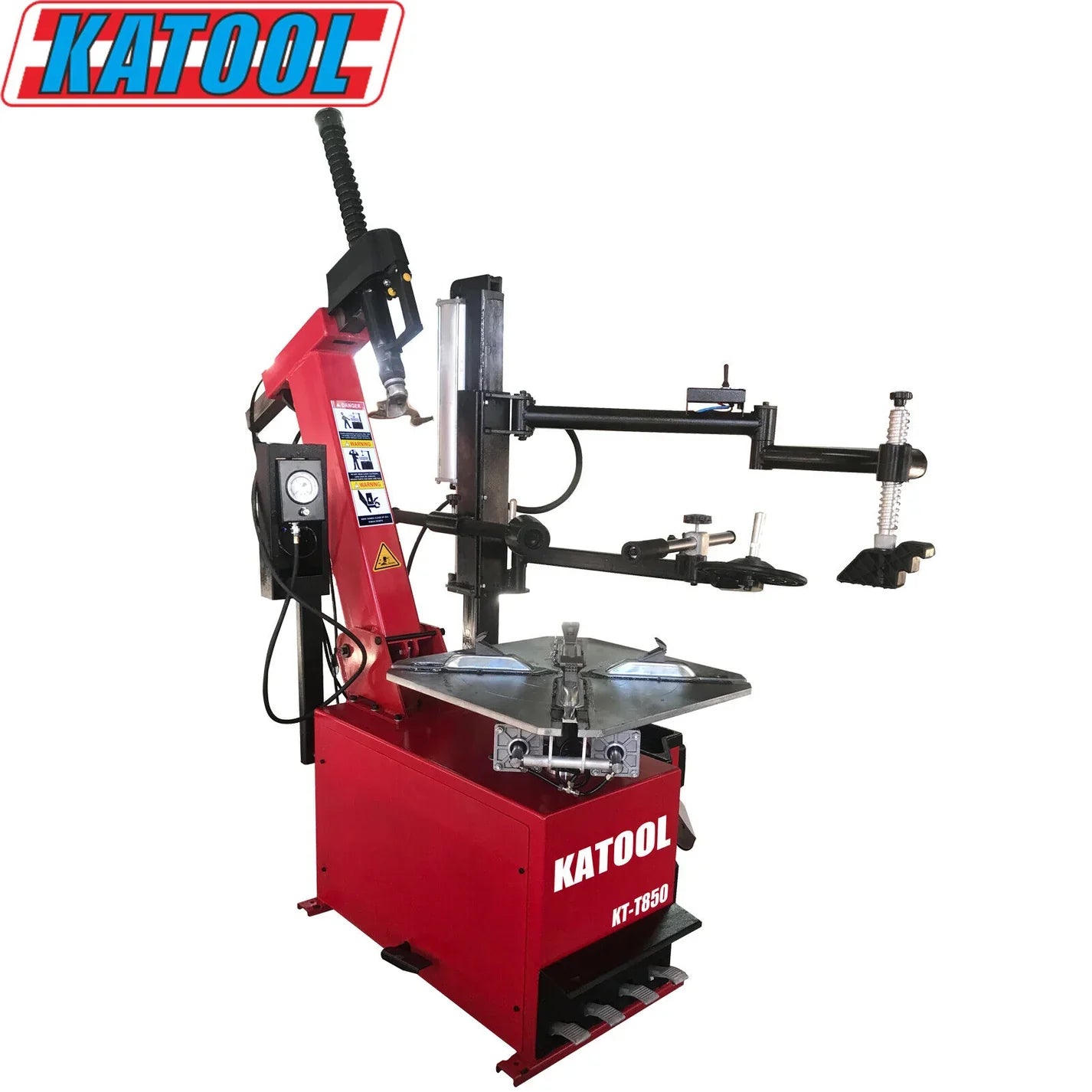

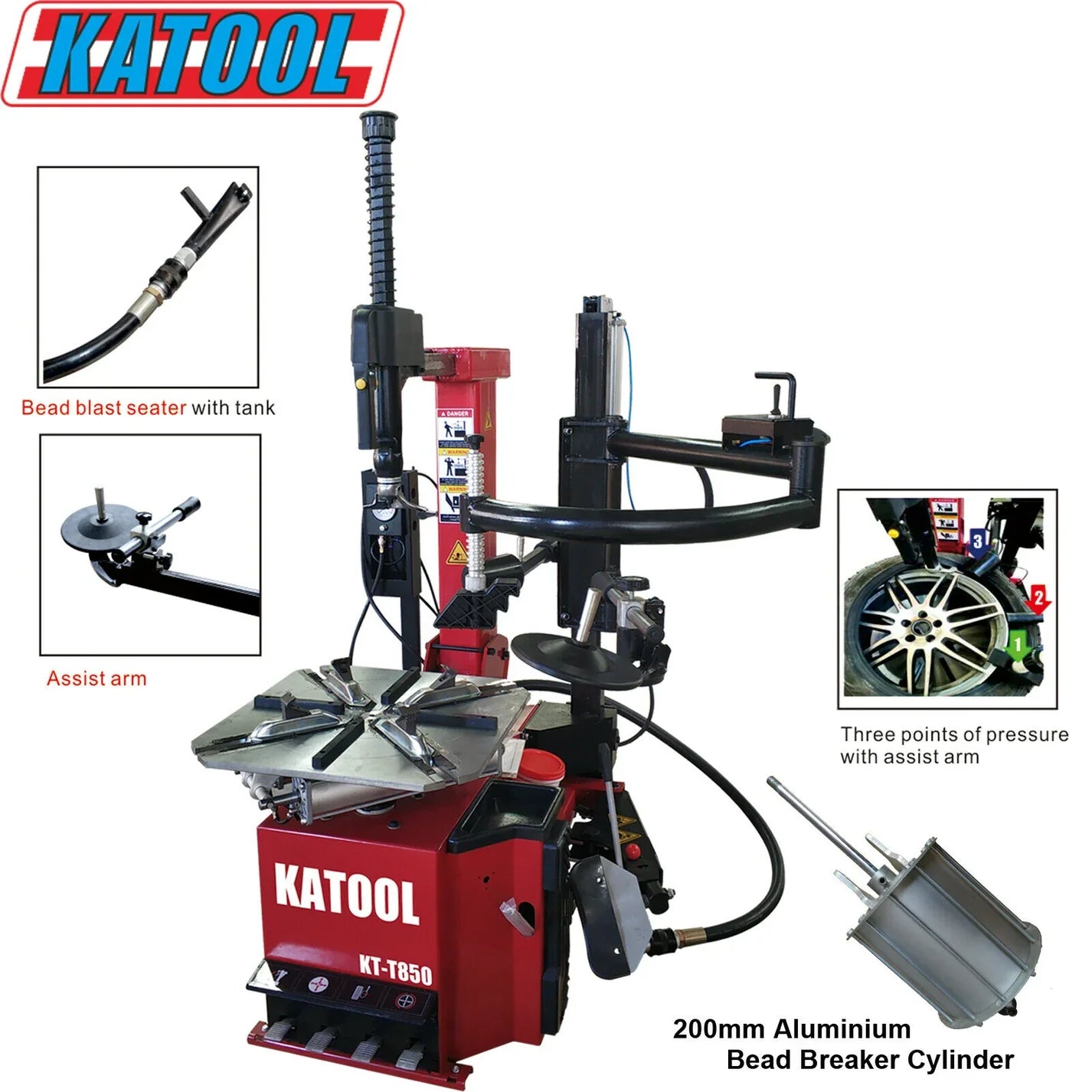

KT-T850 Tilt-Arm Wheel Clamp Tire Changer Machine

• Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the inside of the jaw to have more tenacity and the outside harder, and use the jaw cover for protecting the rim

• The mounting head is made by stainless steel with solution treatment and interface polishing, the shape conforms to the engineering mechanics and accompanied by plastic cover for protecting the rim

• The high-quality spade cover effectively prevents the rim from being damaged

• Pull type pedal control system, easy for tire changing and maintenance

• Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer service life

• The high-quality lubricator provides reliable oil-drop and effectively filters compressed air so that the service life of the pneumatic system is extended

• For North America region it supports 110V/1ph/2.0HP motor for strongest power and better efficiency

• Equipped with assist arms

• Bead blast seater

• 200mm aluminum bead breaker cylinder

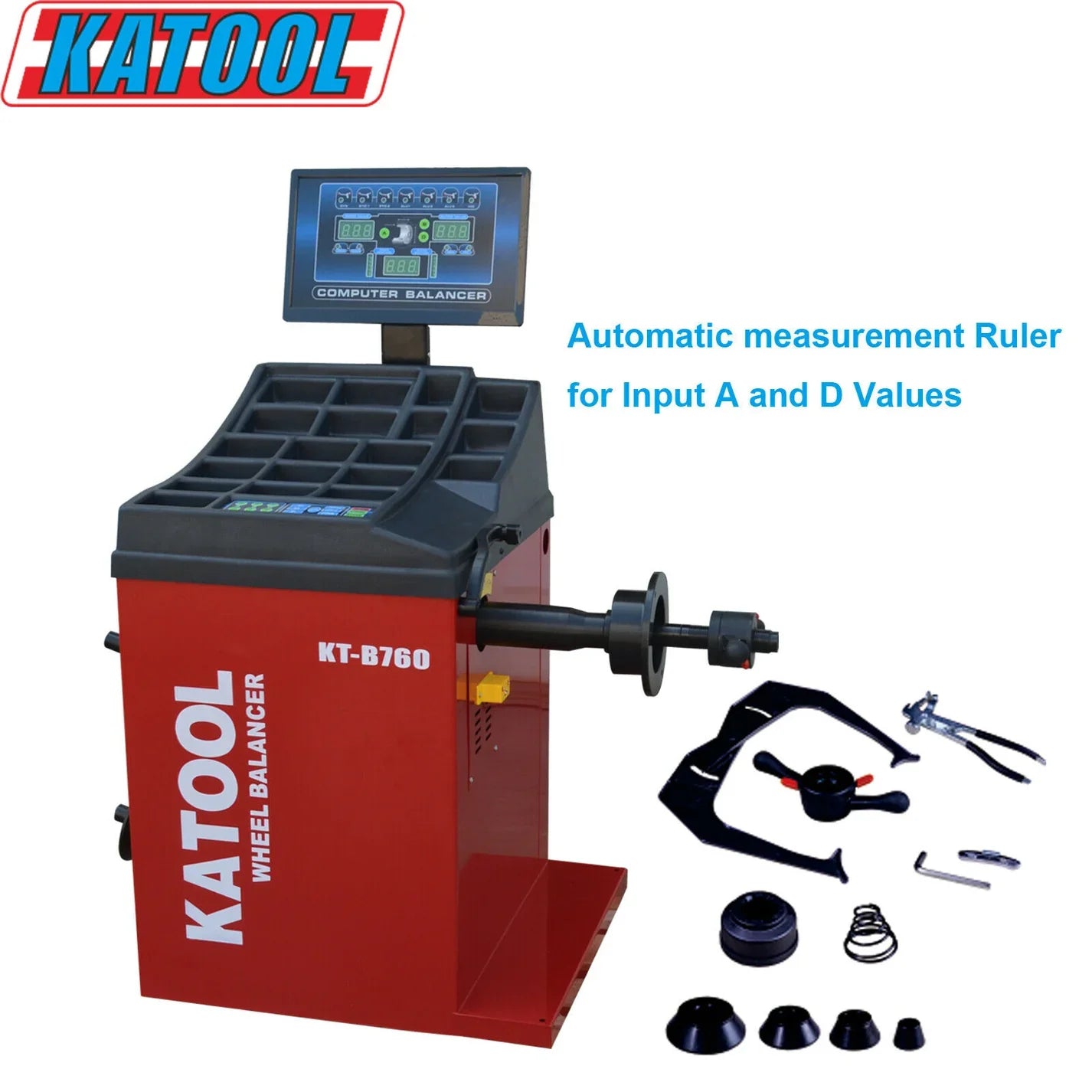

KT-B760 Wheel Balancer

• Automatic measurement ruler for auto input A and D values

• The body uses 3mm-thick steel with high strength, solid welding and low vibration

• All-in-one pressure sensor support design, both bottom and side boards are 8mm thick, and it insures that the sensor work stably with high precision

• Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer using life

• The 36mm shaft thread is made by quenching treatment to offer high strength

• The computer board adopts advanced welding technology to make it moisture proof, dust proof and antistatic

• Various balance mode for different types of rims to provide more precision

• Built-in fault diagnosis and self-calibration program with double side calibration. No pre-set parameters so the users can operate with ease

• Unit selection (Ounce/Gram, MM/Inch)

• High quality integration power board, working stable and reliable

• Optional wheel guard

• Longer shaft, also compatible with wider wheels

Specifications

KT-T850 Tilt-Arm Wheel Clamp Tire Changer Machine

Max Wheel Diameter:	47"/1200mm
Max Wheel Width:	15"/380mm
Outside Clamp:	14"-26"
Inside Clamp:	16"-28"
Power Supply:	110V 1PH
Motor Power:	2.0HP/1.5KW
Rotation Speed:	6.8r/min
Air Pressure:	0.8-1.0Mpa(116-145psi)
Net weight:	340KG / 750lbs

KT-B760 Wheel Balancer

Rim Diameter:	<30"
Wheel Width:	3"-12"
Wheel Diameter:	<880mm/34.64"
Balancing Speed:	180rpm
Power Supply:	110V 1PH
Motor Power:	0.25KW
Rim Center Hole Dia.:	<135mm/5.31"
Wheel Weight:	<65KG/143lbs
Balancing Accuracy:	±1g
Measuring Time:	7S
