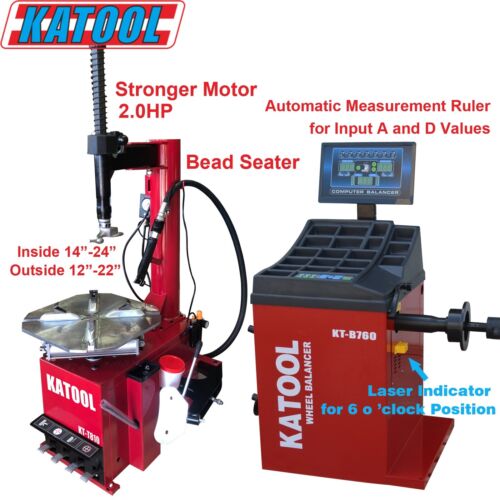

Katool | Tire Changer KT810 & Wheel Balancer KT-B760 Combo

Maximize tire service efficiency with the Katool Tire Changer KT810 & Wheel Balancer KT-B760 Combo. The KT-T810 Wheel Clamp Tire Changer features an alloy steel jaw with carburization treatment, a stainless mounting head, and a pull-type pedal control system for convenience. Its top-level motor with a 120V/1ph/2.0HP power supports North America's strong power requirements. With a closed body design, it ensures protection for internal parts. The KT-B760 Wheel Balancer offers automatic measurement, 3mm-thick steel body, and various balance modes. Equipped with a fault diagnosis system, it provides a precise and reliable tire balancing solution. Optional features include a wheel guard and a longer shaft for wider wheels.

Features

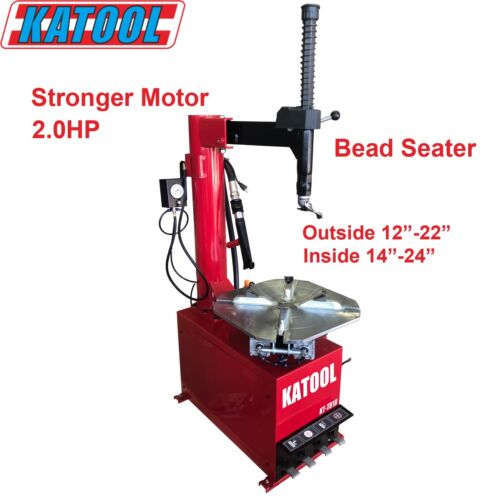

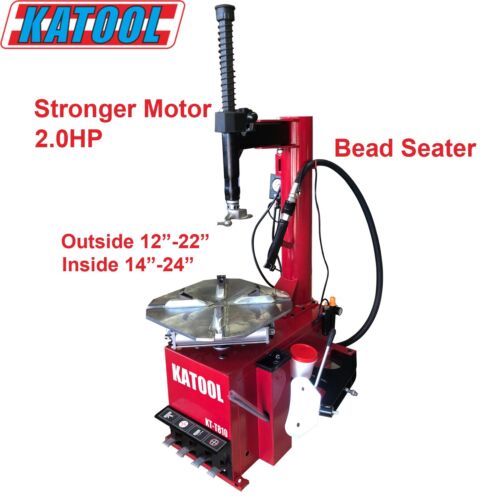

KT-T810 Wheel Clamp Tire Changer Machine

• Alloy steel jaw, interface carburization treatment of 0.8-1.1mm deepness, whole quenching process, making the jaw inside more tenacity and outside more hard, and take the jaw cover for protect rim

• The mounting head is made by stainless, solution treatment and interface polishing, the shape conforms to the engineering principle, and take with plastic cover for protect rim

• Inflation gauge with pedal control

• With high quality spade cover, effective prevent damage rim

• Pull type pedal control system, convenience for changing and maintenance

• Top level motor and pure copper winding, fast heat dissipation, low defect rate and longer using life
• With high quality filter, reliable drop oil, effective filter pressure air, and make more longer using life for pneumatic system

• For North America region used 120V/1ph/2.0HP motor, more strong power and high efficiency working

• Closed body for protect inside parts well

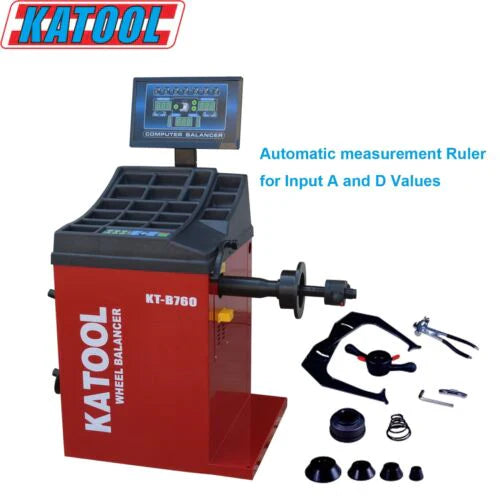

KT-B760 Wheel Balancer

• Automatic measurement ruler for auto input A and D values

• The body uses 3mm-thick steel with high strength, solid welding and low vibration

• All-in-one pressure sensor support design, both bottom and side boards are 8mm thick, and it insures that the sensor work stably with high precision

• Top level motor and pure copper winding provides more power, faster heat dissipation, lower defect rate and longer using life

• The 36mm shaft thread is made by quenching treatment to offer high strength

• The computer board adopts advanced welding technology to make it moisture proof, dust proof and antistatic

• Various balance mode for different types of rims to provide more precision

• Built-in fault diagnosis and self-calibration program with double side calibration. No pre-set parameters so the users can operate with ease

• Unit selection (Ounce/Gram, MM/Inch)

• High quality integration power board, working stable and reliable

• Optional wheel guard

• Longer shaft, also compatible with wider wheels

Specifications

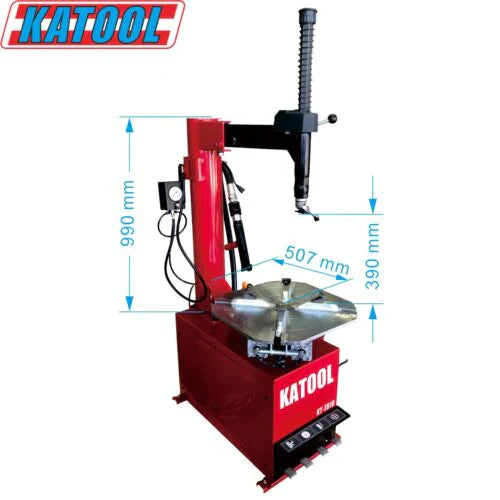

KT-T810 Wheel Clamp Tire Changer Machine

Max Wheel Diameter :	41"/1040mm
Max Wheel Width :	15"/380mm
Outside Clamp:	12"-22"
Inside Clamp :	14"-24"
Power Supply:	120V 1PH
Motor Power:	2.0HP/1.5KW
Rotation Speed :	6.8r/min
Air Pressure :	0.8-1.0Mpa(116-145psi)
Net weight :	186KG

KT-B760 Wheel Balancer

Rim Diameter:	<30"
Wheel Width:	3"-12"
Wheel Diameter:	<880mm
Balancing Speed:	180rpm
Power Supply:	120V 1PH
Motor Power:	0.25KW
Rim Center Hole Dia.:	<135mm
Wheel Weight:	<65KG
Balancing Accuracy:	±1g
Measuring Time:	7S



Warranty

Katool offers a limited one-year (12 months) warranty on all parts and against all product defects, free of charge.

A 2-year extended warranty plan is available for any Katool or M&E automotive equipment.

Warranty Includes:
- Cylinders, power units, motors, displays, electronics, etc.
- Vehicle lifts include an additional three-year (36 months) warranty on structural components only.

Warranty Conditions:
- Claims must fall within the warranty period.
- Warranty is non-transferable and requires the original order number and purchase from our company or a registered vendor.
- Replacement parts will be provided at no cost, including free shipping.

Note:
- All warranty claims are subject to approval by the warranty/service department.
- Photos and/or videos of defects may be requested.
- Do not disassemble any equipment before the issue is determined.
- Equipment outside the warranty policy will not be covered, and the buyer will be responsible for replacement parts and shipping costs.
- Labor is not included in the warranty.
