Specification and Features

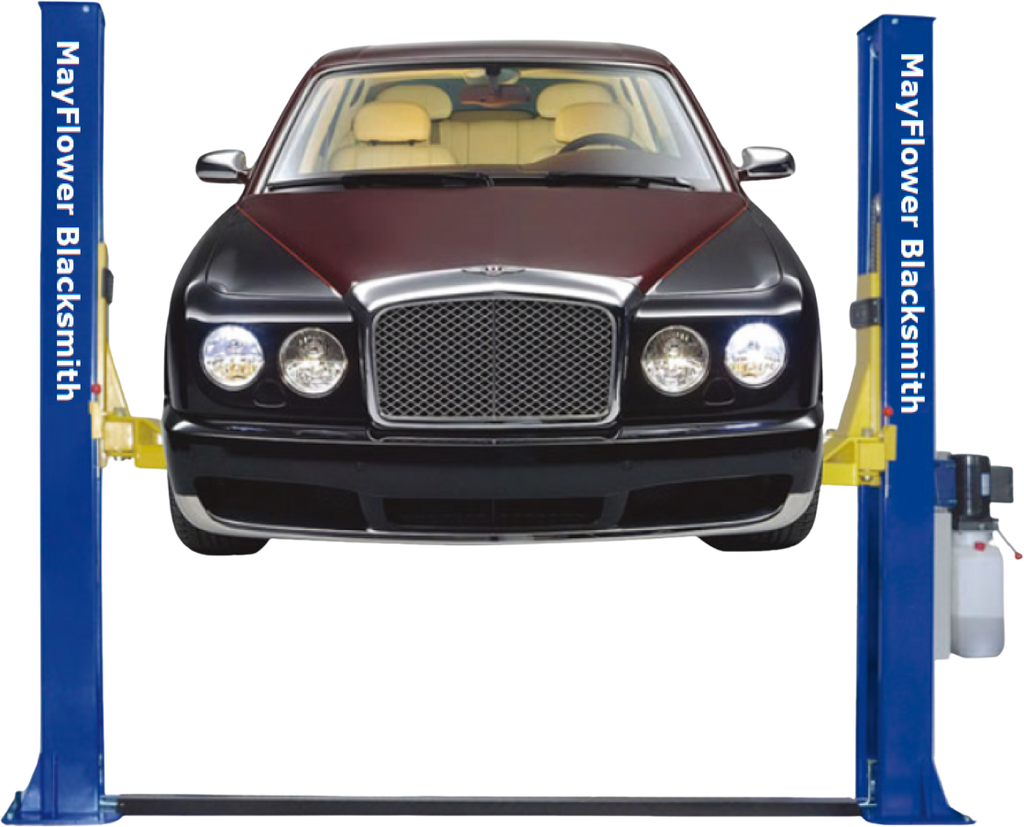

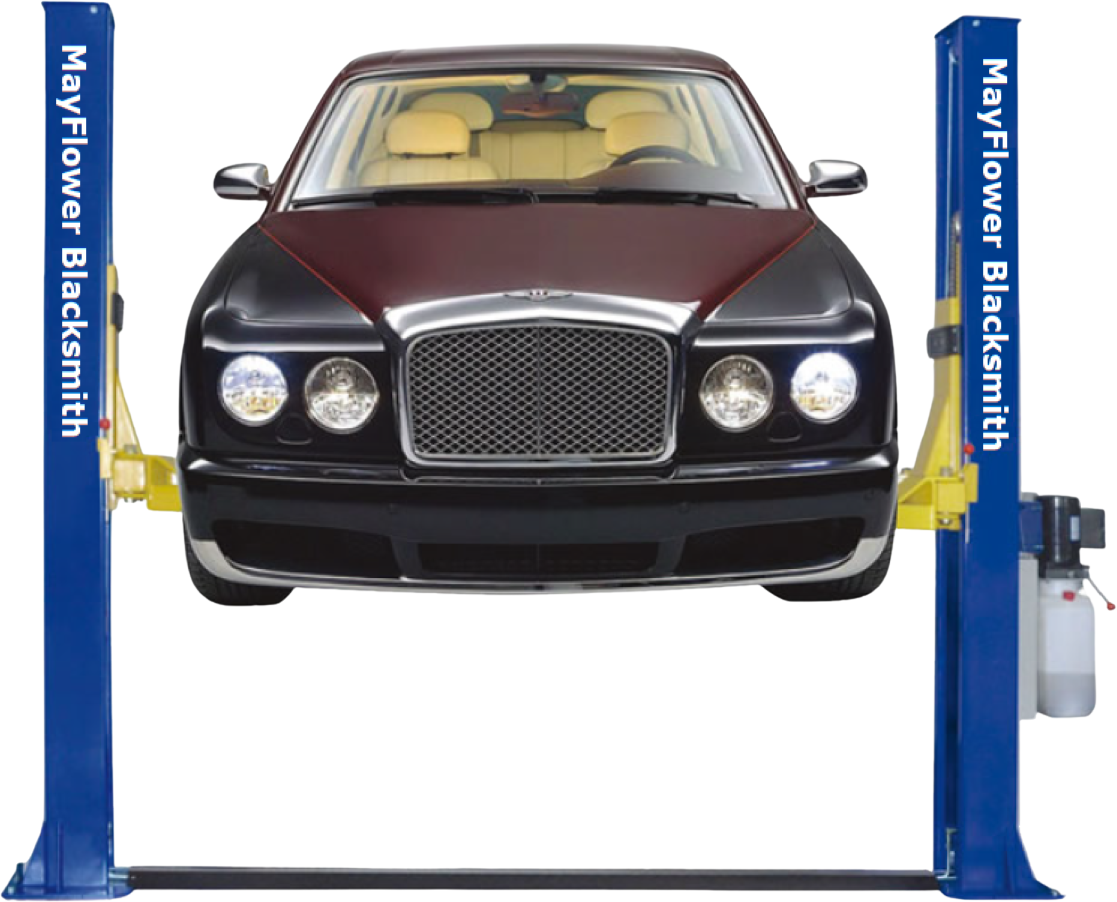

Mayflower Blacksmith Two Post Lift Floor Plate BP 9500 lbs

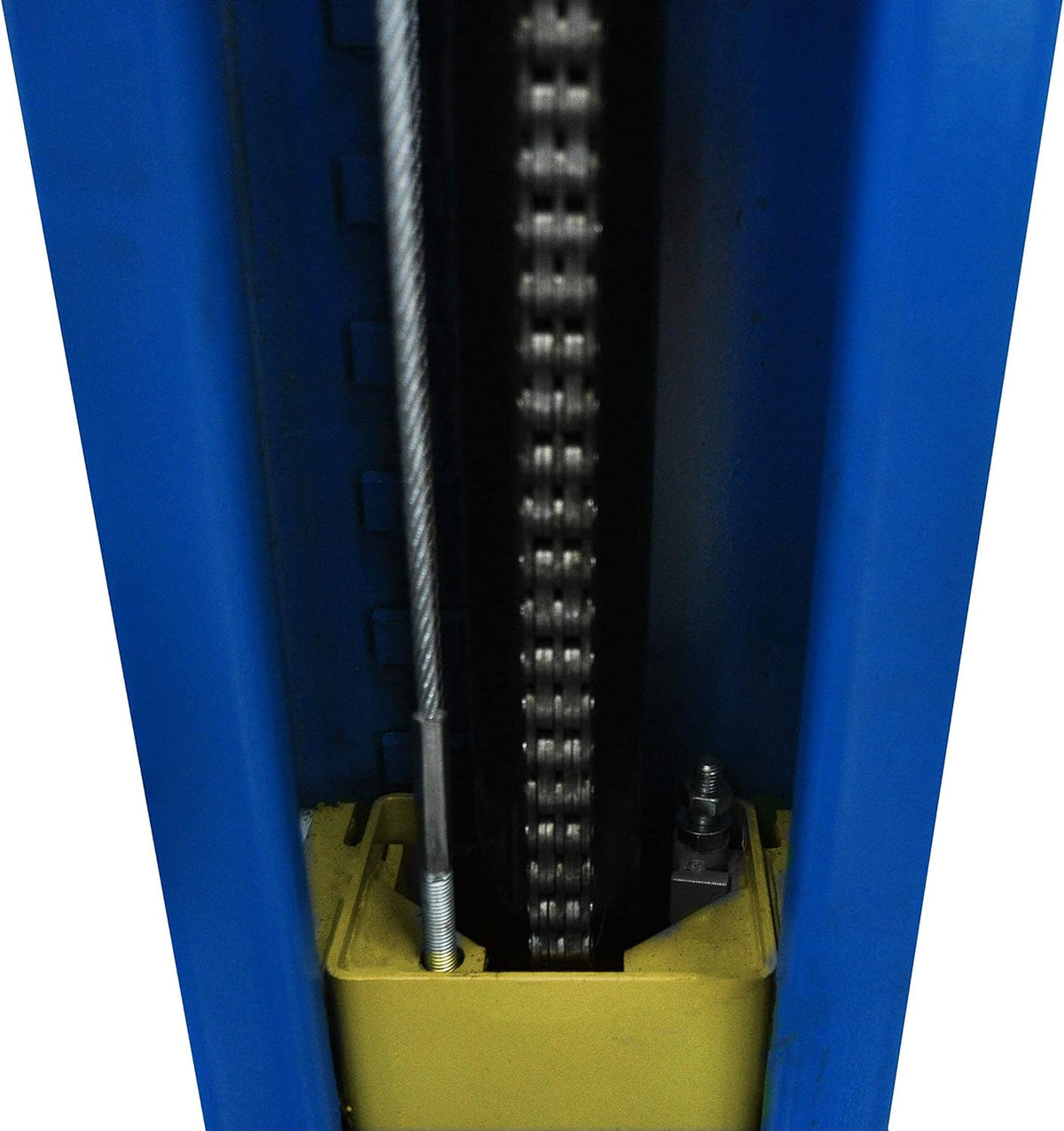

Driving Mode: Heavy Duty Two hydraulic cylinders, chain drive
Voltage: 220 Voltage
Lifting weight capacity: 9,500 lbs
Lifting height max: 71″
Lifting height max with Truck Adapter: 75″
Overall Height: 111″
Overall Width: 132″
Width between Posts: 106″
Drive Thru Width: 98″
Lifting Time: 40 sec – 50 sec
Motor: 220V 60Hz 1 Phase / 3 Horse Power

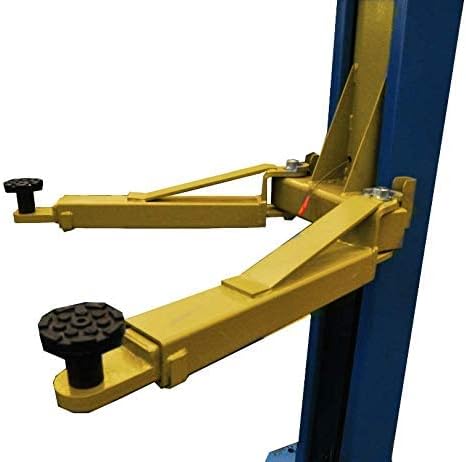

Front Arm assembly 2 Stage reach from 28″ to 42″
Rear Arm assembly 2 Stage reach from 32″ to 62″

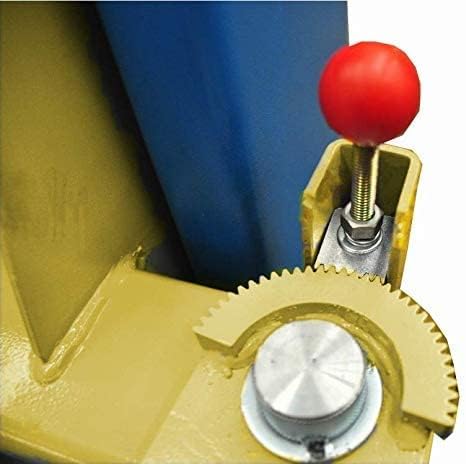

Double two point safety lock release with built-in 18 locking positions
Automatic arm lock restraints
Drop-in type lifting pads and truck adapters included
Relief valve built in power pump to prevent overloading

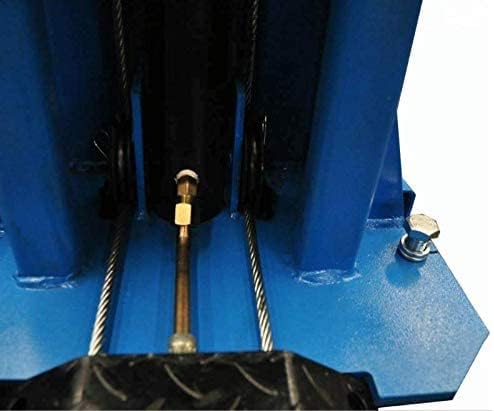

Heavy duty 3/10″ diameter cable and 3 2/5″ pulley that reduce high stress on synchronization process and increase cable life
Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
Floor concrete requirement: 4″ Depth, 3000 PSI Rebar Reinforced
Anchor bolts/mounting hardware included
1 set of 4” Truck adapters included
Door guards protection rubber is optional
Blue Powder coated finish provides superior resistance against corrosion.
Shipping Weight: 1250 LB
