Description

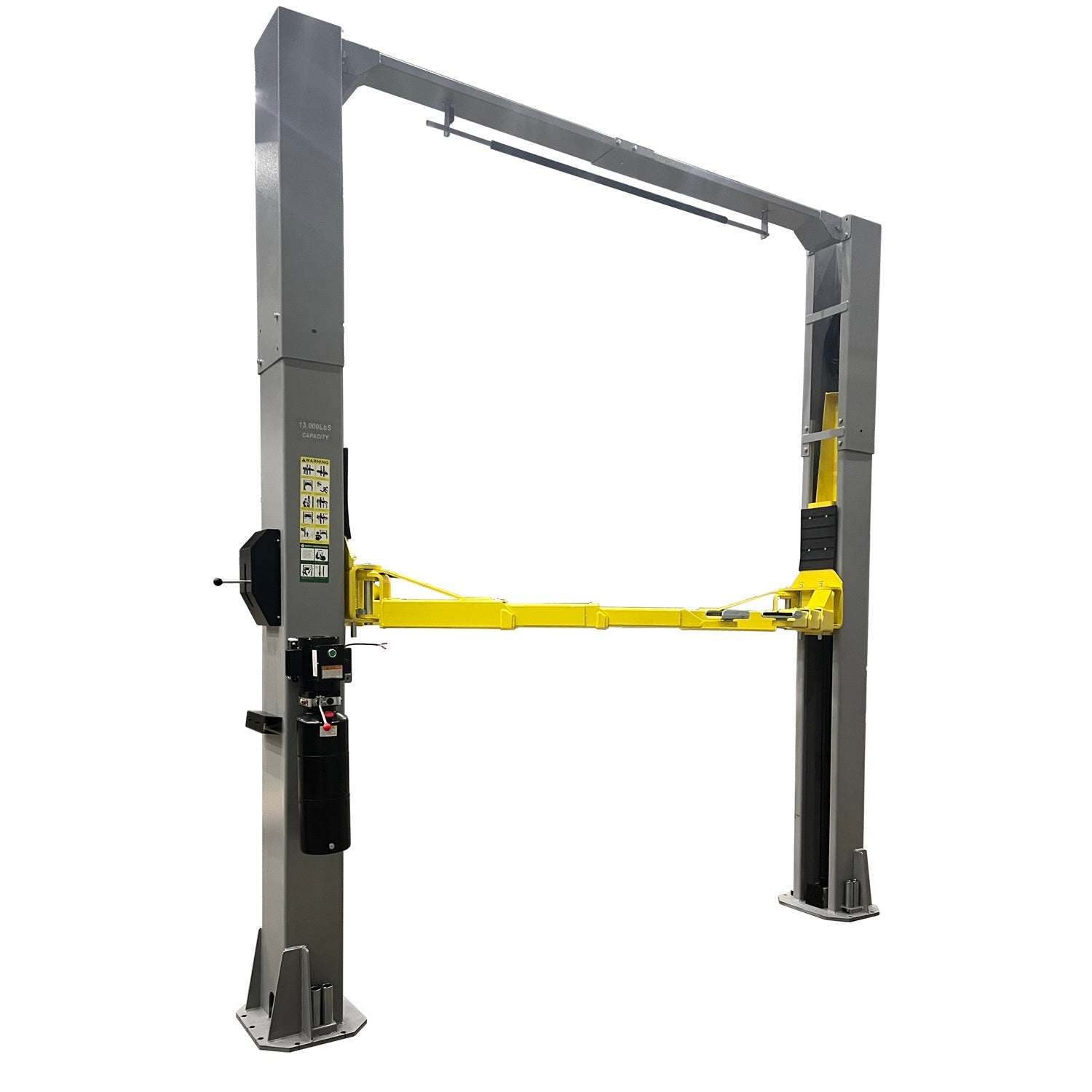

NTO-13A 13,000 lb Two Post Auto Lift
Free Shipping to the Lower 48 United States!
The Triumph NTO-13A 13,000 lb. Two-Post Auto Lift is a rugged, versatile above-ground lift engineered and manufactured to high-quality standards for years of reliable service. The lift is ISO 9001 and CE Certified/Compliant and features direct-drive cylinders, an electrical override automatic safety shut-off, free mounting hardware, and free truck adapters.
The NTO-13A should be installed on a concrete floor with a minimum 4,000 PSI strength and a 6-inch slab.
Key Features
-
13,000 lb. lifting capacity
-
Direct-drive cylinders
-
Electrical override automatic safety shut-off
-
Single-point lock release
-
Free mounting hardware
-
Free truck adapters
-
220-volt power
-
3 HP motor
-
Overhead design
-
ISO 9001 Certified
-
CE Certified/Compliant
-
1-year parts warranty
Specifications
| Specification | Details |
|---|---|
| Capacity | 13,000 lbs. |
| Overall Height | 162" |
| Overall Width | 150" |
| Lifting Height | 74" |
| Distance Between Posts | 122" |
| Drive-Thru Width | 109" |
| Lowered Height | 5" |
| Base Plate Size | 20" x 20" |
| Truck Adapters | Yes |
| Lock Release | Single Point |
| Electric Safety Cutoff | Yes |
| Lift Time | 55 Seconds |
| Voltage | 220 Volt |
| Horsepower | 3 HP |
| Concrete Requirement | 6" Slab, 4,000 PSI |
| Style | Overhead |
Warranty
The Triumph NTO-13A includes a standard 1-year parts warranty.
Auto Lift Freight Delivery Information
Your auto lift ships via LTL common carrier freight and will be delivered to your location on a 48-foot semi-truck. Please review the following important information before placing your order:
-
You are responsible for unloading the lift from the truck. The freight driver is not responsible for unloading the lift.
-
Lift-gate delivery is not available for auto lifts.
-
Auto lifts cannot be unloaded by hand. You must have equipment capable of safely lifting the full weight of your lift from the truck. Suitable equipment may include a forklift, Bobcat, tractor, tow truck, or backhoe.
-
If you are unable to unload the lift at your location, we can arrange shipment to the nearest freight terminal operated by the carrier. You will then be responsible for picking up the lift using an appropriate trailer or moving van.
-
You are responsible for contacting the freight carrier to schedule your delivery appointment. Delivery appointments are arranged directly with the carrier because they will need to coordinate with your schedule.
-
Free shipping exclusions: Free shipping does not include deliveries to government-secured locations, state or national parks, construction sites, islands, Alaska, or Hawaii. Additional freight charges may apply to these locations.
Tracking & Delivery Time
Once your lift ships, we will email you the freight carrier information and tracking number.
Please note that freight shipping takes longer than standard small-package shipping. Delivery typically takes 3–14 business days, depending on your location and the freight carrier's schedule.
Please be patient while your lift is in transit. Freight delivery times can vary due to carrier schedules, terminal transfers, weather, and other factors outside of our control.
