Race Ramps - Portable Pit Stop Car Ramps - Racer Model

Race Ramps is currently out of stock. Order now to reserve your product, and we'll ship it as soon as the manufacturer restocks inventory.

Key Features:

• Lift vehicle 14" for easy maintenance and spectacular display

• 90" to 115" adjustable wheelbase; 15" cutouts make ramps easier to move

• Modular design is easy to transport and store

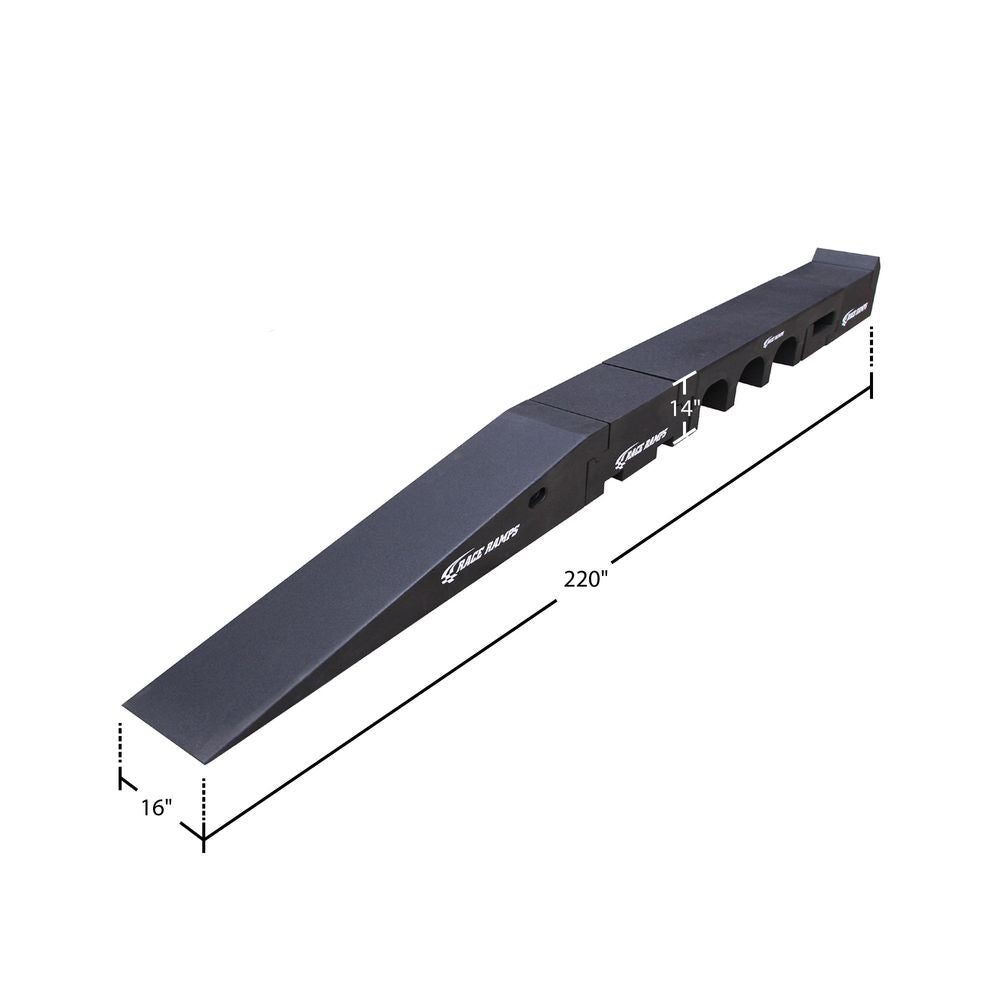

Specifications

Made in the USA
Sold As: Pair
Length: 220"
Width: 16"
Height: 14"
Weight: 250 lbs.
Lift Height: 14"
Maximum Capacity: 6,000 lbs.
Maximum Tire Width: 14"
Approach Angle Degree: 10.4°
Material: Expanded foam with traction coating
Cutout Size: 15"
Color: Black

More Information

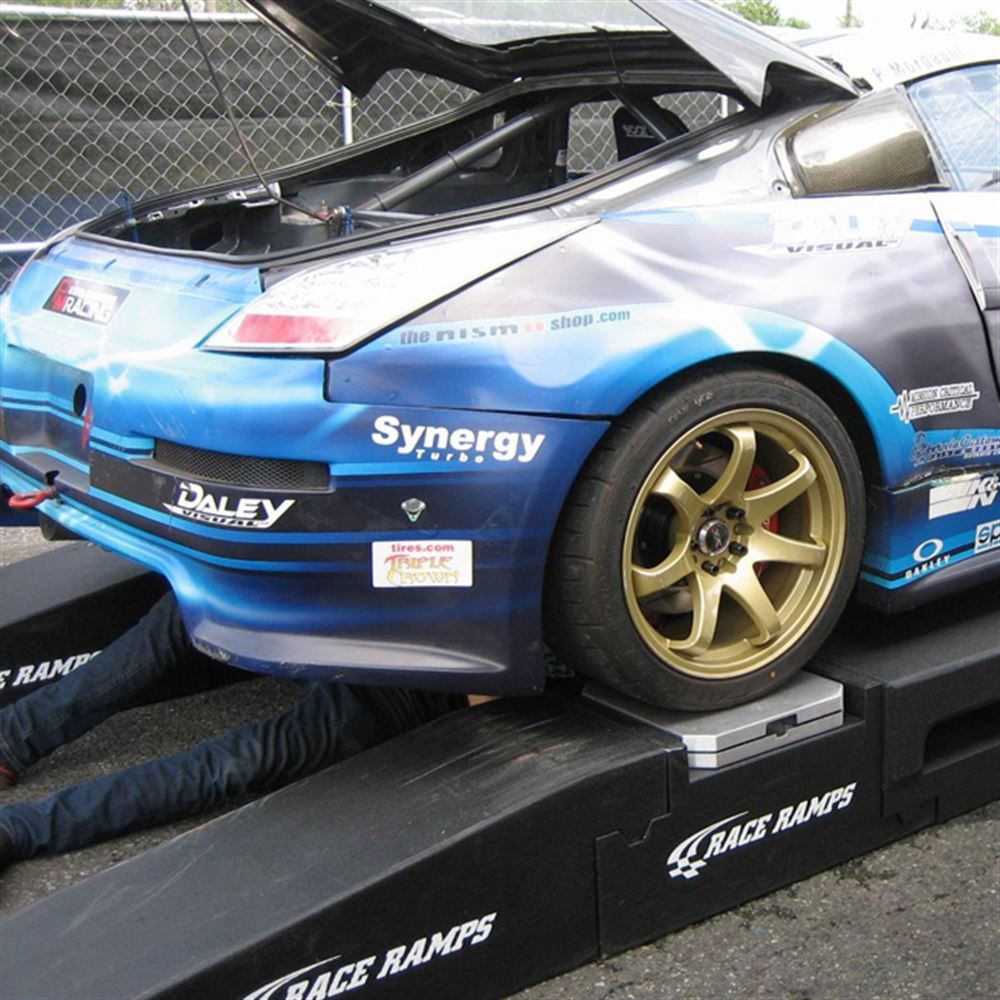

Great for wrapping or simple maintenance, Portable Pit Stop Ramps elevate vehicles for better body height and safer underbody access. They’re light enough to bring with you to the track, keep on hand in your personal garage, or simply leave out in your workshop for everyday use.

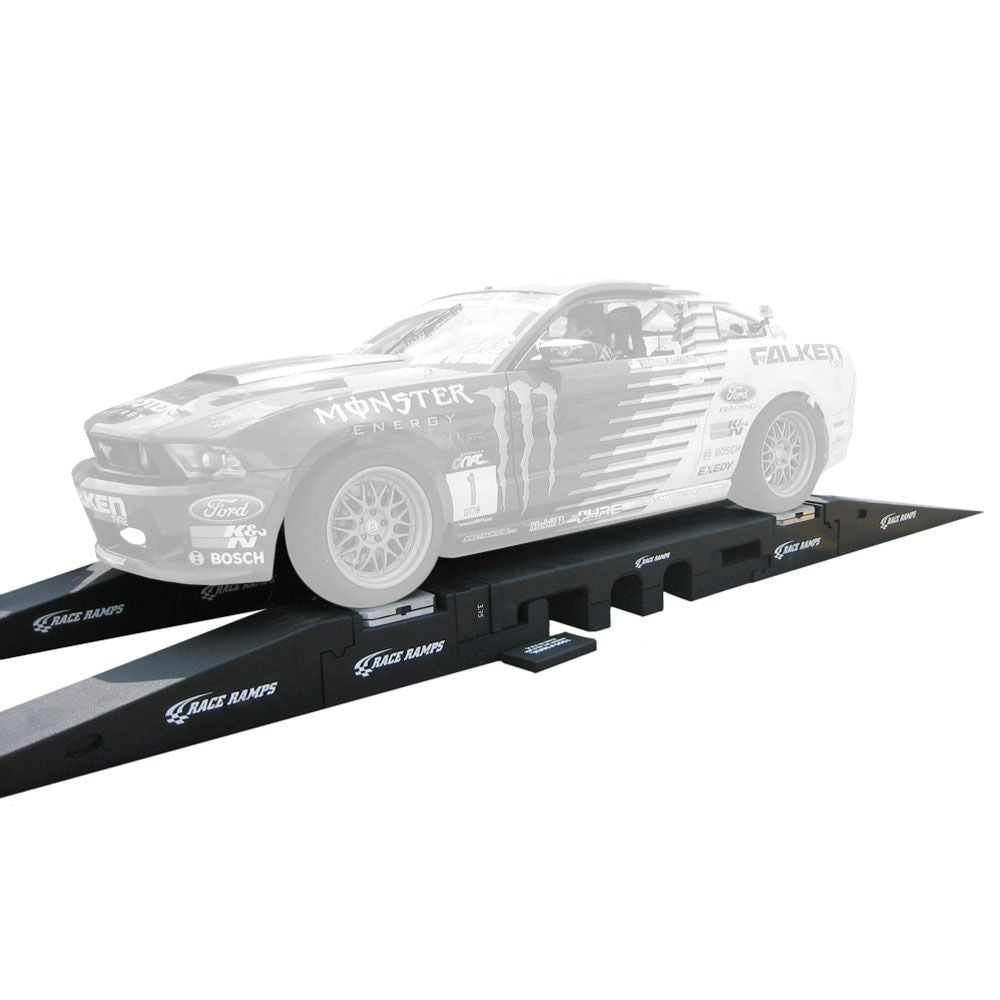

The multi-piece design is easy to assemble with pieces that weigh no more than 40 pounds; and once a car is positioned on top, the center pieces and inclines can be removed for even better accessibility under the car and around the perimeter. The ramp platform provides 14 inches of lift and can accommodate a wheel base of 90 to 115 inches and tires up to 14 inches wide. Each incline has a 10-degree approach angle, and the racer model comes with 15 inch cutouts on top for use with scales. The entire ramp system can support up to 6,000 pounds. An additional set of inclines is available if you wish to have ramps at both ends.

These ramp platforms are constructed of 100% solid, high-density foam with a rugged anti-slip coating that results in a lightweight ramp solution that is strong, yet durable. They won’t slide on any surface, including garage and workshop floors.

• Lift vehicle 14" for easy maintenance and spectacular display

• 90" to 115" adjustable wheelbase; 15" cutouts make ramps easier to move

• Modular design is easy to transport and store

Usage Guidelines

Before using the ramps ensure other persons are clear of the vehicle and the ramps. Ensure that the ramps are free from damage or corrosion before use. Use only a single pair of wheel ramps at the front or rear, do not use two ramps on one side of the vehicle. Position the ramps in line with the wheels, with the steering wheel pointed straight and the incline against the tire tread. Carefully drive the vehicle onto the automotive ramps until it is in the correct position. Turn the engine off, apply the parking brake, get out of the vehicle and securely chock the remaining wheels on the ground. Before starting work, walk around the vehicle ensuring it is securely positioned. Always use a jack stand if a person will be going under the vehicle. On completion of the work, check the parking brake is still firmly on and remove the chocks. It is important to drive very slowly when coming off the ramps to prevent the automotive bodywork from making contact with the car ramp. Exercise caution when using these car ramps with a trailer or three wheeled vehicles.
