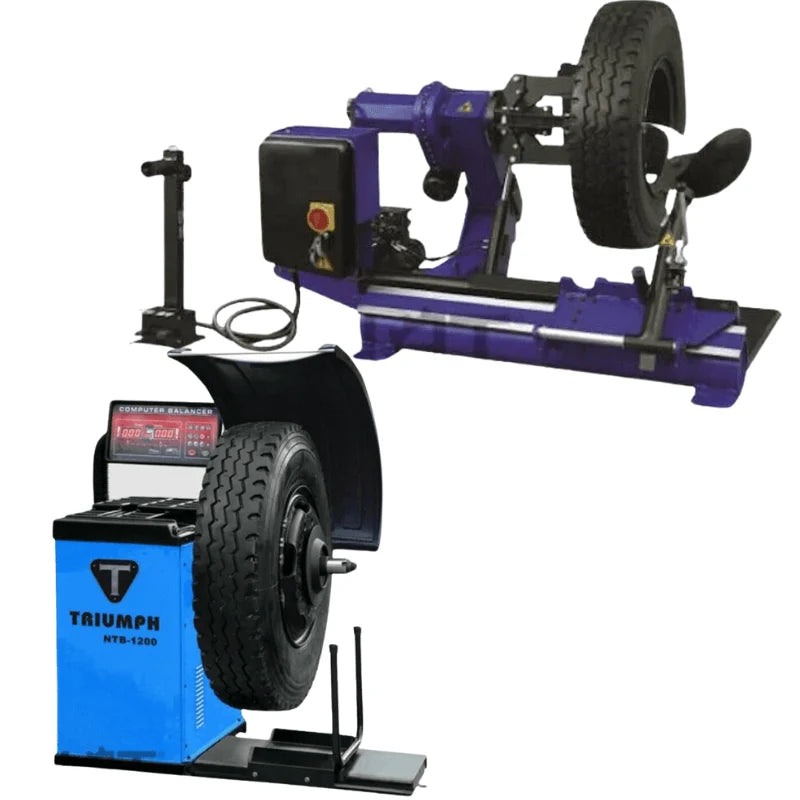

NTC-690 Tire Changer with NTB-1200 Wheel Balancer Combo by Triumph
Massive tires roll into the shop, and it's time to dominate the heavy-duty market. The NTC-690 Tire Changer and NTB-1200 Wheel Balancer combo stands ready to revolutionize large vehicle servicing. The NTC-690 conquers tires up to 90 inches in diameter, while the NTB-1200 balances wheels up to 28 inches with laser accuracy [±1 gram (standard), ±10 grams (heavier weights)]. This duo transforms daunting tasks into smooth operations.
The NTC-690's robotic arm and wireless remote control eliminate backbreaking labor. The NTB-1200's auto-measuring feature and 8-second cycle time keep the bay humming with efficiency. Upgrade now and watch as truck fleets, construction companies, and agricultural operations make your shop their pit stop. The NTC-690 and NTB-1200 combo isn't just equipment—it’s the key to unlocking a new level of service capability.
Tire Changer and Wheel Balancer Triumph NTC-690 and NTB-1200 Specifications
NTC-690
| Specification | Details |
|---|---|
| Clamping Distance | 14–56" |
| Max Wheel Width | 42" |
| Max Tire Diameter | 90" |
| Bead Blast | No |
| Max PSI | 120 PSI |
| Voltage | 220V |
| Shipping Size | 78 x 63 x 35" |
| Shipping Weight | 2,400 lbs. |
NTB-1200
| Specification | Details |
|---|---|
| Wheel Size Range | 10–28" |
| Max Tire Diameter | 51" |
| Rim Width | 1.5–20" |
| Max Weight | 350 lbs. |
| Shaft Size | 42 mm |
| Automatic Data Entry | No |
| Display | Standard or Metric |
| Accuracy | ±1 Gram (standard), ±10 Gram (heavier weights) |
| Cycle Time | 8 Sec |
| Horsepower | 1/3 HP |
| Voltage | 110 Volt |
| Shipping Size | 47 x 39 x 50" |
| Shipping Weight | 720 lbs. |
NTC-690 Tire Changer Machine Special Features
NTC-690
-
Robotic Arm: Automates the tire-changing process for large vehicles, enhancing efficiency and reducing manual labor.
-
Wireless Remote Control: Provides versatile, easy, and safe operation from a distance.
-
Comprehensive Tool Set: Includes a crowbar, clamp covers, bead press clamp, and instructional video for complete functionality.
-
High Capacity: Handles large tires with a maximum diameter of 90" and a wheel width of up to 42".
-
Heavy-Duty Construction: Built to withstand industrial use, with a shipping weight of 2,400 lbs. for added stability.
-
Special Order: Note that this is a special order item with a shipping time of 2–3 months.
-
Freight Delivery: Unit is too large for a lift gate — forklift required to unload.
NTB-1200
-
Heavy-Duty Performance: Designed for both large truck wheels and smaller passenger wheels.
-
Auto Measuring: Simplifies the balancing process with automatic distance and wheel diameter measuring.
-
Protective Cover: Includes a cover to protect the machine and extend its lifespan.
-
High Capacity: Handles wheel sizes up to 28 inches and tire diameters up to 51 inches.
-
Fast and Accurate: Provides precise balancing with a cycle time of 8 seconds and high accuracy.
-
Warranty: 1-year parts-only warranty.
