Description
Overview

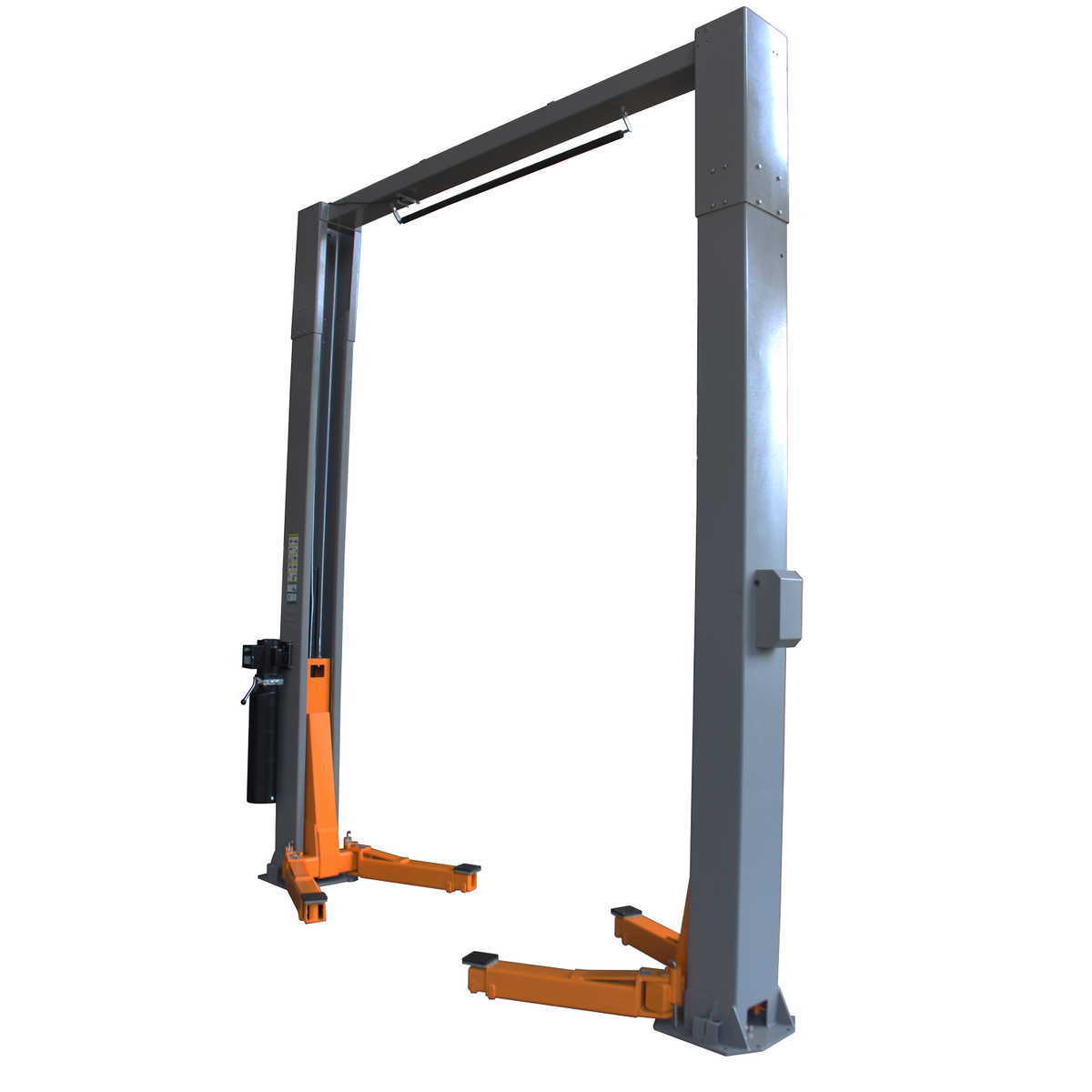

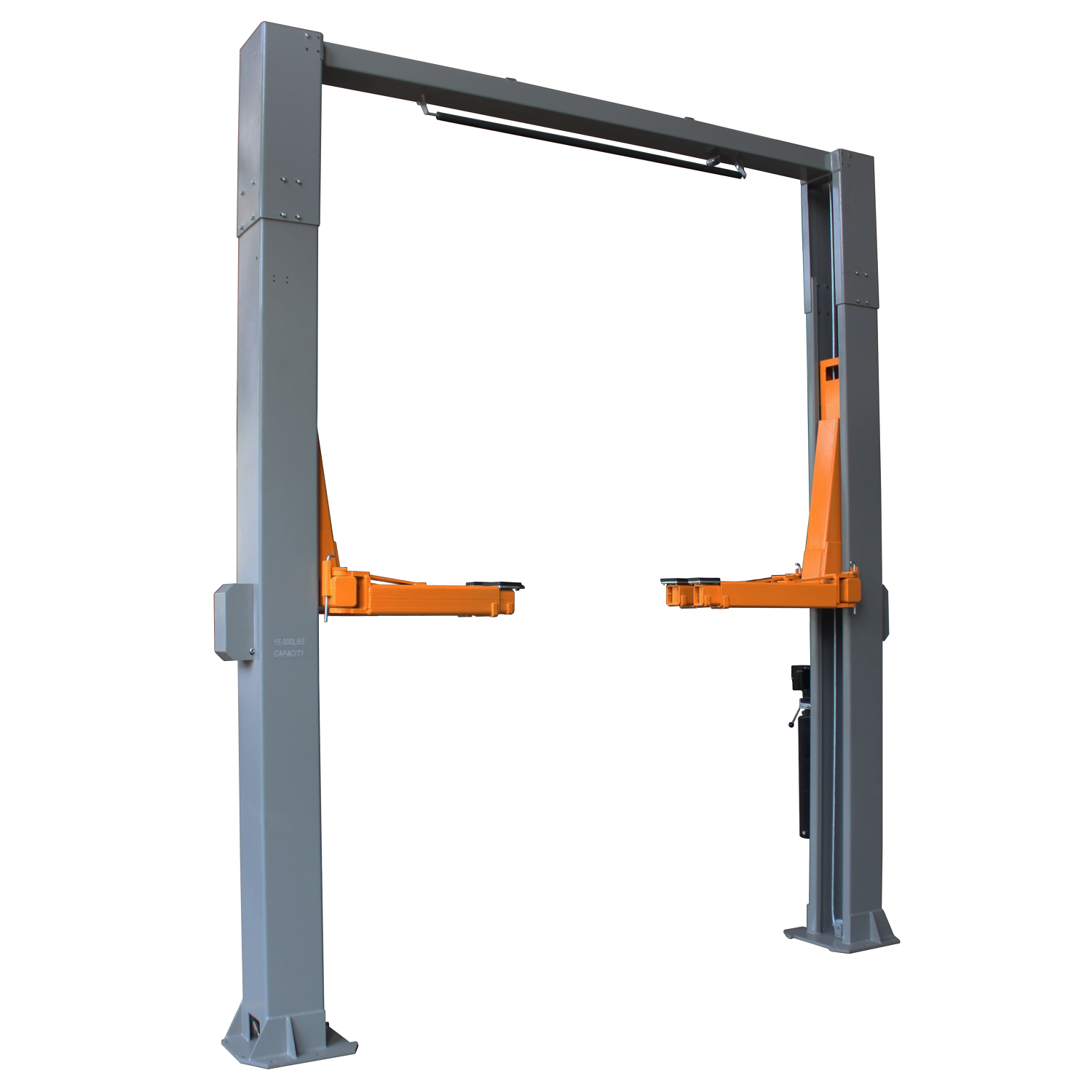

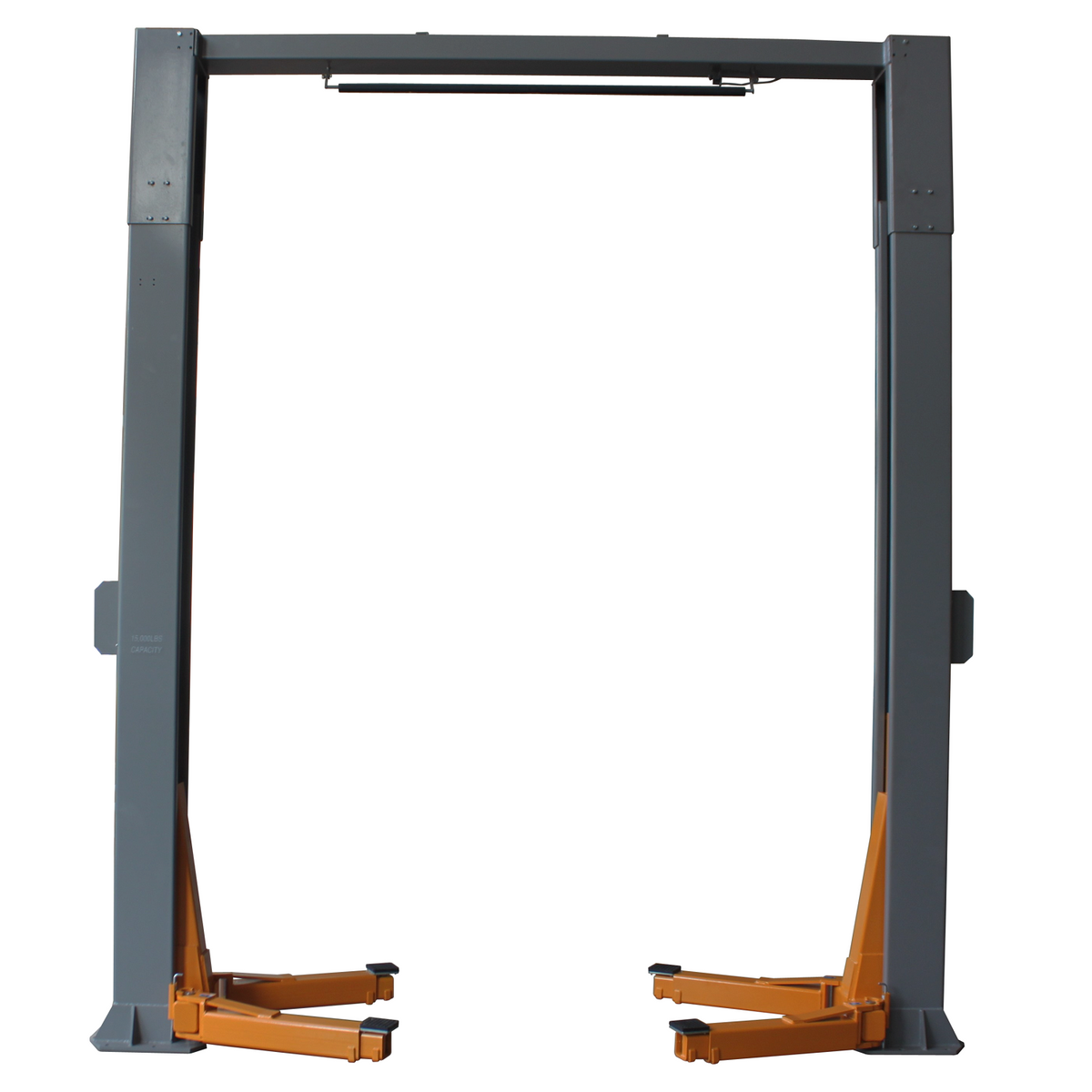

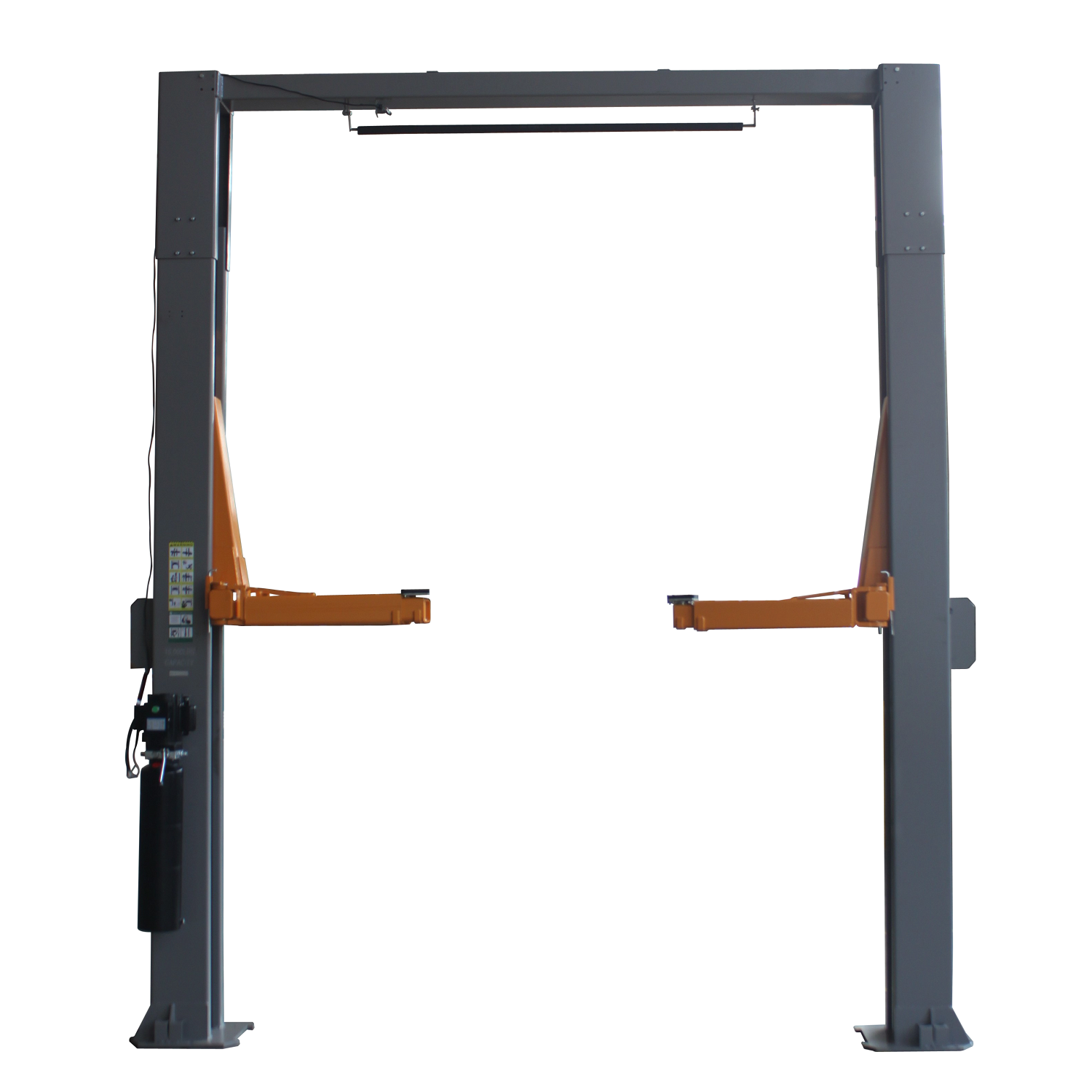

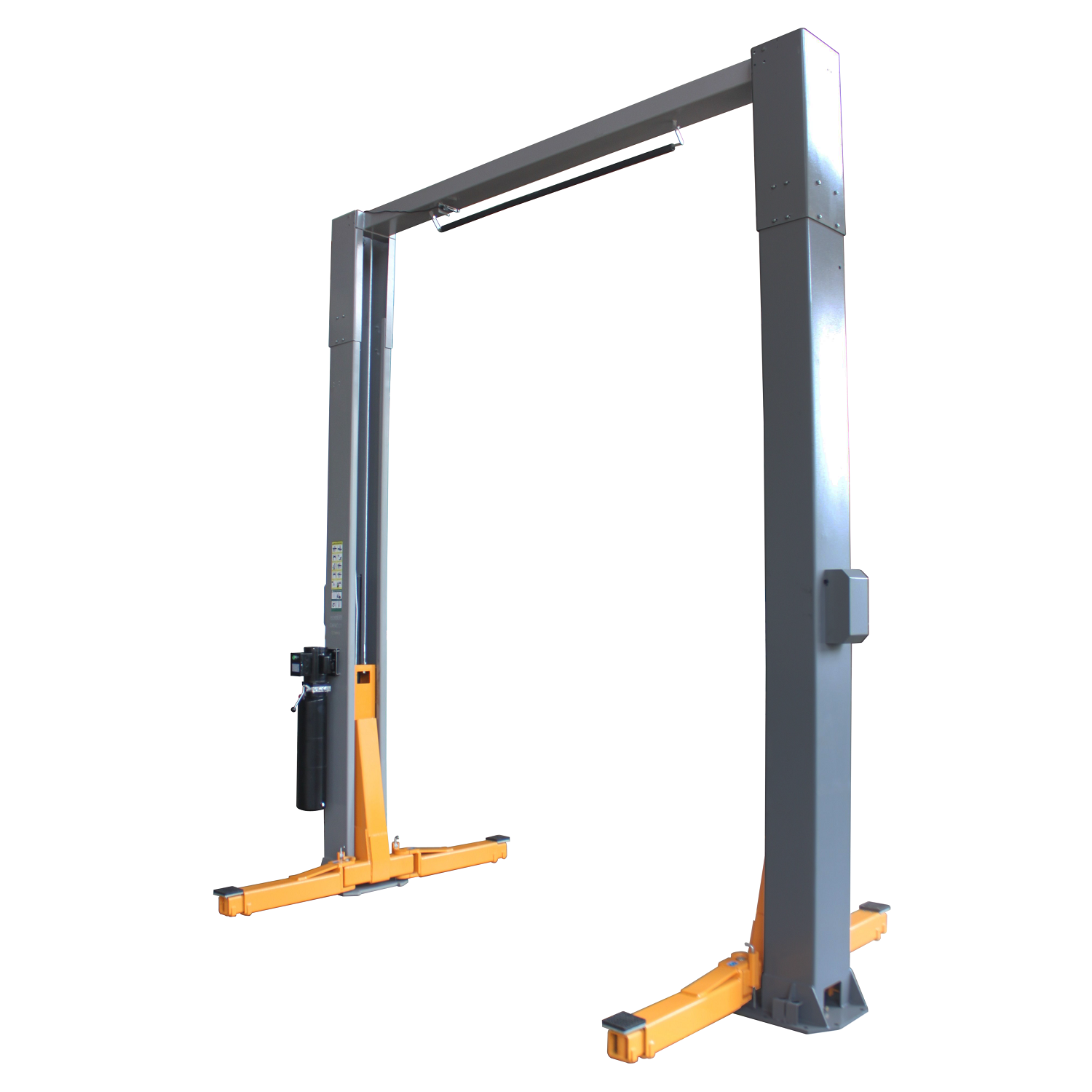

The NTO-20S 20,000 lb Two Post Auto Lift by Triumph is a robust and versatile lift designed to handle heavy-duty vehicles with ease. Engineered to the highest quality standards, it offers reliable performance for automotive shops, garages, and service centers. This lift is ISO 9001 and CE Certified/Compliant, ensuring long-lasting durability and safety.
With free shipping to the lower 48 United States and a comprehensive 1-year parts warranty and 5-year structural warranty, the NTO-20S is a cost-effective solution for all your lifting needs. It includes direct drive cylinders, an electrical safety shutoff, free truck adapters, and mounting hardware, making it a complete package for professional use.
Key Features
- High Capacity: 20,000 lbs for lifting heavy vehicles.
- Durable Design: Manufactured to ISO 9001 and CE standards for reliability.
- Concrete Requirements: 6" slab with 4,000 PSI strength for secure installation.
- Direct Drive Cylinders: Provides smooth and efficient lifting.
- Safety Features: Electrical override automatic safety shut-off for added protection.
- Truck Adapters: Included for added versatility.
- Free Mounting Hardware: Simplifies installation.
- Quick Lift Time: 40 seconds for efficient operations.
- Warranty: 1-year parts and 5-year structural warranty for peace of mind.

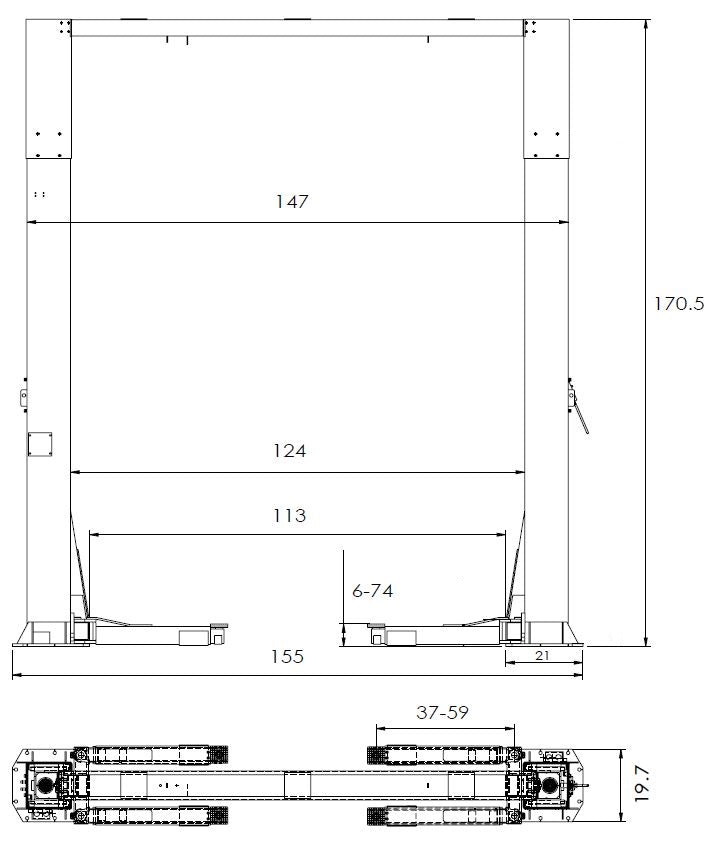

Specifications
| Capacity | 20,000 lbs | Overall Height | 170.5" |
| Overall Width | 155" | Lifting Height | 74" |
| Distance Between Posts | 124" | Drive Thru Width | 113" |
| Lowered Height | 6" | Base Plate Size | 21x20" |
| Truck Adapters | Yes | Lock Release | Single Point |
| Electric Safety Cutoff | Yes | Lift Time | 40 Seconds |
| Voltage | 220 Volt | Horsepower | 3 HP |
| Concrete Requirements | 6" Slab, 4,000 PSI | Style | Overhead |
