Product Overview

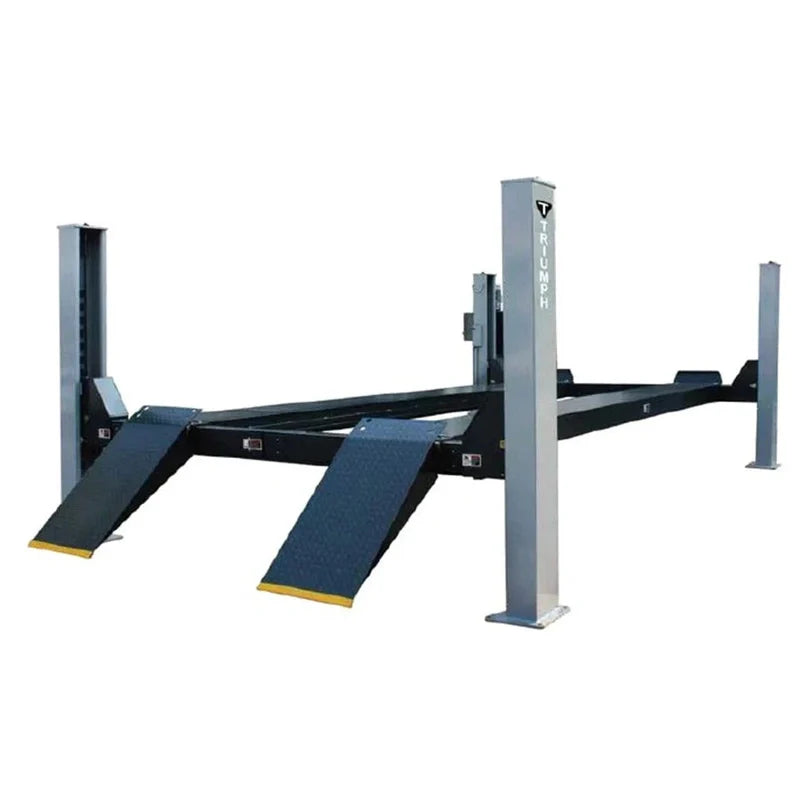

The NTR-24 Four-Post Auto Lift is built to handle the biggest jobs with ease. Designed for heavy-duty vehicle maintenance, this lift provides a massive 24,000 lb lifting capacity, making it ideal for commercial shops, fleet maintenance facilities, and service centers. With an extended runway length and superior load distribution, the NTR-24 ensures safe and efficient lifting for large trucks, buses, and industrial vehicles.
Key Features
-
24,000 lb Lifting Capacity: Handles large commercial trucks, buses, and fleet vehicles with ease.
-
Rugged Steel Construction: Engineered from heavy-duty steel for superior durability and long-lasting performance.
-
Four-Post Stability: Provides a secure lifting platform with enhanced safety features.
-
Multiple Locking Positions: Offers 9 different locking positions for added flexibility and security.
-
Smooth Hydraulic Operation: Advanced hydraulic system ensures controlled and reliable lifting and lowering.
-
Ideal for Commercial Use: Perfect for fleet maintenance, truck service shops, and industrial applications.
Specifications
| Specification |
Details |
| Capacity |
24,000 lbs |
| Overall Height |
93.1" |
| Overall Length Without Ramps |
300" |
| Overall Length With Ramps |
338.9" |
| Overall Width |
150.1" |
| Maximum Lifting Height |
70.8" |
| Minimum Runway Height |
9" |
| Runway Length |
289.9" |
| Runway Width |
24" |
| Between Runways |
45.3" - 49.2" |
| Width Between Columns |
131.8" |
| Locking Positions |
9 |
| Electrical Requirement |
220V Single Phase |
| Shipping Weight |
6,614 lbs |
| Shipping Dimensions |
295 x 30 x 43 inches |
For those working with large, heavy-duty vehicles, the NTR-24 provides the strength, stability, and safety necessary for efficient service and repair. Upgrade your shop with the power and reliability of this premium four-post lift today.
