Description

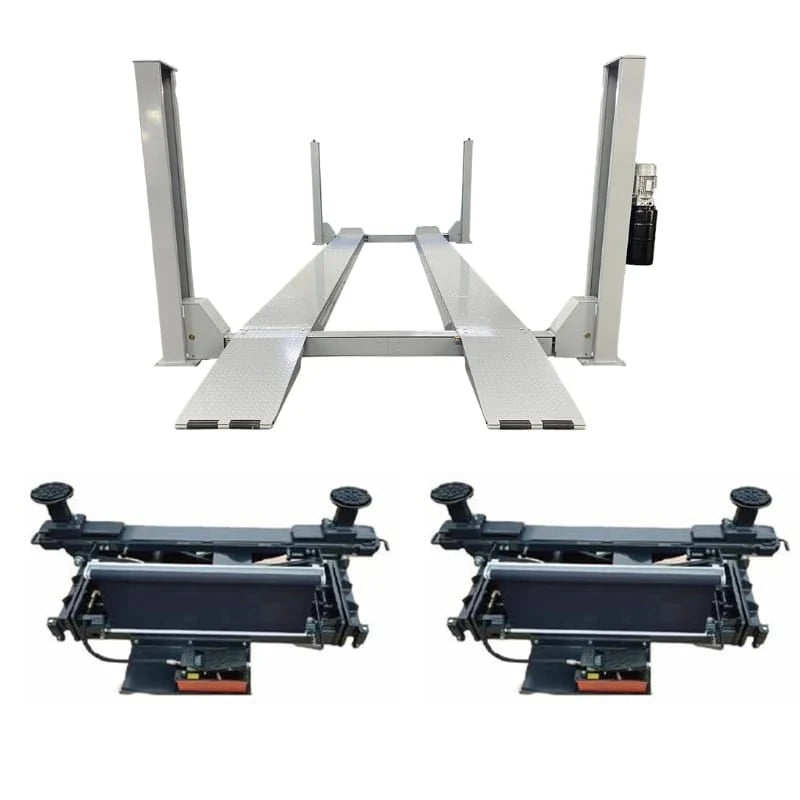

The Triumph NTR-32 is a 32,000-lb. capacity four-post lift built for the heavy end of commercial service — buses, box trucks, fleet duallies, RVs, and stretched chassis. This combo pairs the lift with two RJ-15 rolling bridge jacks (15,000 lbs. each) so an axle, brake, or wheel job can be done at working height without rolling a separate floor jack across the bay.
The lift runs on a 220V single-phase circuit, holds positions at 9 mechanical locks, and reaches a 70.8" maximum lifting height. Runways are 24" wide and 295.2" long, with adjustable spacing of 48.75"–52.7" between runways to fit a wide range of wheelbases and track widths.
Each RJ-15 rolling jack ships with two sets of height adapters (5" and 6.75"), lifts 15,000 lbs., and travels from a lowered height of 15.3" to a maximum of 28.3". The jack's pad spacing adjusts between 42.6" and 68.7" and is compatible with runway widths from 48.7" to 55" — matching the NTR-32's adjustable runway spacing.
Features
-
32,000-lb. lift capacity for heavy commercial vehicles, buses, and large fleet equipment
-
Two 15,000-lb. RJ-15 rolling bridge jacks included — work an axle without leaving the lift
-
9 mechanical lock positions for adjustable, secure working heights
-
70.8" maximum lifting height with a 9" minimum runway height for low-clearance loading
-

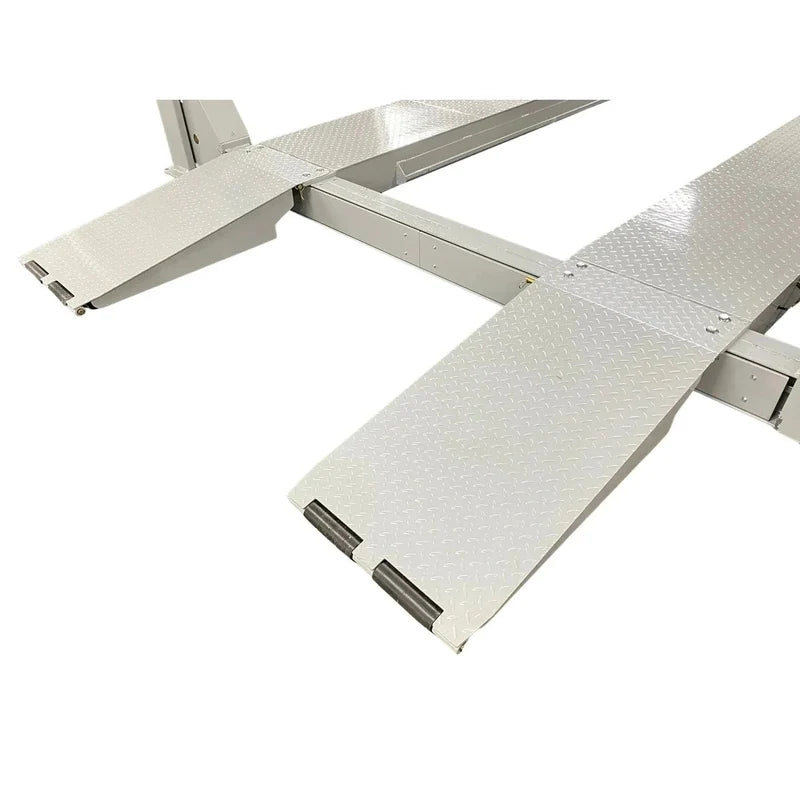

24" wide diamond-plate runways, 295.2" long, with approach ramps
-
Adjustable runway spacing from 48.75" to 52.7" to fit a wide range of track widths
-
4.0 kW power pump with aluminum motor and metal tank
-
Pneumatic lock release with 4-cylinder air circuit
-
Cable break-proof device, parachute valve, and anti-falling wheel stopper as standard safety hardware
-
RJ-15 jacks include 5" and 6.75" height adapters for precise jack-pad placement under varied chassis
-
Height-adapter blocks raise the jack pad to clear deeper frames and pinch welds
What's Included
-
1 × Triumph NTR-32 four-post lift (four columns, two runways, cross-tie, approach ramps, 4.0 kW power unit)
-
2 × Triumph RJ-15 15,000-lb. rolling bridge jacks
-
Per jack: one set of 5" height adapters and one set of 6.75" height adapters
Specifications
Triumph NTR-32 Lift Specifications
| Specification | Details |
|---|---|
| Capacity | 32,000 lbs. |
| Overall Height | 93.1" |
| Overall Length Without Approach Ramps | 305.5" |
| Overall Length With Approach Ramps | 344.6" |
| Overall Width | 168.7" |
| Minimum Runway Height | 9" |
| Maximum Lifting Height | 70.8" |
| Runway Length | 295.2" |
| Runway Width | 24" |
| Width Between Runways | 48.75"–52.7" |
| Width Between Columns | 139.2" |
| Number of Lock Positions | 9 |
| Lock Release | Pneumatic, 4-Cylinder |
| Power Pump | 4.0 kW, Aluminum Motor, Metal Tank |
| Electrical Requirement | 220V Single Phase |
| Shipping Weight | 9,037 lbs. |
| Shipping Dimensions | 301 × 30 × 43 in. |
Triumph RJ-15 Rolling Bridge Jack Specifications (Each, Qty. 2)
| Specification | Details |
|---|---|
| Capacity | 15,000 lbs. |
| Lowered Height | 15.3" |
| Maximum Lifting Height | 28.3" |
| Minimum Width Between Pads | 42.6" |
| Maximum Width Between Pads | 68.7" |
| Minimum Width Between Runways | 48.7" |
| Maximum Width Between Runways | 55" |
| Included Height Adapters | 5" and 6.75" (One Set Each) |
| Shipping Weight | 661 lbs. |
| Shipping Dimensions | 51 × 33 × 17 in. |
1 Per the Triumph NTR-series comparison spec sheet shown below.
Triumph NTR-32 32,000 lb. 4 Post Lift + Two RJ-15 Rolling Jacks Combo Dimensions
Dimensions (decode using the inline spec-comparison image).
Triumph NTR-series spec comparison table covering NTR-16, NTR-24, and NTR-32 capacities, lifting heights, runway dimensions, power pump, and safety hardware.
Triumph NTR-series spec comparison sheet — NTR-32 column reflects the values in the table above.
Warranty
Triumph lifts ship with a 1-year parts warranty. Triumph troubleshoots the issue by phone, then ships the replacement part — both the part and ground shipping at no cost during the warranty window. Hydraulic cylinders carry a 30-day full warranty; after 30 days, Triumph provides a seal kit. Labor for installing replacement parts is not covered. Rubber lifting pads are not covered.
